VEKTEK TuffCam™ Series Swing Clamp Cylinders (Type C, Top Flange Mount)
General Overview

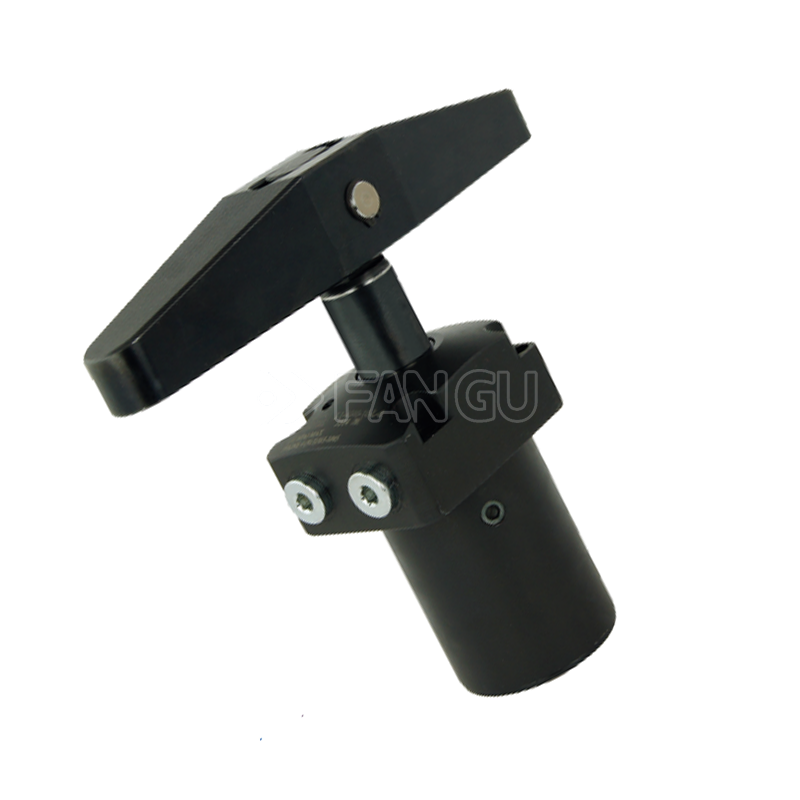

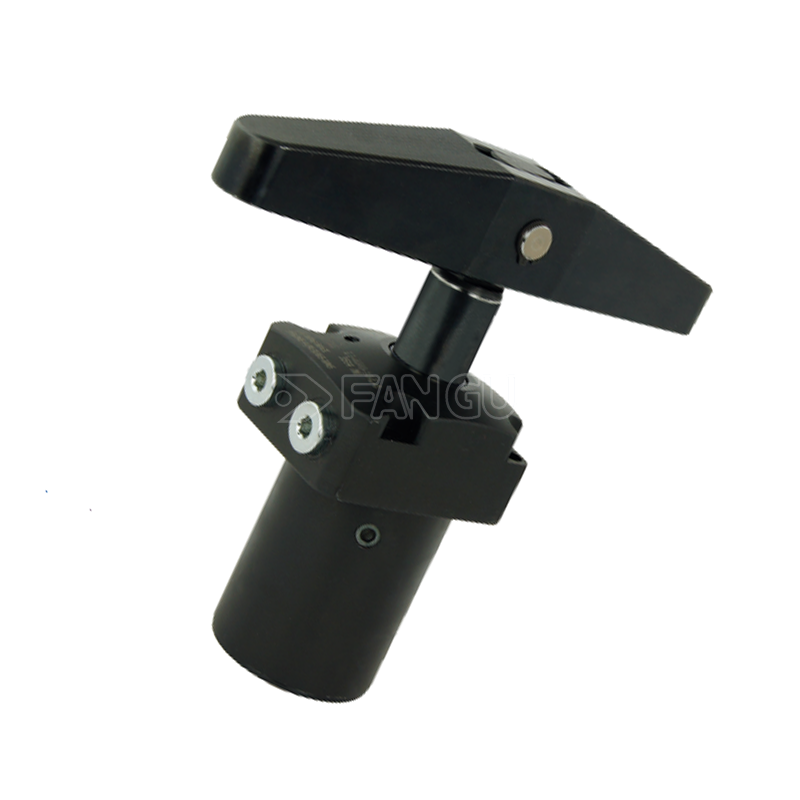

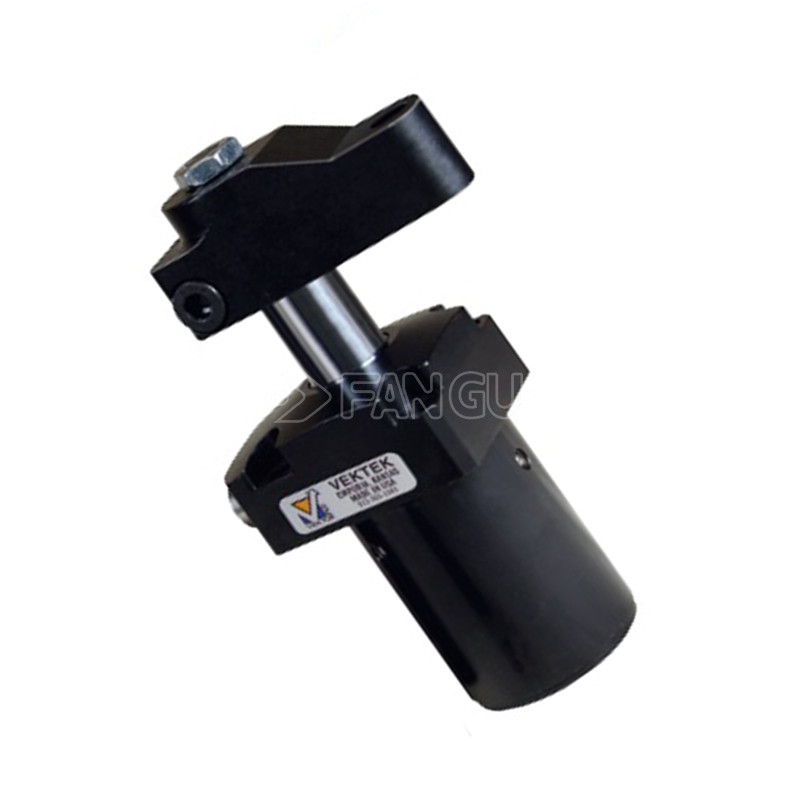

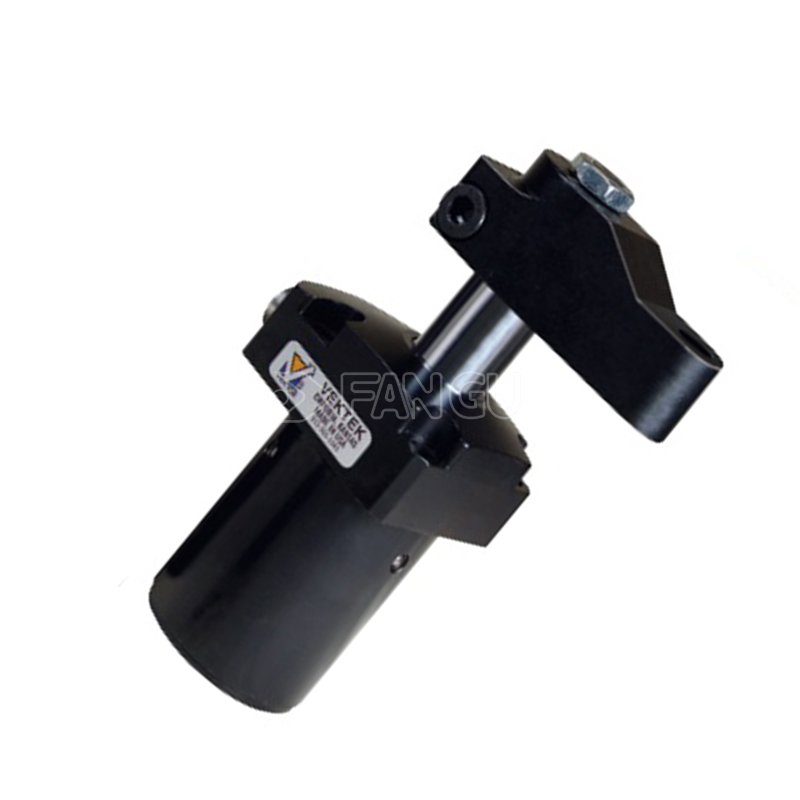

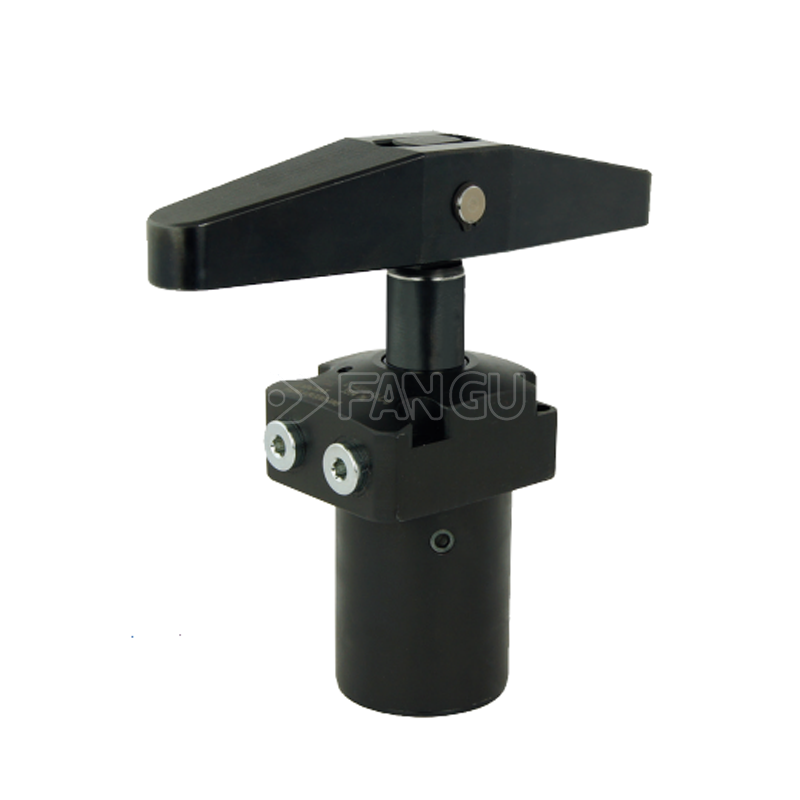

VEKTEK TuffCam™ Type C swing clamp cylinders are hydraulic swing clamping cylinders with top flange mounting, widely used in machining fixtures for automated workpiece clamping. Under hydraulic drive, the clamping arm rotates horizontally and descends vertically to lock the workpiece; reverse hydraulic pressure lifts and rotates the arm away for workpiece loading and unloading. This integrated swing-and-clamp design saves fixture space and realizes automated clamping cycles.
Typical Applications:
- CNC machining automated clamping fixtures
- Automotive component welding & machining jigs
- Mass production assembly tooling
- Milling, drilling and tapping production lines
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- TuffCam™ Cam Swing Mechanism: Reliable cam-driven structure, smooth rotation and straight-line clamping movement.
- Top Flange Mounting: Square top flange plate with mounting holes, convenient installation on fixture base plates.
- Left / Right Rotation Options:
- Suffix L: Left-hand rotation
- Suffix R: Right-hand rotation
- Hardened piston rod and heavy-duty clamping arm, strong resistance to cutting vibration and impact loads.
- Compact integrated body, optimized layout for dense fixture arrangements.
- Standard side hydraulic ports for easy hose connection.
- Optional anti-rotation structure and position sensor mounting interface upon request.
- Combined rotary movement and vertical clamping, ideal for automated fixture systems.
- Rugged TuffCam™ cam mechanism ensures long service life under continuous cyclic operation.
- Top flange mounting enables quick fixture integration.
- Left or right rotation direction available to match different fixture layouts.
- High rigidity clamping arm prevents loosening under machining vibration.
- Multiple sizes cover various clamping force requirements.
