Dalian VEKTEK Type C Swing Clamp Cylinders with Bottom Flange Mounting Rotation Direction Options
Standard Model List
- L1-4125-00-L(R)
- L1-4132-00-L(R)
- L1-4140-00-L(R)
- L1-4150-00-L(R)
- L1-4163-00-L(R)
- L1-4180-00-L(R)

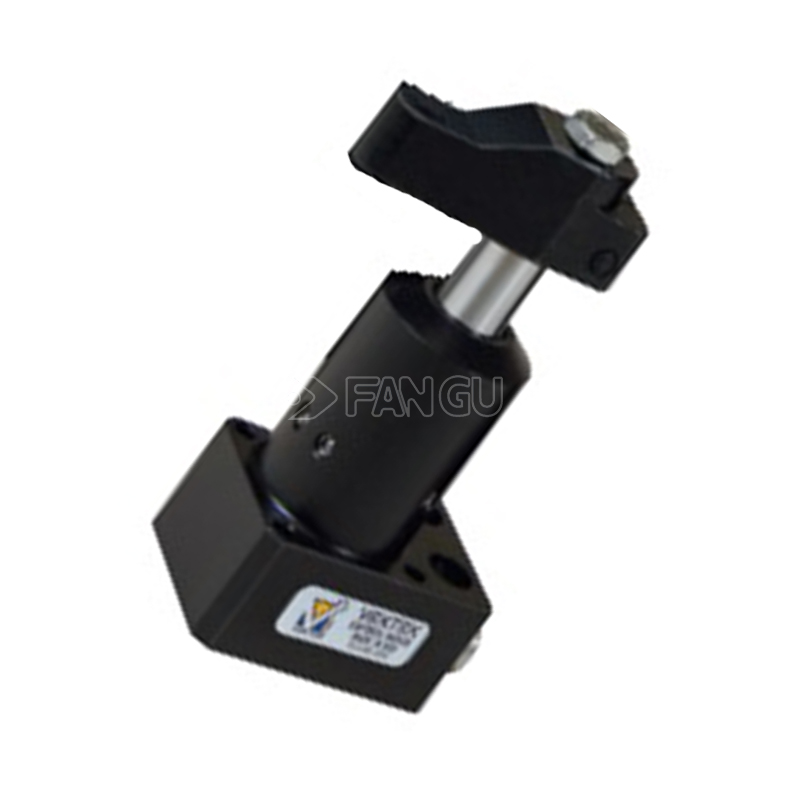

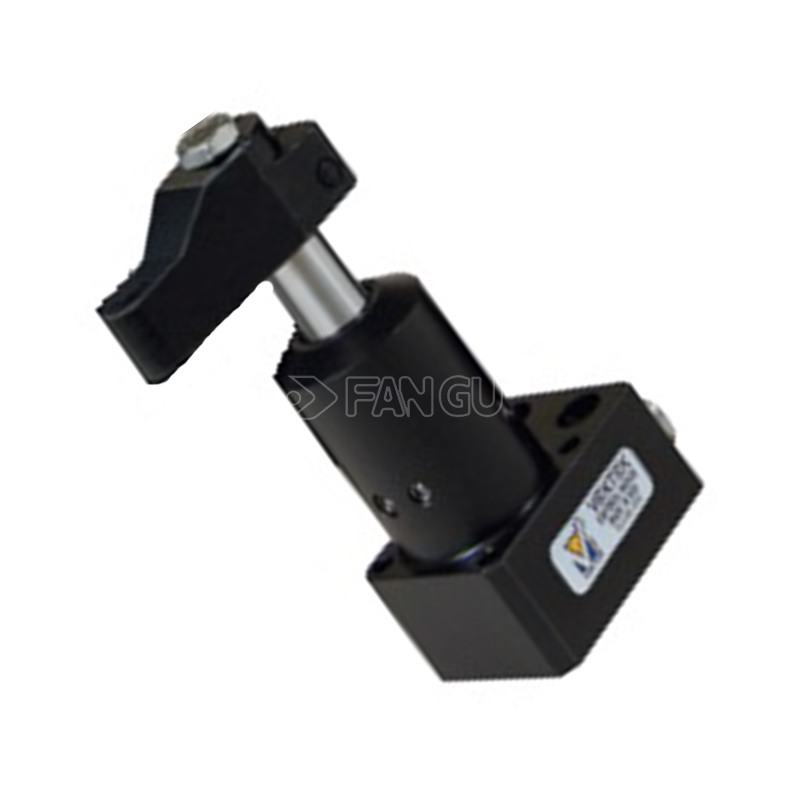

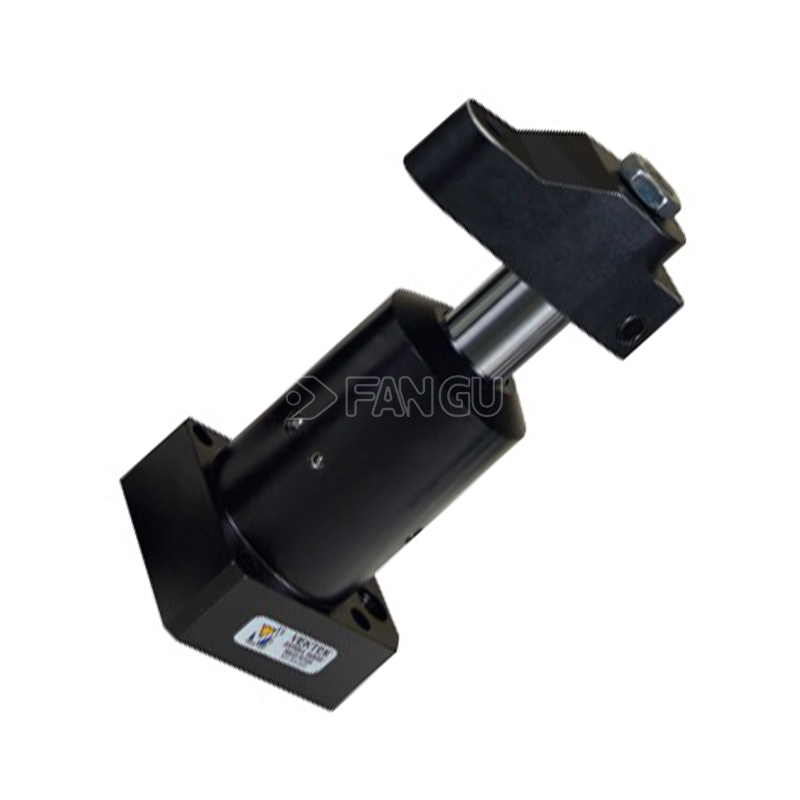

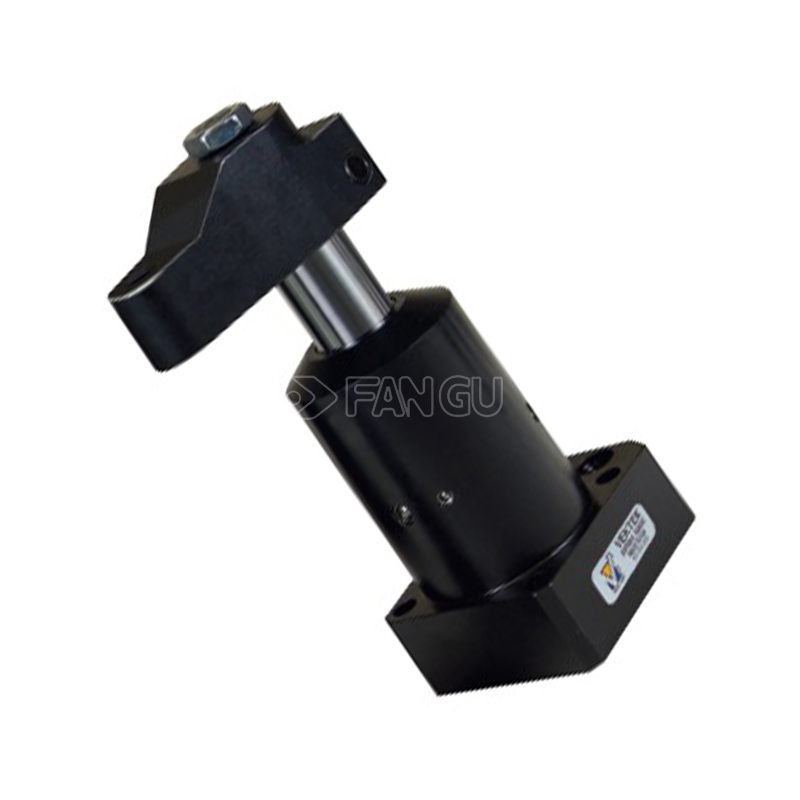

VEKTEK TuffCam™ Type C Swing Clamp Cylinders (Bottom Flange Mount)
General Overview
VEKTEK TuffCam™ Type C swing clamp cylinders with bottom flange mounting are hydraulic rotary clamping cylinders designed for automated machining fixtures. Driven by hydraulic pressure, the clamping arm performs horizontal rotation followed by vertical downward movement to lock workpieces securely. When hydraulic pressure reverses, the arm lifts and rotates away, enabling convenient workpiece loading and unloading. This integrated swing-and-clamp structure optimizes space utilization for fixture systems.
Typical Applications
- Automated CNC machining clamping fixtures
- Automotive component machining and welding jigs
- Precision part assembly tooling
- Milling, drilling and tapping production lines
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Patented TuffCam™ Cam Swing Mechanism: Precision cam structure delivers smooth rotary motion and stable vertical clamping stroke, built for long-term cyclic operation.
- Bottom Flange Mounting: Square base flange with mounting holes, suitable for surface installation or embedded assembly on fixture plates.
- Rotation Direction Options:
- Suffix L: Left-hand rotation
- Suffix R: Right-hand rotation
- Heavy-duty hardened piston rod and robust clamping arm, resistant to vibration and impact loads during cutting processes.
- Compact monoblock cylinder body for high mechanical rigidity.
- Side-mounted hydraulic ports for flexible hose routing.
- Optional configuration for proximity sensors to detect clamping status.
- Integrated rotary and clamping movement, ideal for automated production fixtures.
- Bottom flange layout provides stable base mounting and simplifies fixture design.
- Durable TuffCam™ cam mechanism extends service life under frequent repeated cycles.
- Left or right rotation versions available to adapt to various fixture layout requirements.
- High rigidity clamping arm prevents loosening under machining vibration.
- Multiple sizes cover a wide range of clamping force requirements.
