Japan Pascal Link clamp 7MPa Double acting Clamp sensor model CLM-C CLM04-FC CLM04-RC CLM05-FC CLM05-RC CLM06-FC CLM06-RC CLM10-FC CLM10-RC

CLM‑C is a 7MPa double‑acting clamp sensing link clamp from PASCAL Japan. Designed for precision machining, automated lines, and rapid mold change, it features hydraulic clamping/unclamping and a built‑in clamp sensor for precise clamp‑end and over‑clamp detection.

Category: OEM Japan PASCAL hydraulic cylinder Tag: Pascal Link clamp CLM-C

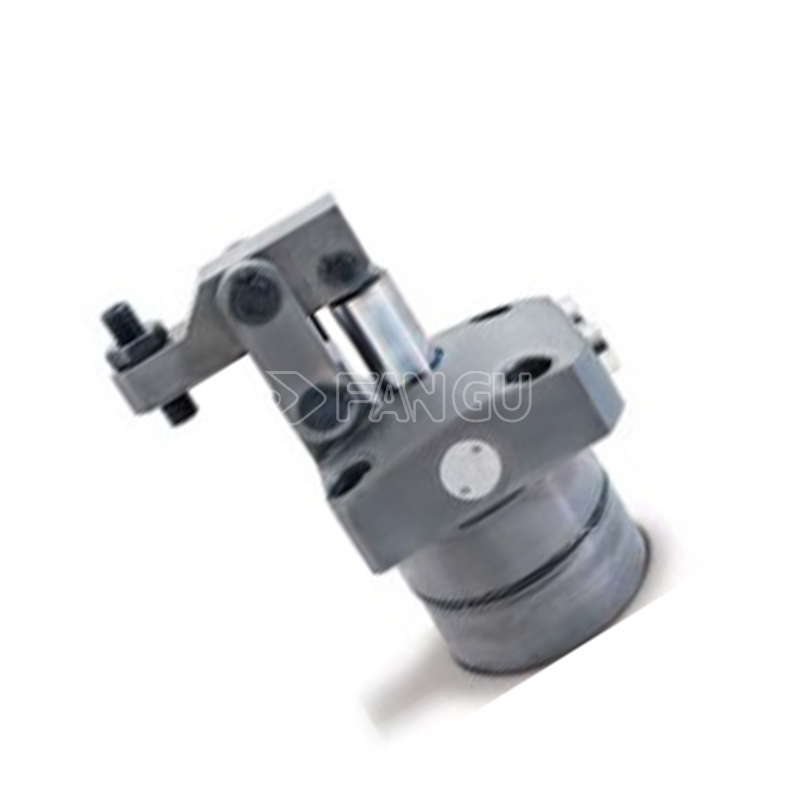

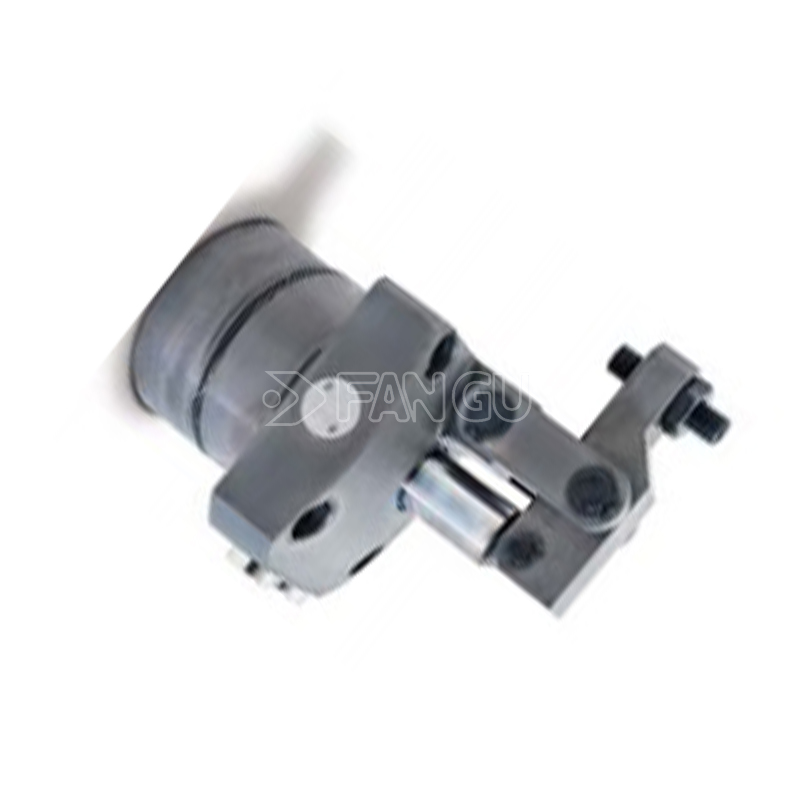

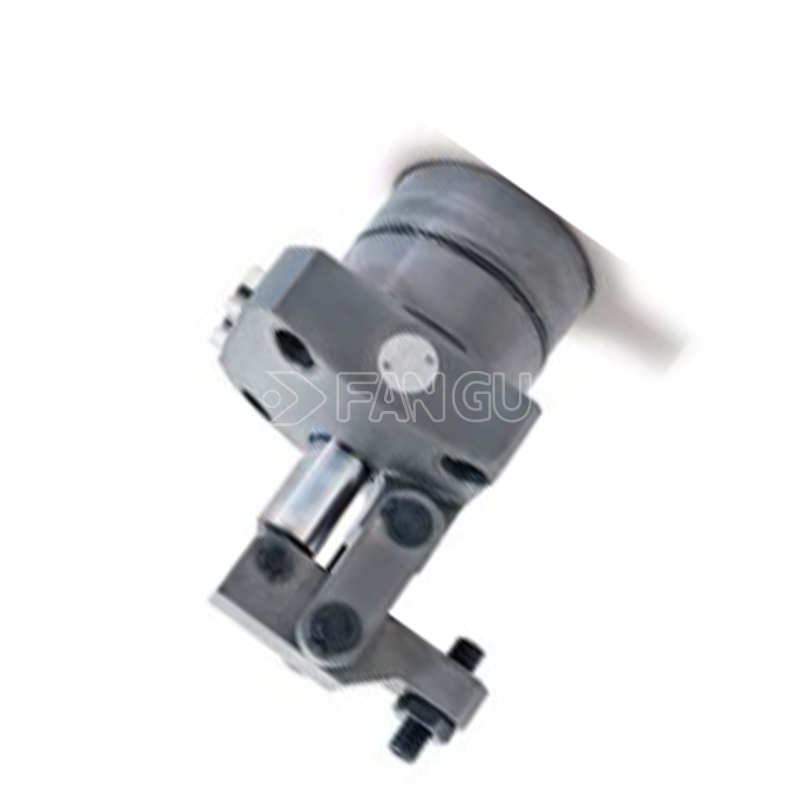

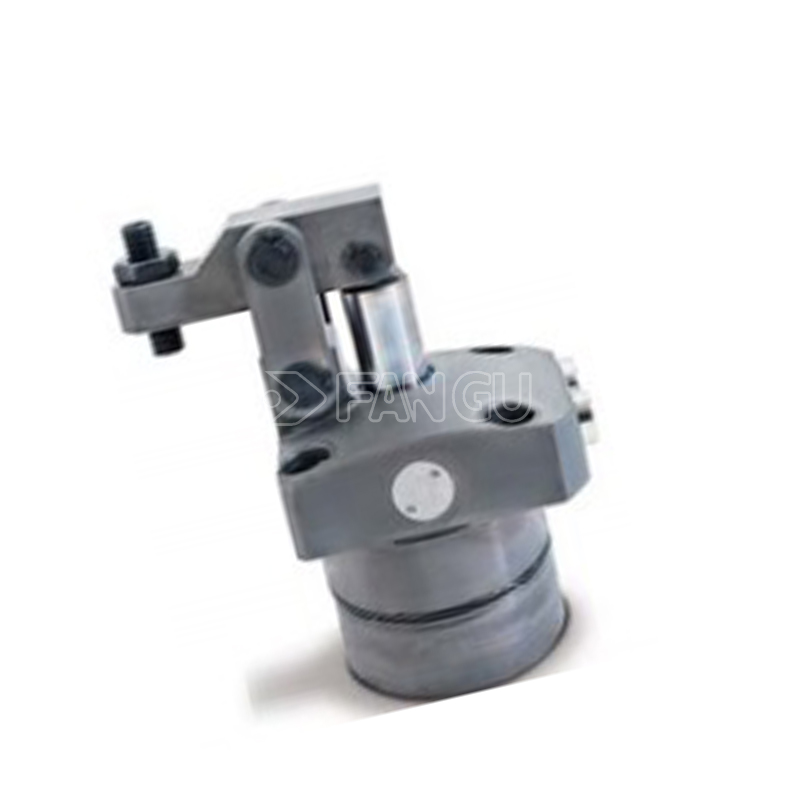

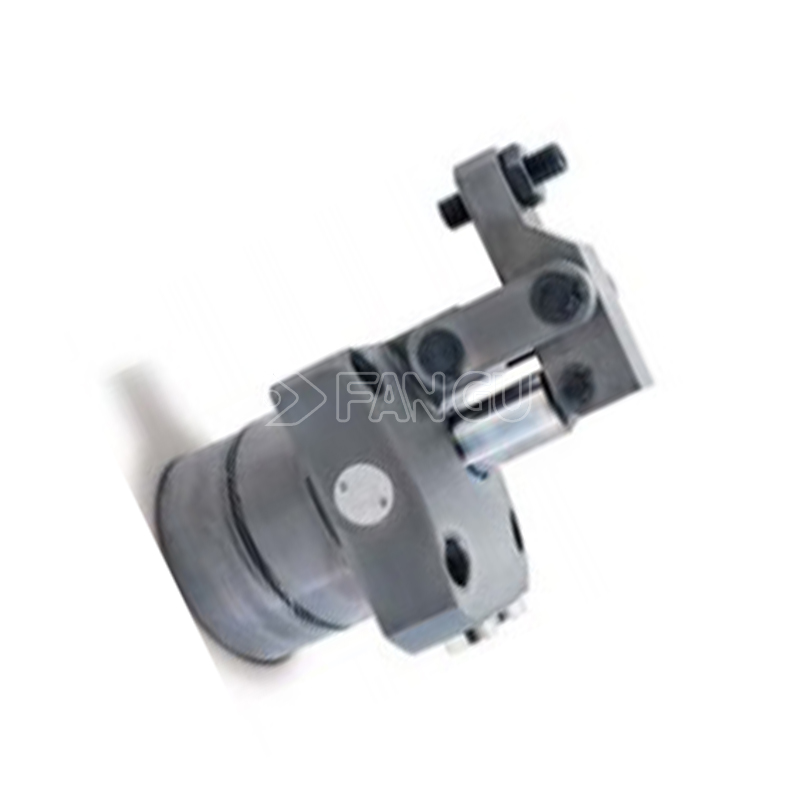

Product Introduction: Pascal CLM‑C Series Clamp Sensing Link Clamp

Overview

CLM‑C is a 7MPa double‑acting clamp sensing link clamp from PASCAL Japan. Designed for precision machining, automated lines, and rapid mold change, it features hydraulic clamping/unclamping and a built‑in clamp sensor for precise clamp‑end and over‑clamp detection. It prevents machining errors, tool breakage, and workpiece scrap caused by improper clamping, making it ideal for unmanned continuous production.

Q: What’s the MOQ of customized tie-rod cylinder?

A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.

Q:What’s the lead time of customized tie-rod cylinder?

A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.

Q: Are you the manufacturer of hydrualic cylinder?

A: Sure, we are the manufacutuer and trading of hydraulic cylinder.

Q: What is the difference between double acting and single acting cylinders?own controlled by the pump or the valve or is it only one speed?

A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through

a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.

Q: I have a drawing, could you customized cylinder as my drawing?

A: Sure. Show us the drawing, we will quote for you soonest.

Q: Could you make the cylinder which is not on the above data sheet?

A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

7MPa double‑acting hydraulic actuation for stable, consistent motion.
Built‑in clamp sensing for precise clamp‑end and over‑clamp detection, eliminating machining errors.
Linkage mechanism amplifies clamping force with high rigidity and low vibration.
High protection against chips and coolant for harsh workshop environments.
Flat mounting requires no embedded machining, simplifying fixture design.
Multi‑directional mounting (F/L/R) for flexible layout.
Internal sensor design avoids chip buildup and simplifies fixture structure.
Low maintenance and long service life for high‑frequency operation.

Automotive precision machining: Engine components, transmission housings, chassis parts.
Mold machining: Die steel, cavities, mold bases for rapid changeover.
General machining: Hardware, sheet metal, small precision parts in unmanned lines.
High‑density fixturing: Narrow spaces, multi‑fixture layouts for maximum space efficiency.
