Multi-purpose Usage Pascal Brand Swing clamp 7MPa Single acting Standard model CTT CTT01-L/R CTT02L/R CTT04L/R CTT06L/R CTT10L/R CTT16L/R CTT25L/R Premium Material

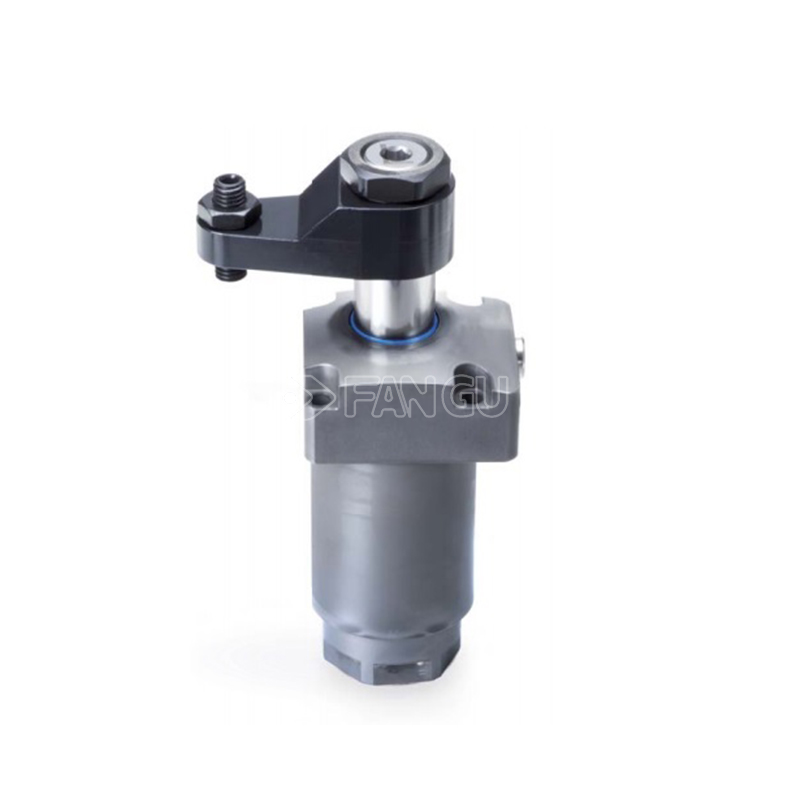

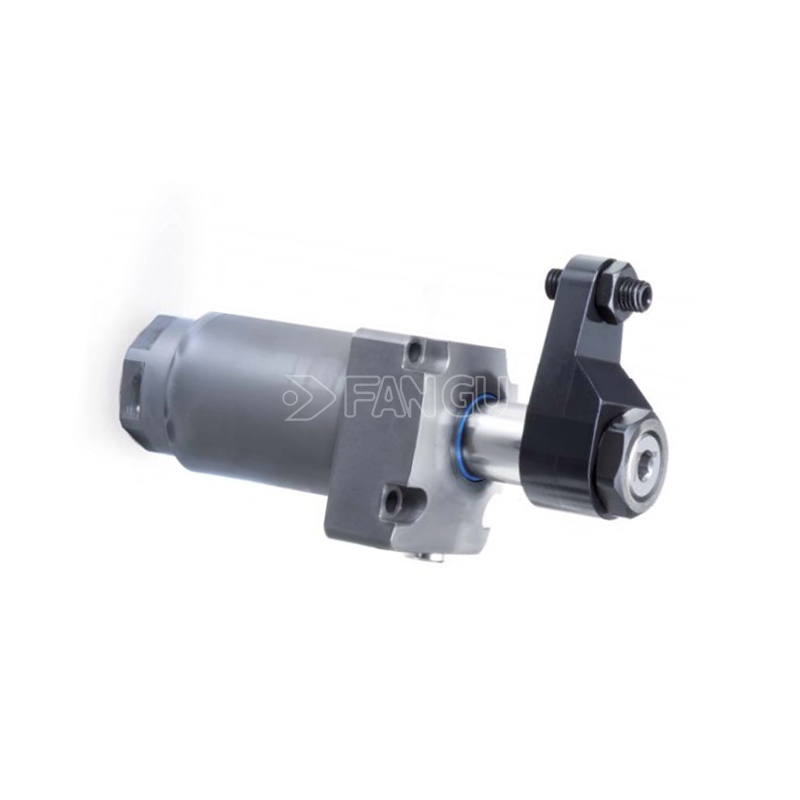

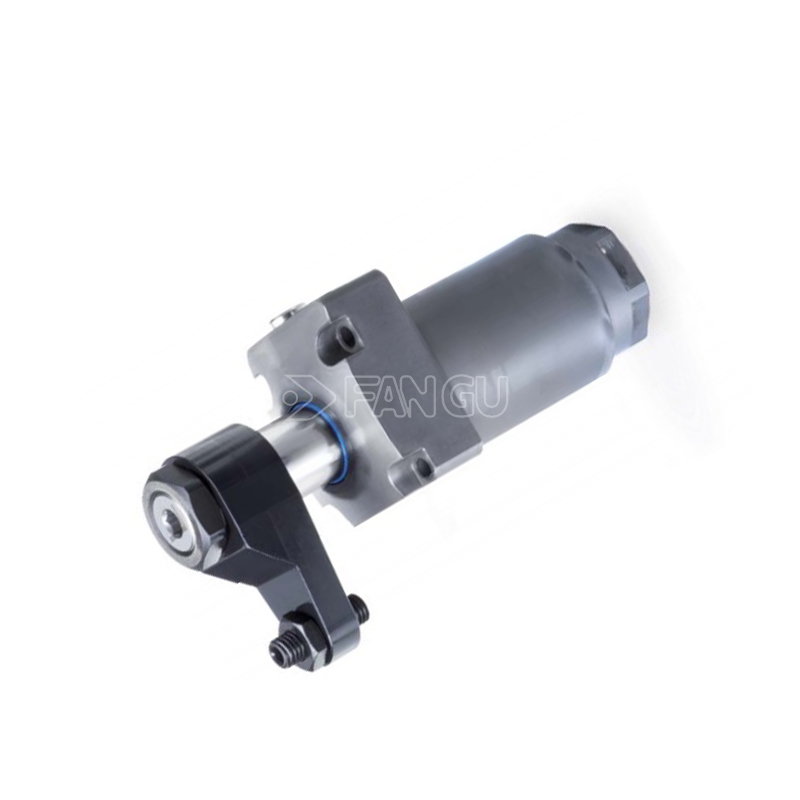

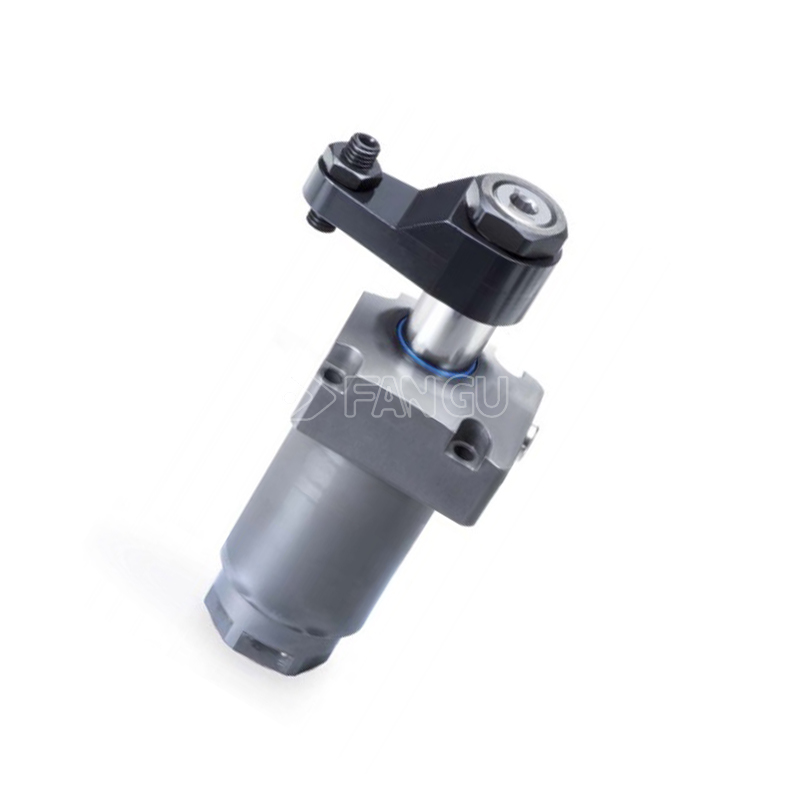

Product Introduction: Pascal CTT Series Swing Clamp
Overview
Pascal CTT is a 4MPa double-acting hydraulic swing clamp manufactured by PASCAL Japan. It features an ultra-thin, ultra-compact, flat-mount design ideal for ultra-small installation spaces, thin fixture plates, and high-density multi-station applications.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Ultra-thin & ultra-compact design saves maximum space.
- Flat mounting requires no embedded machining, simplifying fixture design.
- 4MPa double-acting hydraulic system ensures stable, high-speed operation.
- High protection against chips and coolant for reliable long-term use.
- Rotation direction: L (left) / R (right) for flexible layout.
- Driving mode: 4MPa double-acting hydraulic
- Operating pressure: 1–4MPa
- Swing angle: 90°
- Rotation: L / R
- Hydraulic oil: ISO-VG32 mineral oil
- Operating temperature: 0–70°C
