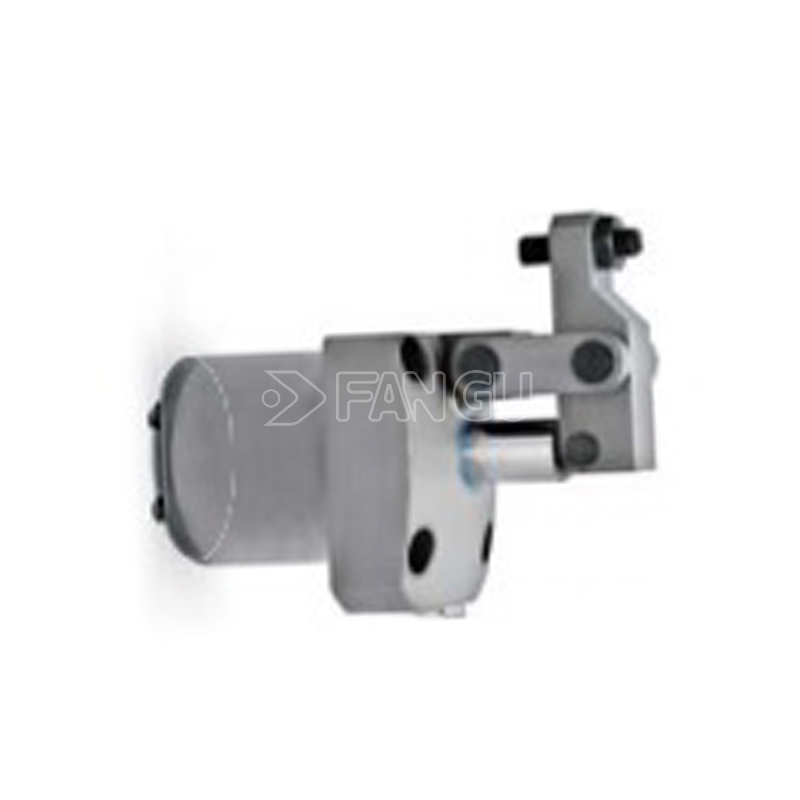

Japan Pascal Link clamp 7MPa Single acting Unclamp sensor model CLN-B CLN04-LB CLN04-FB CLN04-RB CLN05-LB CLN05-FB CLN05-RB CLN06-LB CLN06-FB CLN06-RB
The Pascal CLN‑B is a 7MPa single-acting hydraulic link clamp with built-in PAR unclamp sensor, featuring hydraulic clamping and spring return. It enables precise unclamp terminal detection, ideal for precision machining, automated production lines, rapid mold change, and high-density fixturing in unmanned workshops.
Main Models: CLN04-LB CLN04-FB CLN04-RB CLN05-LB CLN05-FB CLN05-RB CLN06-LB CLN06-FB CLN06-RB etc.
Product Introduction: Pascal CLN‑B (7MPa Single‑acting Unclamp Sensing Link Clamp)
Product Overview
The Pascal CLN‑B is a 7MPa single-acting hydraulic link clamp with built-in PAR unclamp sensor, featuring hydraulic clamping and spring return. It enables precise unclamp terminal detection, ideal for precision machining, automated production lines, rapid mold change, and high-density fixturing in unmanned workshops.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Precise unclamp sensing: Built-in PAR detector linked to the piston rod for accurate unclamp detection, supporting automated interlock and fault alarm.
- Internal sensor design: Avoids detection failure caused by chips/coolant buildup in harsh environments.
- 7MPa high-pressure drive: Delivers high clamping force in a compact, rigid design.
- Single-acting structure: Simple, reliable, low maintenance for high-frequency operation.
- Compact & lightweight: Suitable for narrow spaces and high-density fixturing.
- Multi-directional mounting: Supports F/L/R mounting for flexible layout.
- High protection sealing: Resists chips, coolant, and cutting fluids.
- High safety margin: Rated at 7MPa with 10.5MPa proof pressure.
- Precision machining: CNC lathes, machining centers, grinders.
- Automated production: Integrated with manipulators for unmanned operation.
- Rapid mold change: High-efficiency clamping for mold bases/cavities.
- High-density fixturing: Compact installation for narrow spaces.
- Harsh environments: Internal sensor avoids detection failure.
