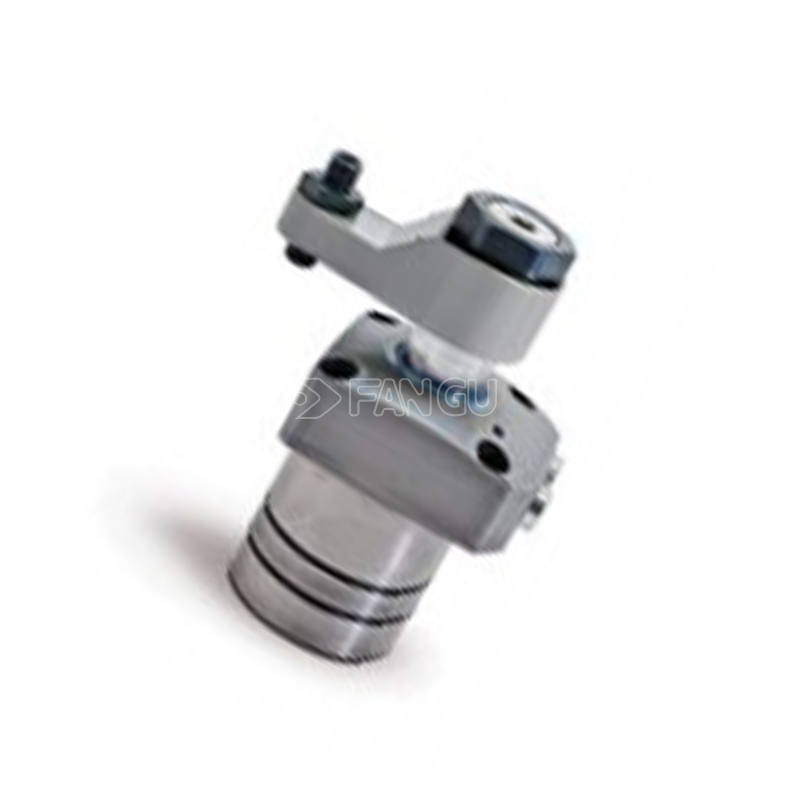

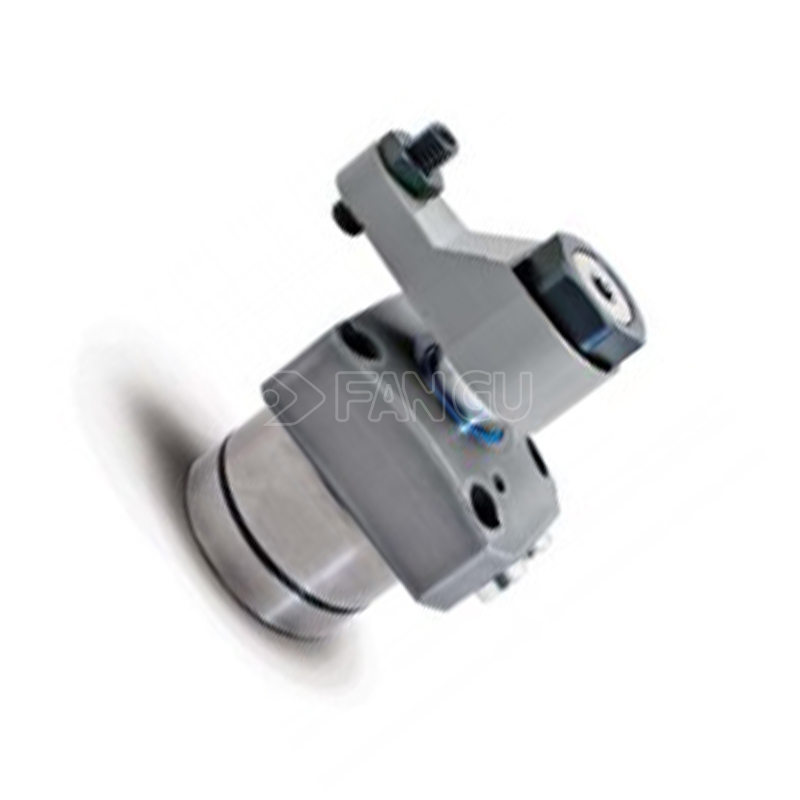

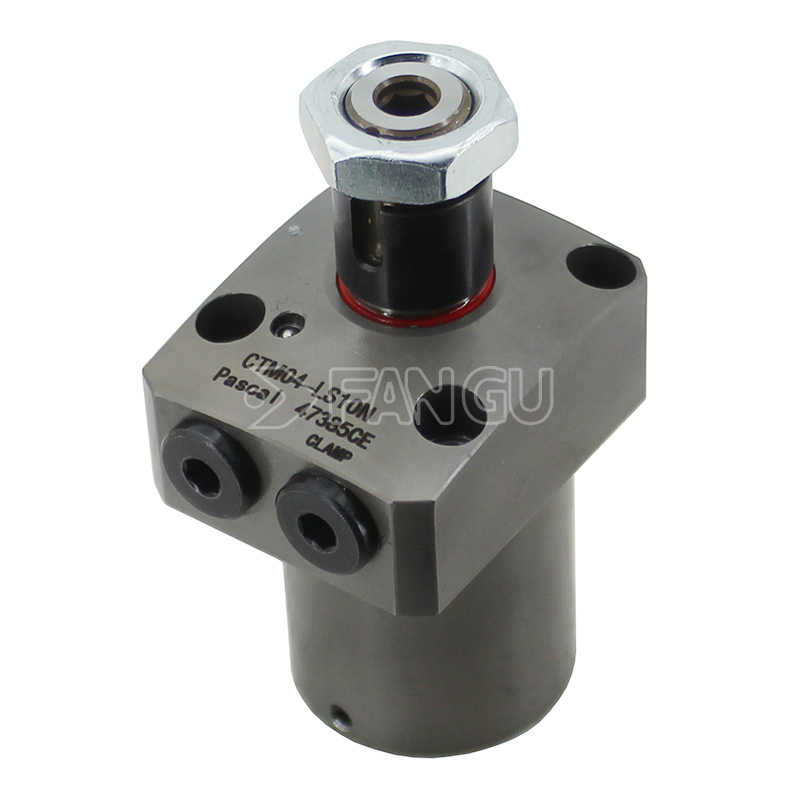

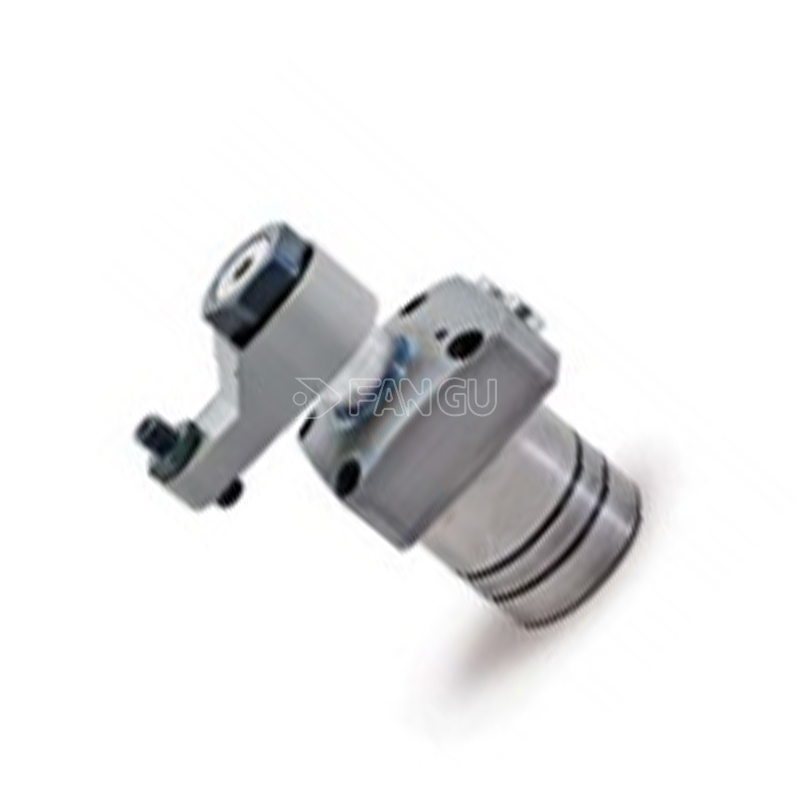

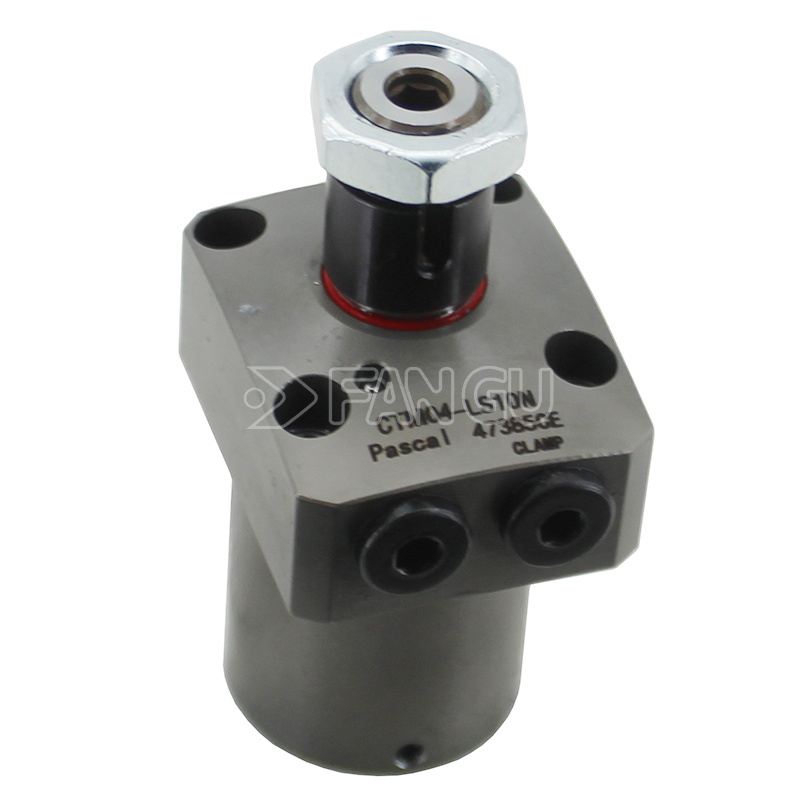

OEM Swing clamp 7MPa Double acting Clamp sensor model 5mm stroke CTM-C CTM-04LC/CTM04RC CTM-05LC/CTM-05RC CTM-06LC/CTM-06RC CTM-10LC/CTM-10RC
Product Type: 7MPa double-acting hydraulic swing clamp (clamp sensing model)
Pascal CTM‑C is a 7MPa double-acting hydraulic swing clamp launched by PASCAL Japan Co., Ltd., belonging to the CTM series with a clamp sensing function. It integrates an internal 帕尔 detector (Pawl Detector) to accurately detect clamp-in-place and over-clamp (mis-clamping) status, serving as a core actuating component for automation and error-proofing in machine tool workholding fixtures. Featuring compact structure, high reliability, built-in sensing, and strong adaptability, it is widely used in automated production lines and precision machining stations for automotive parts, mold manufacturing, and general mechanical processing, providing a classic angular downward clamping solution for unmanned clamping and error-proof machining.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Built-in Sensing for Error-Proofing：Integrated Pawl Detector realizes dual detection of clamp-in-place and over-clamp in a single circuit, eliminating tool breakage and workpiece scrap caused by mis-clamping, and meeting the error-proofing requirements of automated production lines.
Double-Acting Drive for Stability & Reliability：Hydraulic double-acting drive replaces spring reset, avoiding action deviations caused by spring fatigue and temperature deformation, with high repeat accuracy of clamping/unclamping actions and no performance attenuation during long-term use.
Compact Integration & High Space Utilization：Compact body with built-in sensing components requires no additional installation space, adapting to high-density fixtures and narrow stations, solving clamping problems for micro workholding.
Error-Proof Design: Built-in clamp/over-clamp detection eliminates mis-processing and reduces scrap rate;
High Reliability: Double-acting hydraulic drive + precise sealing, adaptable to harsh environments with low maintenance cost;
High Integration: Compact body + built-in sensing saves fixture space and adapts to high-density layouts;
Strong Versatility: 7MPa general hydraulic and universal sensing components compatible with most machining scenarios;
High Cost Performance: Integrated design realizes automated error-proofing, improving production line efficiency and safety.
