High Quality Pascal Swing clamp 7MPa Double acting Compact Model 5mm Stroke CTM-N CTM-03LN/CTM-03RN CTM-04LN/CTM04RN CTM-05LN/CTM-05RN CTM-06LN/CTM-06RN
Pascal Swing clamp 7MPa Double acting Compact Model 5mm Stroke CTM-N Hydraulic Products

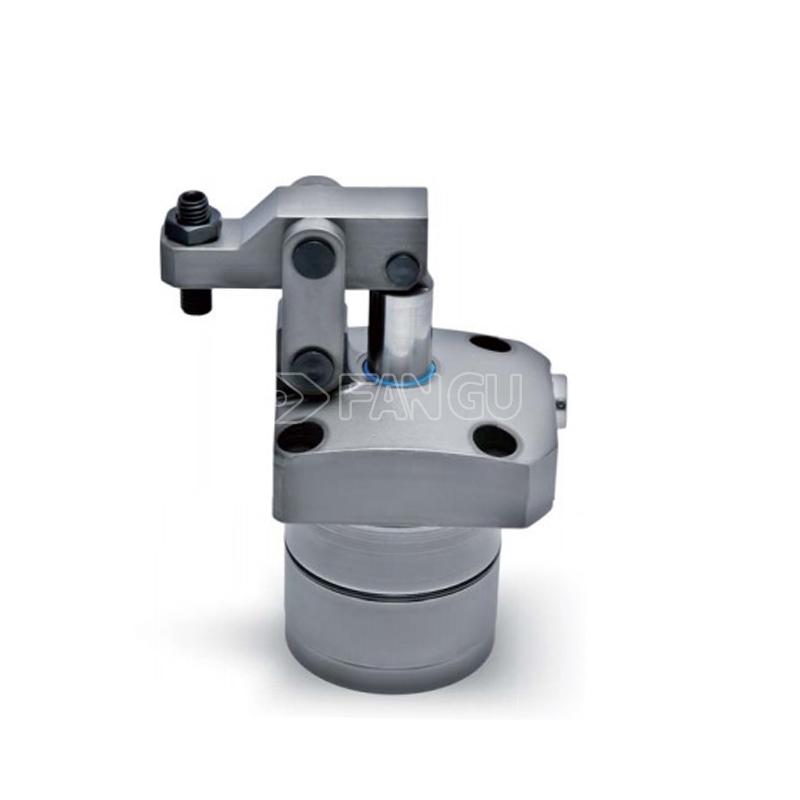

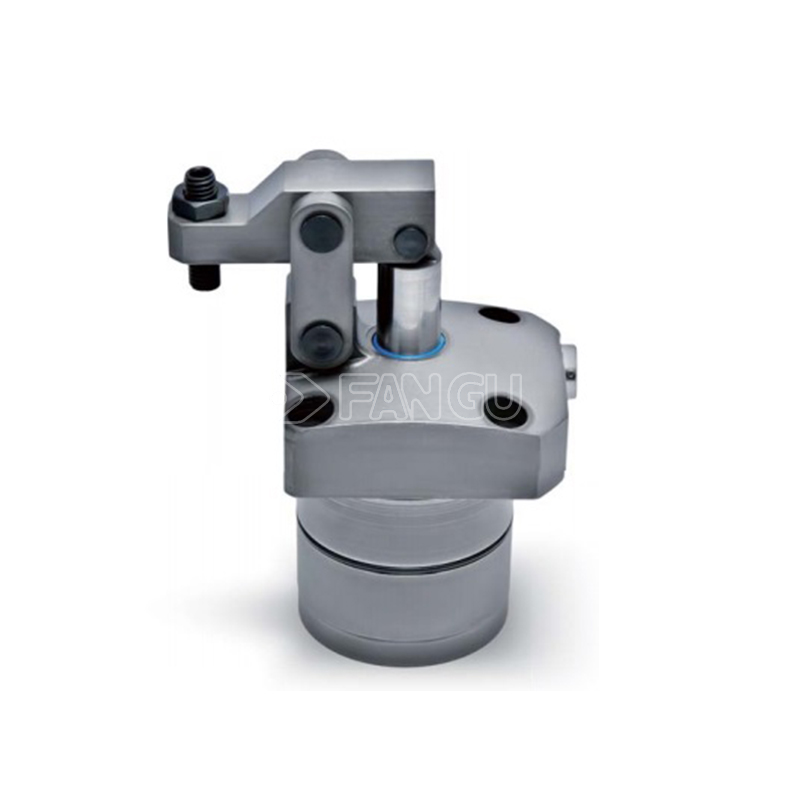

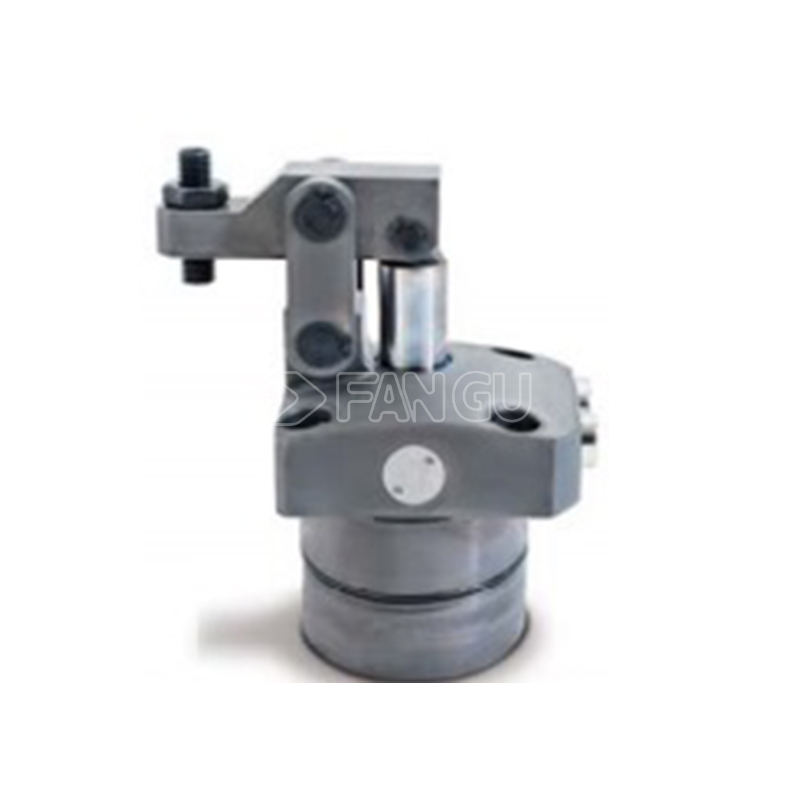

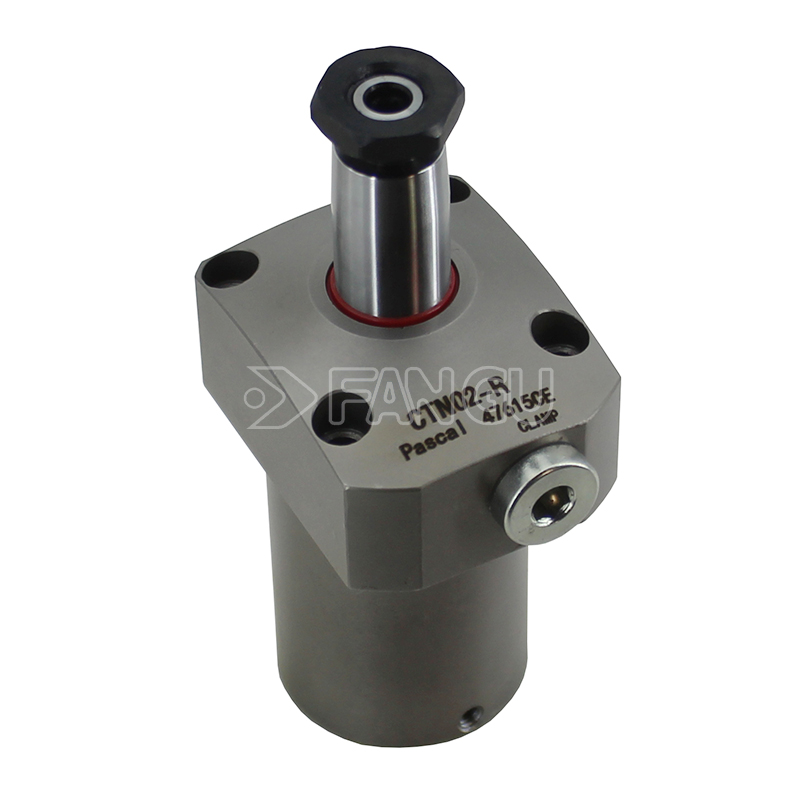

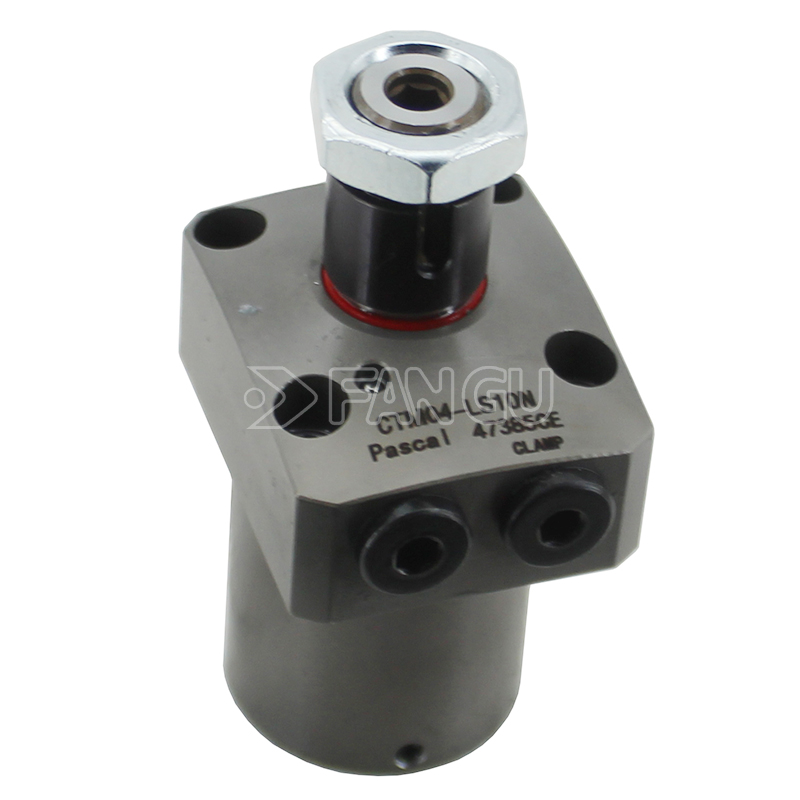

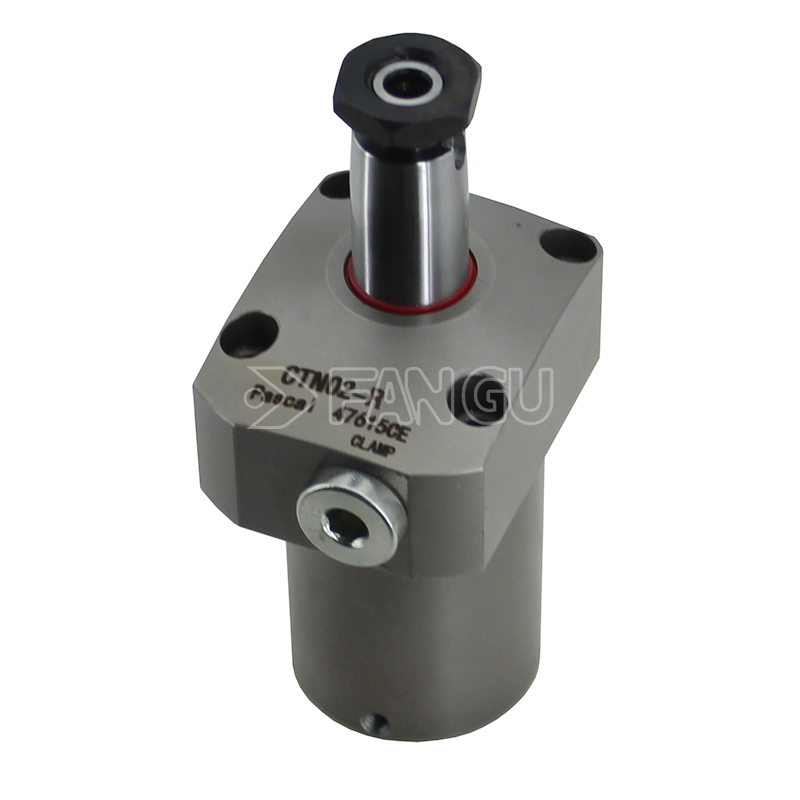

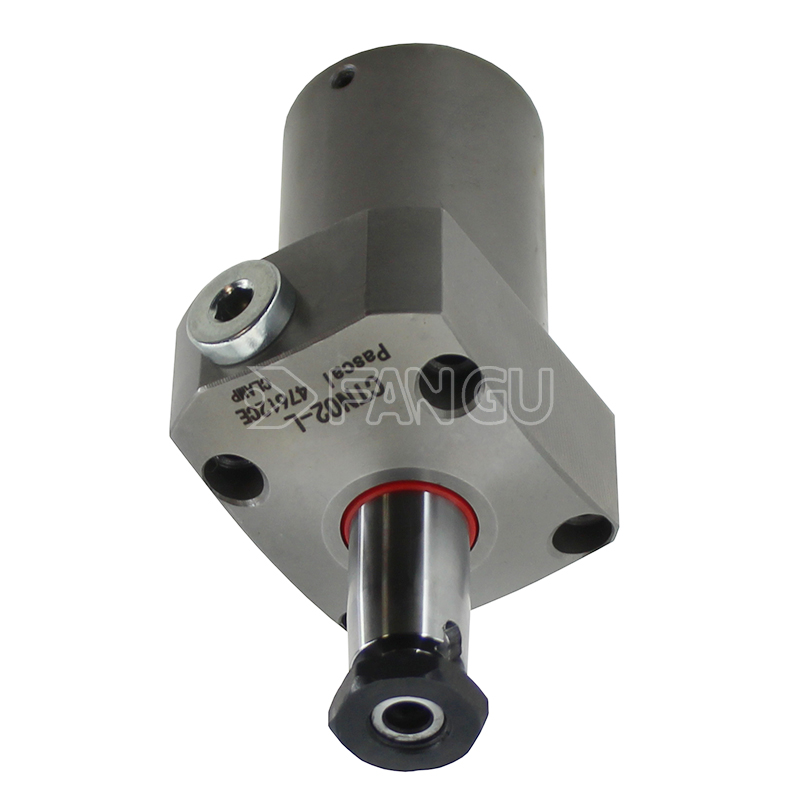

Pascal CTM-N is a 7MPa double-acting compact hydraulic swing clamp launched by PASCAL Japan Co., Ltd. As a miniaturized and highly integrated actuating component in the field of machine tool workholding fixtures, it is a classic angular downward clamping solution for precision machining stations and small automated production lines with limited installation space, featuring an extremely compact body, stable clamping performance and excellent environmental adaptability.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
1. Small Precision Parts Machining: Clamping of micro hardware parts, electronic components and precision mold inserts on CNC lathes and machining centers;
2. Space-limited Stations: Local clamping of mold cavities, small jigs and fixtures, and station clamping of high-density multi-station machine tools;
3. Small Automated Production Lines: Workpiece positioning and clamping in small parts automated assembly lines and sorting lines;
4. General Mechanical Processing: Batch machining and clamping of thin plates, small shaft parts and non-standard small workpieces.
- Unclamped State: The clamping arm rotates to the workpiece avoidance area for free loading and unloading;
- Hydraulic Clamping: High-pressure oil enters the cylinder, the piston rod extends, the clamping arm rotates to directly above the workpiece and presses down synchronously to achieve stable clamping;
- Hydraulic Unclamping: Reverse oil supply drives the piston rod to retract, the clamping arm lifts first and then rotates back to reset, completing the unclamping action;
- There is no mechanical spring assistance in the whole process, with high consistency of actions and adaptability to high-frequency continuous operations.
