Japan Pascal Link clamp 7MPa Double acting Standard model CLU02L/F/R CLU04L/F/R CLU06L/F/R CLU10L/F/R CLU16L/F/R CLU25L/F/R

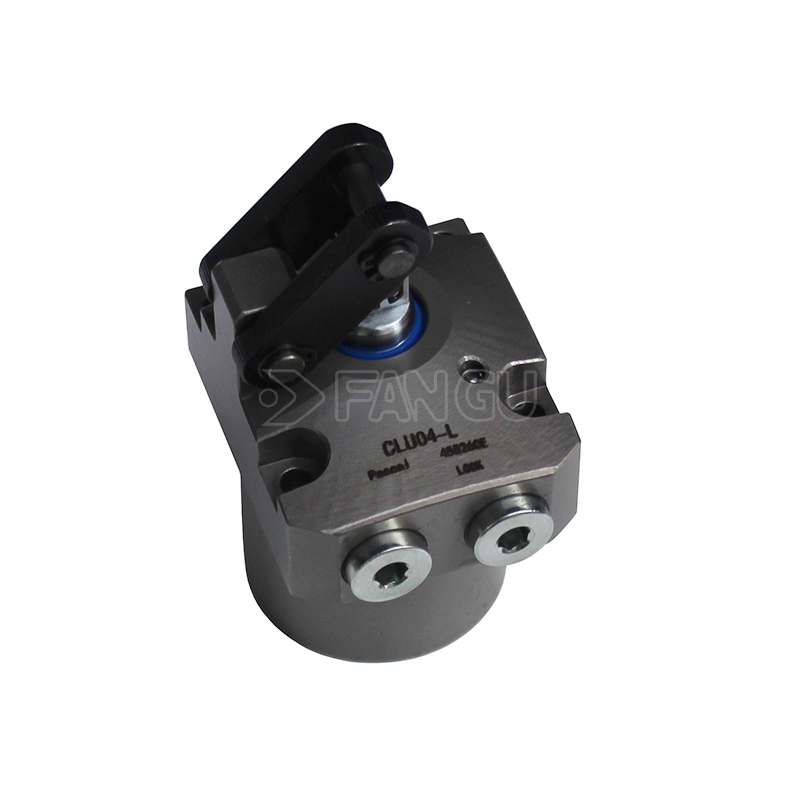

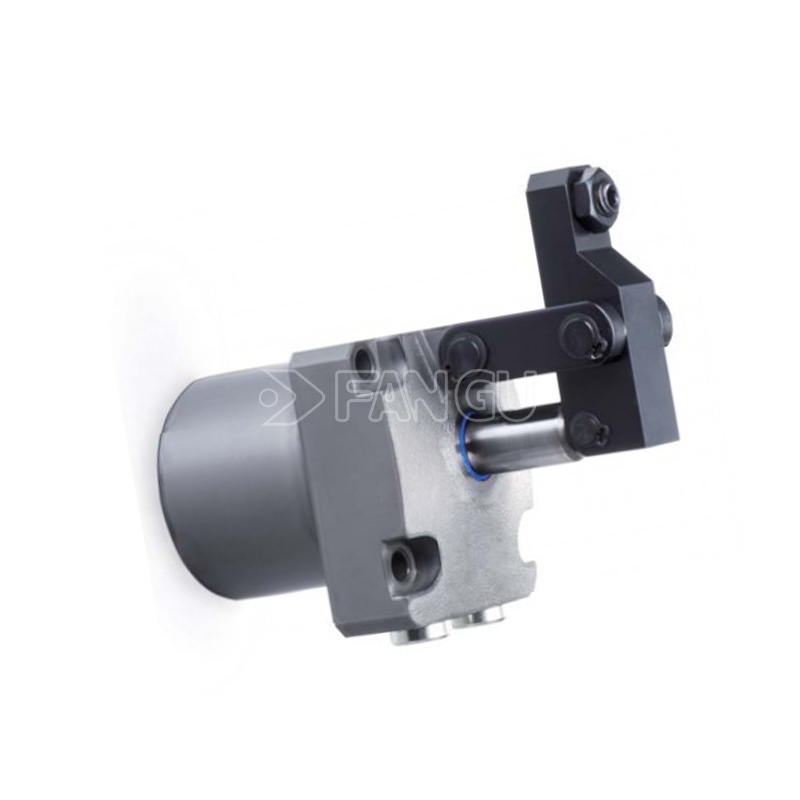

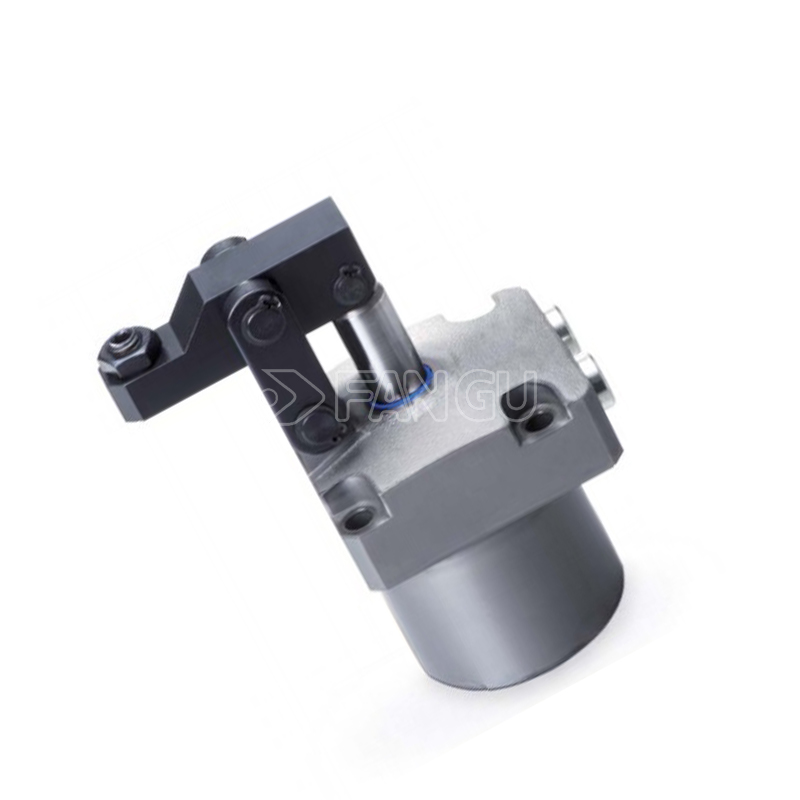

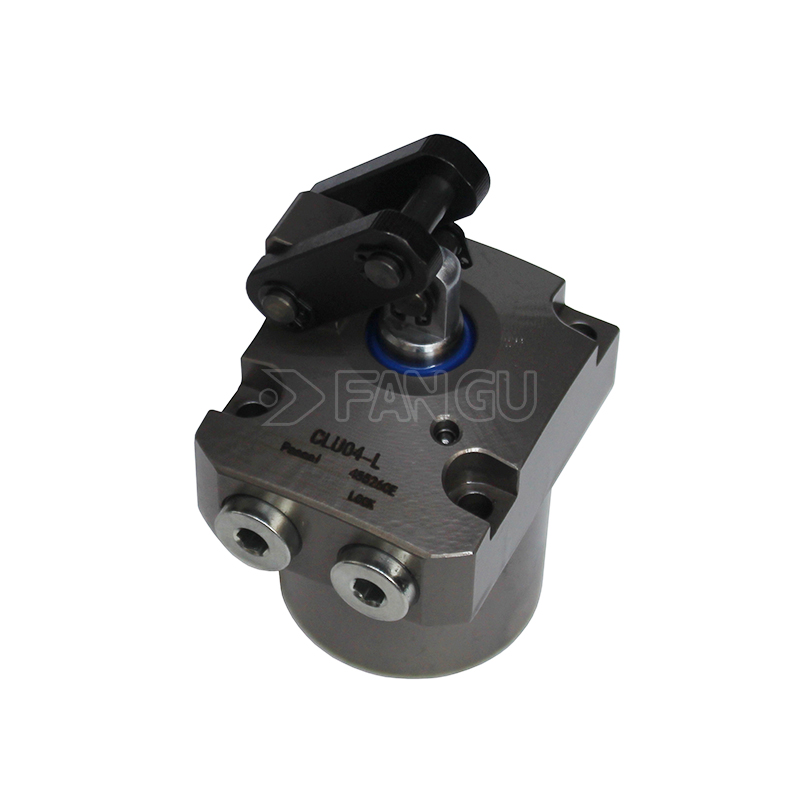

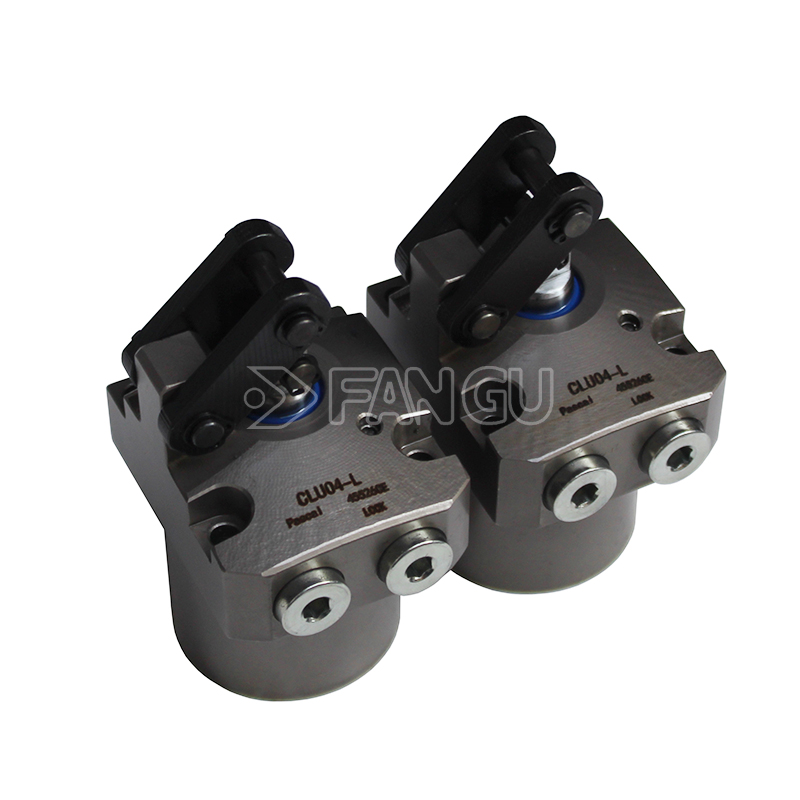

CLU is a 7MPa double-acting link clamp manufactured by PASCAL Japan. It features a compact, high-rigidity, flat-mount design ideal for automated machine tool fixtures, rapid mold change, and precision machining.
Product Introduction: Pascal CLU Series Link Clamp
Overview
CLU is a 7MPa double-acting link clamp manufactured by PASCAL Japan. It features a compact, high-rigidity, flat-mount design ideal for automated machine tool fixtures, rapid mold change, and precision machining.
With hydraulic clamping and hydraulic unclamping, it delivers stable motion, high repeatability, and long service life, making it a reliable compact solution for high-frequency automated operations.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- 7MPa high-pressure double-acting design for strong clamping force (3.4–26.9 kN at 7MPa).
- Hydraulic actuation for both clamp and unclamp ensures consistent motion and fast response.
- Linkage mechanism amplifies clamping force with high rigidity, reducing machining vibration.
- High protection against chips and coolant for unmanned continuous production.
- Flat mounting requires no embedded machining, simplifying fixture design.
- Multi-directional mounting: standard/L/R/F for flexible layout.
- Smooth motion with low interference risk for irregular and narrow-space workpieces.
- Automotive parts: Automated clamping of engine blocks, transmission housings, and chassis components.
- Mold machining: High-efficiency clamping of die steel, cavities, and mold bases for rapid mold change.
- General machining: Unmanned production of hardware, sheet metal, and small precision parts.
- Precision fixtures: High-density, narrow-space, and automated line-integrated workholding for irregular workpieces.
