Japan Pascal Link clamp 7MPa Single acting Standard model CLT CLT10-LT CLT10-FT CLT10-RT CLT16-LT CLT16-FT CLT16-RT CLT25-LT CLT25-FT CLT25-RT

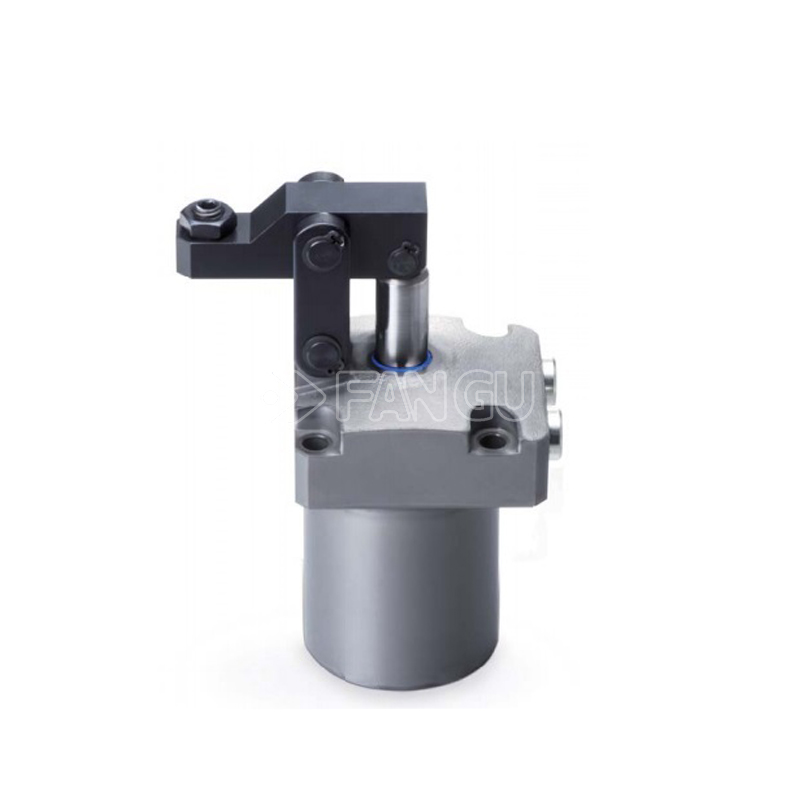

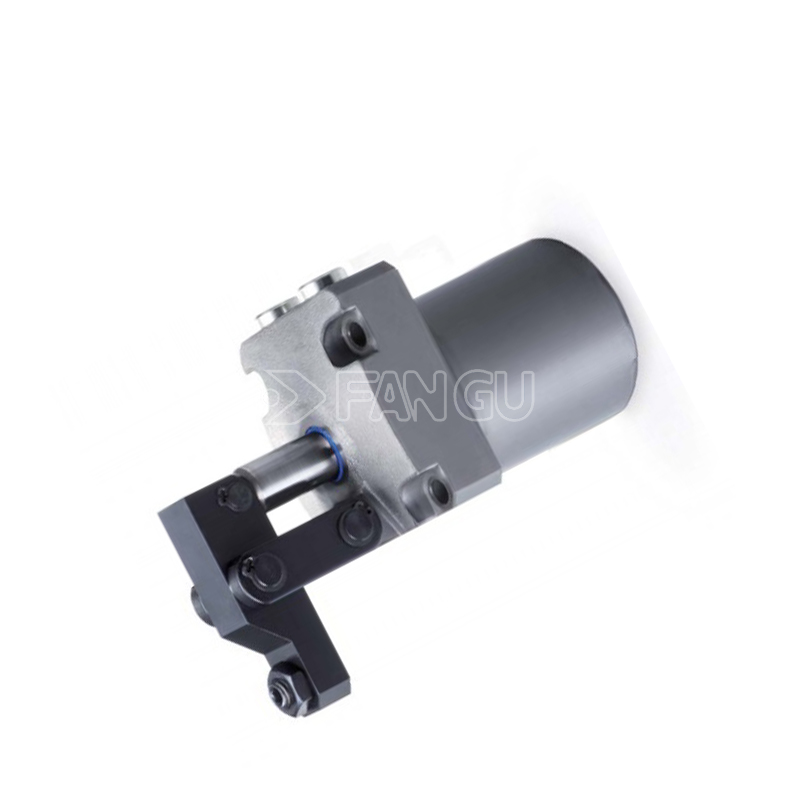

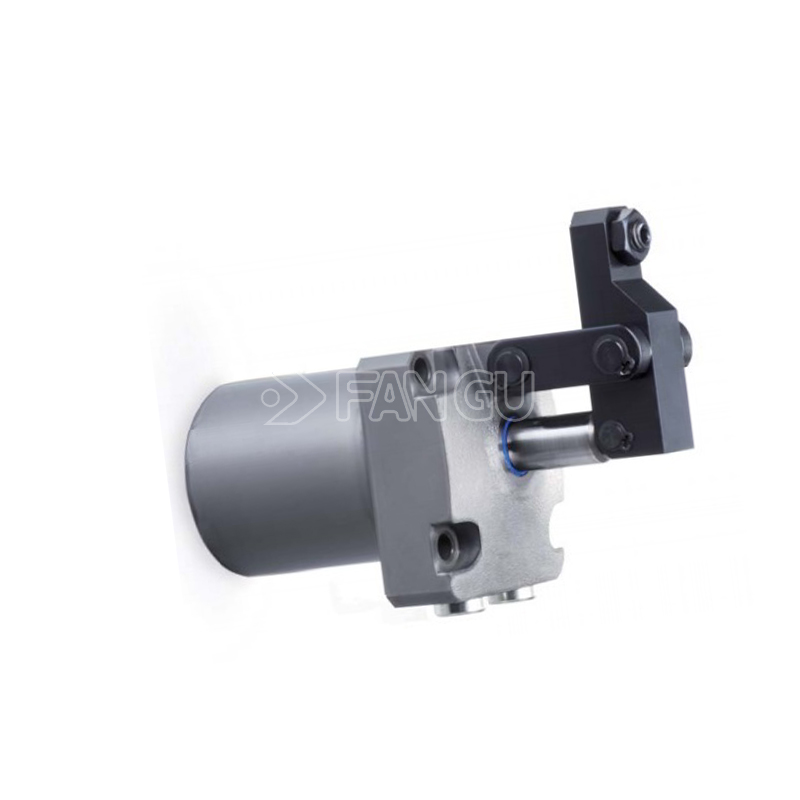

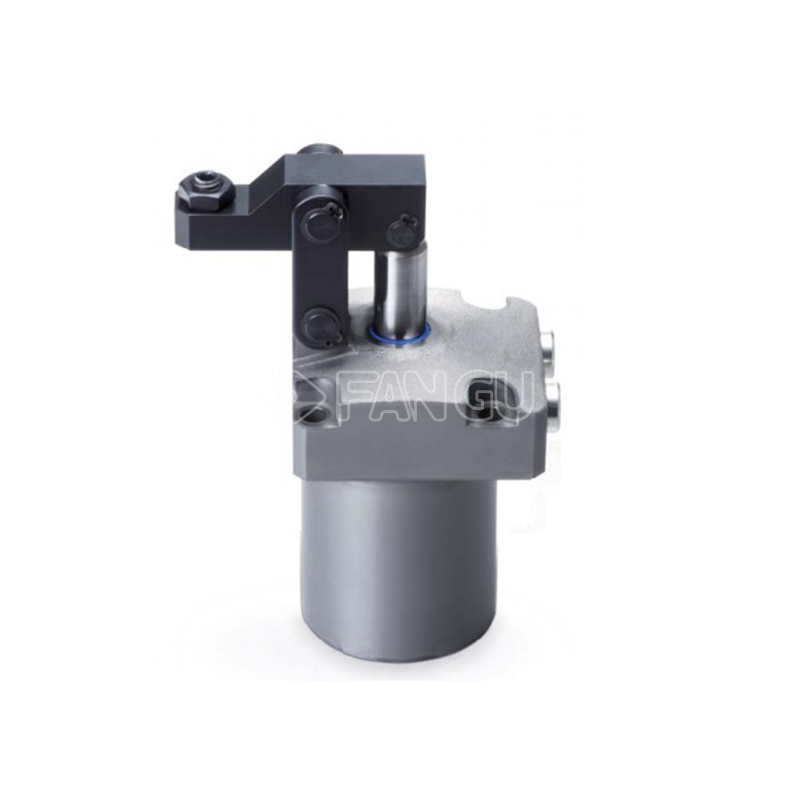

The Pascal CLT series is a 7MPa single-acting hydraulic link clamp from PASCAL Japan, featuring hydraulic clamping and spring return. Adopting a linkage lever amplification mechanism, it delivers high clamping force in a compact design, suitable for machine tool machining, tooling fixtures, rapid mold change, and automated production lines.
Main Models: CLT10-LT CLT10-FT CLT10-RT CLT16-LT CLT16-FT CLT16-RT CLT25-LT CLT25-FT CLT25-RT etc.
Product Introduction: Pascal CLT Series Link Clamp (7MPa Single‑acting, Standard Type)
Product Overview
The Pascal CLT series is a 7MPa single-acting hydraulic link clamp from PASCAL Japan, featuring hydraulic clamping and spring return. Adopting a linkage lever amplification mechanism, it delivers high clamping force in a compact design, suitable for machine tool machining, tooling fixtures, rapid mold change, and automated production lines. It serves as a core fixture for quick clamping and stable fixation of workpieces in industrial automation and precision machining.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- 7MPa high-pressure hydraulic drive: Delivers high clamping force for heavy-duty and high-rigidity clamping applications.
- Single-acting hydraulic control: Hydraulic clamping only, with spring return for simple structure, low failure rate, and low maintenance cost.
- Linkage lever amplification: Compact cylinder with high clamping force, high rigidity, and low vibration for machining accuracy.
- Flat-mount design: No embedded machining required, easy installation for high-density fixturing.
- High protection sealing: Resists chips, coolant, and cutting fluids for harsh workshop environments.
- Multi-directional mounting: Supports forward (F), left (L), and right (R) mounting for flexible layout.
- High safety margin: Rated at 7MPa with 10.5MPa proof pressure for overload protection.
- Precision machine tool machining: Quick clamping of workpieces for CNC lathes, machining centers, and grinders.
- Rapid mold change: High-efficiency clamping for die steel, cavities, and mold bases for high-frequency mold change.
- Automated production lines: Integrated with manipulators and conveyor lines for automated clamping and positioning.
- High-density fixturing: Compact installation for narrow spaces and multi-fixture layouts.
- Heavy-duty workpiece clamping: Stable clamping of heavy plates, castings, and forgings for high-strength machining.
