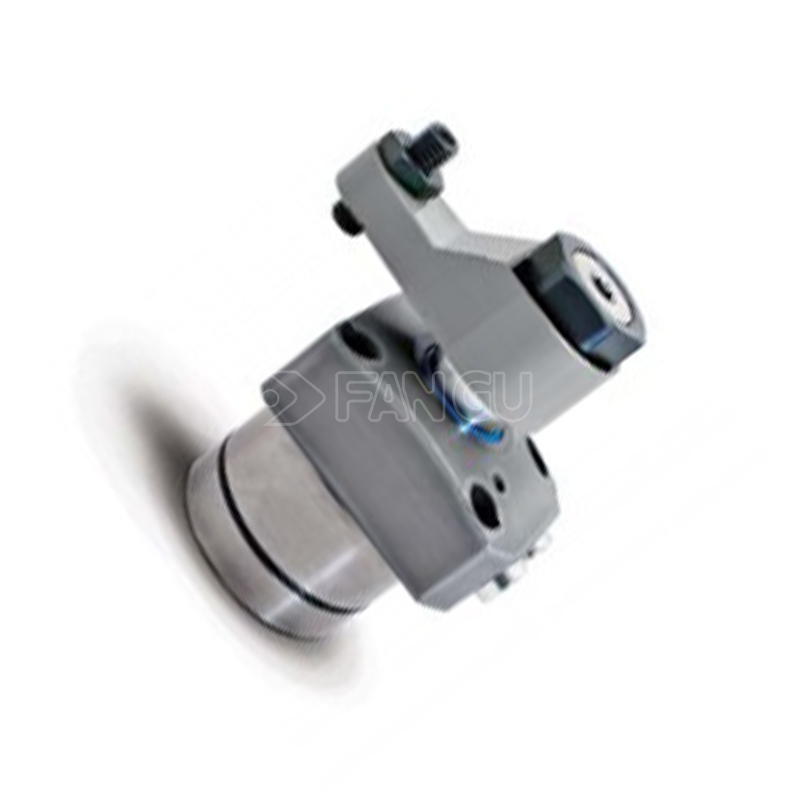

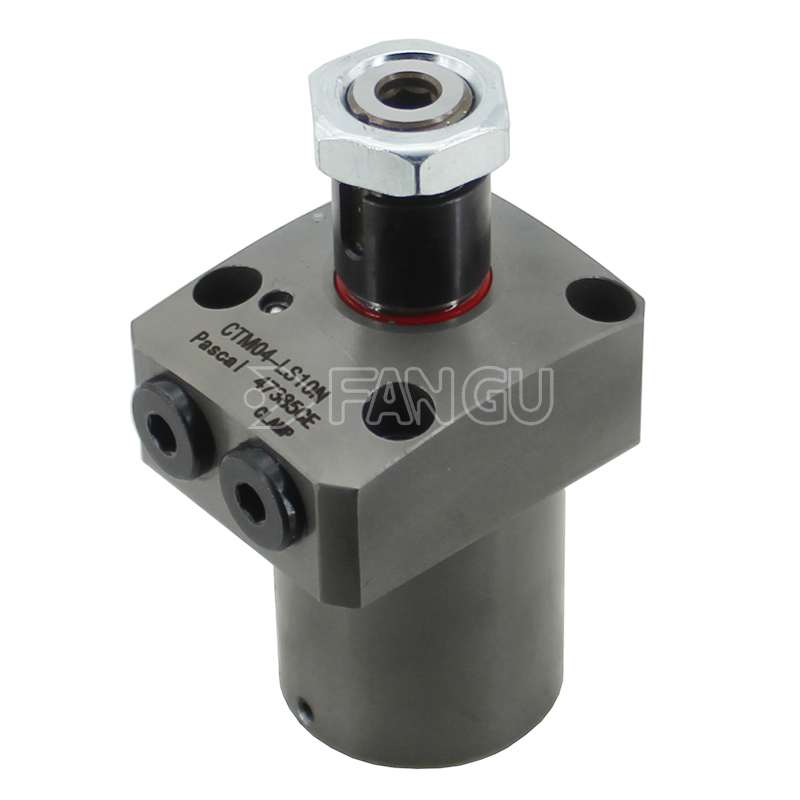

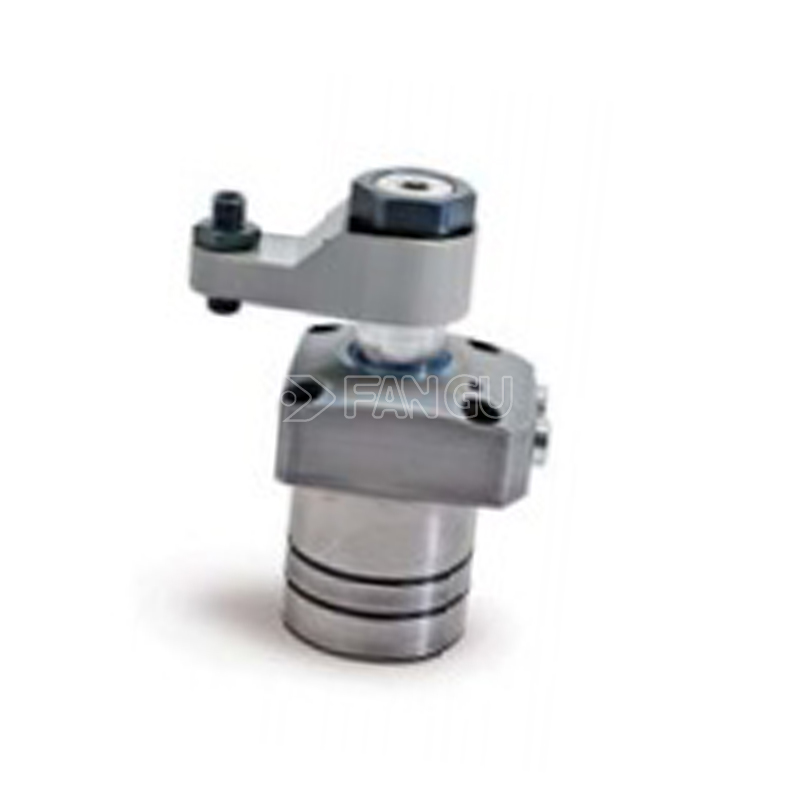

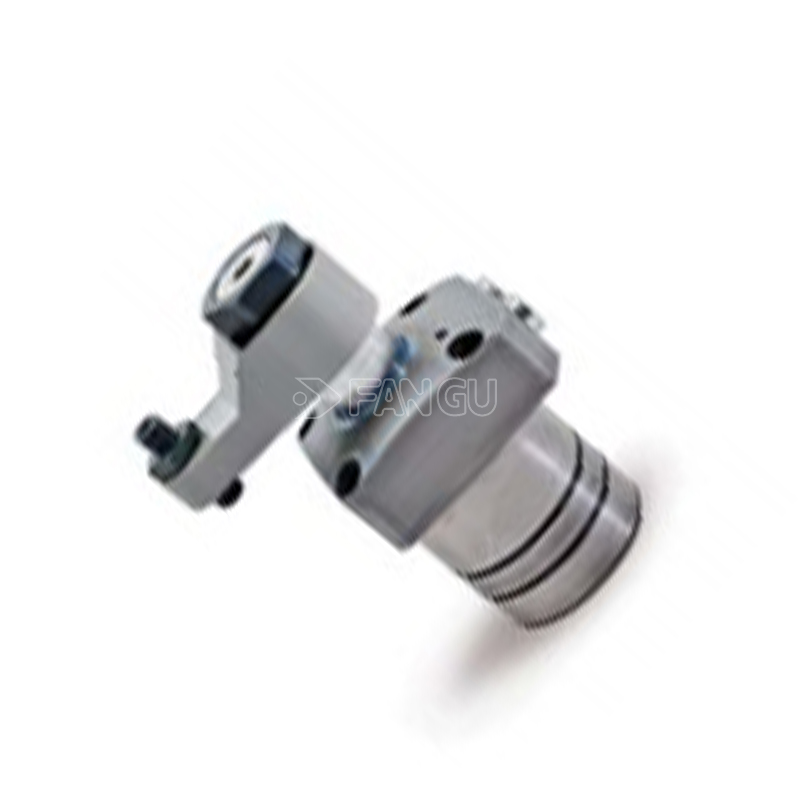

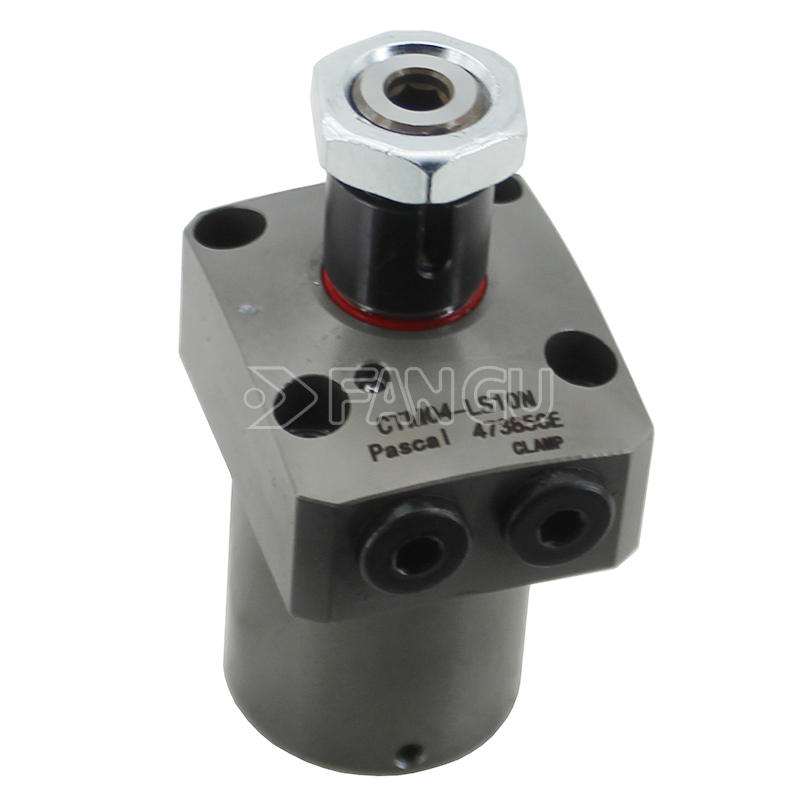

OEM/ODM Pascal Swing clamp 7MPa Double acting Unclamp sensor model 5mm stroke CTM-04LB CTM-04RB CTM-05LB CTM-05RB CTM-06LB CTM-06RB CTM-10LBCTM-10RB
Typical Applications
- Standard workpiece clamping for automotive components, precision machining centers and automated production lines.
- Applications where only clamp completion confirmation is required, without over-clamping or unclamping detection.
- High-frequency, mass-production machining stations prioritizing stability and reliability.
Core Positioning & Type
- Series: Part of the CTM series 7MPa double‑acting hydraulic swing clamps (hydraulic clamping + hydraulic unclamping).
- Model Meaning: B = Clamp Sensor; detects clamp completion only, with no over‑clamping or unclamping detection.
- Positioning Comparison:
- CTM‑N: Compact size + clamping + over‑clamping detection (ultra‑space‑saving)
- CTM‑B: Standard size + clamp completion detection only (stable, economical)
- CTM‑T: 3‑point detection (clamping + over‑clamping + unclamping)
- Rated Pressure: 7MPa (operating range 1.5–7MPa, proof pressure 10.5MPa)
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Driving Structure
Adopting a cam groove and rotating mechanism, the hydraulic pressure input drives the completion of rotating and clamping actions, ensuring stable clamping force and high repeat accuracy.
Detection Principle
When in the unclamped state, the movement of the piston rod triggers the built-in detector, which cuts off or conducts the detection air pressure to output a clear in-place signal for unclamping. The built-in design avoids interference from chips and oil stains, delivering higher reliability compared with external detection solutions.
Adaptability
High Reliability
Built-in detection mechanism and compact structure are adopted, which adapt to the harsh environment of mechanical processing and reduce maintenance workload.
Safety Protection
The unclamping state is detected accurately, avoiding the risk of misoperation and protecting workpieces and tools.
Strong Adaptability
It is compatible with the 7MPa general hydraulic system, with multiple bore sizes and strokes available, adapting to various types of workholding fixtures.
