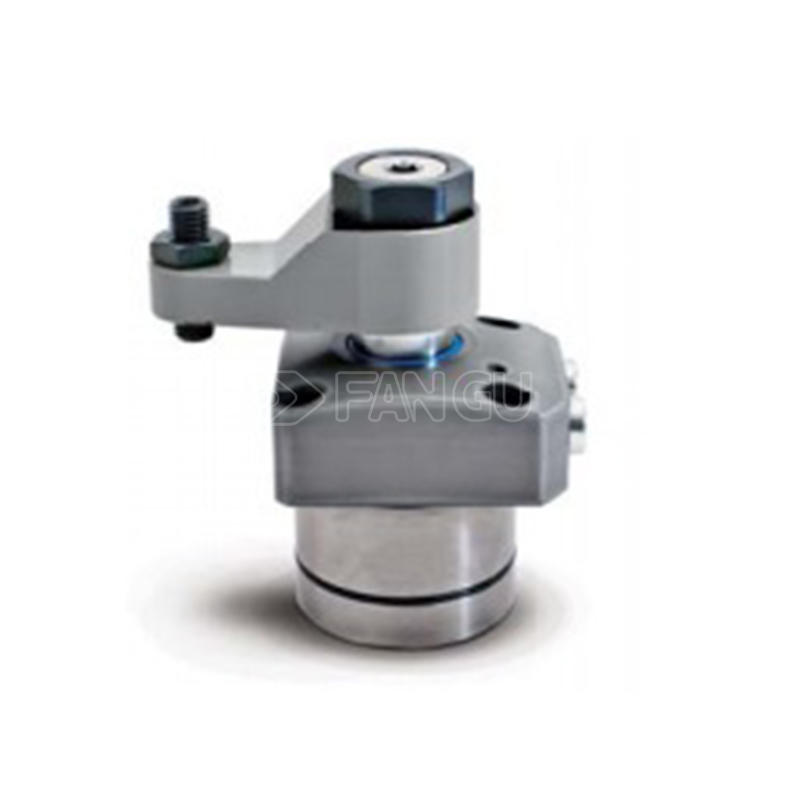

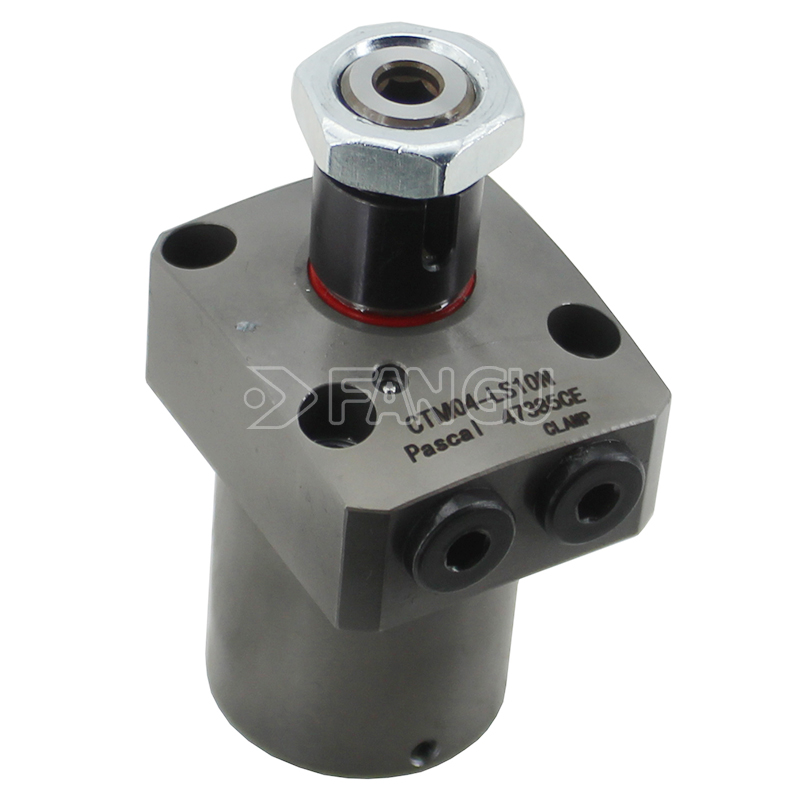

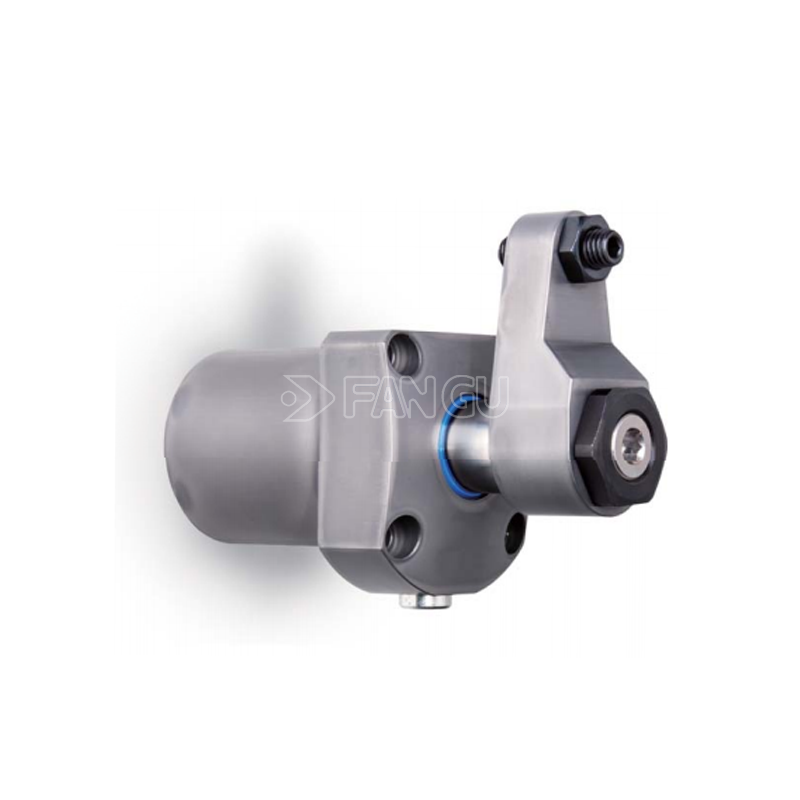

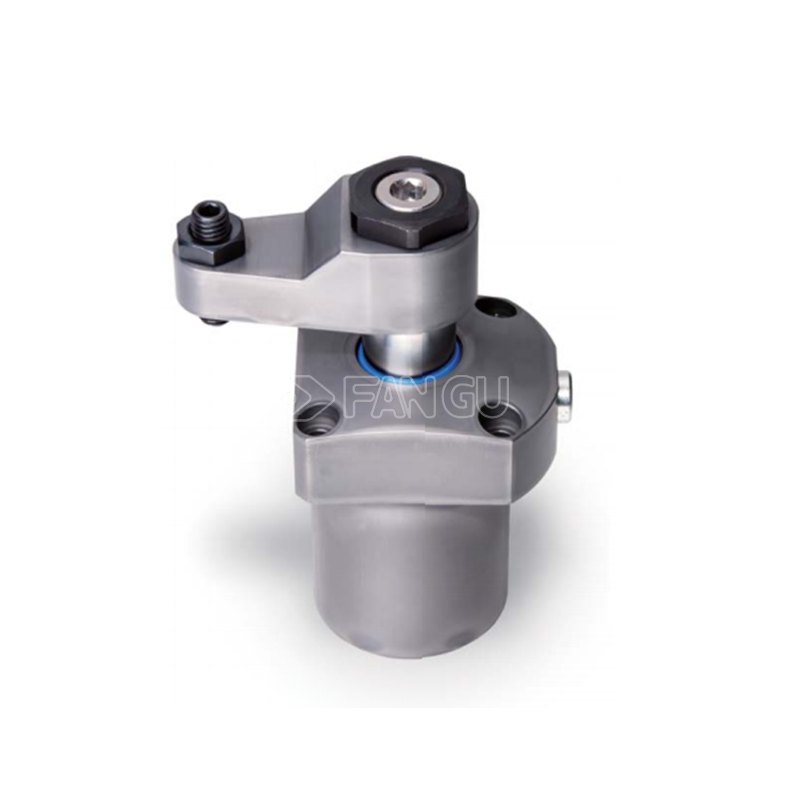

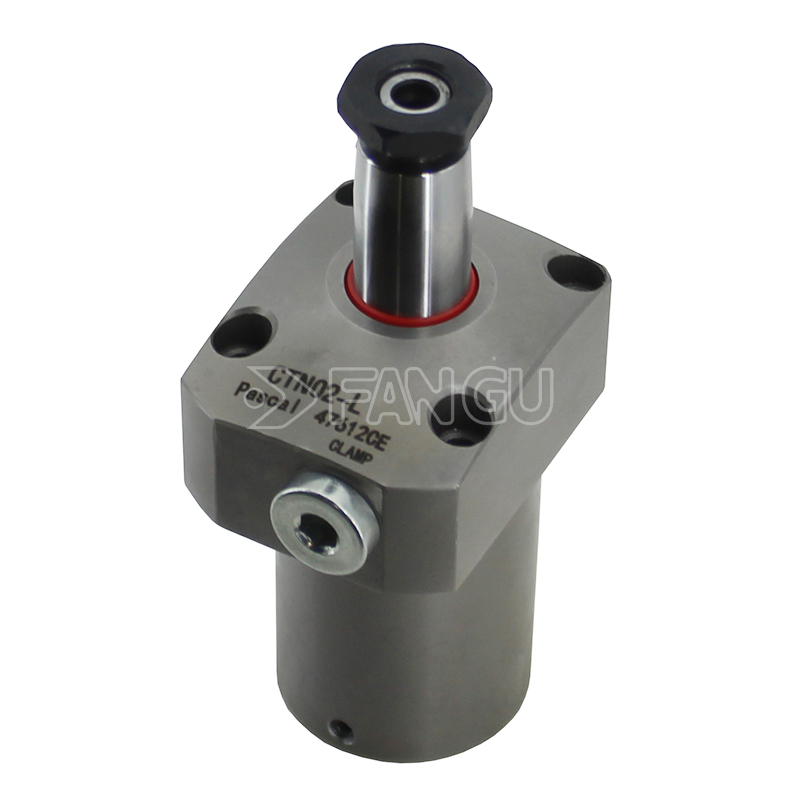

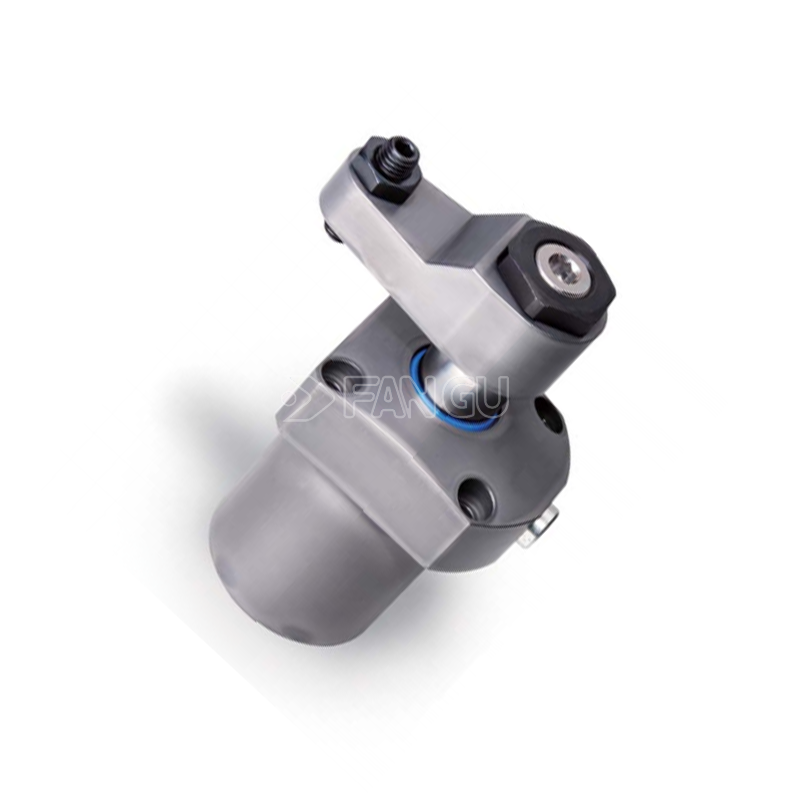

Japan Pascal CTN Series Single-Acting Hydraulic Swing Clamp Compact High-rigidity Flat-mount Design
Example Models:
- CTN02L
- CTN02R
- CTN04L
- CTN04R
- CTN06L
- CTN06R
- CTN10L
- CTN10R
Product Introduction: Pascal CTN Series Single-Acting Hydraulic Swing Clamp
Overview
Pascal CTN is a 7MPa single-acting hydraulic swing clamp manufactured by PASCAL Japan. It features a compact, high-rigidity, flat-mount design ideal for automated machine tool fixtures, rapid mold change, and precision machining.
With hydraulic clamping and spring return unclamping, it delivers stable motion, fast response, high repeatability, and long service life, making it a reliable compact solution for high-frequency automated operations.
Example Models:
- CTN02L
- CTN02R
- CTN04L
- CTN04R
- CTN06L
- CTN06R
- CTN10L
- CTN10R
- CTN16L
- CTN16R
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- 7MPa high-pressure single-acting design for strong clamping force (2.3–12.1 kN at 7MPa).
- Compact structure saves installation space for high-density fixture layouts.
- Flat mounting requires no embedded machining, simplifying fixture design.
- High protection against chips and coolant for unmanned continuous production.
- 90° standard swing angle with high precision (repeatability ±0.5°).
- Rotary direction: L (left) / R (right) for flexible layout.
- Driving mode: Hydraulic clamping, spring return unclamping
- Operating pressure: 7 MPa (rated)
- Clamping force (7 MPa): 2.3–12.1 kN
- Swing angle: 90°±3°
- Repeatability: ±0.5°
- Positioning accuracy: ±1°
- Hydraulic oil: ISO-VG32 mineral oil
- Operating temperature: 0–70°C
