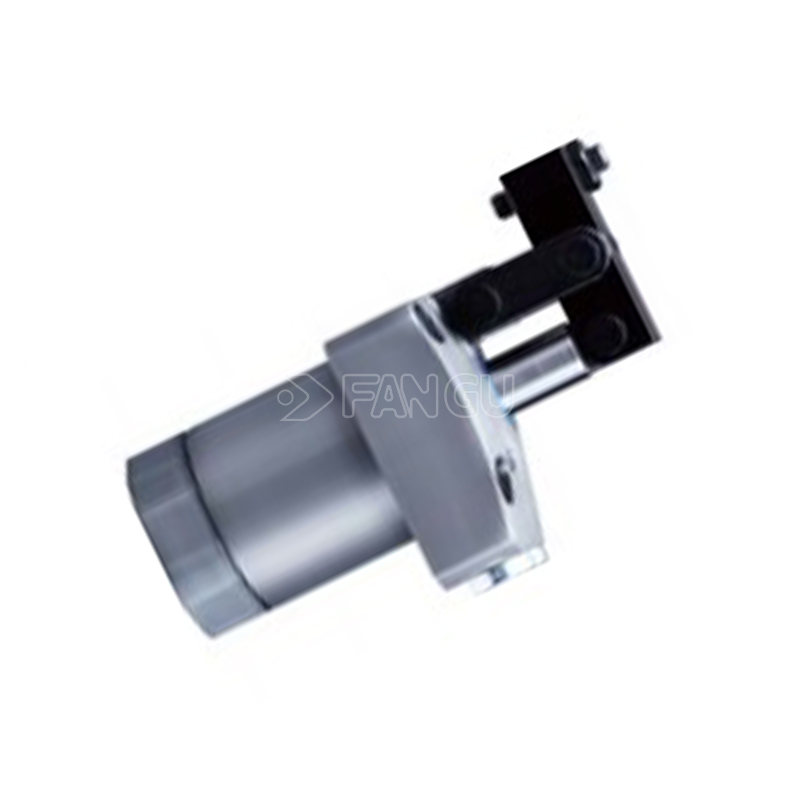

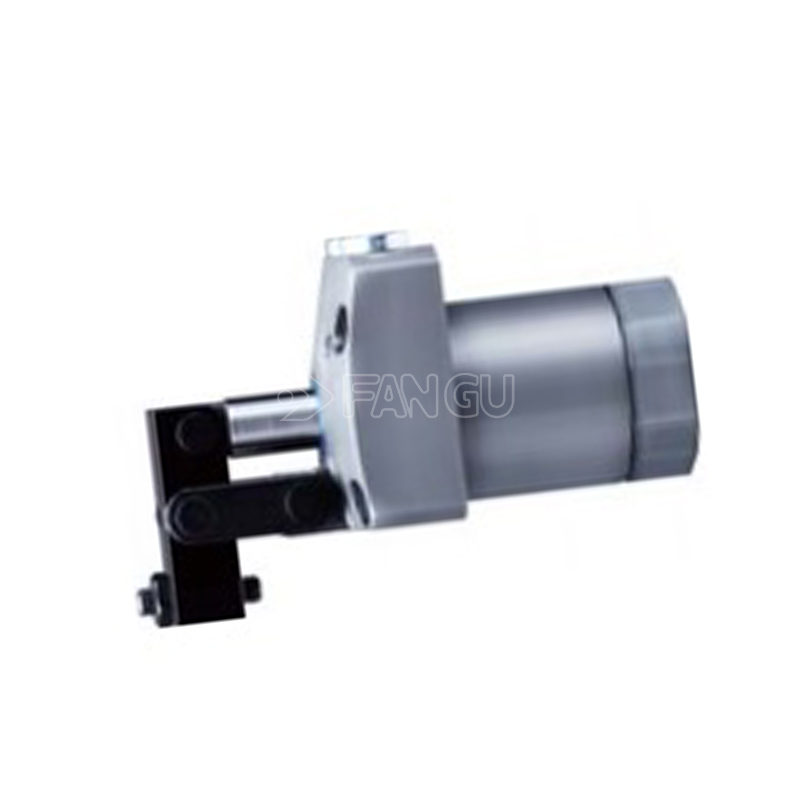

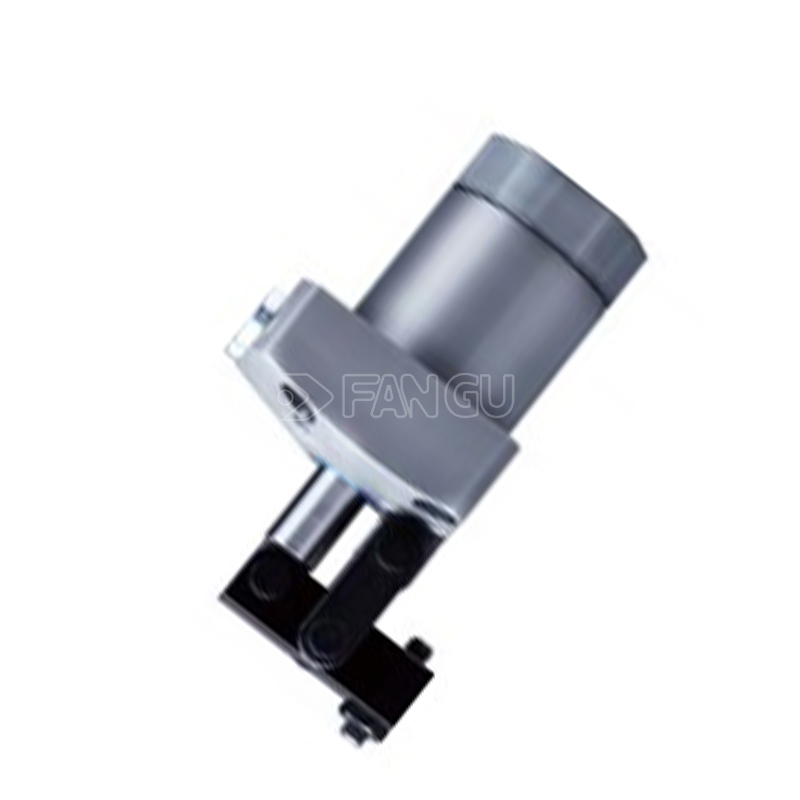

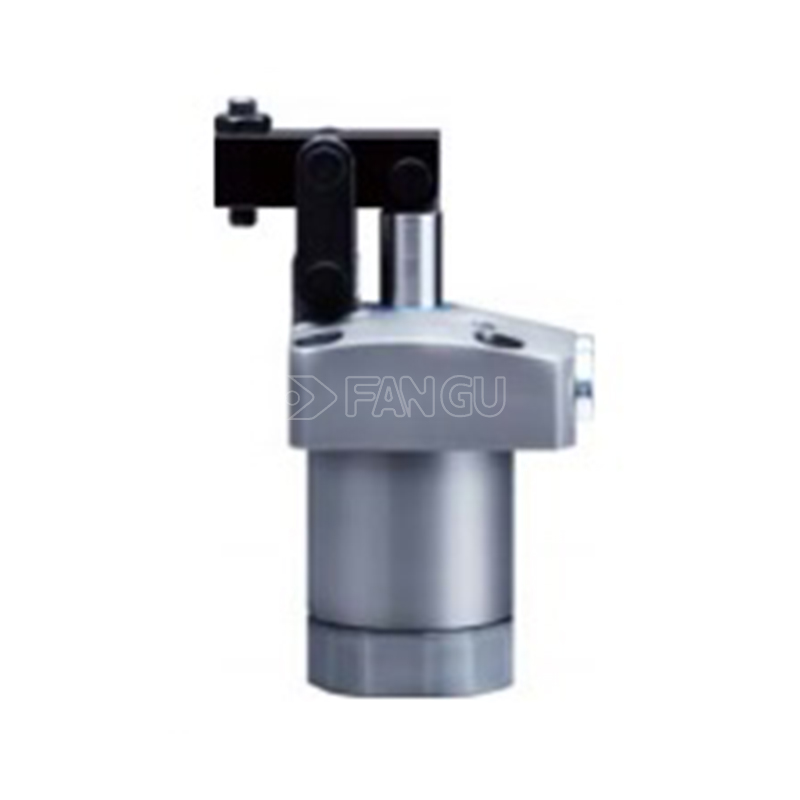

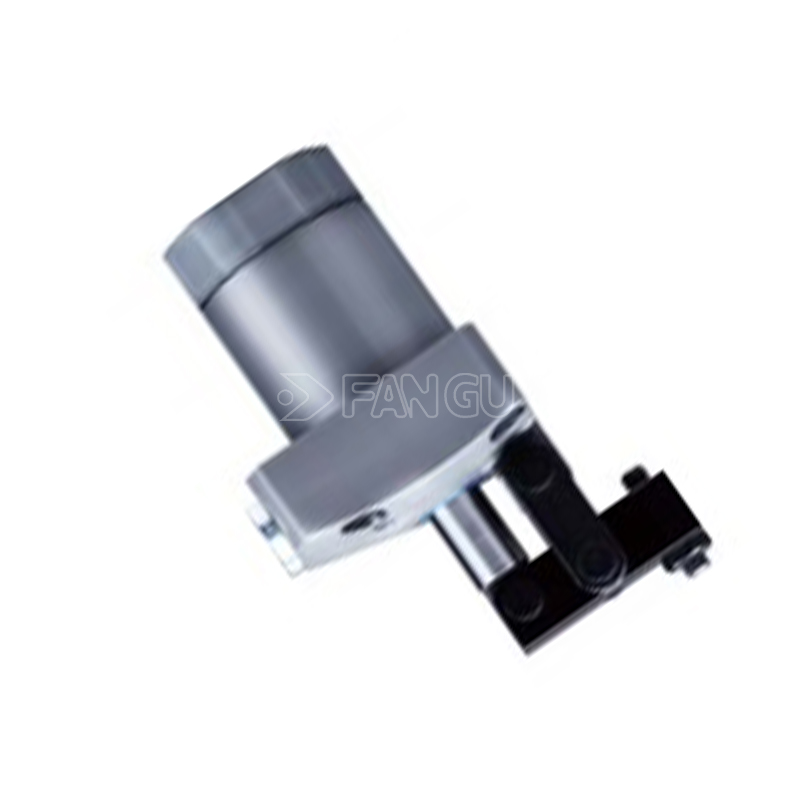

Japan Pascal Link clamp 4MPa Double acting Dual cylinder model CLP CLP04-L CLP04-F CLP04-R CLP05-L CLP05-F CLP05-R CLP06-L CLP06-F CLP06-R
The Pascal CLP series is a 4MPa double-acting hydraulic dual-cylinder link clamp from PASCAL Japan. As an optimized upgrade of the CLM series, it features a dual-cylinder parallel drive structure. Core advantages include two-stage reduction in flange size with the same clamping force and a clamping force 2.1 times that of the CLM series.
Main Models: CLP04-L CLP04-F CLP04-R CLP05-L CLP05-F CLP05-R CLP06-L CLP06-F CLP06-R etc.
Product Introduction: Pascal CLP Series Dual-Cylinder Link Clamp
Product Overview
The Pascal CLP series is a 4MPa double-acting hydraulic dual-cylinder link clamp from PASCAL Japan. As an optimized upgrade of the CLM series, it features a dual-cylinder parallel drive structure. Core advantages include two-stage reduction in flange size with the same clamping force and a clamping force 2.1 times that of the CLM series. With a compact structure, high rigidity, and stable operation, it is designed for precision machining, automated production lines, rapid mold change, and high-density fixturing, enabling high clamping force with small volume and space-saving installation.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Dual-cylinder hydraulic drive with high output force: Dual-cylinder parallel structure delivers 2.1 times the clamping force of the CLM series, meeting heavy-duty clamping requirements.
- Ultra-compact design for space saving: Flange area is only 59%~54% of the CLM series with the same clamping force, ideal for narrow spaces and high-density fixturing.
- Linkage lever mechanism with high rigidity: Amplifies clamping force with low vibration, ensuring machining accuracy and workpiece stability.
- Double-acting hydraulic control: Hydraulic clamping and unclamping ensure stable and consistent motion for high-frequency automation.
- Easy flat-mount installation: Eliminates embedded machining, simplifying fixture design and reducing costs.
- High protection sealing: Resists chips, coolant, and cutting fluids for harsh workshop environments.
- Multi-directional mounting: Supports forward (F), left (L), and right (R) mounting for flexible layout.
- Automotive precision machining: Automated clamping of engine blocks, transmission housings, and chassis components.
- Mold processing: High-efficiency clamping for die steel, cavities, and mold bases for rapid mold change.
- General precision machining: Unmanned production of hardware, sheet metal, and small precision parts.
- High-density fixturing: Compact installation for narrow-space and multi-fixture layouts.
