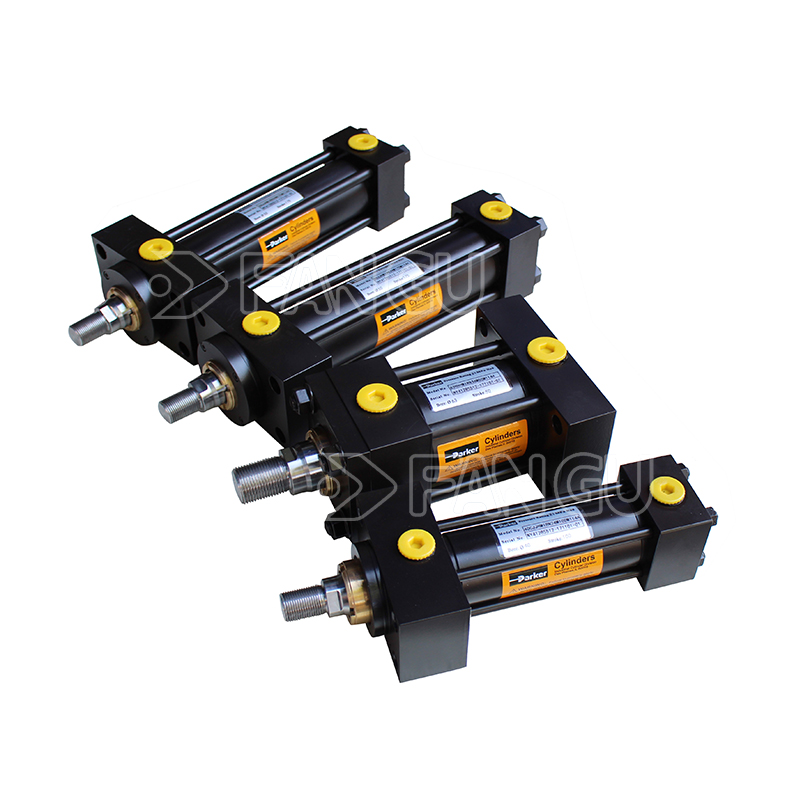

Parker HMI Series Metric Tie-Rod Hydraulic Cylinders with Full Strokes in Stock
Example Models:
- 25mm ：
25 JJ HMI R N 1 4 M 050 M 11 00 - 50mm ：
50 DD HMI R N 1 4 M 250 M 11 00 - 63mm ：
63 JJ HMI R N 1 4 MC 50 M 11 44 - 80mm ：
80 JJ HMI R N 2 4 M 0100 M 11 33 - 100mm ：
100 CB HMI R N 3 4 MC 1000 M 11 A

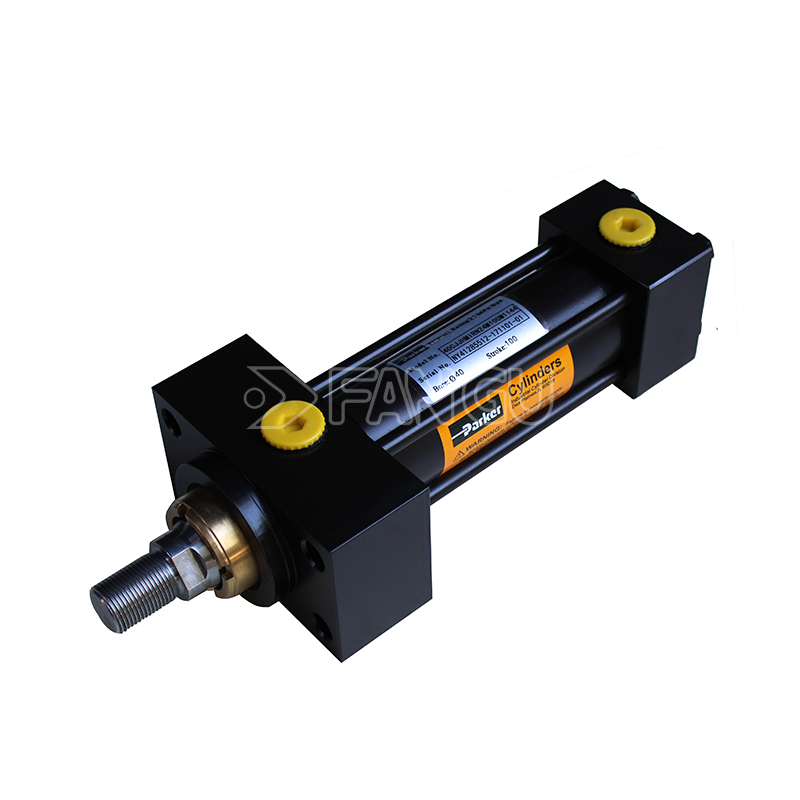

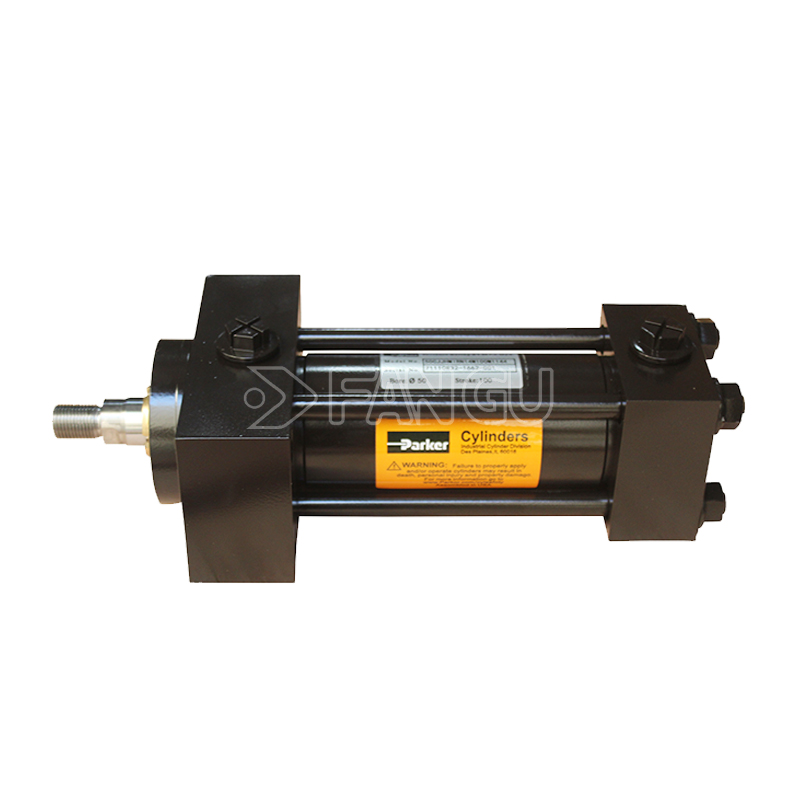

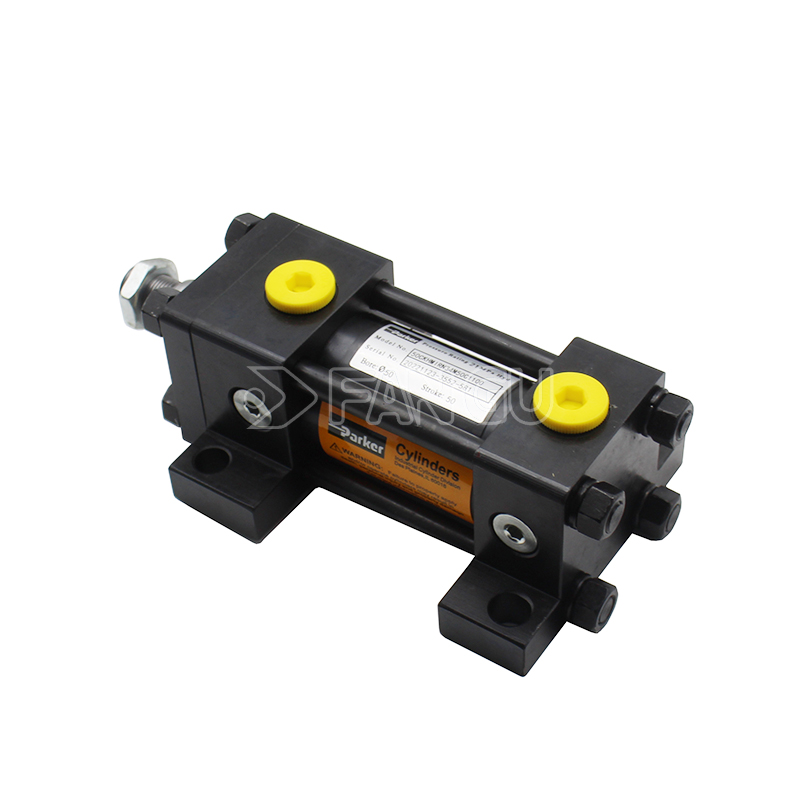

Parker HMI Series Metric Tie-Rod Hydraulic Cylinders
Overview
The HMI Series from Parker Hannifin is a line of ISO 6020/2-compliant metric tie-rod hydraulic cylinders designed for heavy-duty industrial applications. Rated for up to 210 bar (3,045 psi) working pressure, HMI cylinders deliver reliable, high-performance actuation with compact dimensions, making them a global standard for industrial motion control.
Applications
- Industrial machinery: Machine tools, presses, and automation equipment.
- Material handling: Conveyors, lifts, and cranes.
- Automotive: Assembly lines, welding fixtures, and forming equipment.
- Heavy equipment: Construction, mining, and agricultural machinery.
- Marine & offshore: Deck machinery and hydraulic actuators.
Example Models:
- 25mm ：
25 JJ HMI R N 1 4 M 050 M 11 00 - 50mm ：
50 DD HMI R N 1 4 M 250 M 11 00 - 63mm ：
63 JJ HMI R N 1 4 MC 50 M 11 44 - 80mm ：
80 JJ HMI R N 2 4 M 0100 M 11 33 - 100mm ：
100 CB HMI R N 3 4 MC 1000 M 11 A
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- ISO 6020/2 compliance: Interchangeable with global standard cylinders for seamless integration.
- High-pressure rating: 210 bar maximum working pressure (compact series: 160 bar), suitable for heavy loads.
- Robust tie-rod construction: Ensures structural rigidity, durability, and trouble-free operation.
- Premium sealing system:
- TS2000 rod seal: Enhanced polyurethane for efficient fluid retention and long service life.
- Double-lip wiper seal: Blocks dirt ingress and retains lubrication, extending seal/gland life.
- Precision components:
- Piston rod: Precision-ground, induction-hardened, hard-chrome-plated (0.2μm max roughness) for corrosion resistance and low friction.
- Cylinder tube: Heavy-wall steel with micro-finish bore to minimize friction and prolong seal life.
- Wide range of configurations:
- Bore sizes: 25 mm to 200 mm (10 standard sizes).

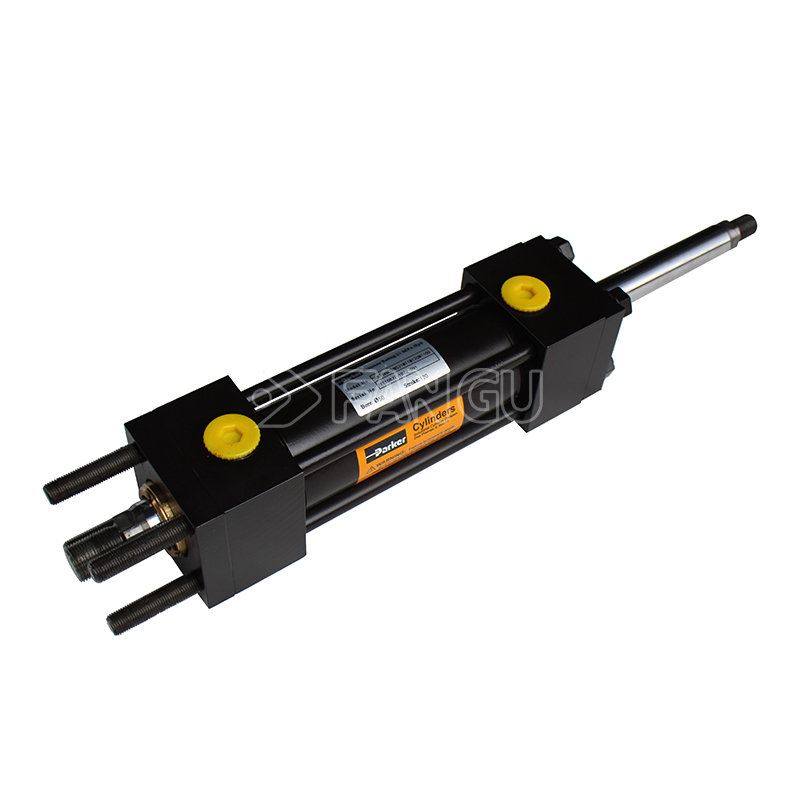

- Rod sizes: Up to 3 options per bore; single/double-rod designs available.
- Mounting styles: 12 standard ISO mounting configurations for flexible installation.
- Stroke lengths: Customizable up to 5,000 mm.
- Extended temperature range: -20°C to 150°C (-4°F to 302°F) for diverse operating environments.

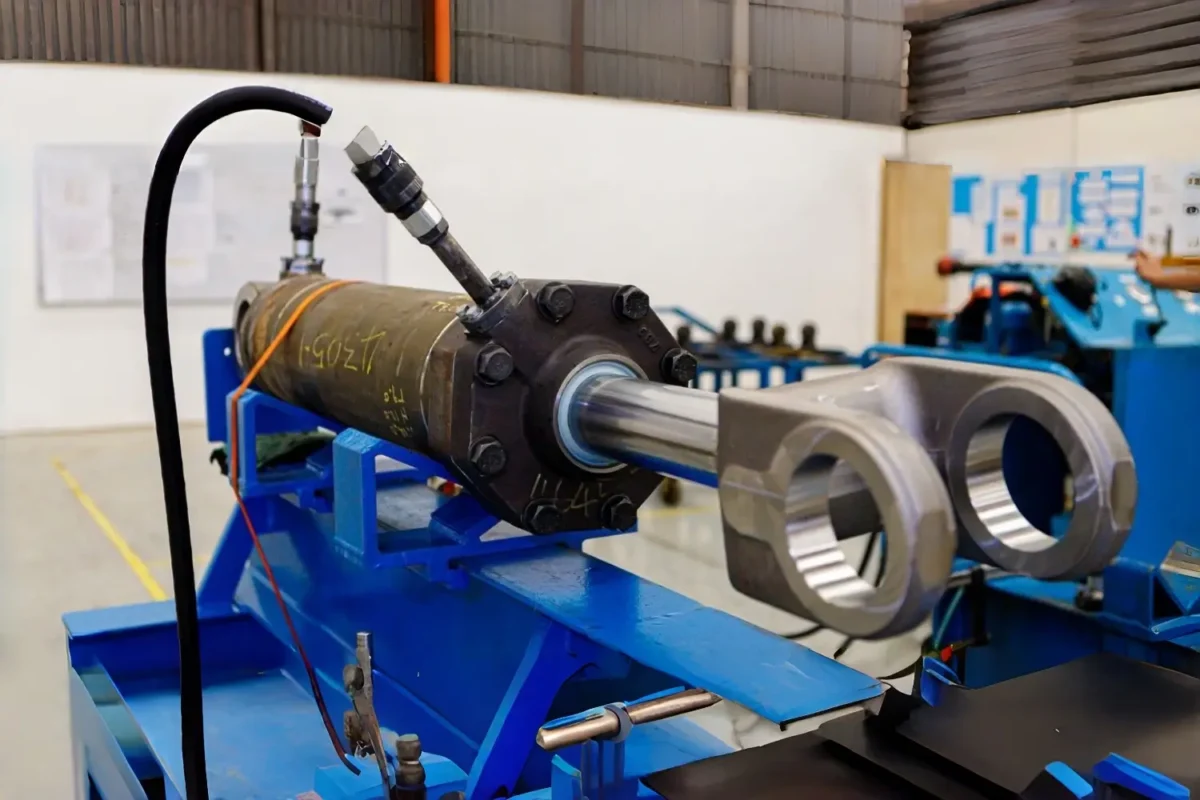

- Low-friction & durable: Optional low-friction piston seals; 18-month warranty, 100% factory tested.
