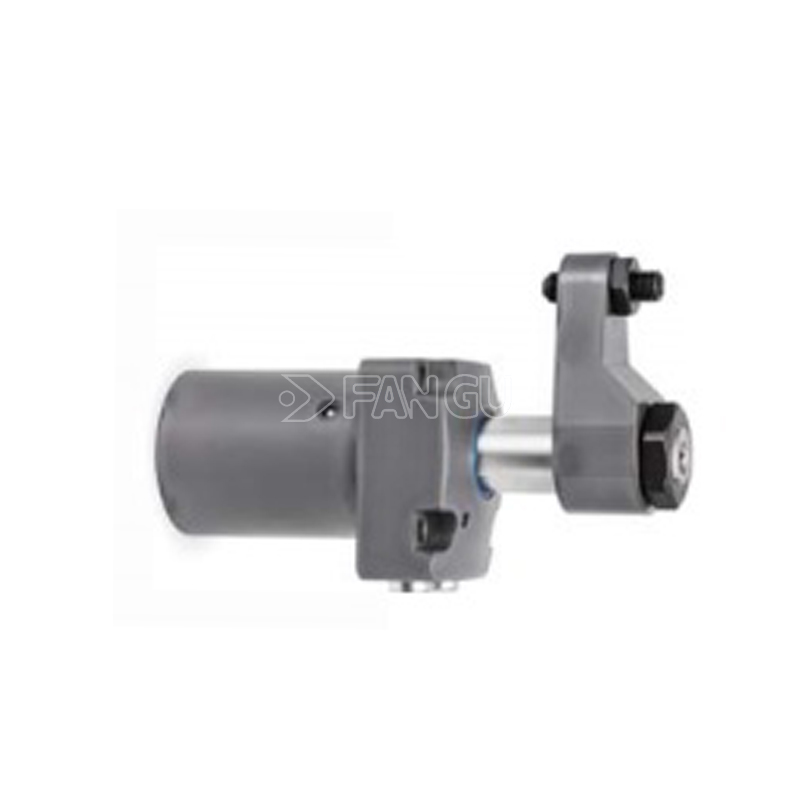

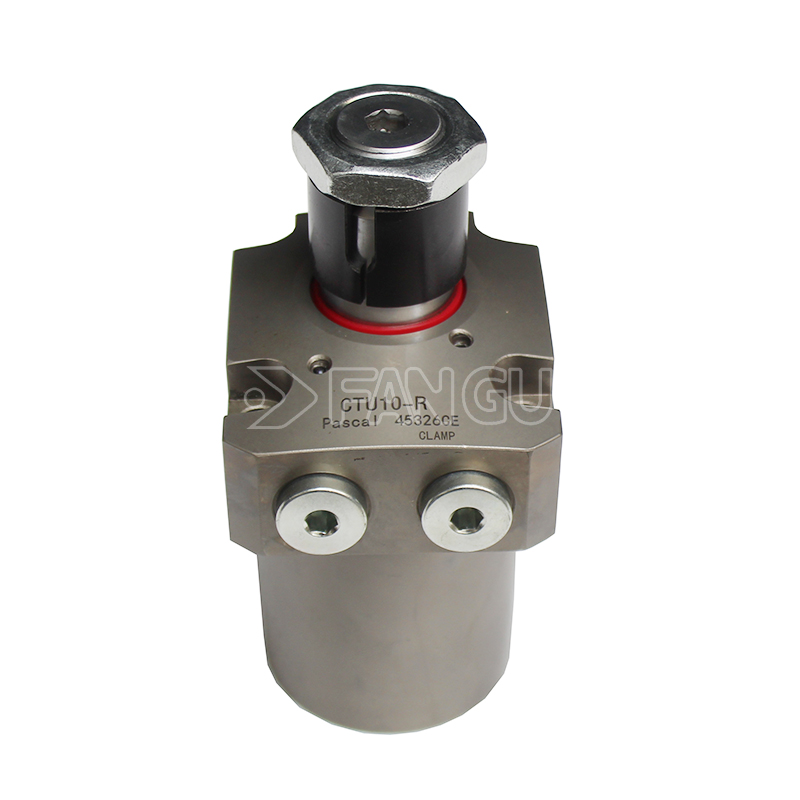

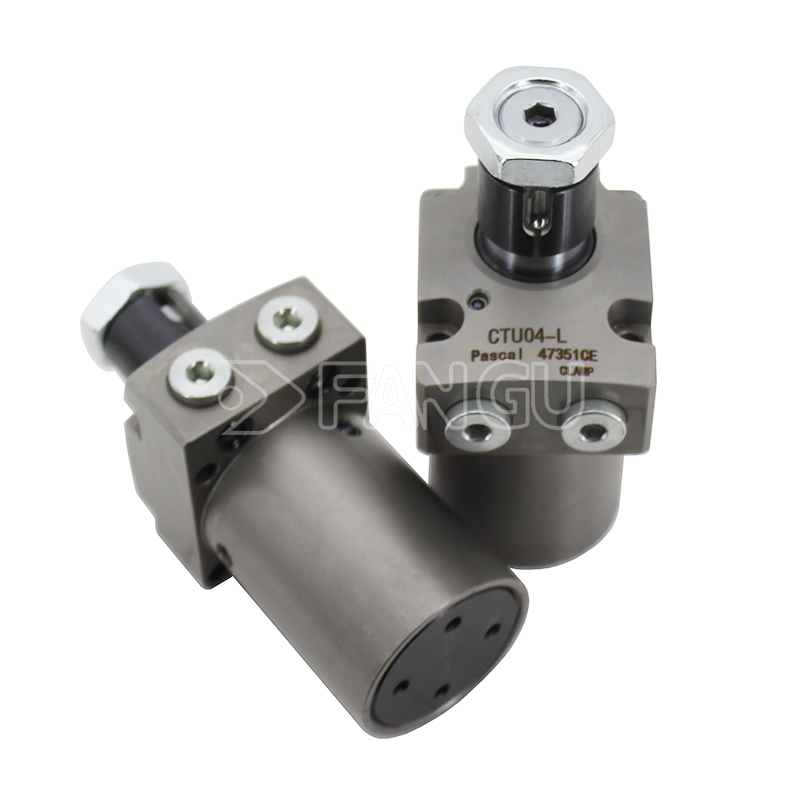

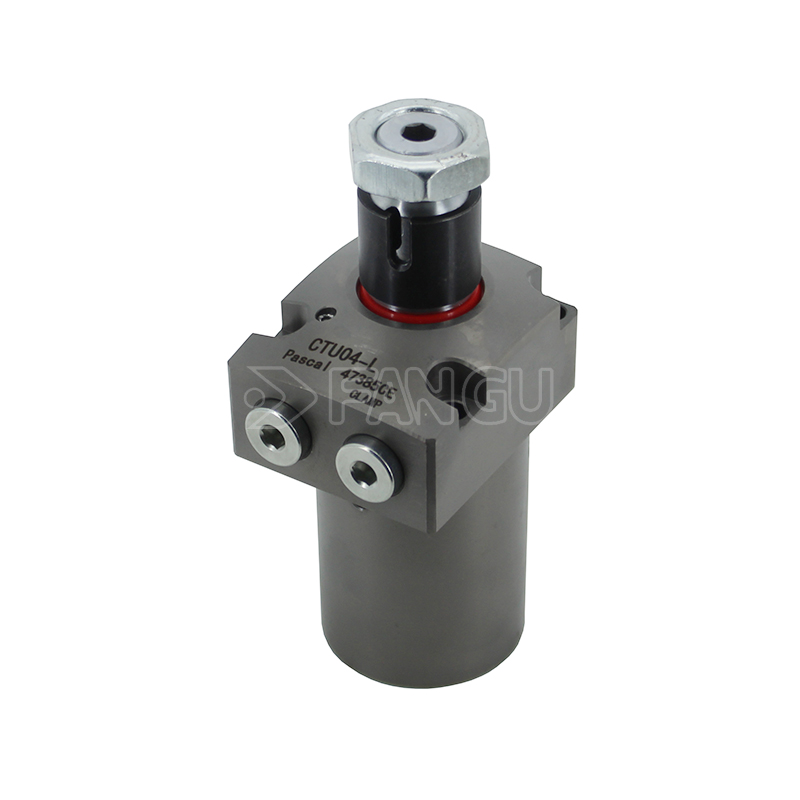

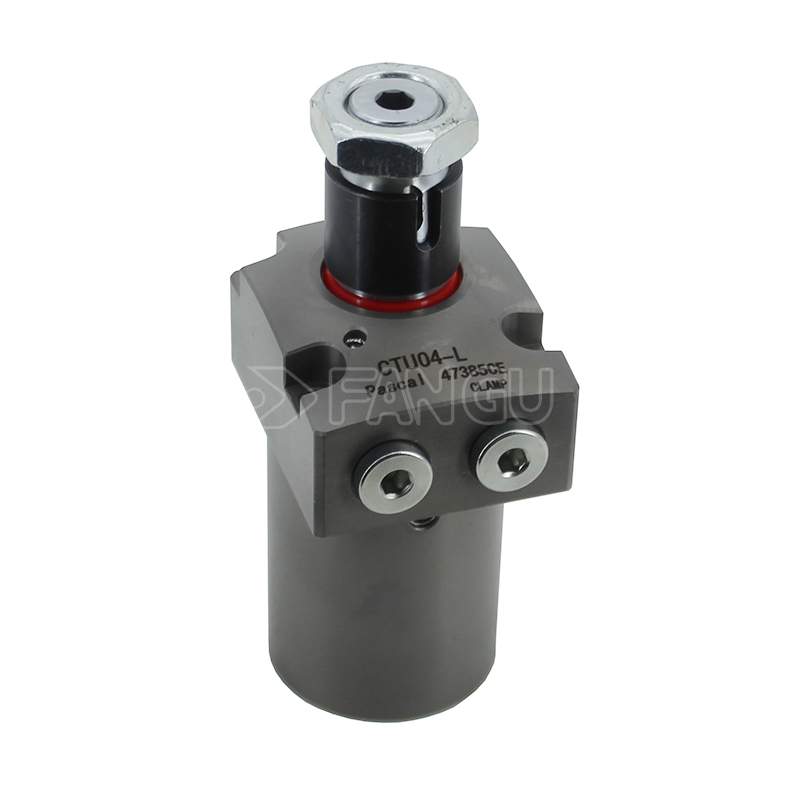

Pascal CTU Series Double-Acting Hydraulic Swing Clamps
Overview
Technical Data
- Pressure range: 1–7 MPa (proof pressure: 10.5 MPa).
- Fluid: General mineral hydraulic oil (ISO-VG32 equivalent).
- Swing angle: Standard 90°±3°; CTU-N: 30°/45°/60°±3°.
- Port size: G1/8 (CTU01–06), G1/4 (CTU10–25).
Example Models:
- CTU01
- CTU02
- CTU04
- CTU10
- CTU01-S16
- CTU06-S20
- CTU10-S30
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Double-acting hydraulic operation: Hydraulic power for both clamping and unclamping (no spring return), enabling precise, fast cycle control.
- 90° swing + vertical clamp: Swing stroke (8–23mm) clears obstacles; vertical clamping stroke (8–13mm) applies force directly to the workpiece.
- High precision & repeatability: ±0.5° positioning accuracy; ±1° swing angle tolerance (standard 90°).
- Modular design: Interchangeable clamp arms (sold separately); compatible with manifold or G-port piping.
- Durable construction: Hardened steel components; chlorine-resistant seals for cutting fluid environments; operating temperature 0–70°C.
- Long-stroke variant (CTU-S): Extended clamp strokes (16–50mm) for tall or deep-workpiece applications.
