Parker CHE Series Compact Hydraulic Cylinders

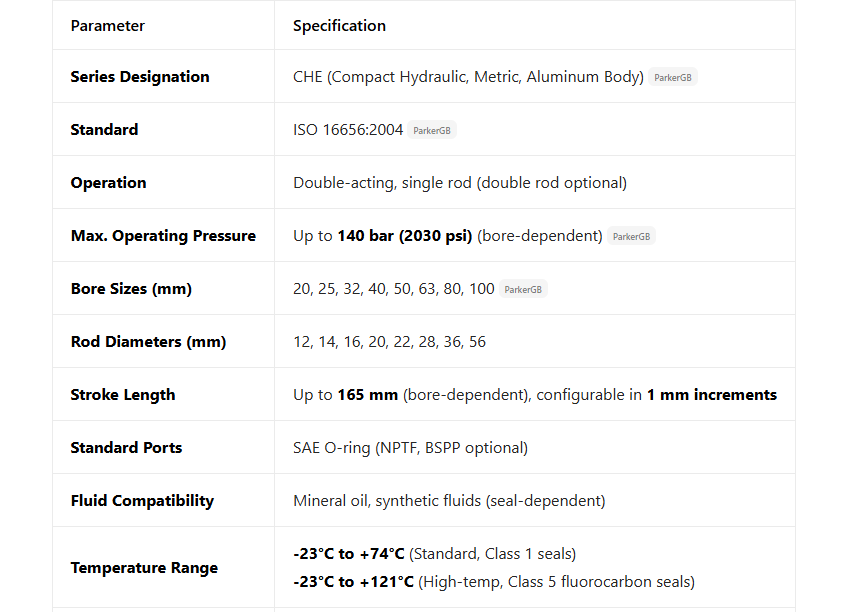

Parker CHE Series are metric, compact, aluminum-bodied hydraulic cylinders designed for space-limited installations requiring position sensing and operating pressures up to 140 bar (2030 psi)ParkerGB. Compliant with ISO 16656:2004, they offer high force density, precision, and modularity for factory automation and machinery applications
Example Models:
- 32TCHE3U4A25
- 40TCHE3U4A40
- 40TCHE3U4A120
- 50TCHE3U4A60
- 63TCHE3U4A65
- 32CCHE3U4A30
- 50CCHE3U4A50
- 32TCHE7U4A25
- 50TCHE7U4A50
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Lightweight & Durable Construction
- Body: Corrosion-resistant aluminum alloy with hard-anodized ID for wear resistance.
- Rod Gland/Cap: Ductile iron with RoHS-compliant zinc plating.
- Piston Rod: Medium carbon steel, hard chrome-plated & polished for corrosion and scratch resistance.
- Wear Band: Non-metallic, glass-reinforced nylon piston wear band for side-load support and reduced friction.
Advanced Sealing System (Leak-Free Performance)
- Multi-lip Polyurethane Rod Seal: Self-compensating, pressure-resistant.
- Polyurethane Wiper (Wiperseal™): Dual-lip design excludes contaminants.
- Bi-directional Piston Seal: Urethane/PTFE blend with energizer for zero internal leakage.
Integrated Position Sensing Capability
- Three T-slot grooves machined into the cylinder body for direct sensor mounting.
- Magnetic Piston Option (standard on most models): Triggers reed or solid-state switches.
- Low-profile sensors fit within the cylinder envelope, preserving the compact design.
Flexible Configuration
- 6 Standard Mounting Styles: Includes front/flange (J), rear/clevis (BB), foot (L), and others.
- 4 Standard Rod Ends: Male thread, female thread, intermediate male, short female.
- Optional Pilot Gland: Improves alignment for rear-mounted applications (free option).
- Dual Rod Version: Available for symmetrical actuation.
