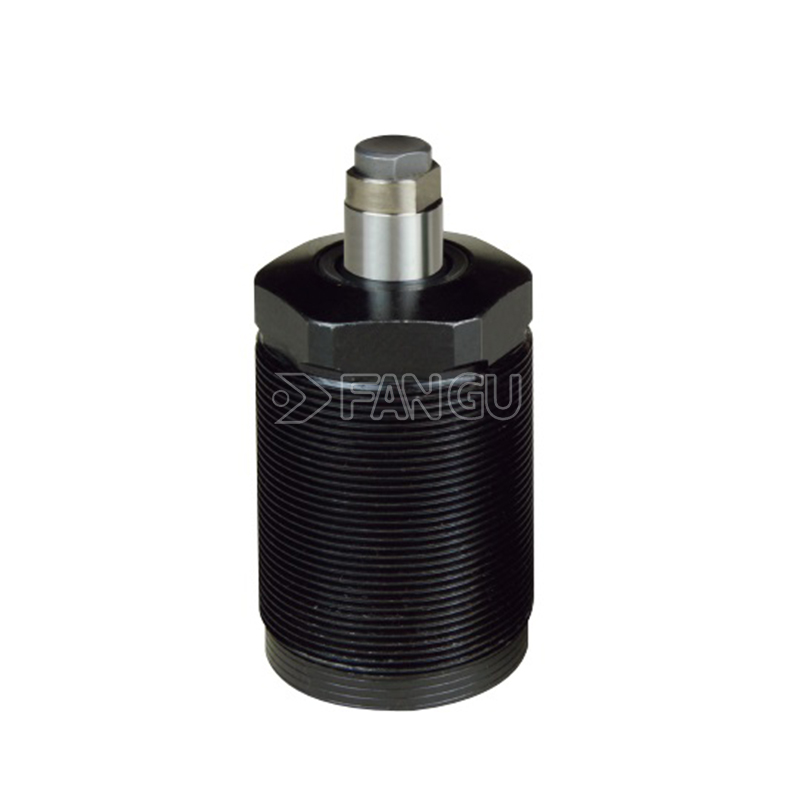

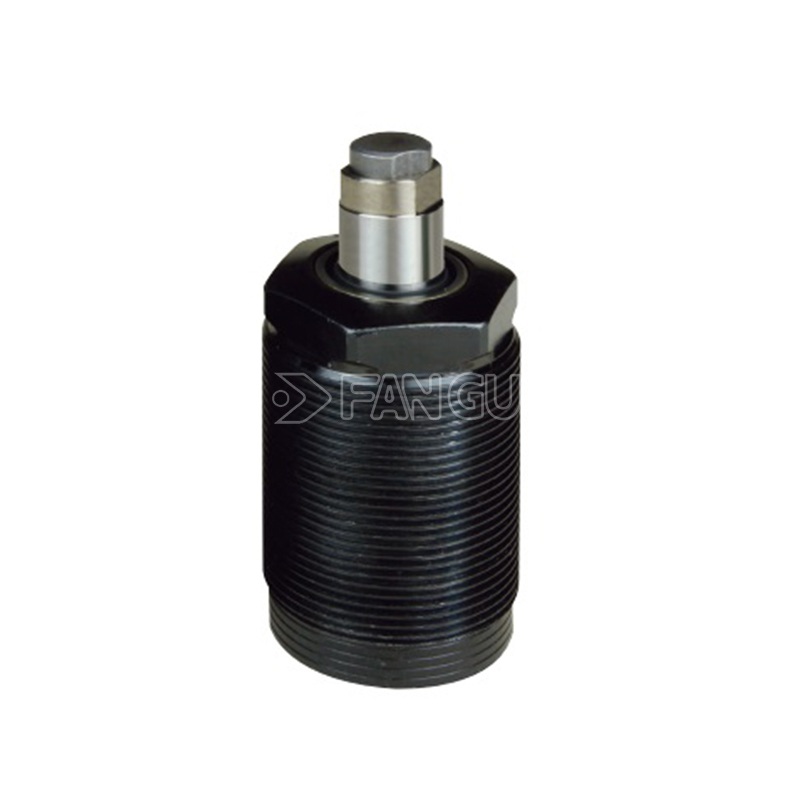

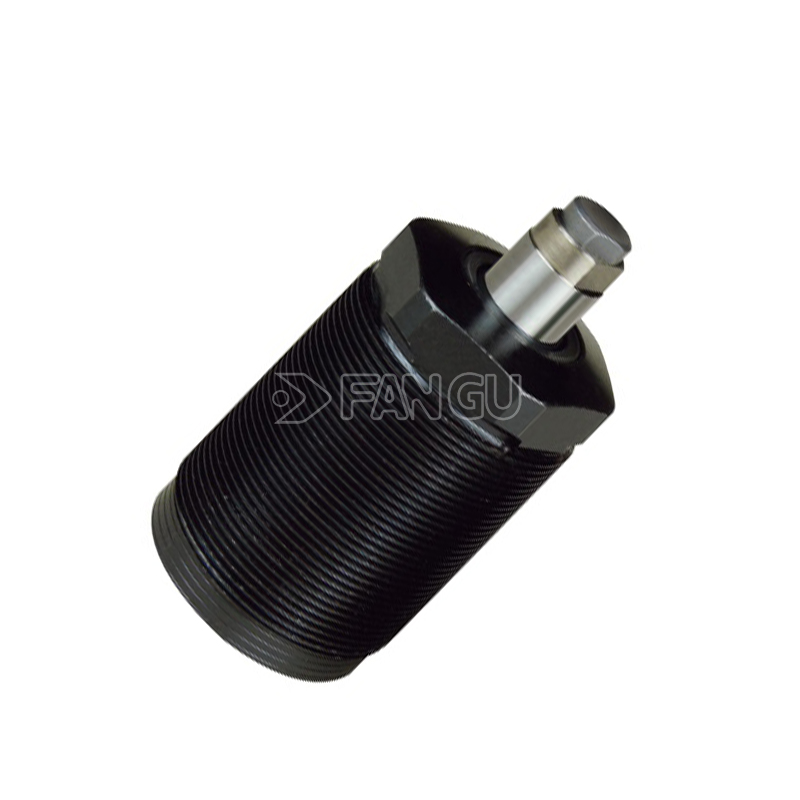

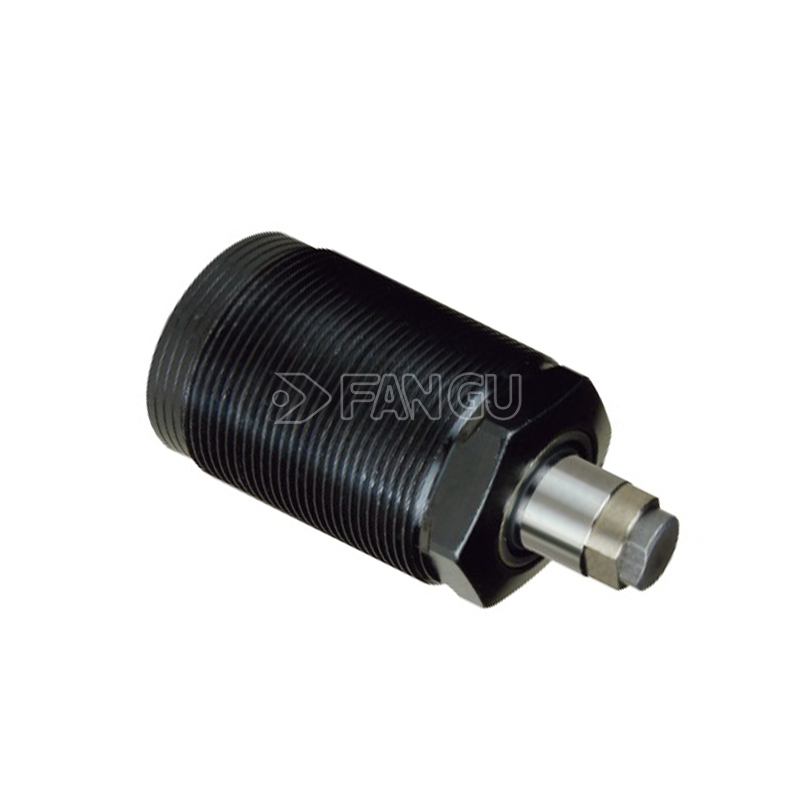

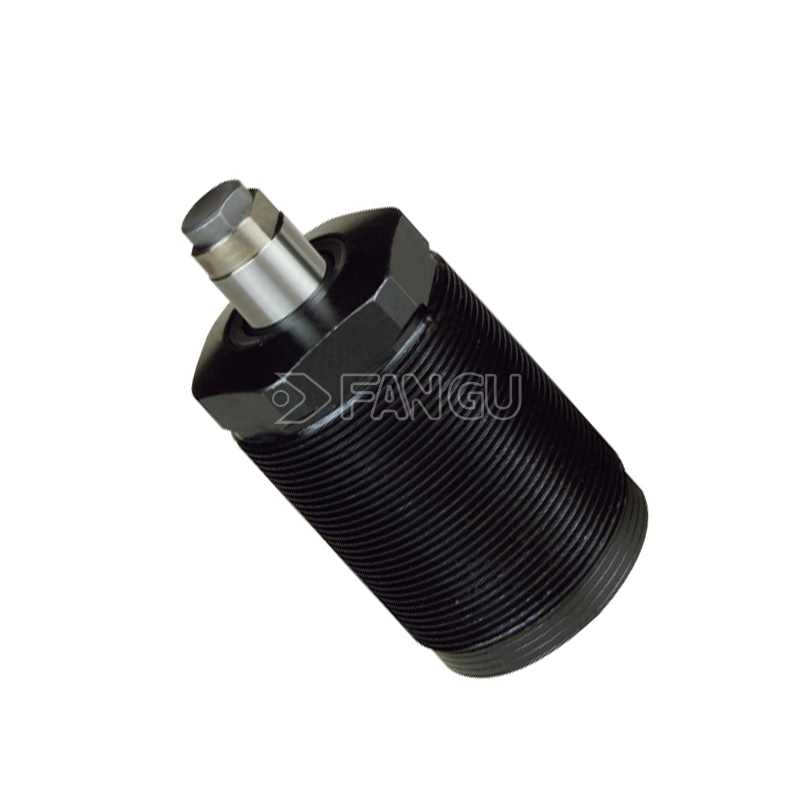

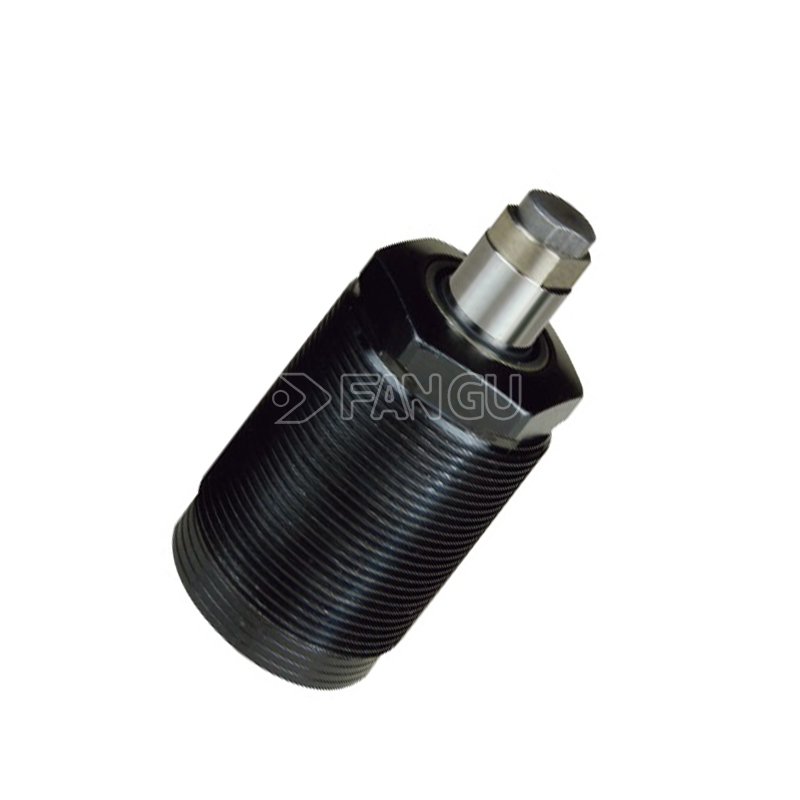

VEKTEK Spring Extend Threaded Body Work Support Cylinders Hardened Piston Rod
Example Models:
- L1-0310-00-L(H)
- L1-0312-00-L(H)
- L1-0315-00-L(H)
- L1-0316-00-L(H)
VEKTEK Spring Extend Threaded Body Work Support Cylinders
General Overview
This series is VEKTEK spring-extended threaded work support cylinders, widely used as auxiliary rigid supports for machine tool fixtures. The piston rod extends automatically by internal spring force, and hydraulic pressure retracts the rod for workpiece loading and unloading. After workpiece positioning, the rod rises to provide firm support, effectively suppressing machining vibration and avoiding workpiece deflection during cutting. The full threaded cylindrical body enables flexible installation in threaded holes on fixture plates.
Typical Applications：
- CNC machining fixture auxiliary support
- Milling, drilling and tapping clamping jigs
- Automotive component fixture systems
- Precision workpiece anti-vibration supporting stations
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Spring Extend Mechanism: Built-in spring pushes the rod outward automatically; hydraulic pressure retracts the piston rod. No continuous hydraulic pressure required to maintain supporting status.
- Full Threaded Body Mounting: Cylinder outer barrel is fully threaded, allowing direct screwing into fixture base plates. Installation depth can be freely adjusted.
- Compact Cylindrical Shape: Small footprint, ideal for fixtures with limited installation space.
- Hardened Piston Rod: Wear-resistant surface treatment, stable under repeated contact loads.
- Model Suffix Definition:
- L: Standard version
- H: Reinforced high-pressure heavy-duty variant
- Flexible threaded installation, adjustable mounting depth without extra flange components.
- Automatic spring extension simplifies hydraulic circuit layout for fixture systems.
- Compact structure saves fixture space, suitable for dense multi-support layout.
- Rigid support reduces workpiece bending deformation and cutting vibration.
- Multiple standard models available to match different supporting load requirements.
