Dalian VEKTEK Brand Hydraulically Extended Work Support Cylinders with Bottom Flange Mounting
Example Models:
- L1-0610-00-L(H)
- L1-0612-00-L(H)
- L1-0615-00-L(H)
- L1-0616-00-L(H)

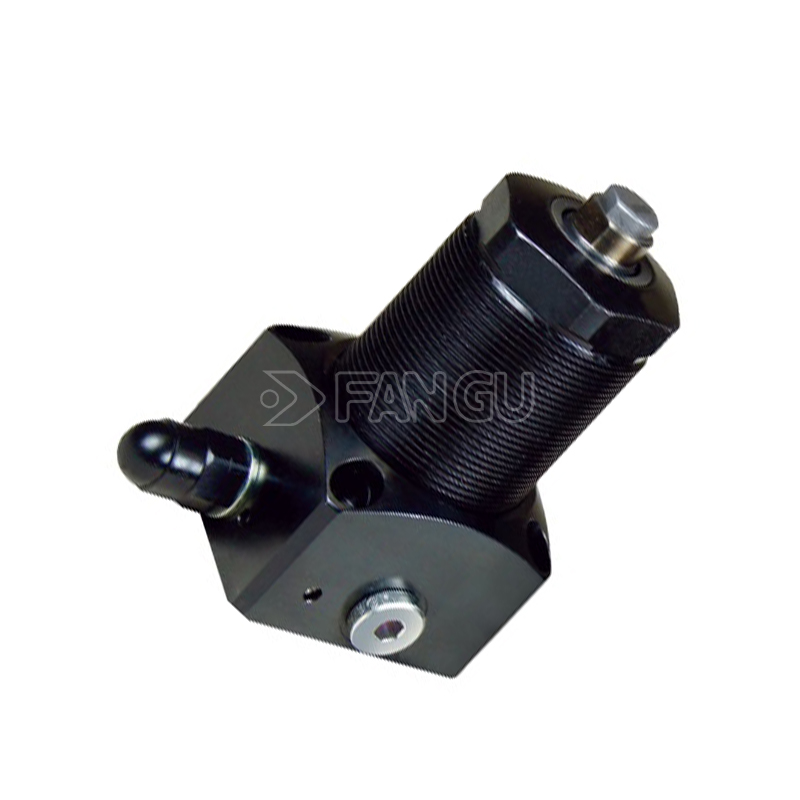

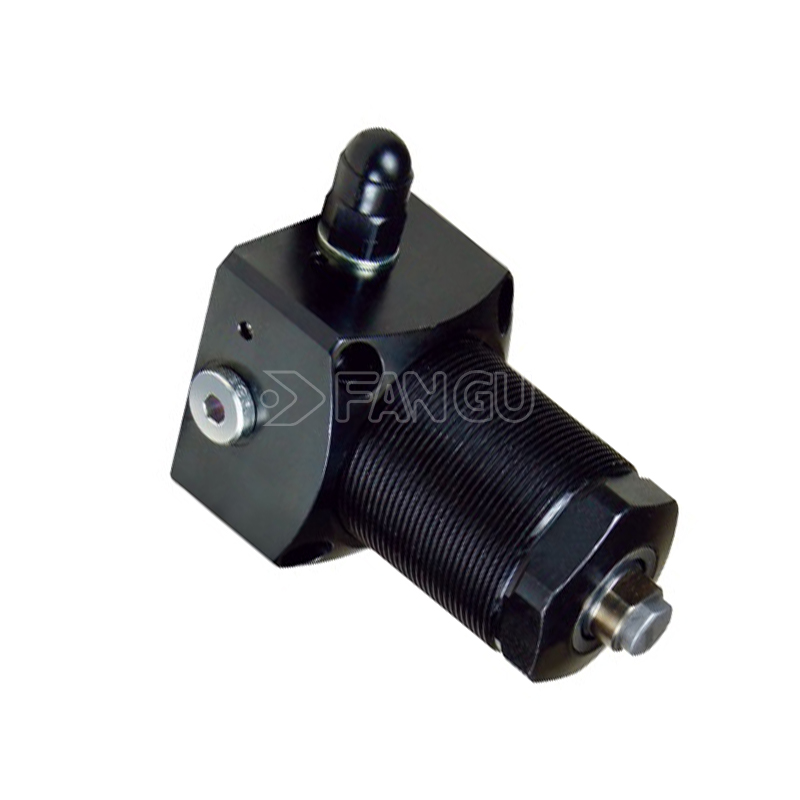

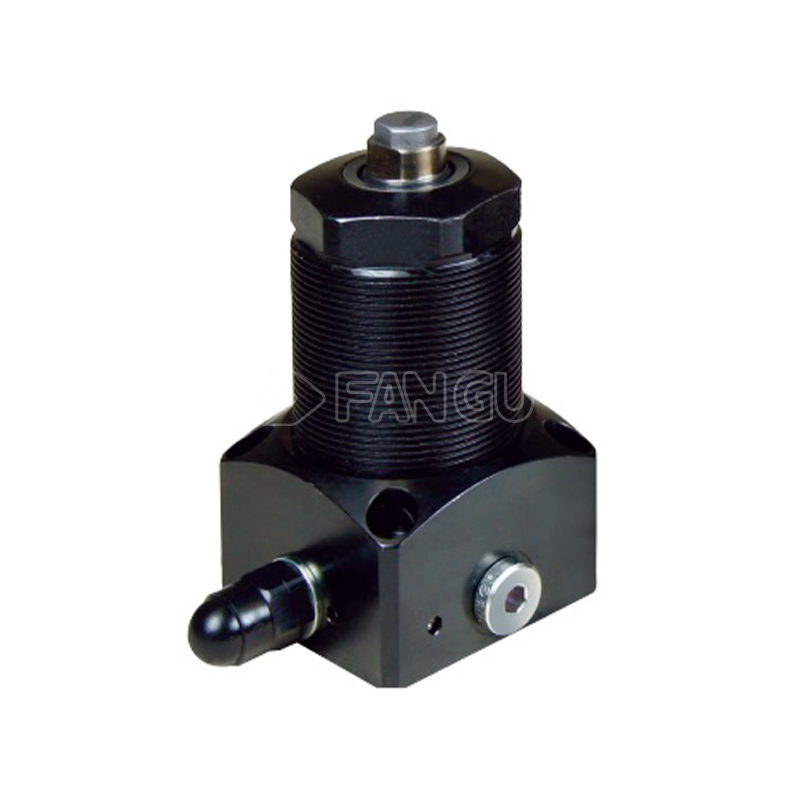

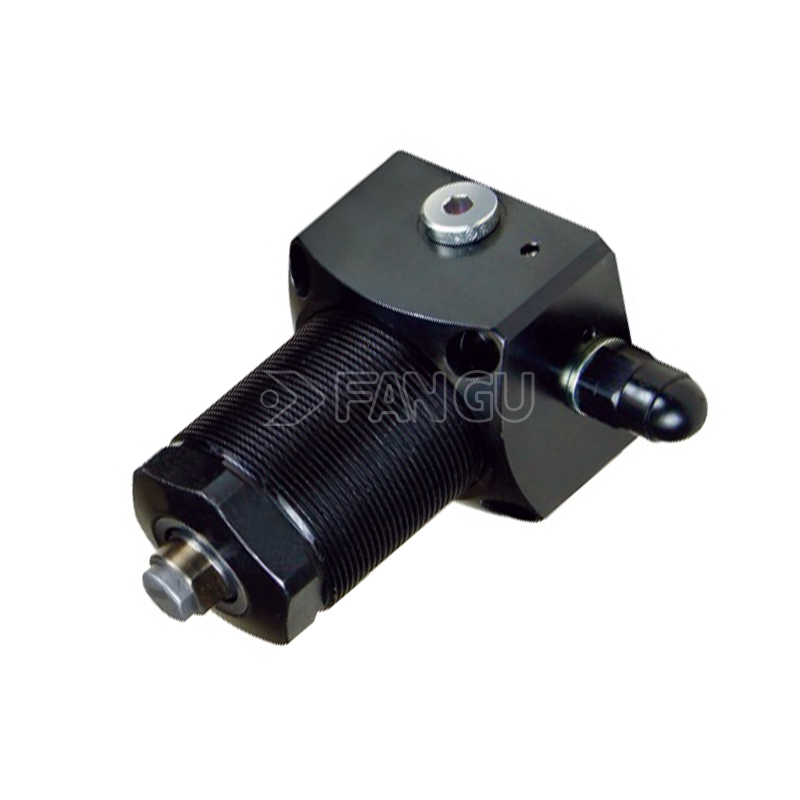

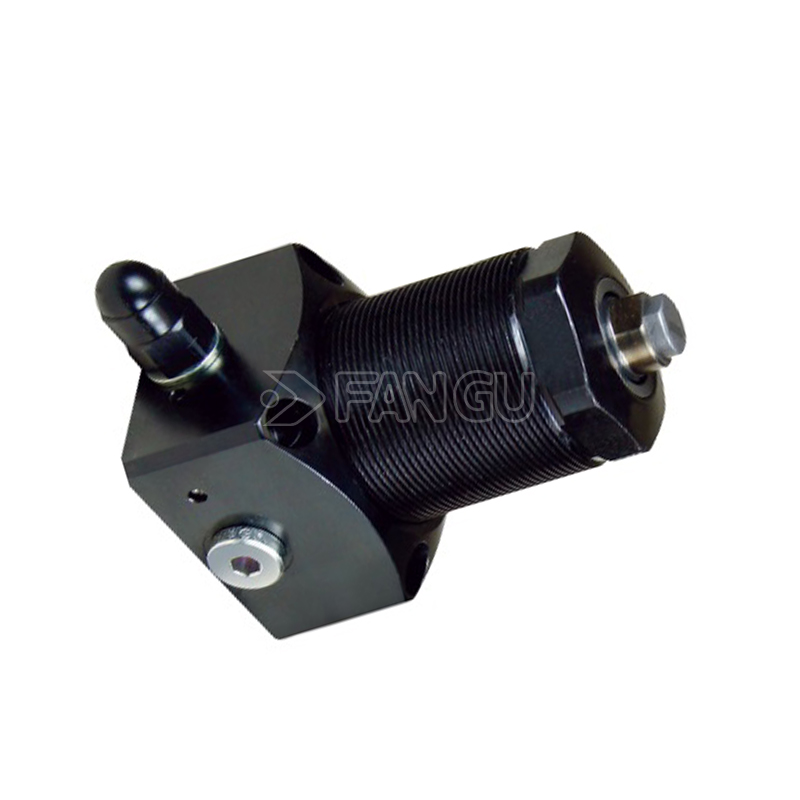

VEKTEK Hydraulically Extended Work Support Cylinders (Bottom Flange Type)
General Overview
This series consists of hydraulically actuated work support cylinders with bottom flange mounting, widely used as rigid auxiliary supports on machining fixtures. Unlike spring-extend types, both piston rod extension and retraction are driven by hydraulic pressure, with no built-in return spring. The cylinder provides steady rigid support to suppress vibration and prevent workpiece deflection during milling, drilling and other cutting operations.
Typical Applications:
- CNC machining fixture auxiliary support
- Milling, drilling and tapping clamping jigs
- Automotive component fixture systems
- Precision workpiece anti-vibration supporting stations
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Full Hydraulic Operation: Rod extends by hydraulic pressure to support workpieces and retracts by reverse hydraulic pressure for loading/unloading. Extension force can be precisely adjusted via system pressure.
- Bottom Flange Mounting: Square flange positioned at cylinder base, enabling recessed embedded installation inside fixture base plates.
- Side Hydraulic Ports: Two threaded ports on the cylinder body for separate extend and retract hydraulic circuits, flexible for pipeline arrangement.
- Hardened Piston Rod: Wear-resistant surface treatment for long service life under repeated contact loads.
- Model Suffix Definition:
- L: Standard version
- H: Reinforced high-pressure heavy-duty variant
- Fully hydraulic control ensures stable supporting force without risk of spring fatigue after long-cycle operation.
- Bottom flange design allows flush mounting inside fixture plates, saving vertical installation space.
- Provides rigid auxiliary support to minimize workpiece bending and cutting vibration.
- Compact integrated structure, suitable for limited fixture installation space.
- Multiple standard models to satisfy different load requirements.
