VEKTEK Spring-extend Hydraulic Work Support Cylinders with Bottom Flange Mounting for Machining Fixtures
Example Models:
- L1-0510-00-L(H)
- L1-0512-00-L(H)
- L1-0515-00-L(H)
- L1-0516-00-L(H)

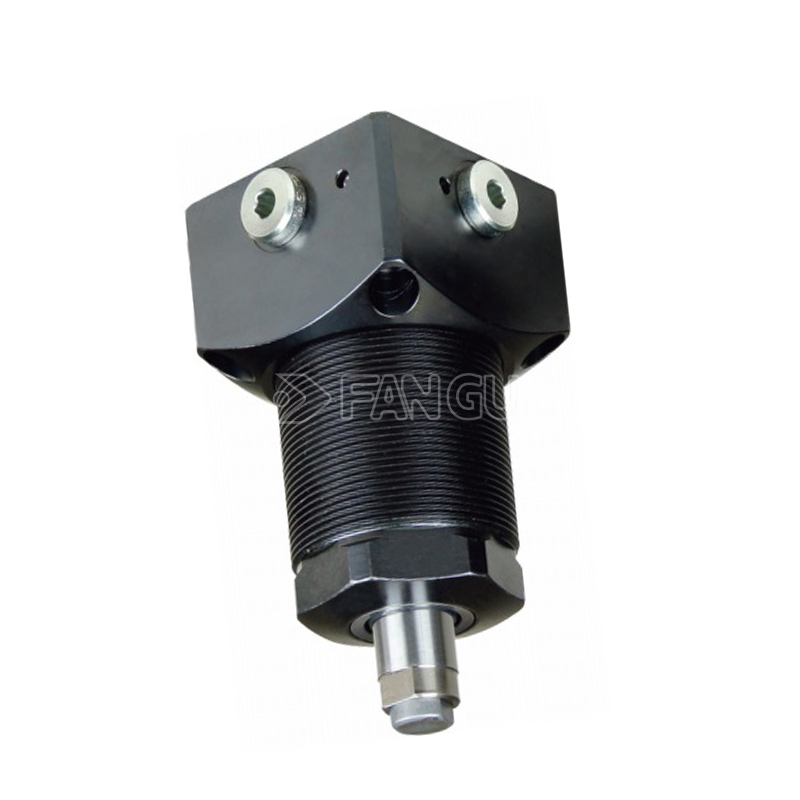

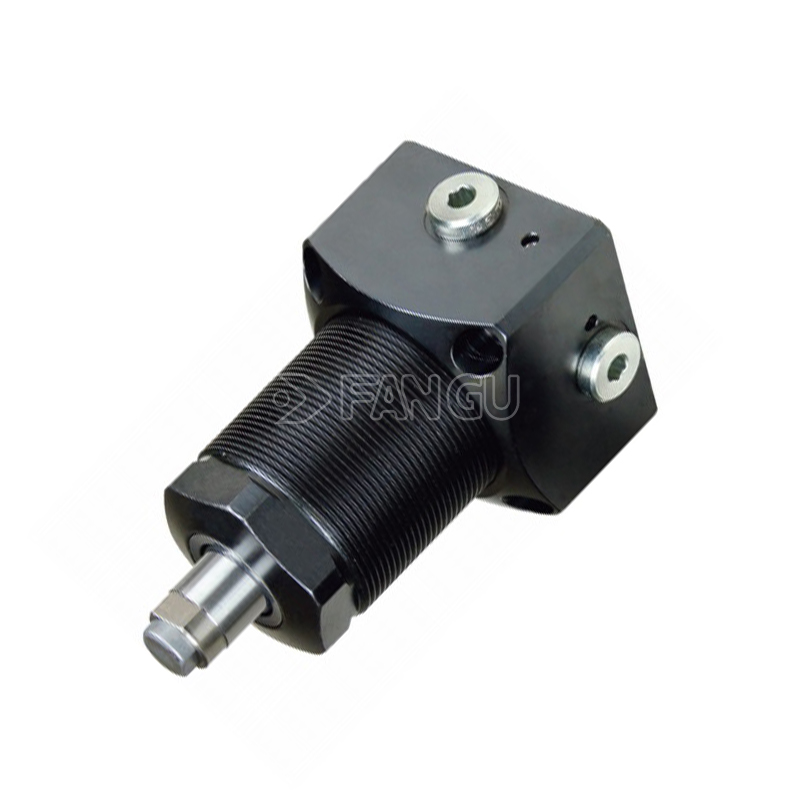

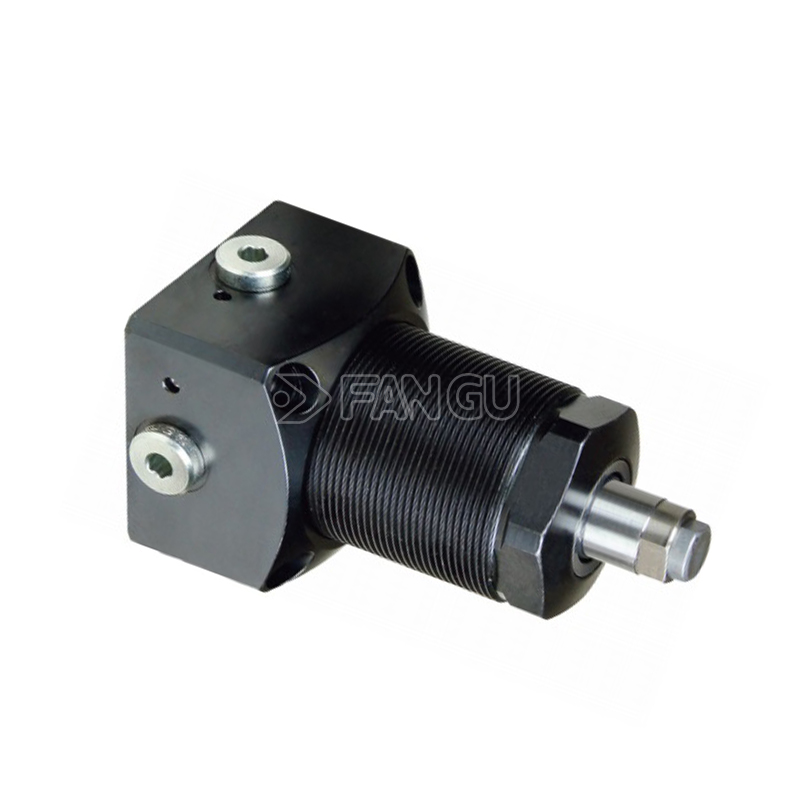

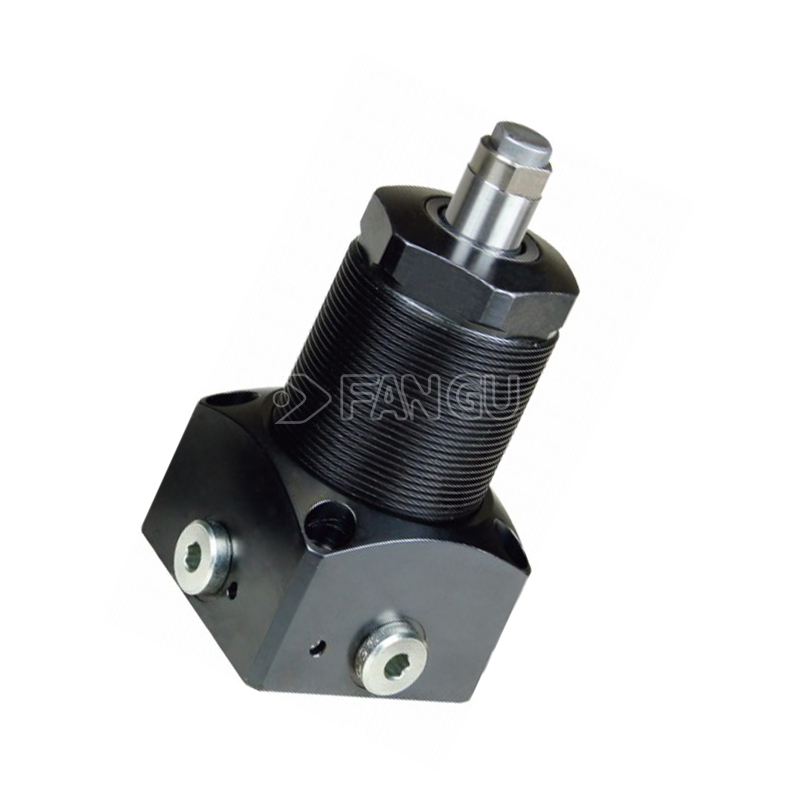

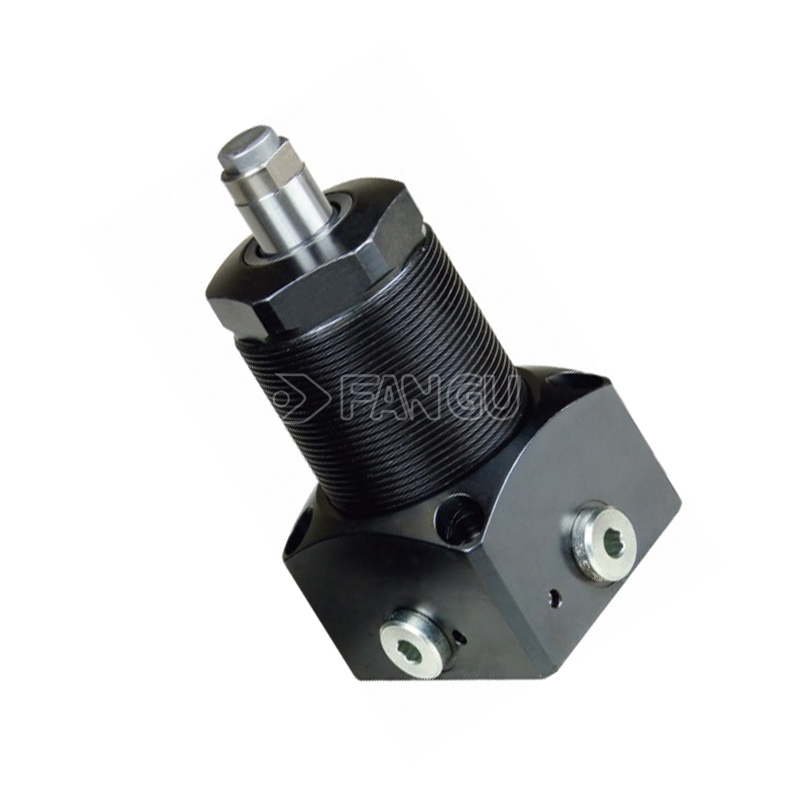

VEKTEK Spring Extend Work Support Cylinders (Bottom Flange Type)
General Overview
This series are spring-extended hydraulic work support cylinders with bottom flange mounting, widely used as rigid auxiliary supports on machining fixtures. The piston rod extends automatically driven by the built-in spring; hydraulic pressure retracts the rod for workpiece loading and unloading. After workpiece positioning, the spring pushes the rod upward to provide stable rigid support, effectively suppressing vibration and preventing workpiece deflection during cutting processes.
Typical Applications
- CNC machining fixture auxiliary supporting
- Milling, drilling and tapping clamping jigs
- Automotive component fixture systems
- Precision workpiece anti-vibration supporting stations
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Spring Extend Mechanism: Built-in spring extends the piston rod automatically; hydraulic pressure retracts the rod. No continuous hydraulic pressure is required to maintain supporting position.
- Bottom Flange Mounting: Square flange located at the cylinder bottom, convenient for recessed installation inside fixture base plates.
- Side-mounted Hydraulic Ports: Two threaded ports on the side body for flexible hose connection layout.
- Hardened Piston Rod: Wear-resistant surface treatment to withstand repeated contact loads.
- Model Suffix Definition:
- L: Standard version
- H: Reinforced high-pressure heavy-duty variant
- Automatic spring extension simplifies hydraulic circuit design for fixture systems.
- Bottom flange structure allows embedded installation, saving vertical fixture space.
- Delivers rigid auxiliary support to reduce workpiece bending and cutting vibration.
- Compact integrated structure, suitable for limited installation space.
- Multiple standard models to meet different supporting load requirements.
