VEKTEK Hydraulically Extended Work Support Cylinders with Top Flange Mounting for Machining Fixtures
Example Models:
- L1-0215-00-L(H)
- L1-0216-00-L(H)
- L1-0220-00-L(H)
- L1-0222-00-L(H)

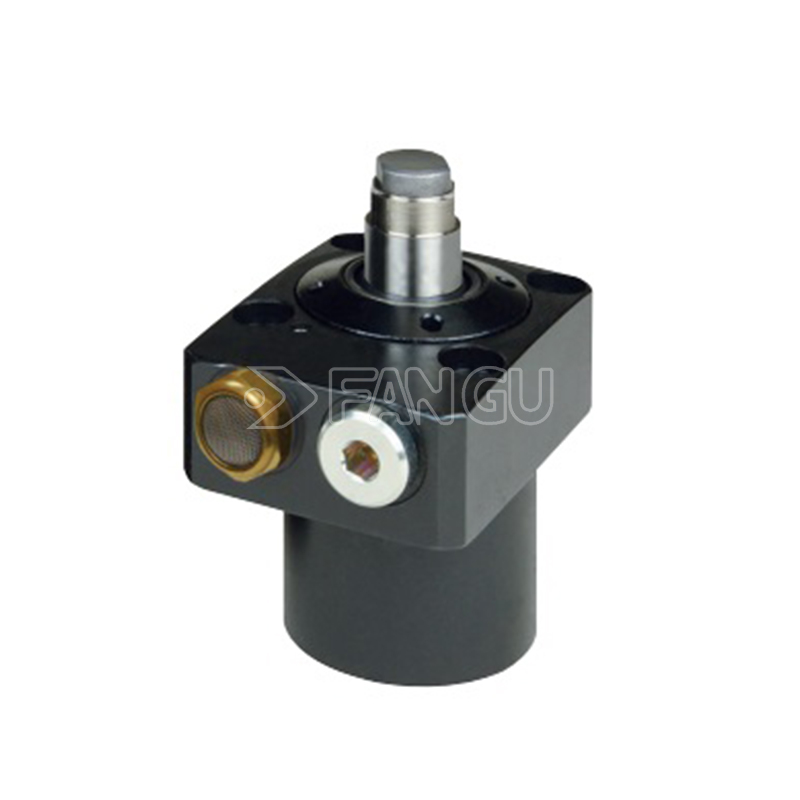

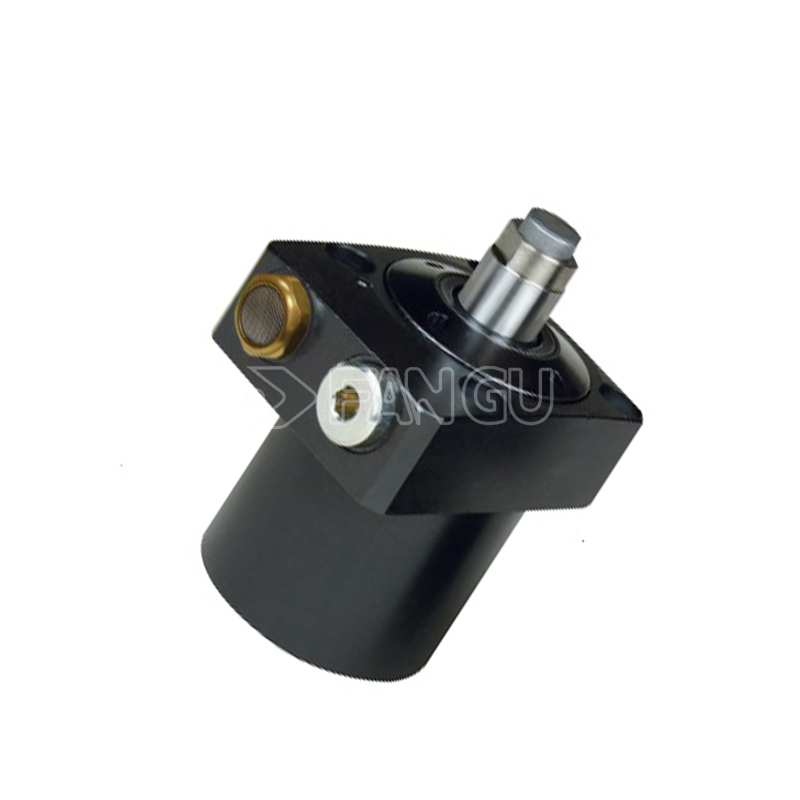

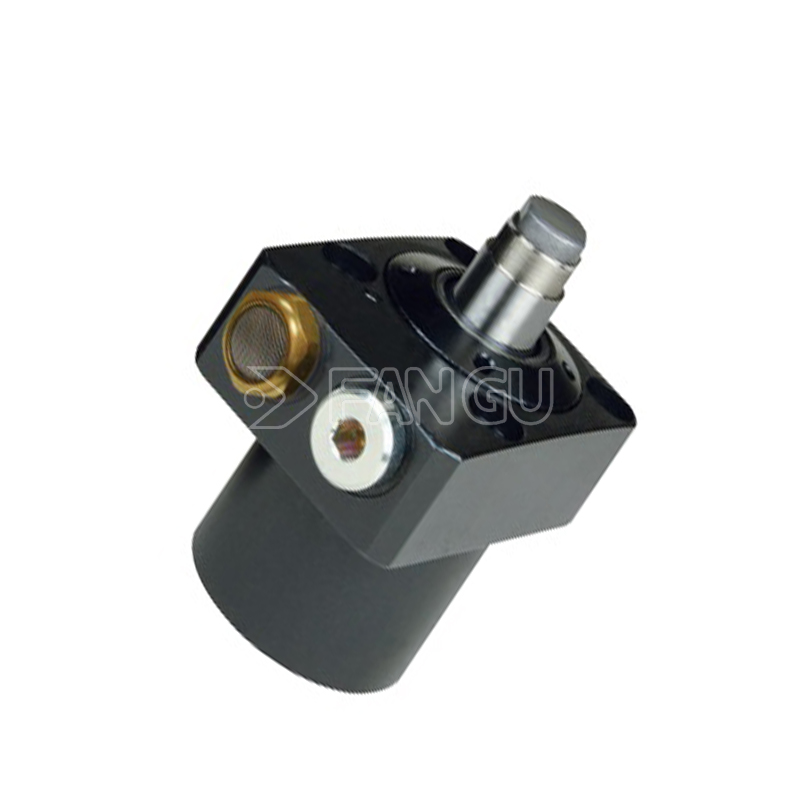

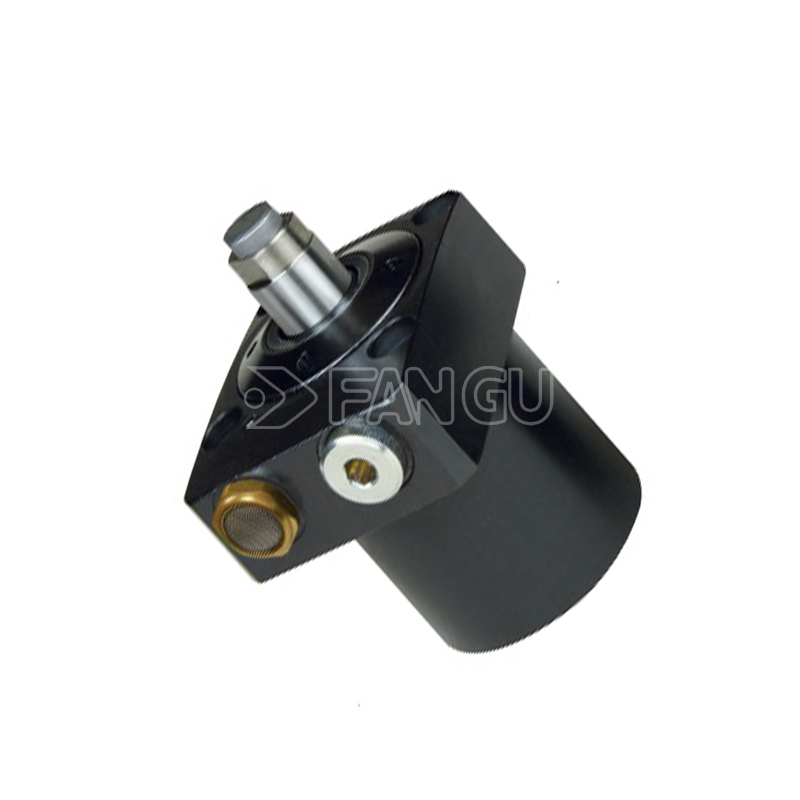

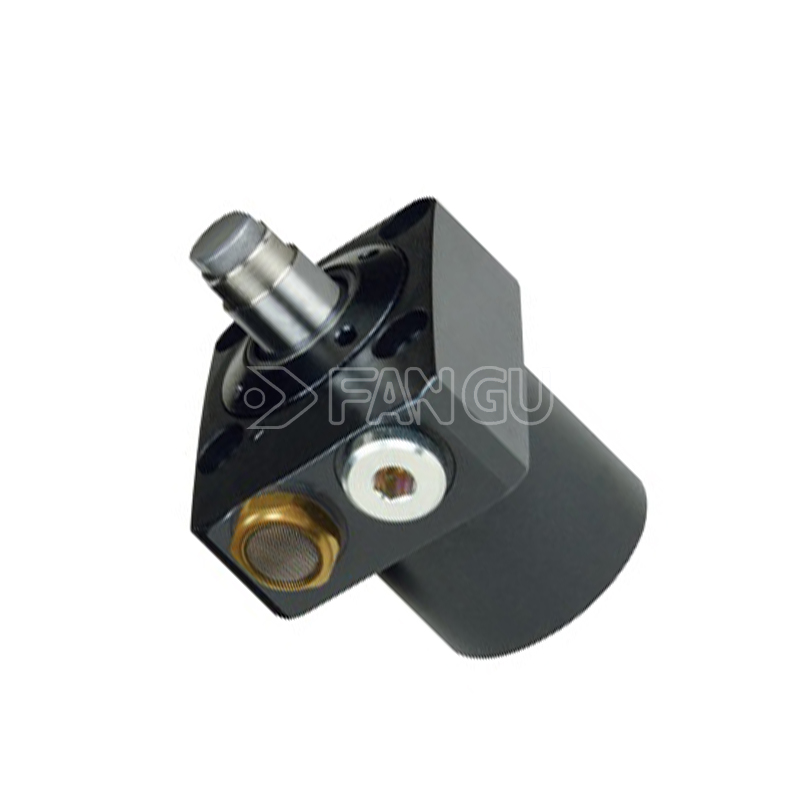

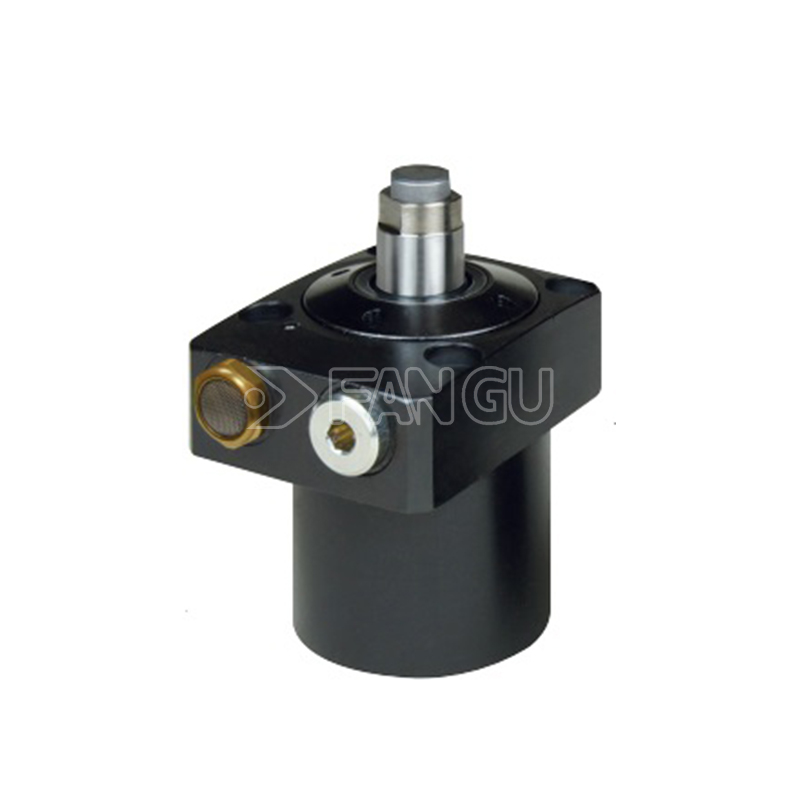

VEKTEK Hydraulically Extended Work Support Cylinders (Top Flange Type)
General Overview
This series are hydraulically actuated work support cylinders with top flange mounting, used as rigid auxiliary supports for machining fixtures. Unlike spring-extend support cylinders, both rod extension and retraction are driven by hydraulic pressure. The cylinder provides stable rigid support to suppress vibration and avoid workpiece deflection during milling, drilling and other cutting processes.
Typical Applications
- CNC machining fixture auxiliary support
- Milling, drilling and tapping clamping systems
- Automotive workpiece fixture jigs
- Precision component anti-vibration supporting stations
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Double hydraulic action (Hydraulically extended & hydraulically retracted): Piston rod extends by hydraulic pressure to support the workpiece and retracts by reverse hydraulic pressure for part loading/unloading. No built-in return spring.
- Top square flange mounting: Compact flange structure, easy installation onto fixture base plates.
- Two side hydraulic ports: Independent ports for extend and retract circuits, convenient pipeline layout.
- Hardened piston rod: Excellent wear resistance for repeated contact support.
- Model suffix definition:
- L: Standard version
- H: Reinforced high-pressure heavy-duty variant
- Fully hydraulic control for both extension and retraction, support force can be precisely regulated by system pressure.
- Continuous stable supporting force, unaffected by spring fatigue over long-term operation.
- Rigid support effectively reduces workpiece vibration and bending deformation during machining.
- Compact top flange design saves fixture installation space.
- Multiple standard models available to match different load requirements.
