Dalian VEKTEK Brand Type B Spring Extend Top Flange Support Cylinders for Machining Fixture
Example Models:
- L1-0115-00-L(H)
- L1-0116-00-L(H)
- L1-0120-00-L(H)
- L1-0122-00-L(H)

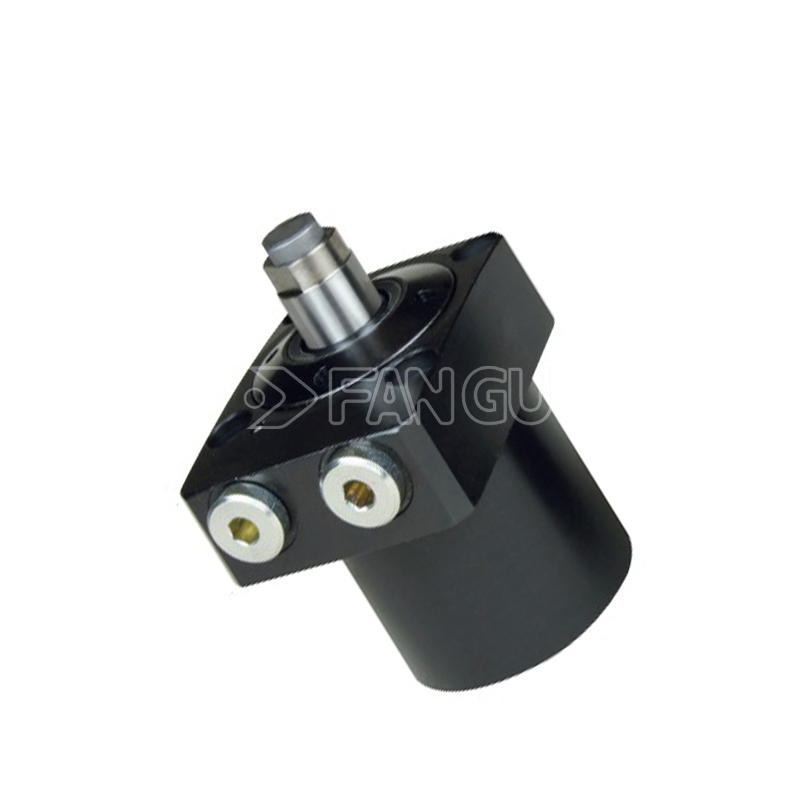

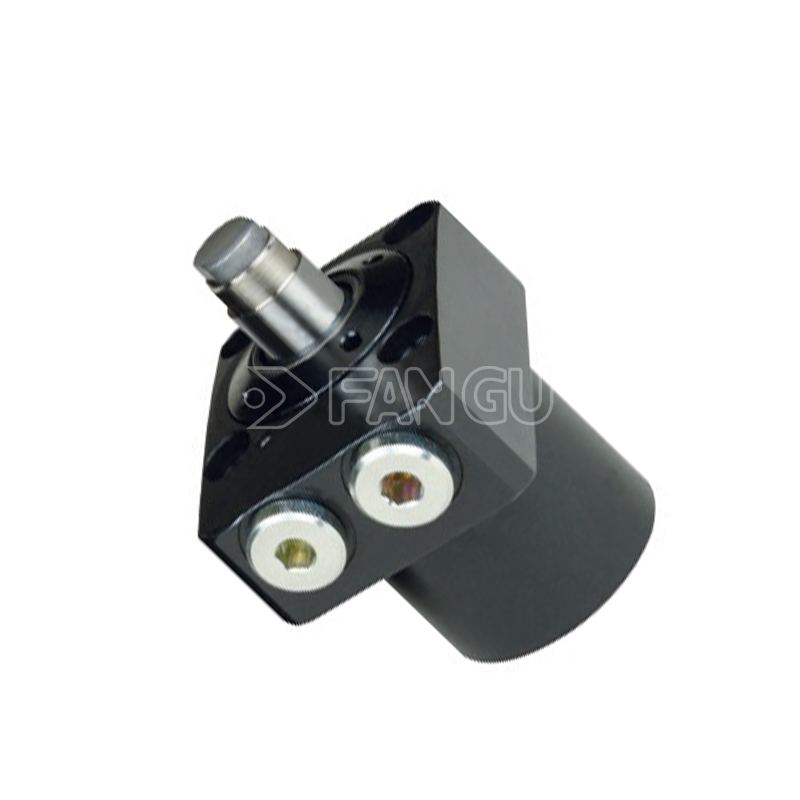

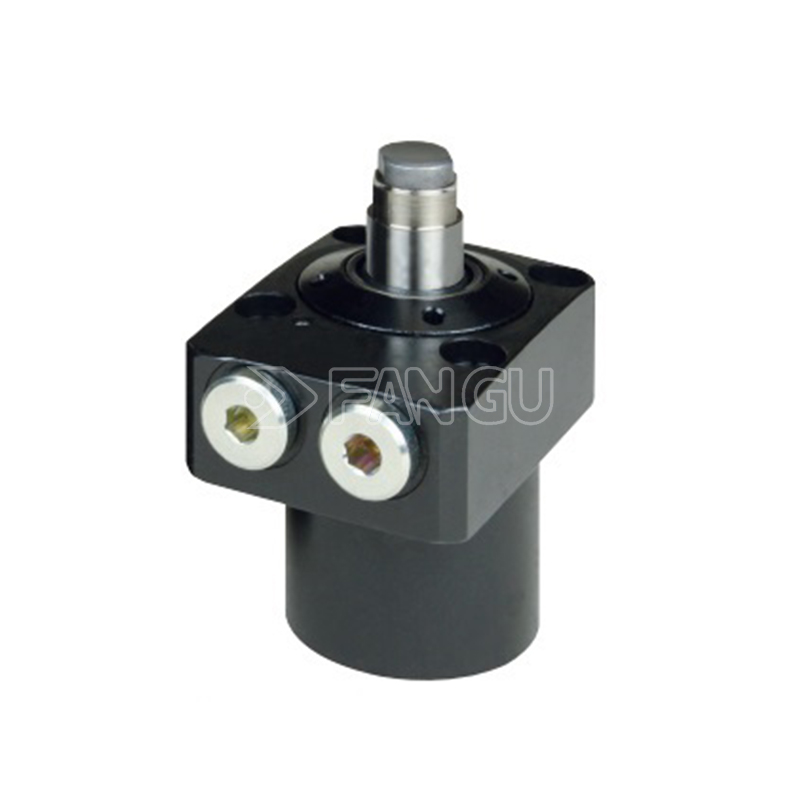

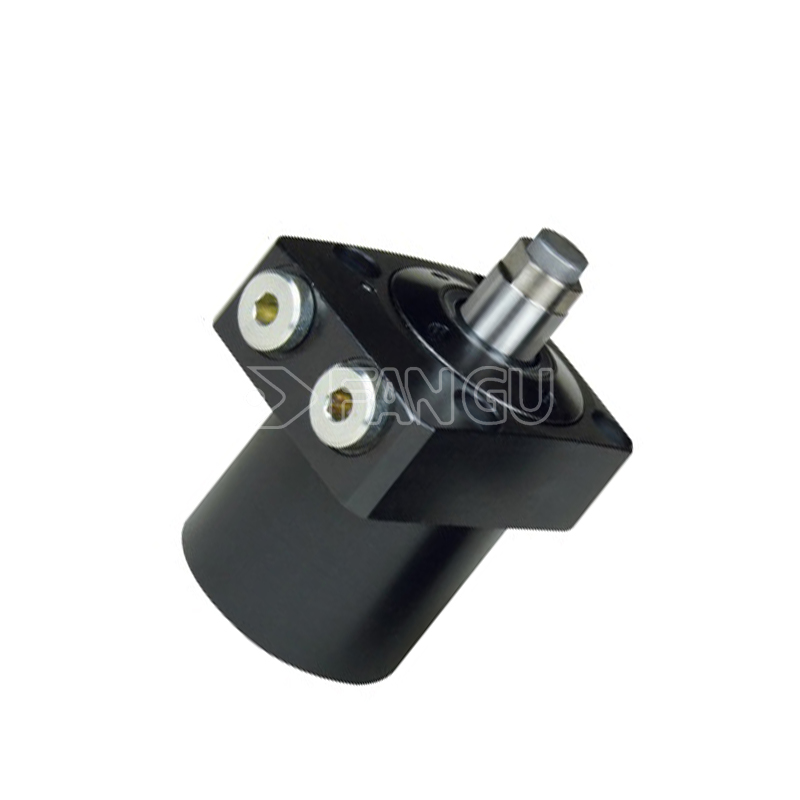

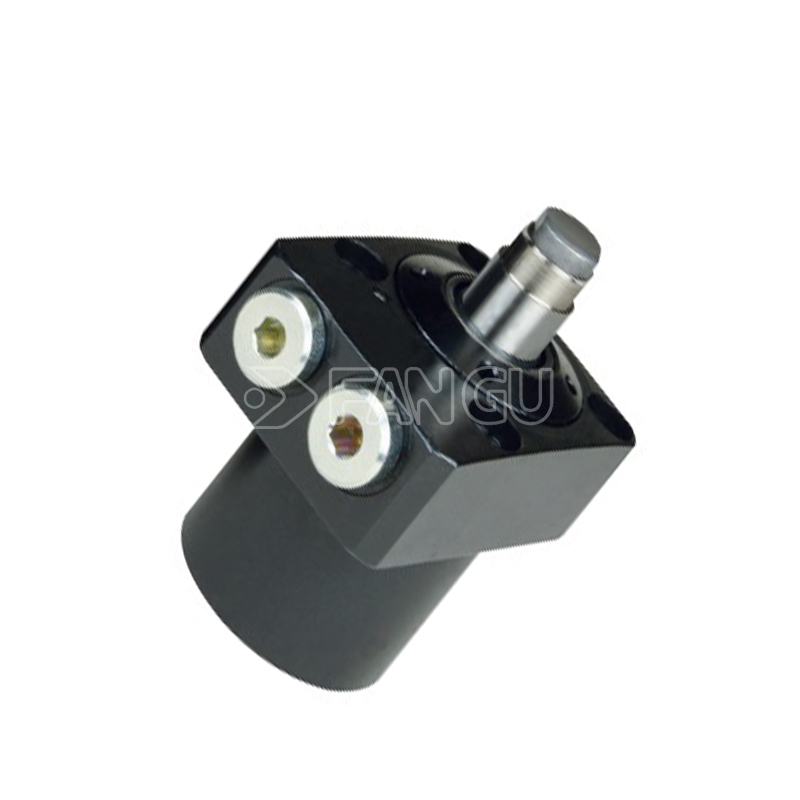

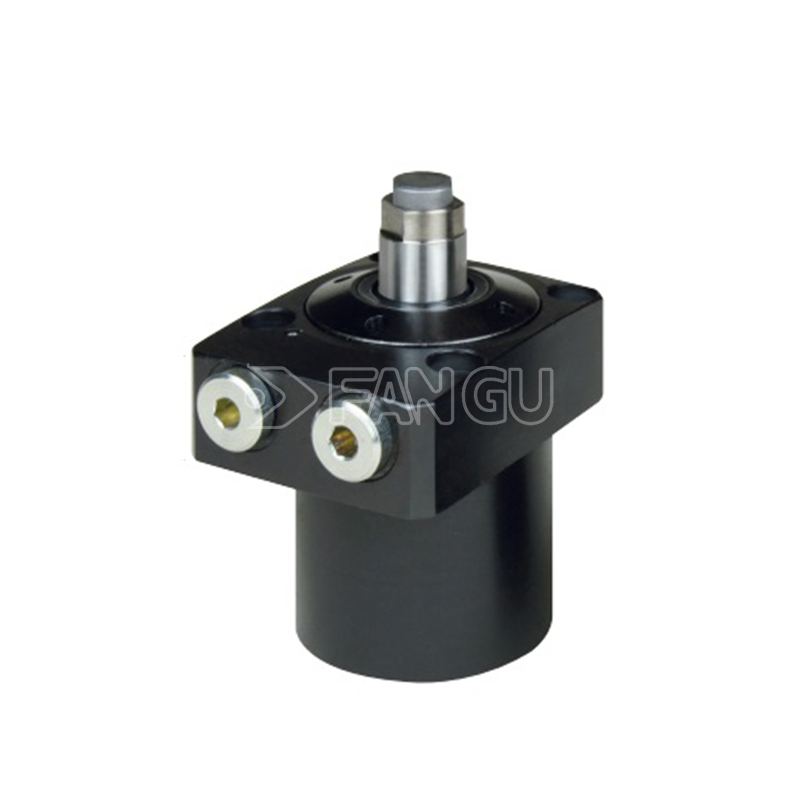

VEKTEK Brand Type B Support Cylinders (Spring Extend, Top Flange)
General Overview
Type B support cylinders are spring-extended hydraulic support cylinders with top flange mounting, widely used in machining fixtures to provide rigid workpiece support and resist cutting vibration.
The piston rod extends automatically by internal spring force; hydraulic pressure retracts the rod for workpiece loading and unloading. After the workpiece is positioned, the spring pushes the rod upward to hold the workpiece securely, improving system rigidity during machining.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Spring Push (Spring Extend) Mechanism: Rod extends via built-in spring; hydraulic retraction for reset. No continuous hydraulic pressure required to maintain supporting position.
- Top Flange Mounting: Compact square top flange, easy installation on fixture base plates.
- Integrated Compact Body: Short cylindrical construction, saves fixture space.
- Double Hydraulic Ports: Standard side-mounted threaded ports for convenient hose connection.
- Hardened Piston Rod: Wear-resistant surface treatment, stable under repeated contact loads.
- Model suffix explanation:
- L: Standard type
- H: Optional high-pressure / heavy-duty variant
- Automatic spring extension simplifies fixture hydraulic control circuits.
- Provides rigid auxiliary support to prevent workpiece deflection during cutting.
- Compact top flange layout adapts to limited fixture installation space.
- Reliable anti-vibration performance for milling, drilling and grinding processes.
- Multiple standard models available to match different supporting force requirements.
