VEKTEK Brand Type E 360° Lever Clamp Cylinders 360° Freely Adjustable Clamping Arm
Standard Model List
- L1-6025-00
- L1-6032-00
- L1-6040-00
- L1-6050-00
- L1-6063-00
VEKTEK TuffLink™ Type E 360° Lever Clamp Cylinders
General Overview

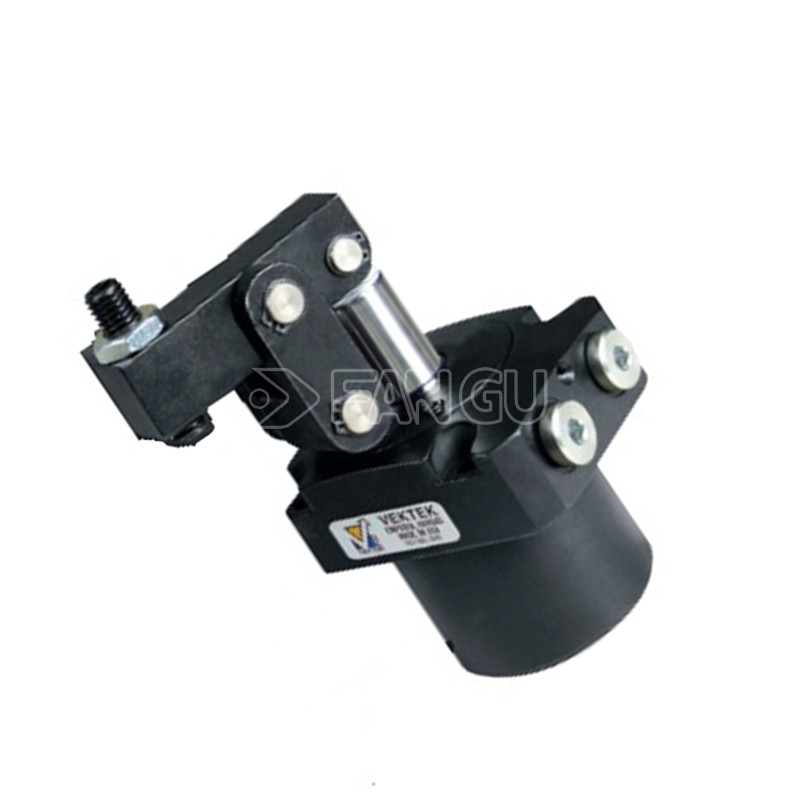

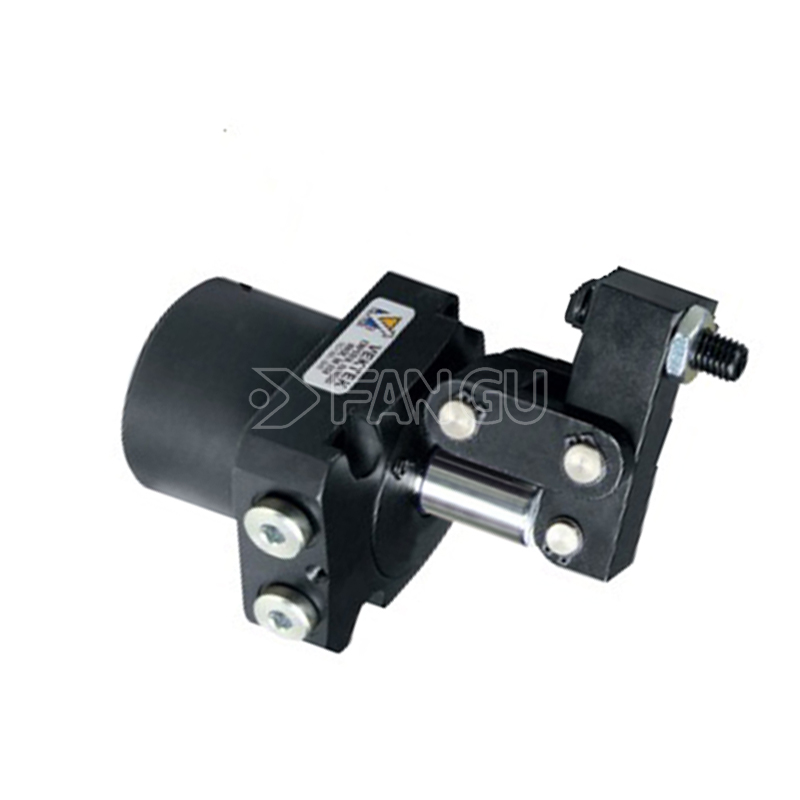

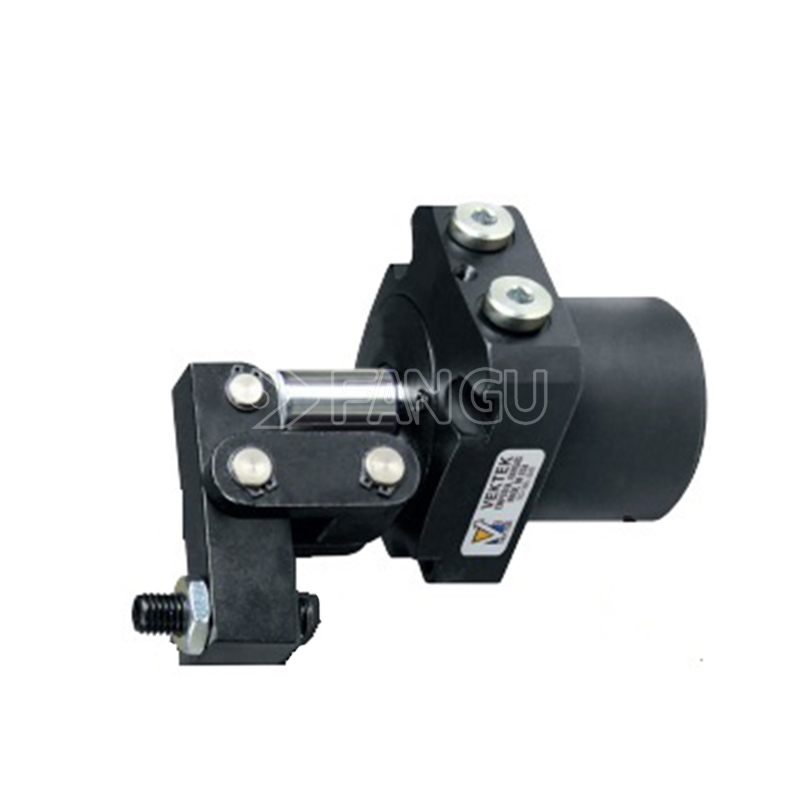

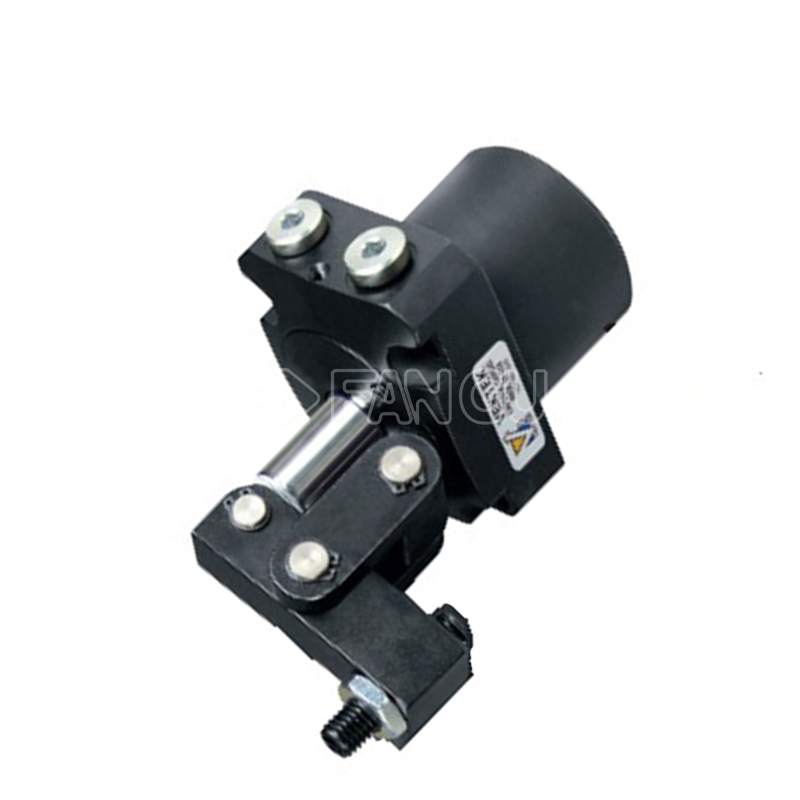

VEKTEK TuffLink™ Type E 360° Lever Clamp Cylinders are hydraulic toggle lever clamping cylinders specially designed for machining fixtures. Powered by hydraulic pressure, the built-in link-lever mechanism drives the clamping arm to swing and lock onto workpieces. The clamping arm supports free 360° rotational adjustment before installation, enabling flexible orientation to match various workpiece profiles and fixture layouts. The over-centre toggle structure delivers stable self-locking performance to resist vibration during cutting operations.
Typical Applications:
- Automated CNC machining fixture systems
- Automotive component machining and welding jigs
- Precision parts assembly tooling
- Milling, drilling and tapping production lines
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- TuffLink™ Toggle Lever Mechanism: Robust link lever construction provides amplified clamping force and reliable over-centre self-locking.
- 360° Adjustable Clamping Arm: The lever head can rotate freely 360° around the cylinder axis before tightening, offering flexible clamping direction setup.
- Compact Integrated Cylinder Body: Simplified installation layout, suitable for densely arranged fixture stations.
- Heavy-Duty Hinge & Pivot Components: Reinforced pins and joints withstand cyclic loads and machining impact.
- **Side-mounted hydraulic ports for convenient hose connection.
- Optional proximity sensor mounting interface for clamping status detection.
- 360° freely adjustable clamping arm greatly simplifies fixture design and on-site commissioning.
- Toggle over-centre self-locking prevents accidental release under cutting vibration.
- Lever structure generates mechanical amplification to achieve high clamping force.
- Rugged TuffLink™ linkage extends service life under continuous repeated clamping cycles.
- Multiple size options cover different clamping force requirements.
- Compact form factor saves fixture installation space.
