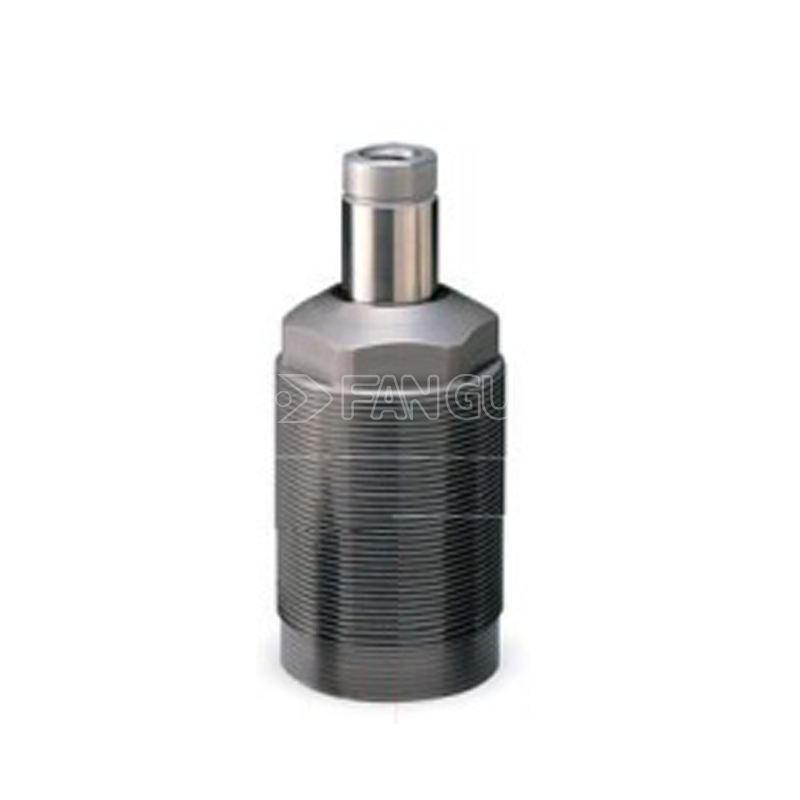

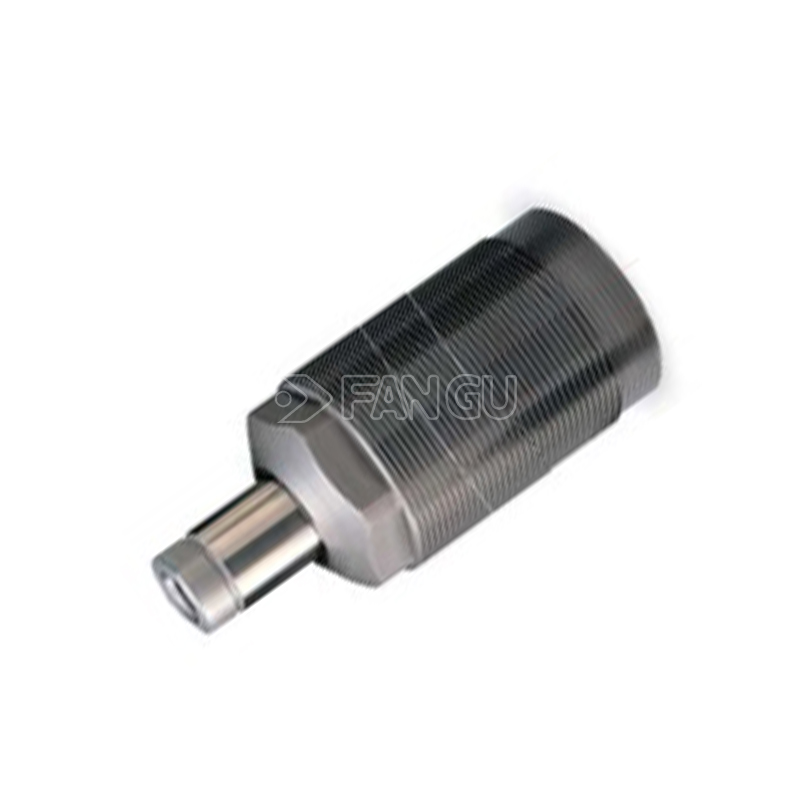

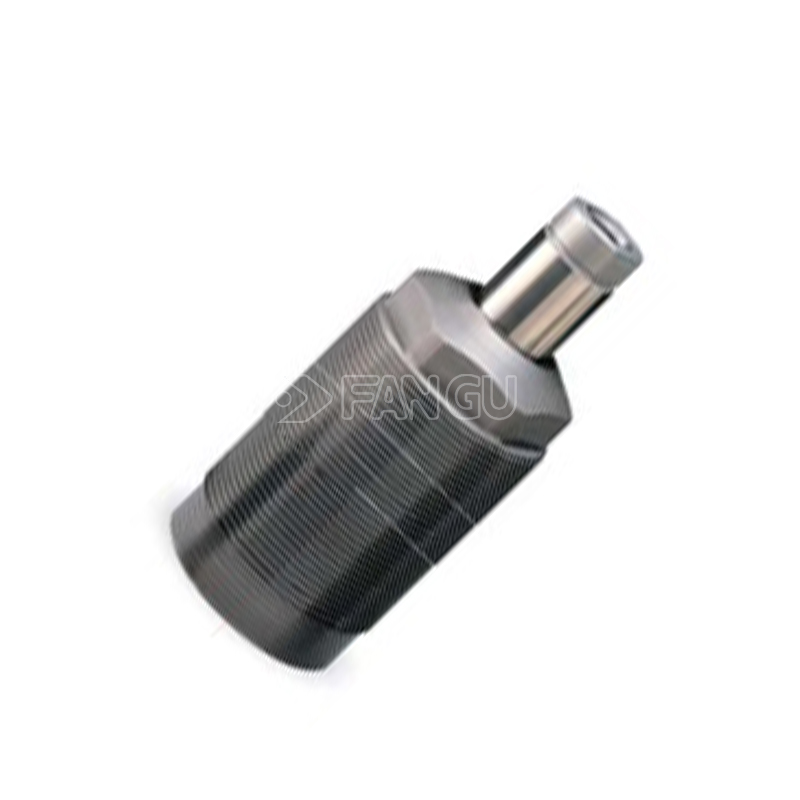

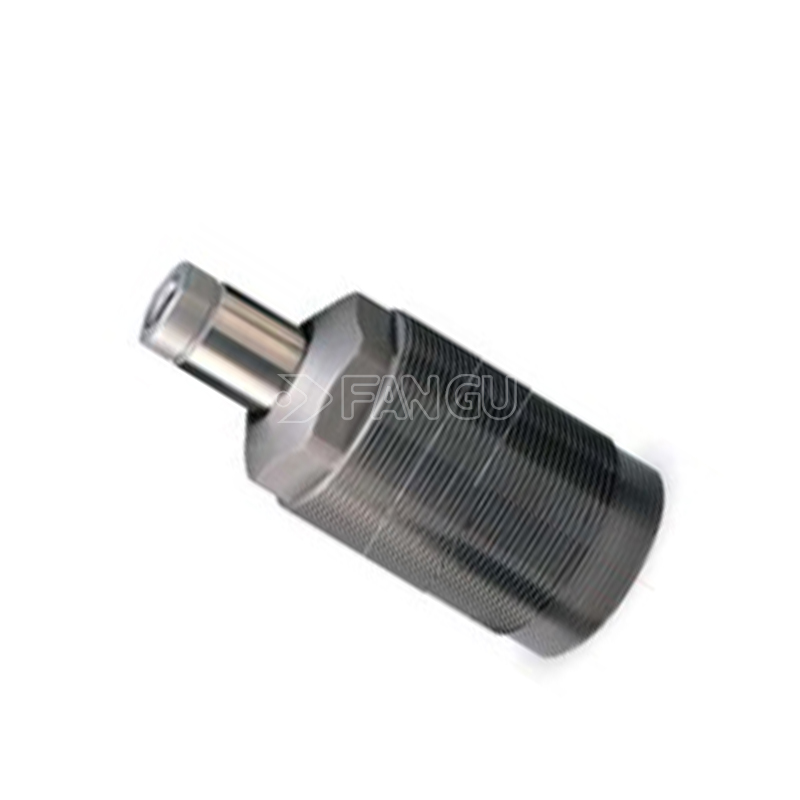

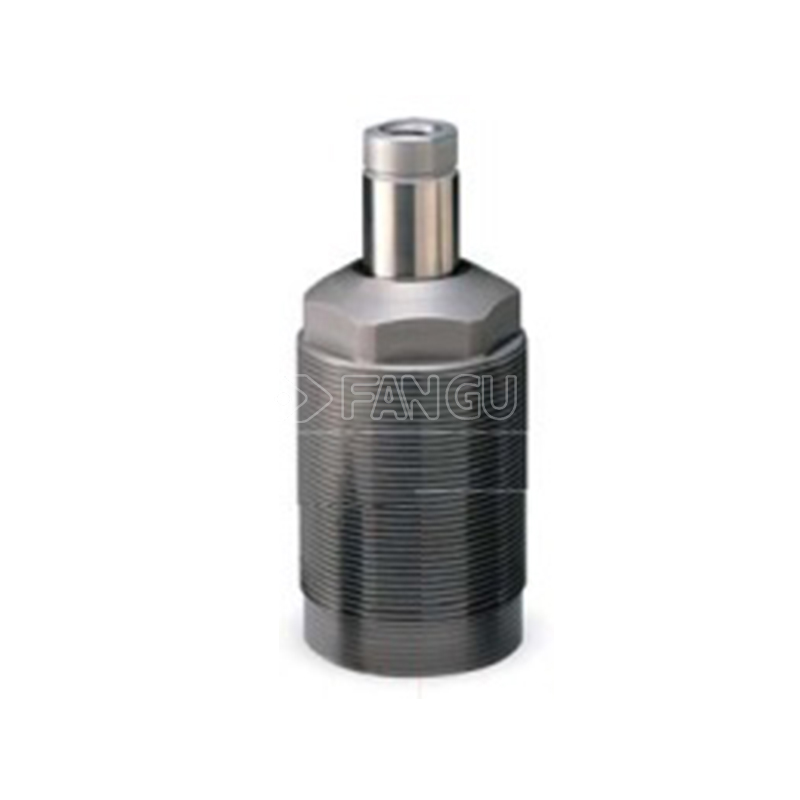

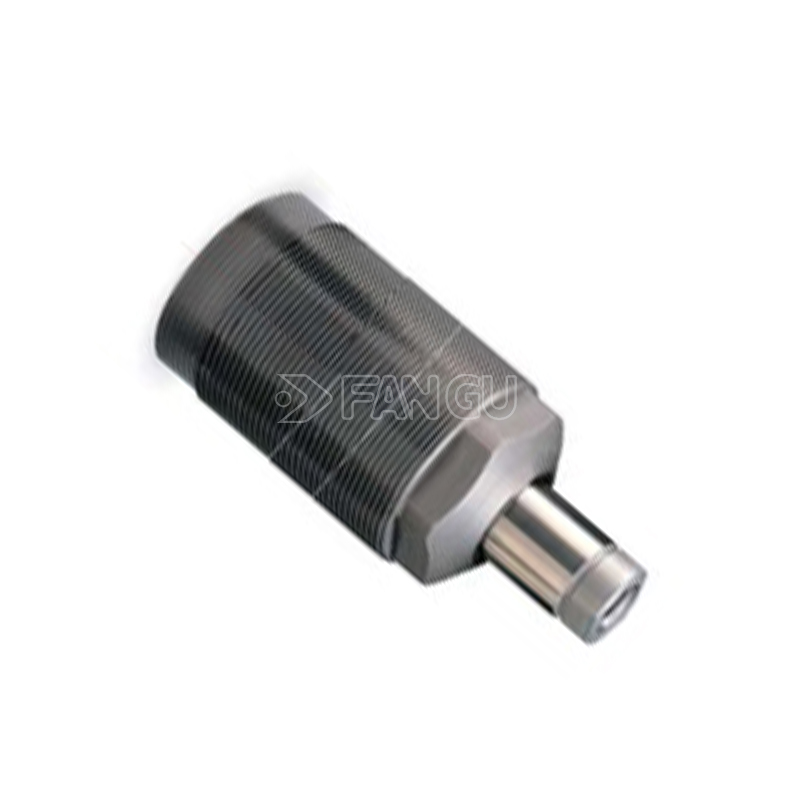

Japan Pascal Mini cylinder Threaded type 7MPa Single acting Pull CMD CMD02 CMD04 CMD06 CMD10 CMD20 CMD40 CMD60 CMD80
Pascal CMD is a series of high‑pressure double‑acting hydraulic push cylinders with threaded mounting, designed for powerful, controllable pushing and pulling in fixtures, automation equipment, and machining systems. Operating at 35MPa, it provides stable thrust and tension with precise control, suitable for heavy‑duty clamping, lifting, pressing, and positioning applications.
Main Models: CMD02 CMD04 CMD06 CMD10 CMD20 CMD40 CMD60 CMD80
Pascal CMD Product Introduction (35MPa Double‑Acting Thread‑Mount Push Cylinder)
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- 35MPa high‑pressure design for high thrust in a compact body
- Double‑acting hydraulic drive: both extend and retract are hydraulically controlled
- External threaded mounting for easy installation and space‑saving layout
- High rigidity and strong resistance to side loads
- Excellent sealing system against coolant and chips, suitable for harsh machining environments
- Long service life with stable performance under continuous operation
- Wide temperature range: 0°C to 70°C
- Compatible with ISO‑VG32 mineral hydraulic oil
- CNC machining fixtures and special‑purpose machines
- Heavy‑duty pressing, lifting, and positioning mechanisms
- Automated production lines and clamping systems
- Mold clamping and quick die change systems
- Industrial automation equipment requiring high thrust and controllable return
