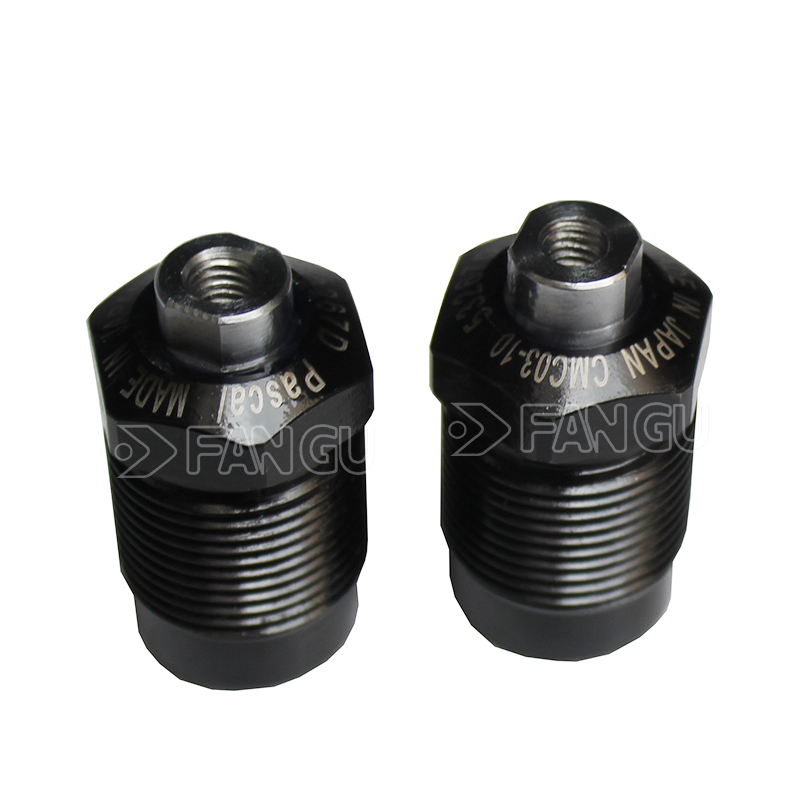

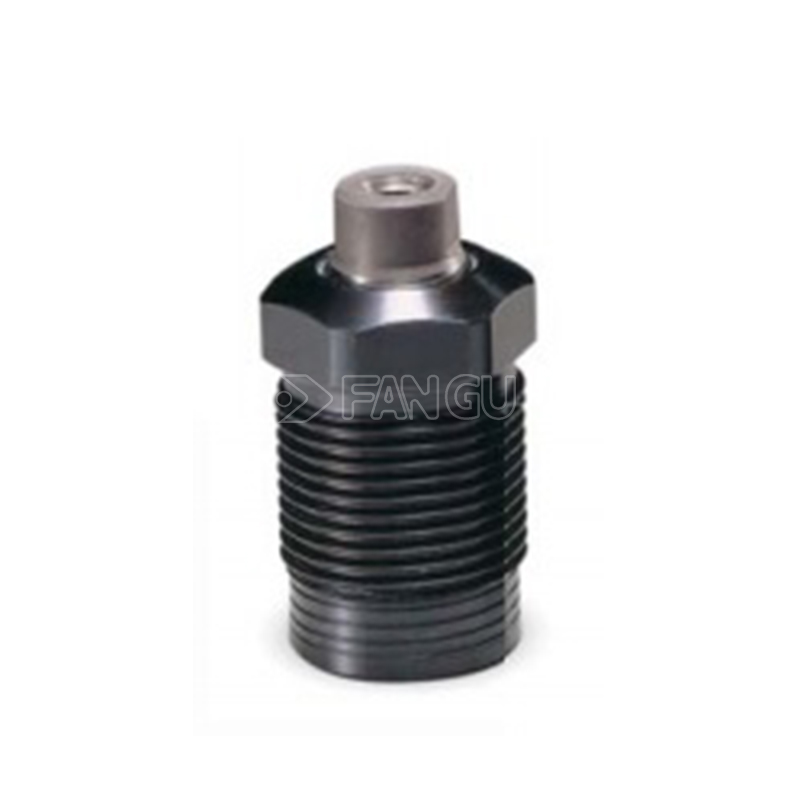

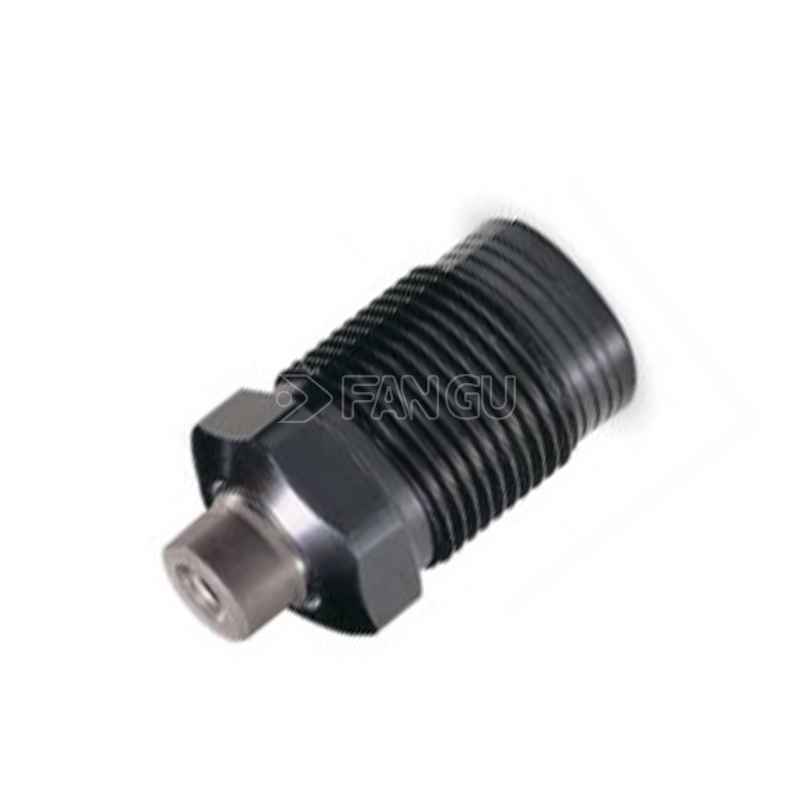

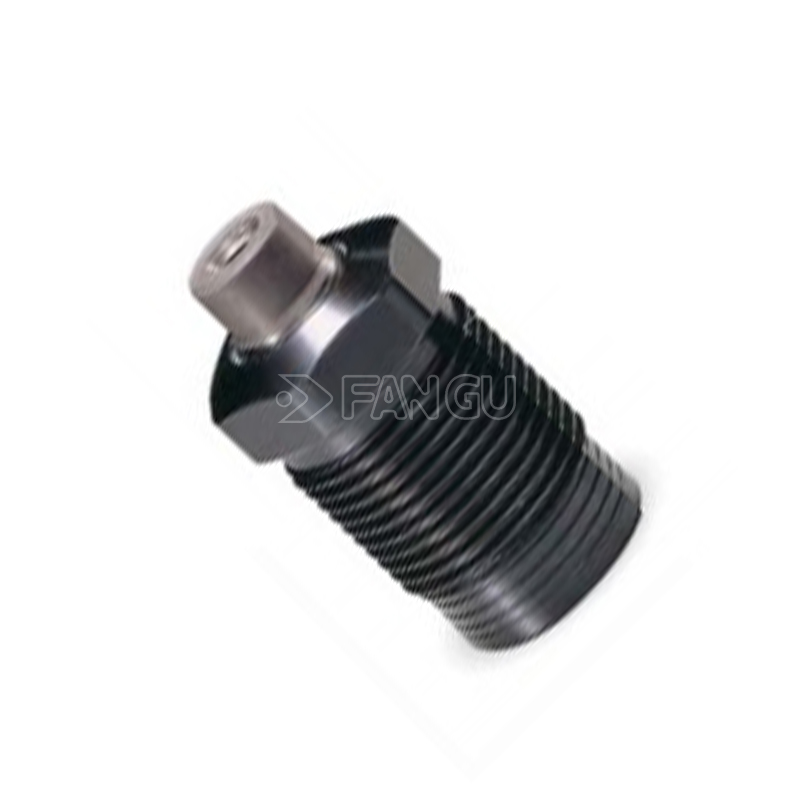

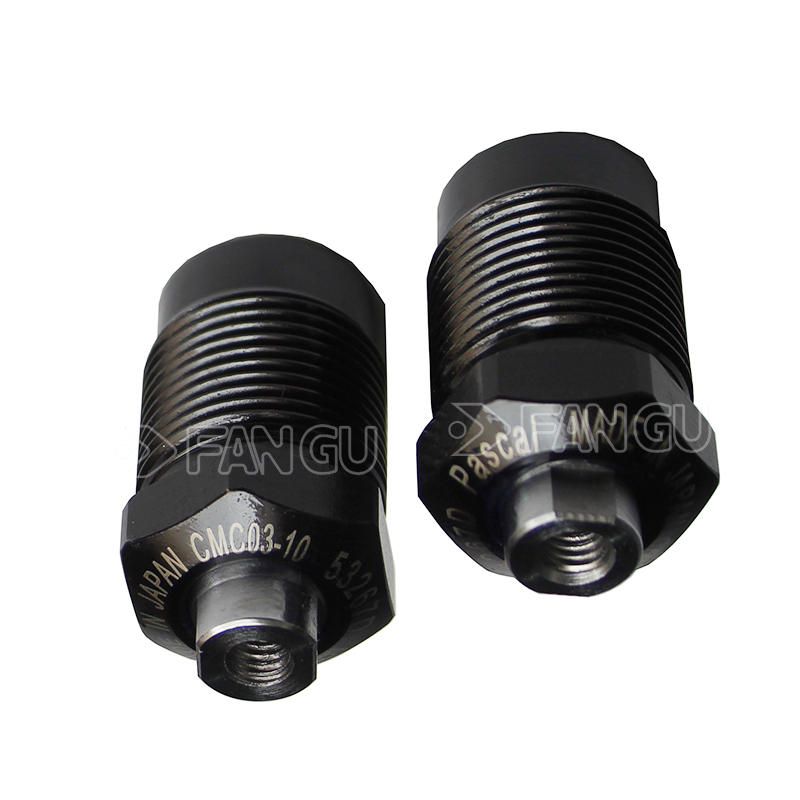

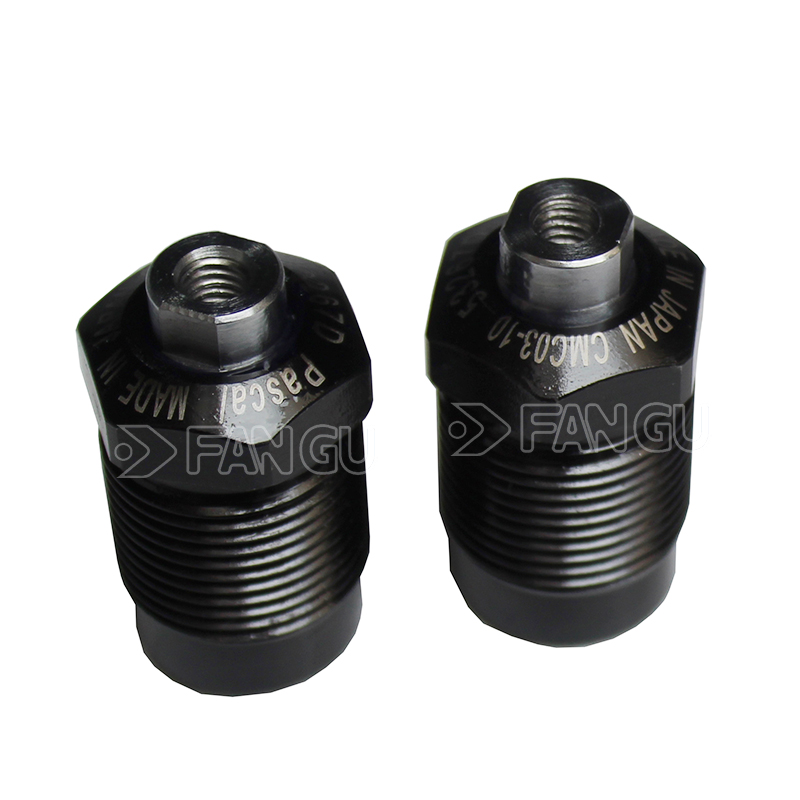

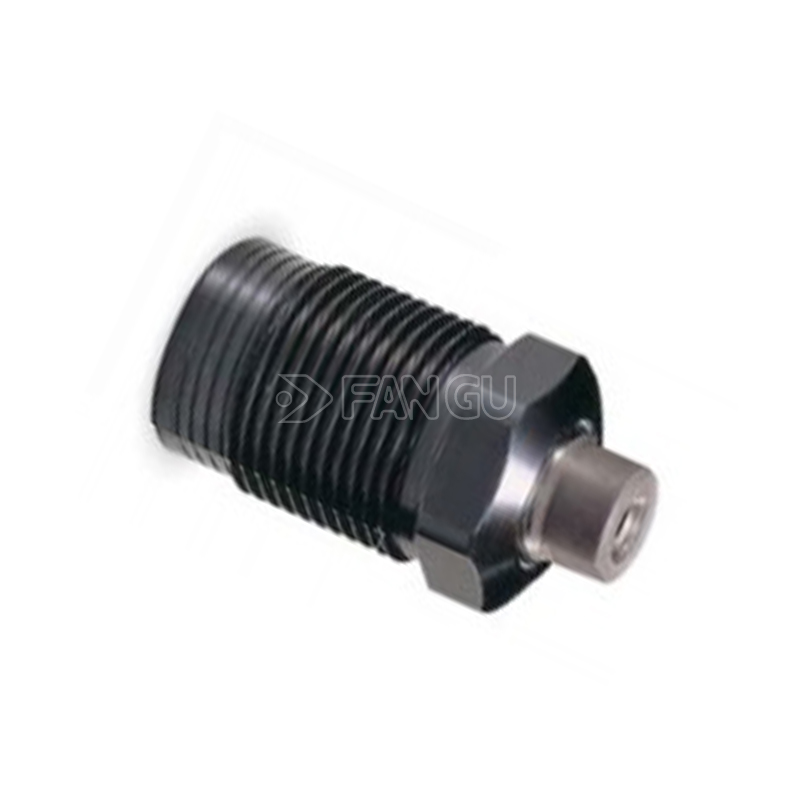

Japan Pascal Mini cylinder Threaded type 35MPa Single acting Push CMC CMC01 CMC03 CMC04 CMC06 CMC10 CMC20 CMC25 CMC40 CMC60 in Stock
Pascal CMC is a high‑pressure single‑acting hydraulic clamp cylinder with external thread mounting, designed for compact, high‑force clamping in automated machining and fixture systems. It delivers reliable clamping force up to 35MPa with spring return and dust‑proof sealing, ideal for dense fixture layouts and heavy‑duty applications.
Main Models: CMC01 CMC03 CMC04 CMC06 CMC10 CMC20 CMC25 CMC40 CMC60
Pascal CMC Product Introduction
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- 35MPa High‑Pressure Design: Delivers maximum clamping force up to 82.4kN (CMC60 at 35MPa).
- Single‑Acting with Spring Return: Simplified hydraulic circuit; reliable retraction without secondary pressure.
- External Thread Mounting: Easy installation, space‑saving, suitable for dense fixture layouts.
- Dust‑Proof Piston Seal: Prevents coolant/chip contamination; no vent holes to avoid fluid intrusion.
- Compact & Lightweight: Minimal footprint for high‑density clamping setups.
- Wide Operating Range: Pressure 1–35MPa; temperature 0–70℃; compatible with ISO‑VG32 mineral oil.
- Optional End Configurations: Standard threaded tip or optional spherical (R) tip for alignment flexibility.
- High‑Temperature Seal Option: FKM‑90 (V suffix) for up to 150℃, resistant to chlorine‑based coolants.
- CNC machining centers, milling machines, and automated production lines
- High‑force clamping for heavy‑cutting and high‑precision machining
- Dense fixture layouts requiring compact, high‑pressure clamps
- Automated unmanned machining systems
- Applications with coolant/chip exposure needing robust sealing
