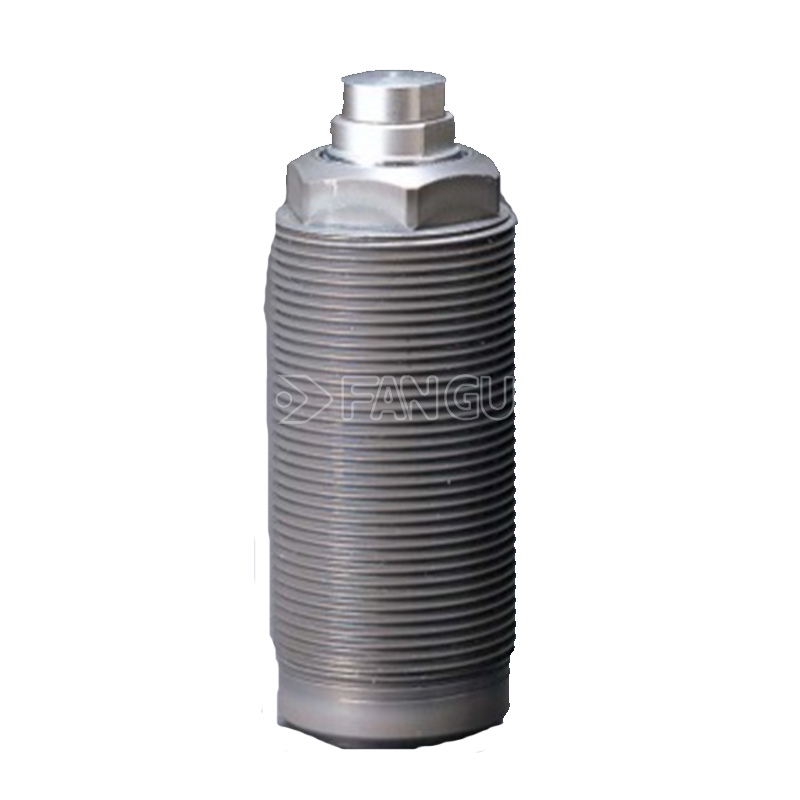

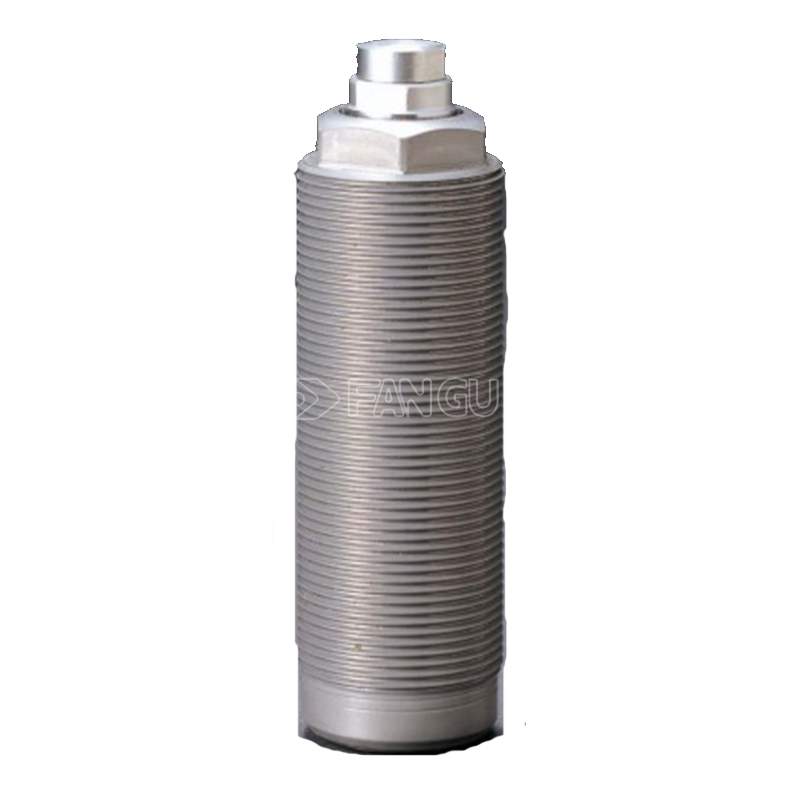

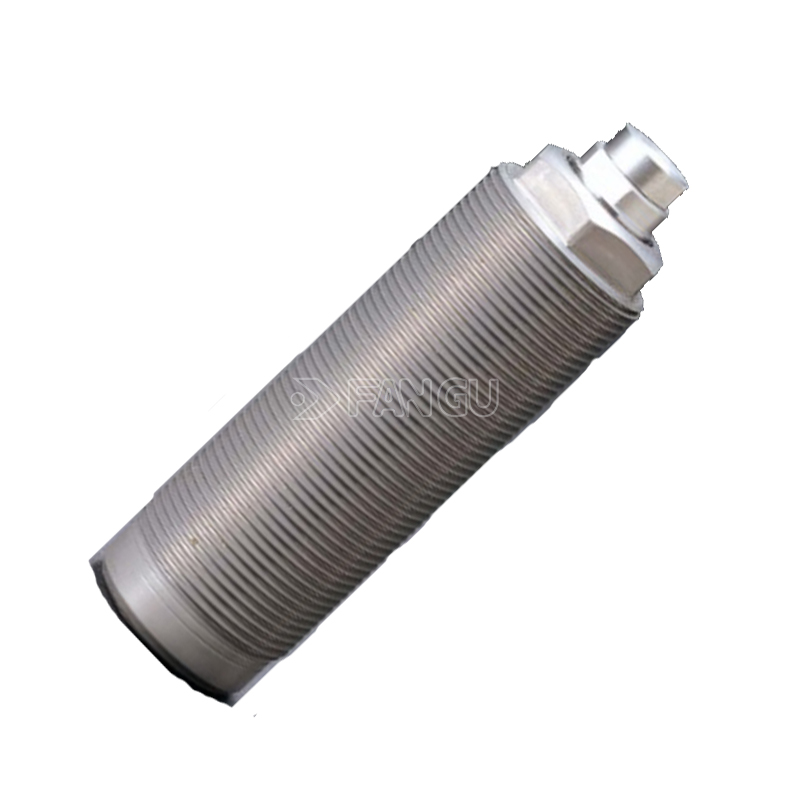

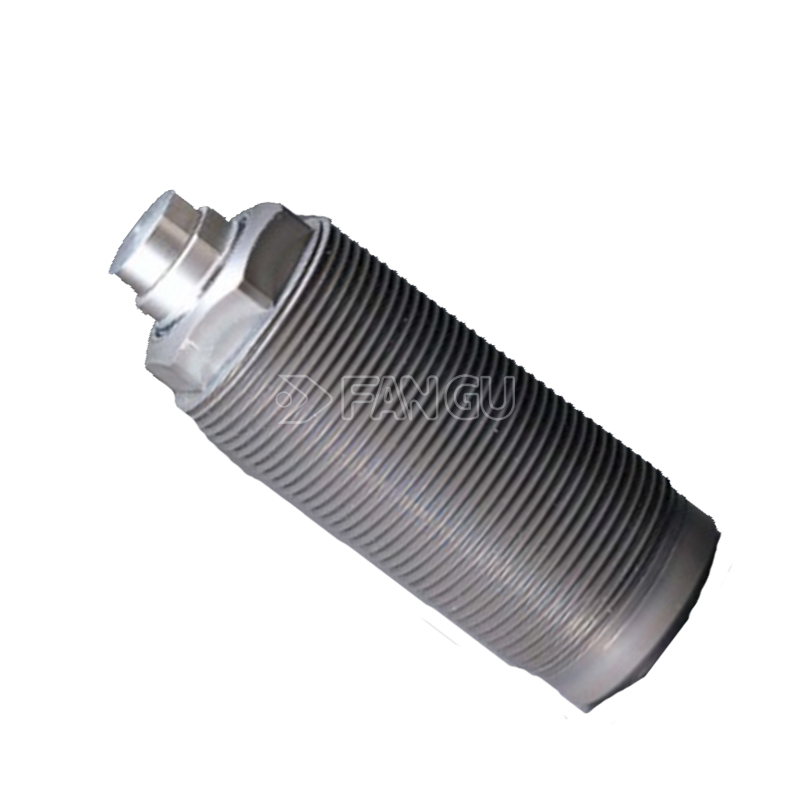

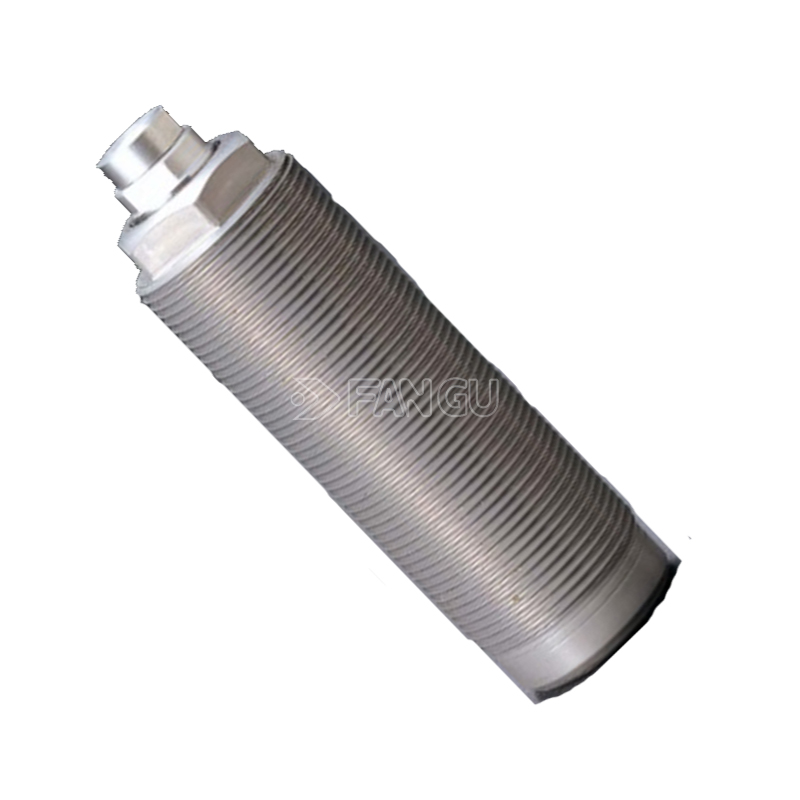

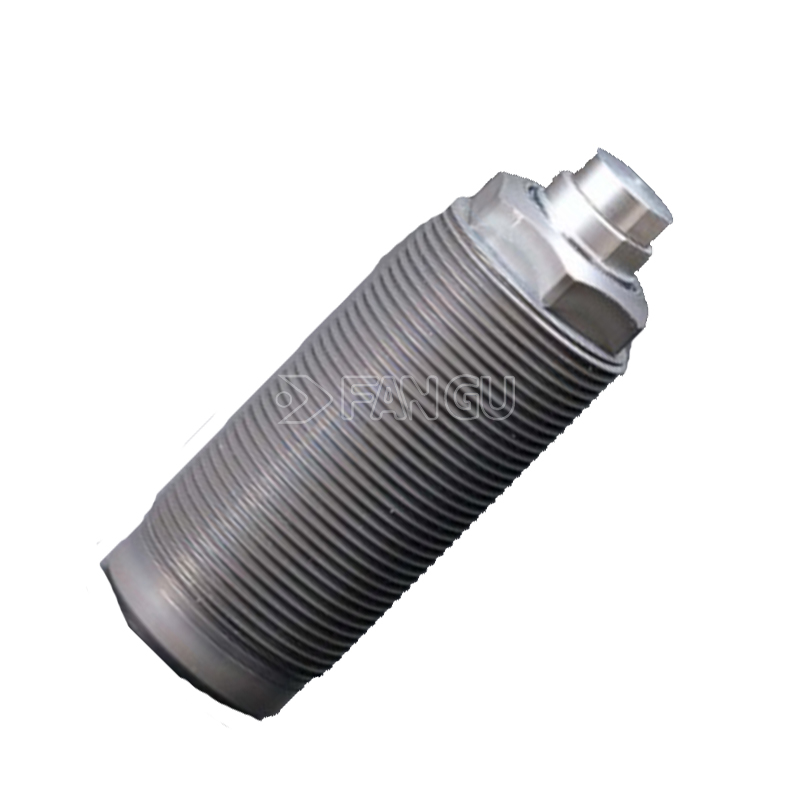

Pascal CSM is a 7MPa hydraulic work support with threaded mounting, featuring a special thin‑wall sleeve locking mechanism. It is designed for high‑precision machining of thin‑walled workpieces, providing stable support with minimal micro‑movement and excellent resistance to machining vibration.
Main Models: CSM0.2L CSM0.2H CSM0.3L CSM0.3H CSM0.4L CSM0.4H CSM0.6L CSM0.6H
Pascal CSM Product Introduction
(7MPa Thread‑Mount Hydraulic Lift Work Support, Special Straight‑Sleeve Type)
Pascal CSM is a 7MPa hydraulic work support with threaded mounting, featuring a special thin‑wall sleeve locking mechanism. It is designed for high‑precision machining of thin‑walled workpieces, providing stable support with minimal micro‑movement and excellent resistance to machining vibration.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- High Rigidity & Large‑Diameter Plunger: Robust plunger design effectively prevents workpiece vibration and deformation.
- Special Thin‑Wall Sleeve Lock: Large contact area provides uniform support force, ideal for interrupted cutting.
- Ultra‑Low Micro‑Movement: Minimizes plunger upward drift; no downward sagging during machining.
- Large Clearance for Smooth Operation: Large sleeve‑plunger clearance during unlocking ensures low friction and smooth movement.
- Adjustable Lift Spring Force: Two spring options (Standard: 4.0–7.0N; High‑Force: 6.0–11.0N) to avoid workpiece deformation.
- Standard Air Purge System: Prevents chip/coolant ingress; optional low‑pressure air blow (0.02MPa) available.
- Built‑in Sequence Valve: Automates lift/lock/release cycles for reliable operation.
- Compact & Lightweight: Threaded mounting for space‑saving, dense fixture layout.
- High‑precision machining of thin‑walled, easily deformable workpieces
- CNC machining centers and automated production lines
- Fixtures requiring ultra‑stable support with minimal micro‑movement
- Interrupted cutting and heavy‑load machining conditions
- Dense fixture layouts with space constraints
