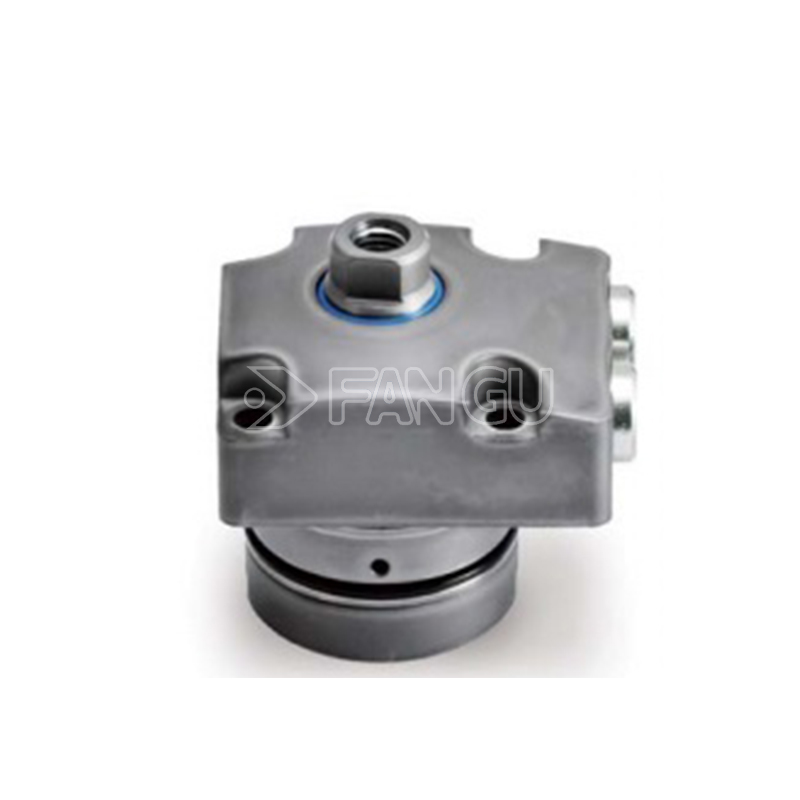

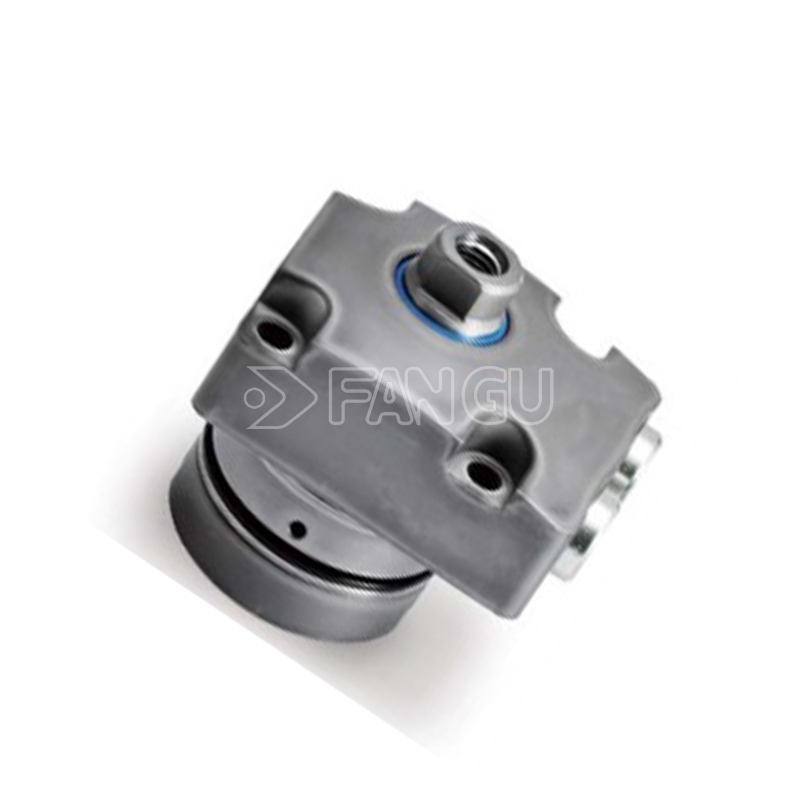

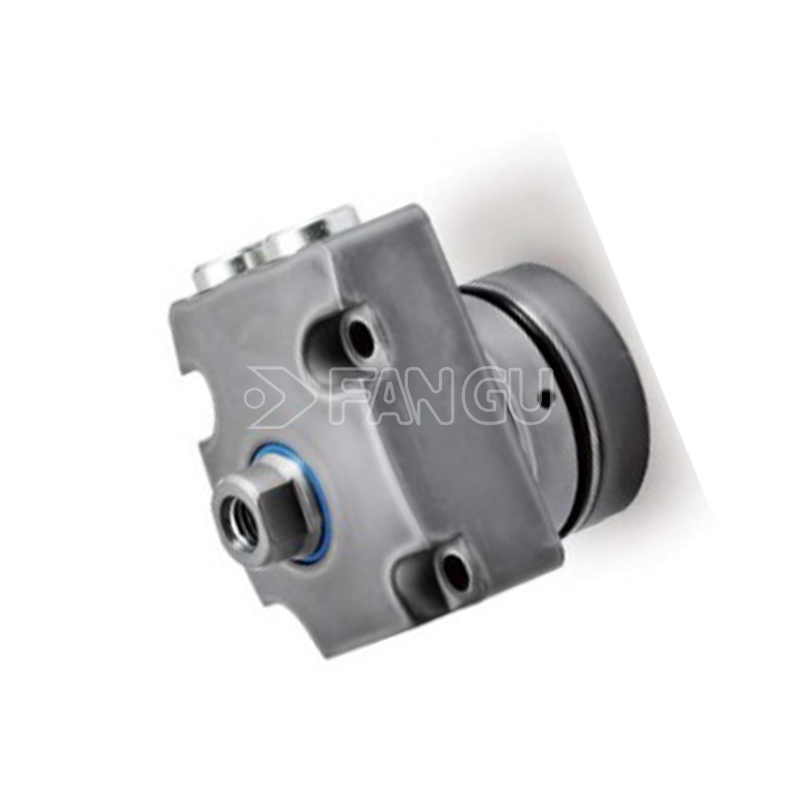

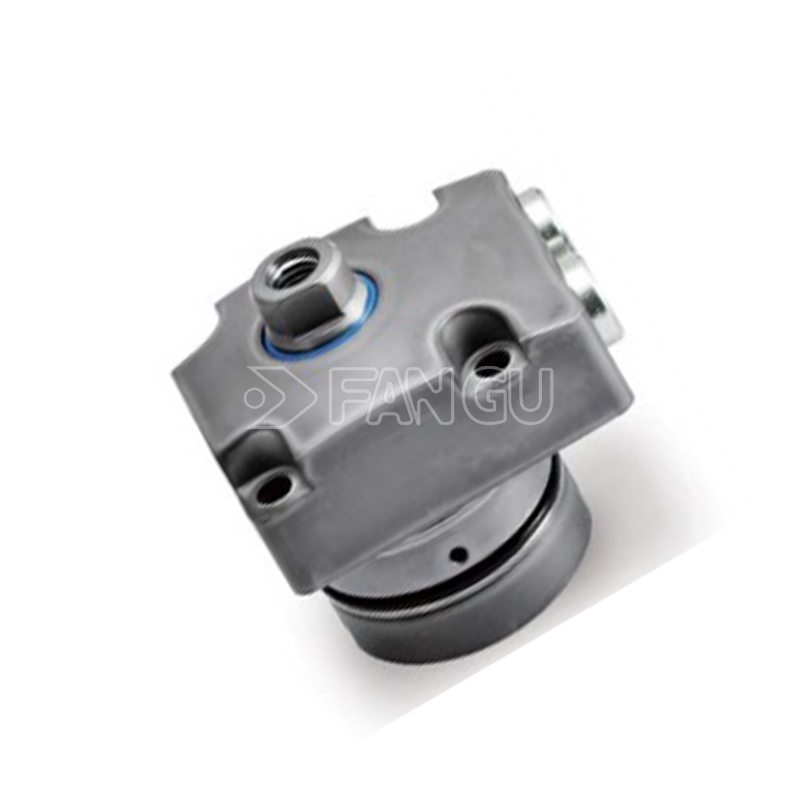

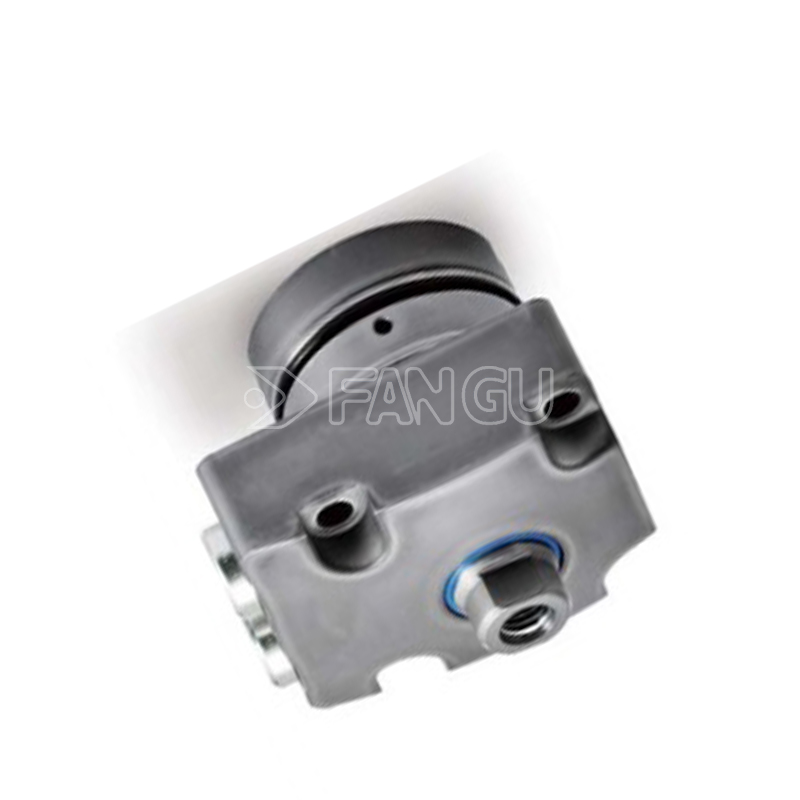

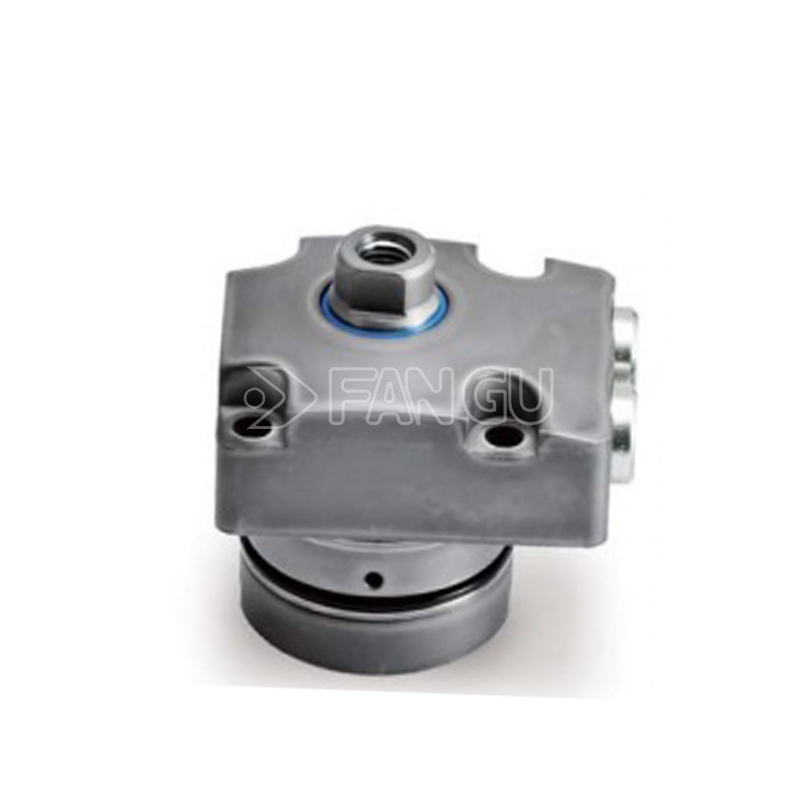

Japan Pascal Cylinder with an upper flange 7MPa Double acting Pull sensor model CNB-B CNB01-TB CNB02-TB CNB04-TB High performance in Stock
Pascal CNB‑B is a compact, double‑acting hydraulic work lift cylinder with integrated pull‑side air sensing, designed for reliable workpiece lifting, positioning, and retraction detection in automated machining fixtures. Operating at 7MPa, it provides stable push/pull forces and precise retraction end detection, ideal for CNC machining centers and automated production lines.
Main Models: CNB01-TB CNB02-TB CNB04-TB
Pascal CNB‑B Product Introduction (7MPa Double‑Acting Work Lift Cylinder with Pull‑Side Detection)
Pascal CNB‑B is a compact, double‑acting hydraulic work lift cylinder with integrated pull‑side air sensing, designed for reliable workpiece lifting, positioning, and retraction detection in automated machining fixtures. Operating at 7MPa, it provides stable push/pull forces and precise retraction end detection, ideal for CNC machining centers and automated production lines.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- 7MPa High‑Pressure Design: Delivers stable push/pull forces in a compact body.
- Double‑Acting Hydraulics: Independent hydraulic control for both extension and retraction.
- Pull‑Side Air Detection: Monitors retraction end position for automated system feedback.
- Low Air Leakage: Poppet‑type sensor valve with minimal air consumption.
- Wide Compatibility: Works with chlorine‑based coolants; operating temp 0–70°C.
- Flexible Mounting: Bottom port or G‑thread port options; easy installation.
- Multiple Rod Ends: Standard threaded rod (T) or pin rod (P) available.
- Multi‑Cylinder Sharing: One air sensor can control up to 10 CNB‑B cylinders.
