Japan Pascal Cylinder with an upper flange 7MPa Double acting Pull sensor model CNB-U CNB01-TU CNB02-TU CNB04-TU High performance in Stock

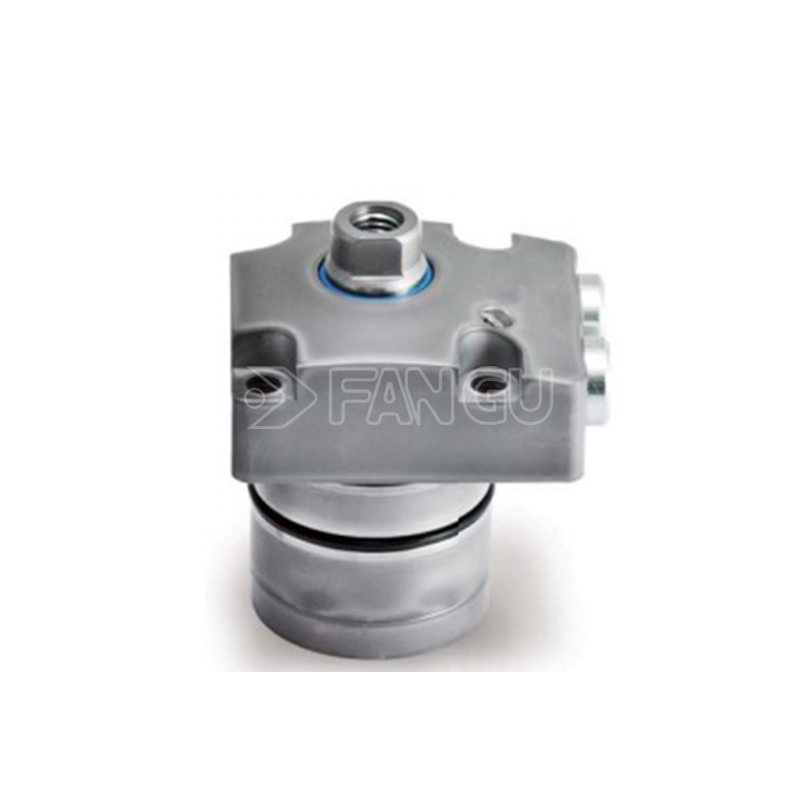

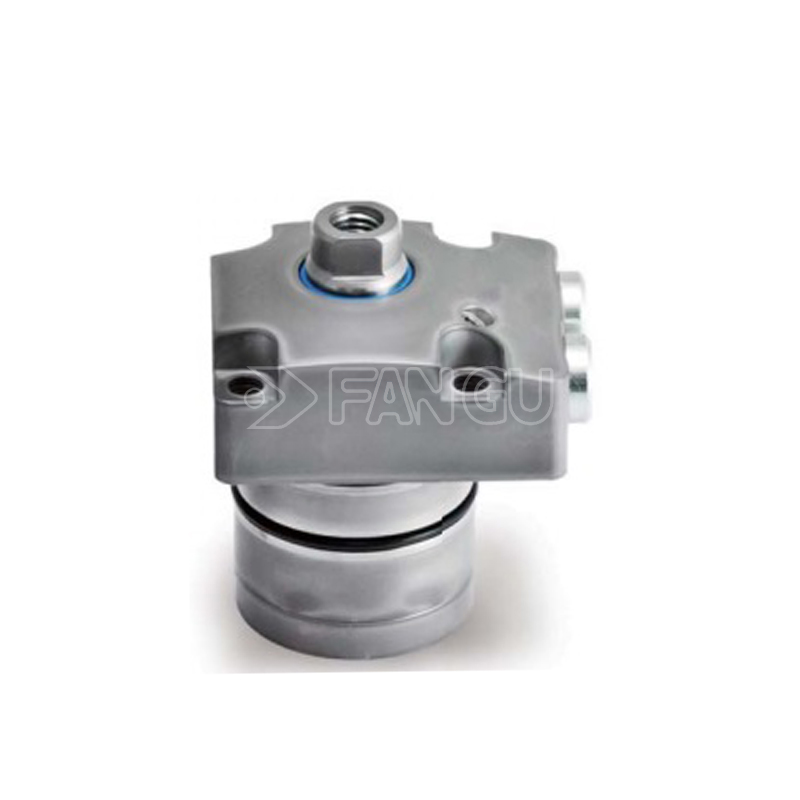

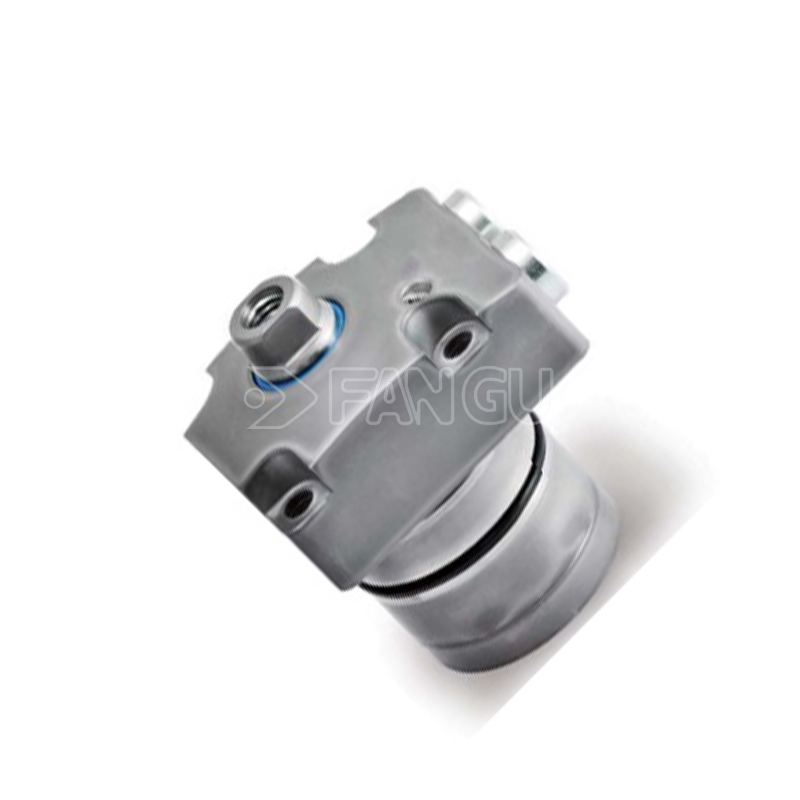

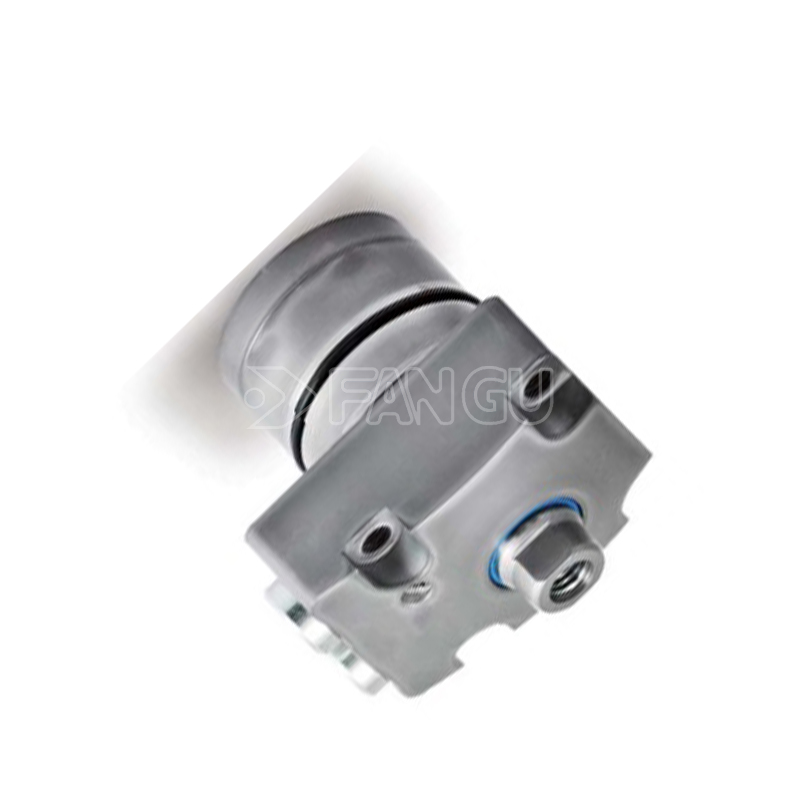

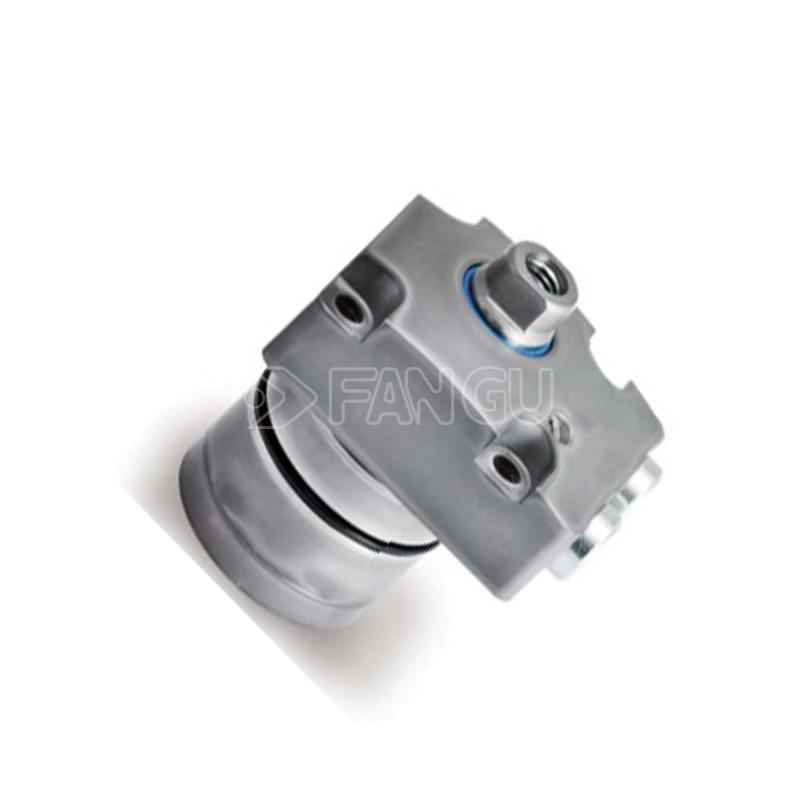

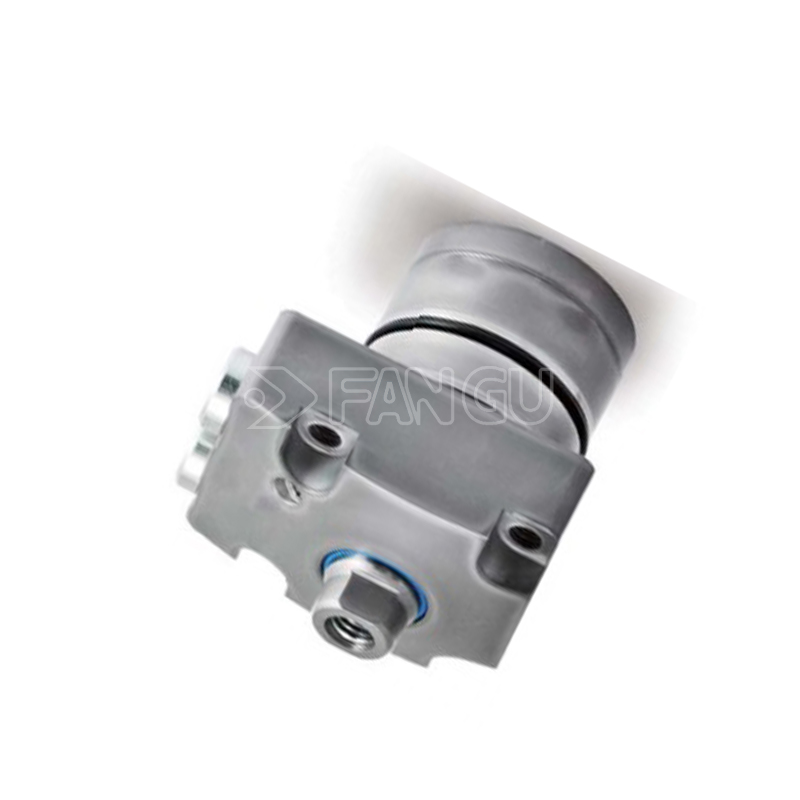

Pascal CNB‑U is a compact double‑acting hydraulic work lift cylinder with push‑side (extended end) air detection. It is designed for workpiece lifting, positioning, and extension confirmation in CNC machining fixtures and automated production lines. The built‑in air sensing system provides reliable position feedback with low air consumption, suitable for dense fixture layouts and unmanned machining systems.
Main Models: CNB01-TU CNB02-TU CNB04-TU
Pascal CNB‑U Product Introduction (7MPa Double‑Acting Work Lift Cylinder with Push‑Side Detection)
Overview
Pascal CNB‑U is a compact double‑acting hydraulic work lift cylinder with push‑side (extended end) air detection. It is designed for workpiece lifting, positioning, and extension confirmation in CNC machining fixtures and automated production lines. The built‑in air sensing system provides reliable position feedback with low air consumption, suitable for dense fixture layouts and unmanned machining systems.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

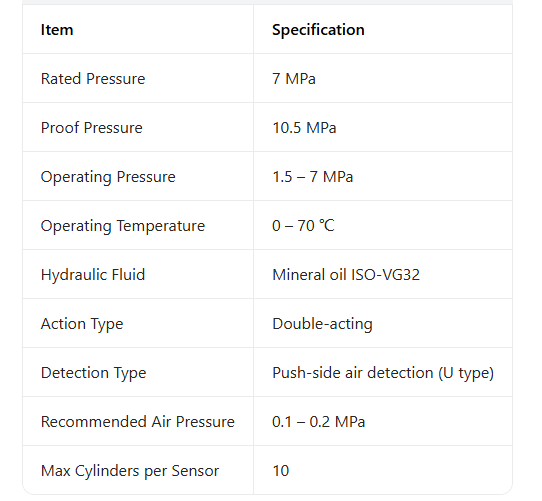

- Push‑side position detection for accurate extension confirmation
- Double‑acting hydraulic drive for smooth extension and retraction
- 7MPa rated pressure for high force in a compact body
- Built‑in air sensing valve with low air consumption
- Up to 10 cylinders can share one air sensor
- Excellent sealing resistant to chlorine‑based cutting fluids
- Wide operating temperature range: 0–70°C
- Multiple rod end options: threaded (T) or pin type (P)
- Compatible with standard ISO‑VG32 mineral hydraulic oil
