Standard Norm Cylinder DIN 24554 Short-stroke Compact Hydraulic Cylinders Fixture Clamping
Example Models:
- SNZ DIN 24554-25/16/20-ME5.003
- SNZ DIN 24554-32/20/25-ME5.003.X11
- SNZ DIN 24554-40/25/30-ME5.004.X6
- SNZ DIN 24554-50/32/20-ME5.003.X10
- SNZ DIN 24554-63/36/40-ME5.003
- SNZ DIN 24554-80/45/50-ME5.004.X7
- SNZ DIN 24554-100/56/80-ME5.003.X0
- SNZ DIN 24554-125/70/100-ME5.003
- SNZ DIN 24554-160/90/125-ME5.004.X12
- SNZ DIN 24554-200/110/160-ME5.003.X3
Full Product Introduction of Standard Norm Cylinder DIN 24554
Product Overview
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

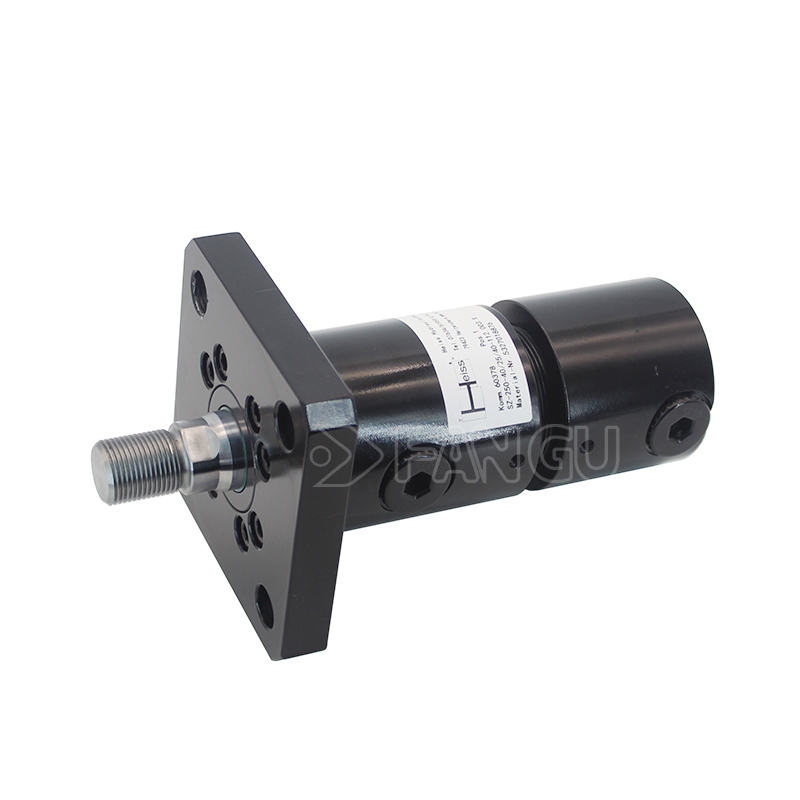

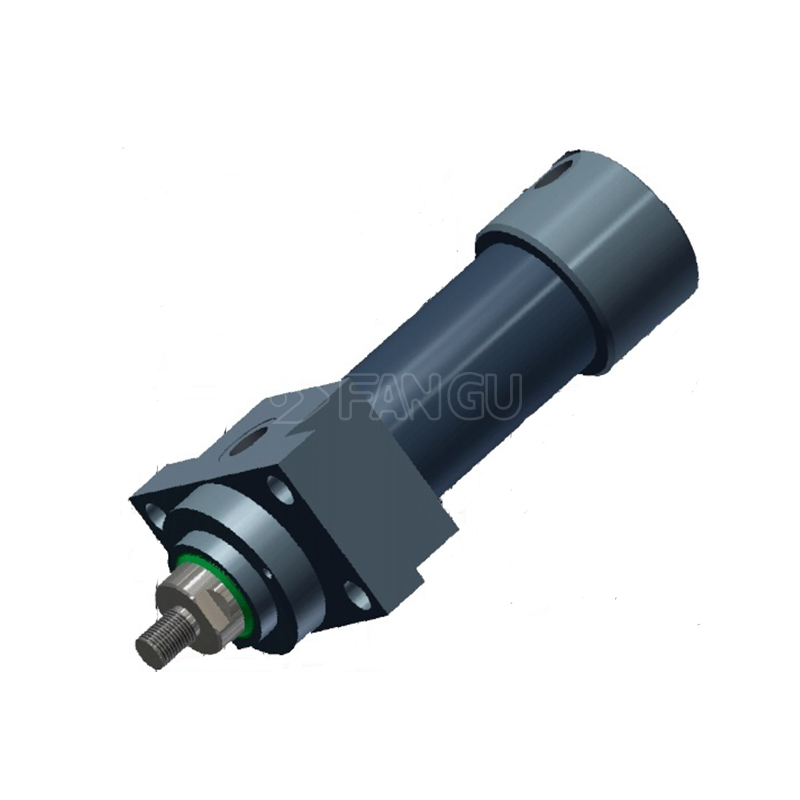

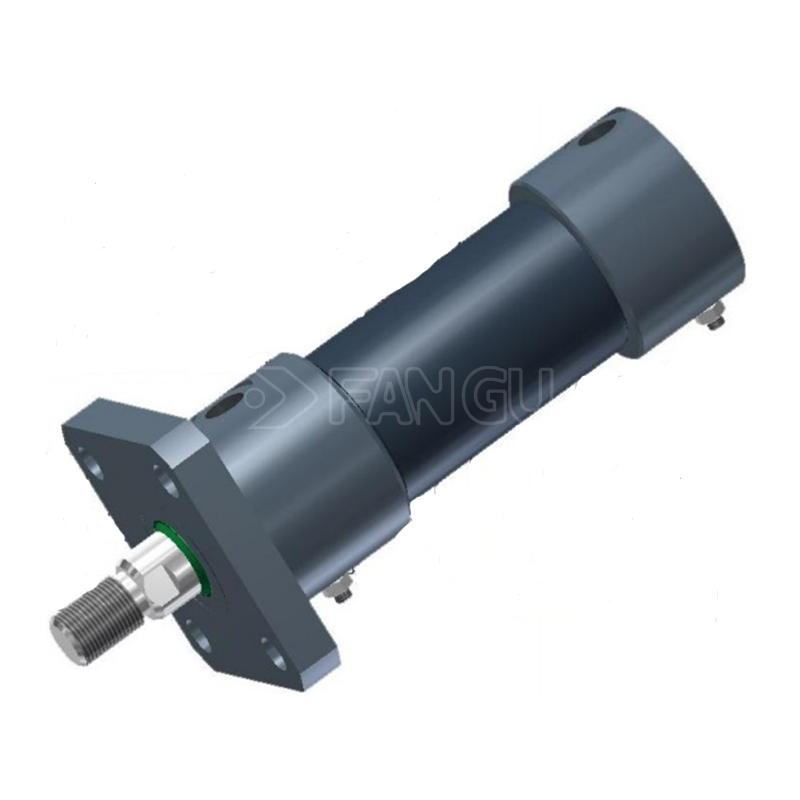

Square Front Flange Integrated Mounting
The four-bolt square flange layout is the signature design of DIN 24554 cylinders. It delivers superior anti-side-load rigidity compared to threaded compact cylinders, resisting offset clamping force without deflection during long-cycle operation. The standardized hole pitch allows direct installation on standard fixture base plates and mould platens.

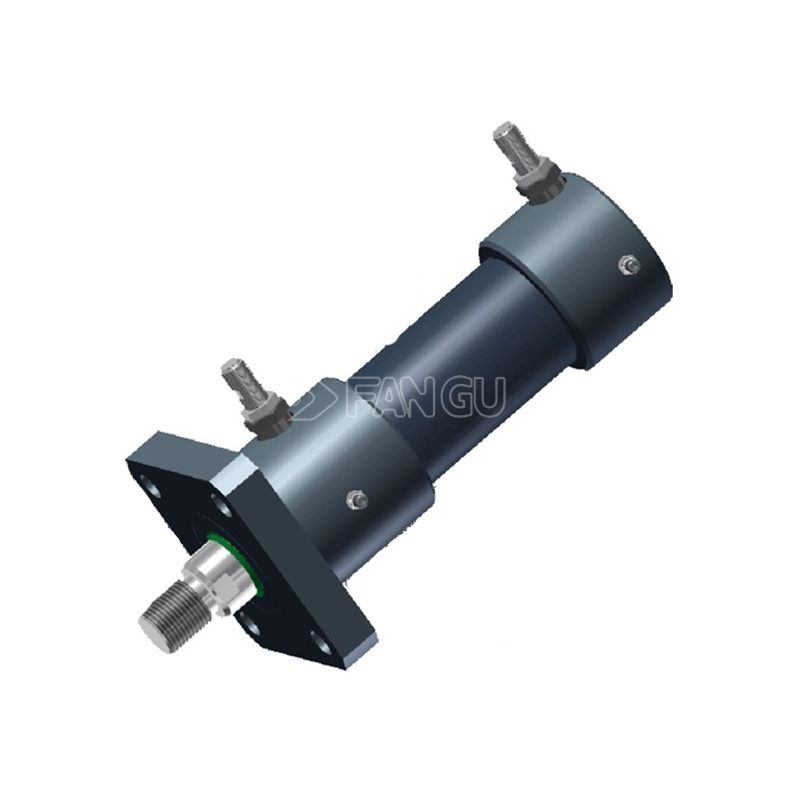

Double-Acting Bidirectional Drive
Two independent hydraulic ports are arranged on the flange block and rear end cap, enabling extend and retract movement controlled by directional valves. Optional built-in hydraulic end-of-stroke buffers reduce impact noise and mechanical wear at stroke limits.
Hard-Chromed Piston Rod with Standard Male Thread End
The piston rod surface undergoes hard chrome plating for wear and corrosion resistance. The rod end adopts standardized metric male thread as defined in DIN 24554, compatible with universal fixture connection accessories without custom adapters.
Detachable Serviceable Sealing Assembly
All seal components follow unified DIN groove standards, supporting quick disassembly and replacement. Maintenance downtime is greatly reduced, and spare seals are universally available across all DIN 24554 compliant brands.
Compact Short-Stroke Body Design
Optimized internal piston and guide bush structure minimizes overall cylinder length, making it ideal for confined installation spaces in automated tooling and compact mould structures.
- Full Interchangeability: Any DIN 24554 compliant cylinder can replace another without mechanical modification, simplifying equipment maintenance and spare parts inventory management.
- Stable High-Thrust Output: Standardized alloy steel cylinder barrel and reinforced piston structure maintain consistent clamping force under continuous 160 bar operation.
- Wide Industrial Adaptability: Compatible with standard hydraulic stations, booster cylinders (PHU series) and multi-port rotary swivels (HEISS DD Multiport Swivel) for rotary fixture systems.
- Cost-Effective Standardization: Mass production of norm cylinders lowers unit costs compared to fully custom hydraulic cylinders, with shorter delivery lead times.
- Harsh Environment Customization: Extended versions support high temperature, water-hydraulic media and ATEX explosion-proof certification while retaining full DIN 24554 dimensional compliance.
