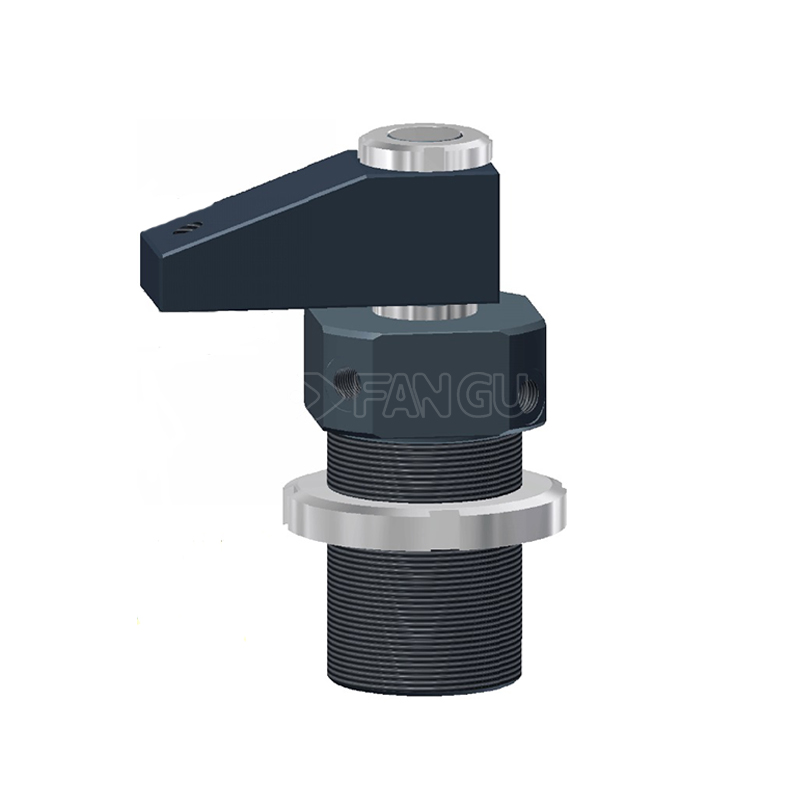

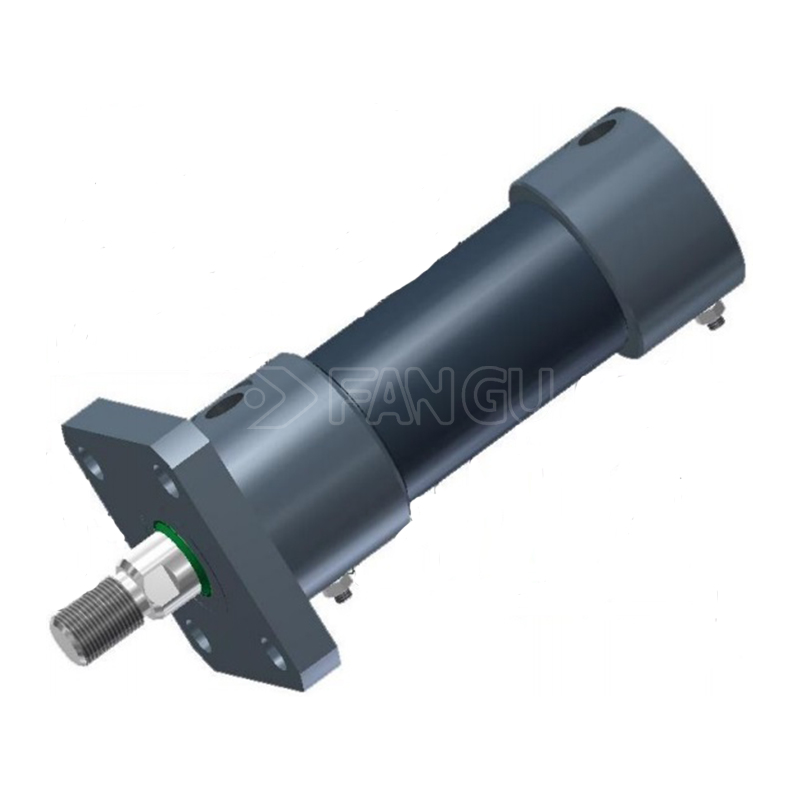

Hydraulic High Pressure Swing Clamp Cylinder SSZ 250 Built-in Precision Spiral Swing Mechanism
Example Models:
- SSZ 250-T-M24/10-R.003
- SSZ 250-T-M30/15-L.003.X11
- SSZ 250-T-M30/20-R.004.X6
- SSZ 250-T-M36/20-L.003
- SSZ 250-T-M42/25-R.004.X7
- SSZ 250-T-M42/30-L.003.X10
- SSZ 250-T-M50/25-R.003
- SSZ 250-T-M50/30-L.004.X12
- SSZ 250-F-M36/20-R.003
- SSZ 250-F-M42/25-L.004.X3

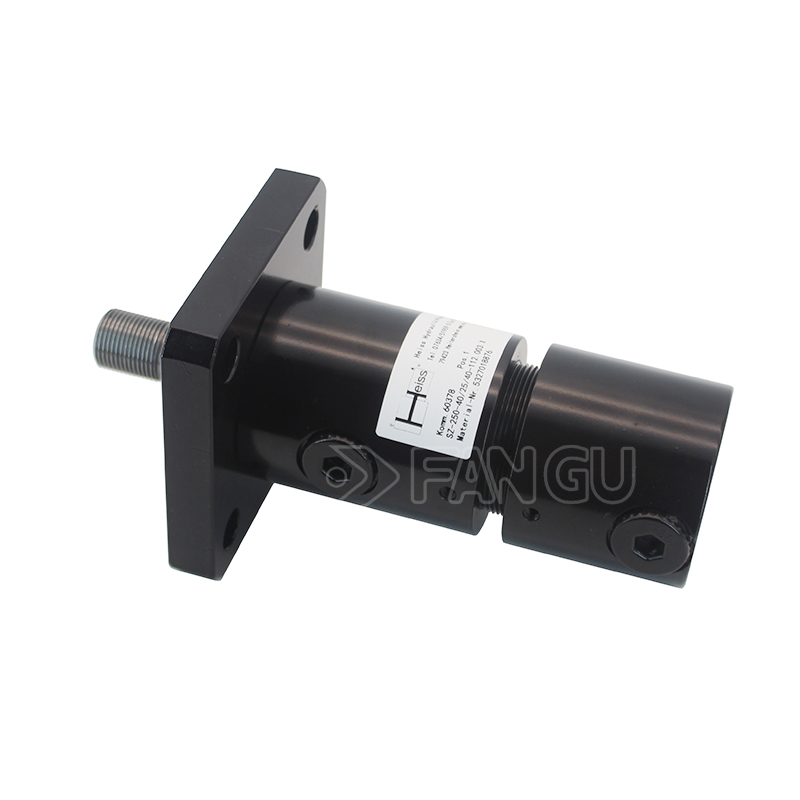

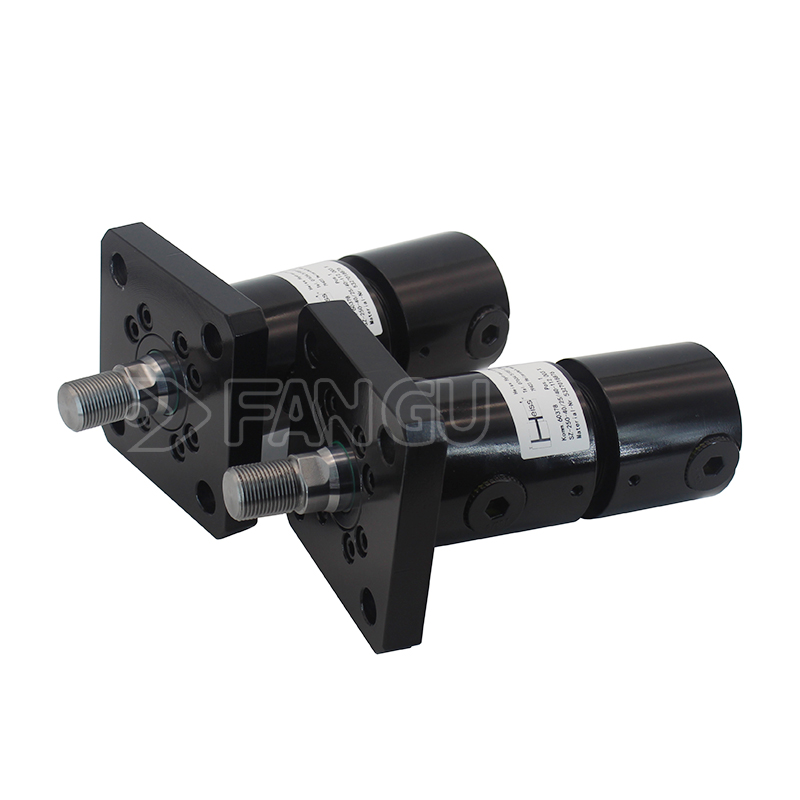

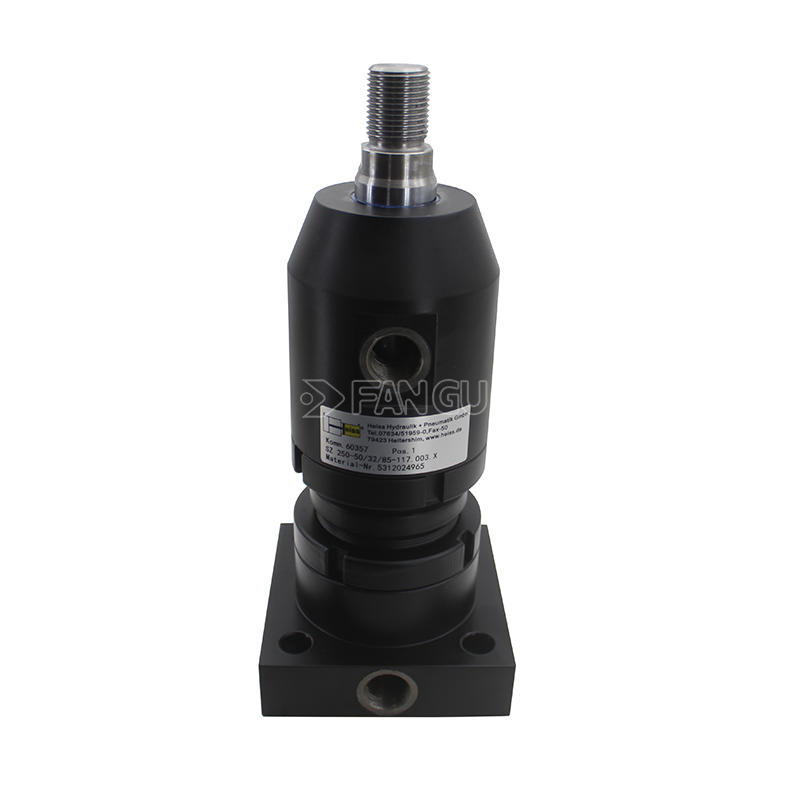

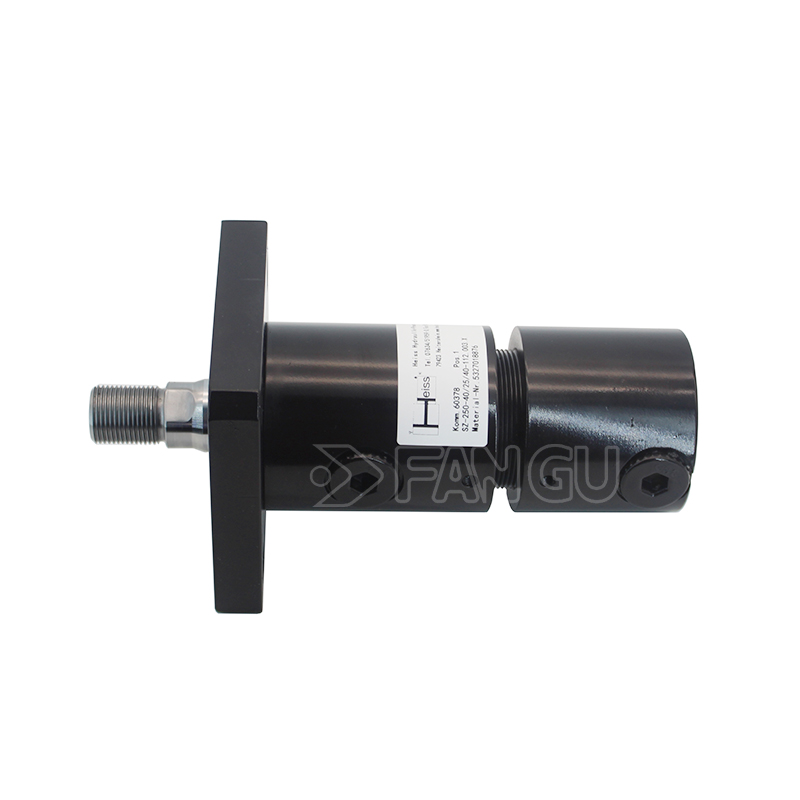

Hydraulic Swing Clamp Cylinder SSZ 250
Product Overview
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Rated Maximum Working Pressure: 250 bar, delivers stable heavy clamping thrust for medium and heavy-duty workpieces
- Standard Swing Angle: Fixed 90° clockwise / counterclockwise swing; customized swing angles available on request
- Standard Stroke Range: 10 / 15 / 20 / 25 / 30 mm; non-standard customized stroke marked with suffix X0
- Applicable Hydraulic Media: Standard mineral hydraulic oil (HL/HLP series per DIN 51524); water-glycol flame retardant fluid optional (suffix X10)
- Operating Temperature Range: Standard sealing kit -20°C ~ +80°C; Viton high-temperature sealing version X6 supports up to +120°C
- Drive Mode: Double-acting hydraulic control, independent oil ports for swing action and clamping action, separate control of rotation and linear advance
- Arm Installation: Standard square flat clamping arm interface, compatible with HEISS standard fixture arms and custom clamping fixtures
- Mounting Type: External thread embedded mounting & front flange mounting dual options for mold and fixture base installation
Integrated Swing & Clamp Two-in-One Function
Different from separate rotary and linear cylinders, SSZ 250 combines swing avoidance and clamping into one unit. When releasing the workpiece, the arm rotates 90° outward to fully vacate the loading area, eliminating collision risks during manual or robotic feeding. The one-piece design reduces the total number of hydraulic components and simplifies pipeline layout.
High-Pressure Stable Clamping & Anti-Vibration Performance
With a maximum working pressure of 250 bar, the SSZ 250 generates powerful and consistent clamping force. The built-in mechanical self-locking structure maintains clamping force without pressure drop when the hydraulic system is pressure-held, effectively resisting cutting vibration during CNC machining and avoiding workpiece displacement.
Compact Structure & Space-Saving Layout
The ultra-short integrated cylinder body minimizes installation space on fixture base plates. The external thread mounting variant can be embedded into mold and fixture bases, which is ideal for compact multi-station automated tooling systems with limited layout space.
High Wear Resistance & Low Maintenance Cost
Core swing spiral parts undergo high-frequency quenching and tempering heat treatment to improve wear resistance under frequent swing cycles. The detachable standardized sealing assembly allows quick on-site replacement of seals without disassembling the entire cylinder, significantly shortening equipment downtime. Multiple customized sealing variants adapt to dust, high-temperature and special medium harsh workshop environments.
Full Compatibility with HEISS Full Hydraulic Line
SSZ 250 can be seamlessly matched with HEISS PHU pneumatic-hydraulic booster cylinders, DD multi-port rotary swivels and DIN 24554 standard cylinders, forming a complete rotary fixture hydraulic system for rotary tables and multi-axis automation equipment.
