Original Parker MIMB Series are heavy-duty mill-type hydraulic cylinders 50 A R C 2 M 100 MMB 160 D R N 3 F 300 MMB 320 B S N 1 M 500 MMB Factory Price in Stock

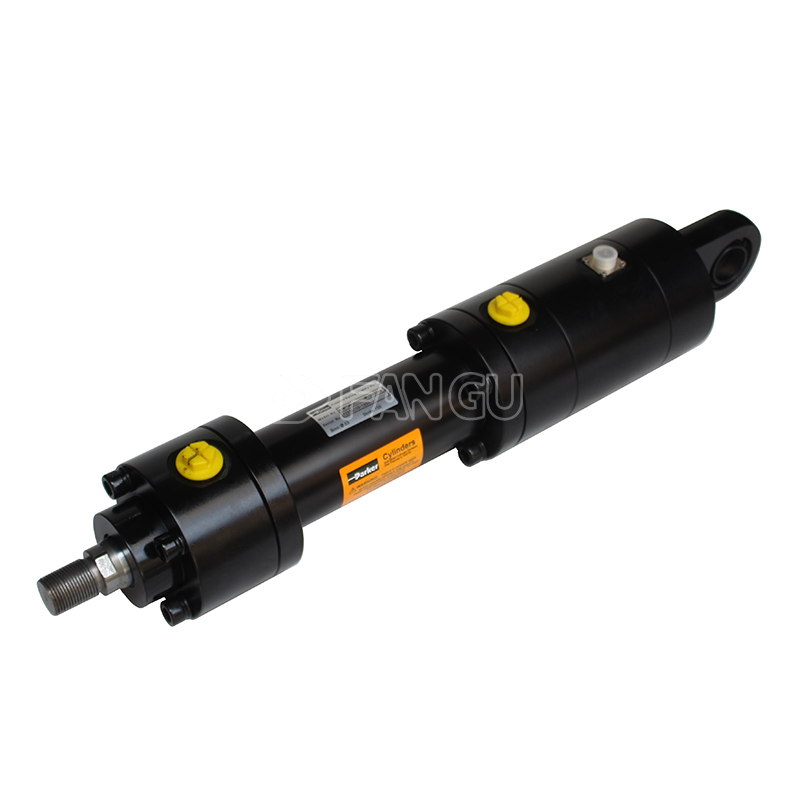

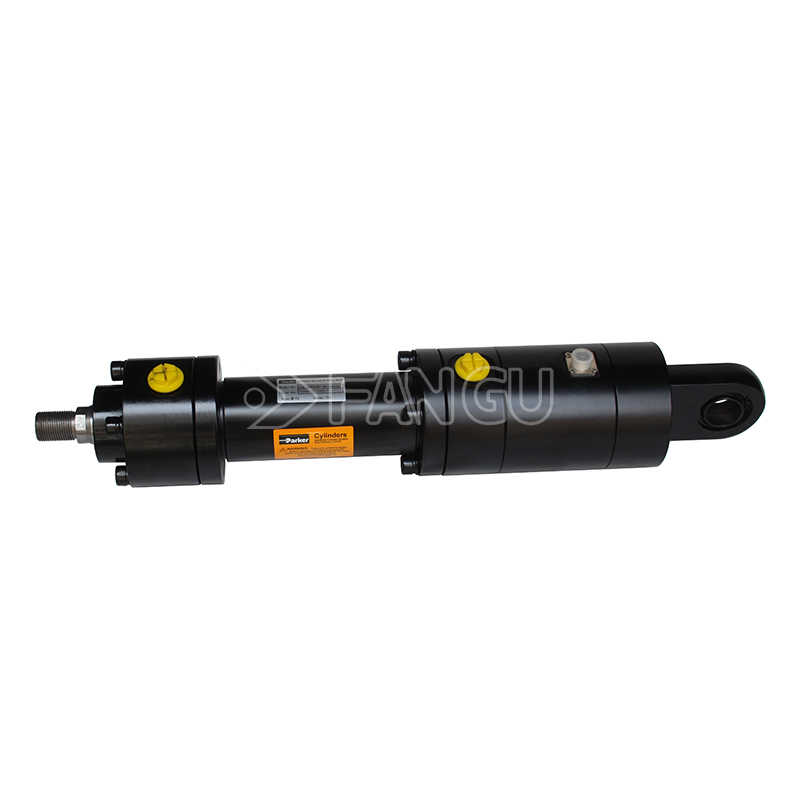

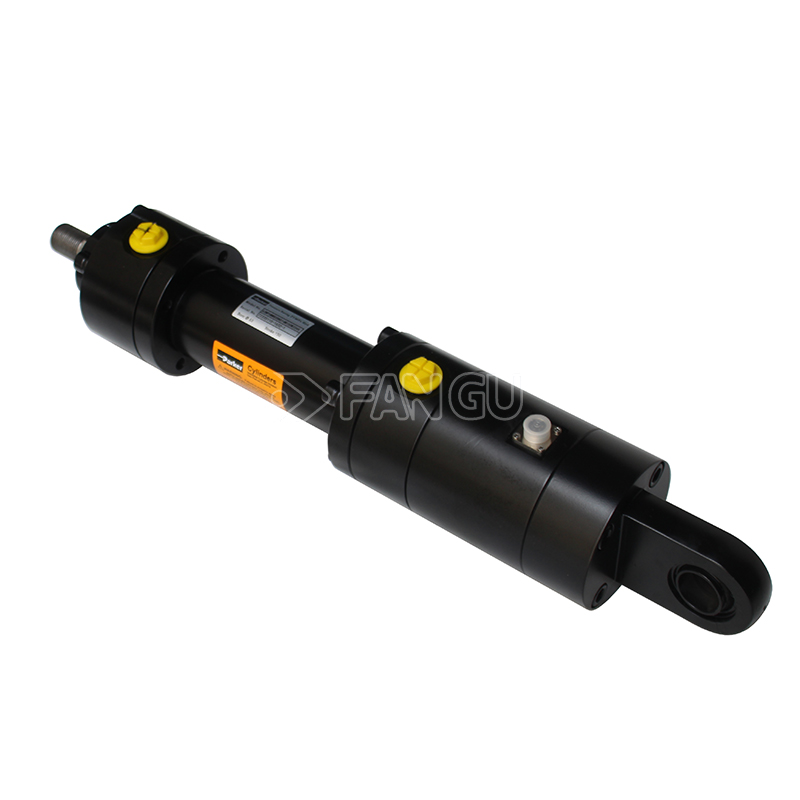

Parker MIMB (often referenced as MMB) Series are heavy-duty, mill-type hydraulic cylinders designed for extreme industrial environments.
Product Overview
- Series Type: Mill-type, roundline, heavy-duty hydraulic cylindersParkerGB
- Core Application: Steel mills, metallurgy, primary metal processing, and high-shock, high-cycle industrial machineryParkerGB
- Design Philosophy: Rugged construction, fatigue-resistant at full rated pressure, long service life, low maintenanceParkerGB
- Compliance: ISO 6020/1, CETOP RP58H standardsParkerGB
Example Models:
- 50 A R C 2 M 100 MMB
- 160 D R N 3 F 300 MMB
- 320 B S N 1 M 500 MMB
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Fatigue-Free Performance: Full-rated pressure operation (160 bar) without fatigue failureParkerGB
- Heavy-Duty Construction: Thick-wall steel tube, bolted flanged heads/caps for maximum rigidity
- Wide Bore & Rod Range: Bore 40–320 mm; Rod 22–220 mm; two rod sizes per boreParkerGB
- Long Stroke Capability: Up to 5000 mm strokeParkerGB
- Flexible Action: Single-acting or double-acting designsParkerGB
- Removable Glands: Easy seal replacement, reduced downtimeParkerGB
- Hard Chrome-Plated Rod: Superior wear and corrosion resistanceParkerGB
- Advanced Sealing Systems: Patented five-lip design; multiple material options (NBR, FKM/Viton)
- Optional Cushions: Adjustable end-of-stroke cushions (single or double)
- Multiple Mounting Styles: 8 standard mounting configurationsParkerGB
- Temperature Range: Standard: -20°C to +80°C; High-temp: up to +150°C
- Rated Pressure: 160 bar (2320 psi)ParkerGB
- Bore Sizes: 40, 50, 63, 80, 90, 100, 110, 125, 140, 160, 180, 200, 220, 250, 280, 320 mmParkerGB
- Rod Diameters: 22, 28, 36, 45, 56, 70, 80, 90, 100, 110, 125, 140, 160, 180, 200, 220 mmParkerGB
- Stroke: Up to 5000 mm (custom lengths available)ParkerGB
- Fluid Compatibility: Mineral oil; synthetic fluids on request
- Mounting Types:
- A: Front flange
- B: Rear flange
- C: Foot mount
- D: Trunnion
- E: Clevis
- F: Extended trunnion
- G: Rod end clevis
- H: SpecialParkerGB
- Port Connections: BSPP, Metric, FlangedParkerGB
- Rod Ends: Male / Female threadsParkerGB
