Original Parker HMD Series heavy-duty metric tie-rod hydraulic cylinders 50TBHMDMB18M150C1100 63TBHMDMB28M300C1100 80TBHMDMB36M400C1100 100TBHMDMB45M500C1100

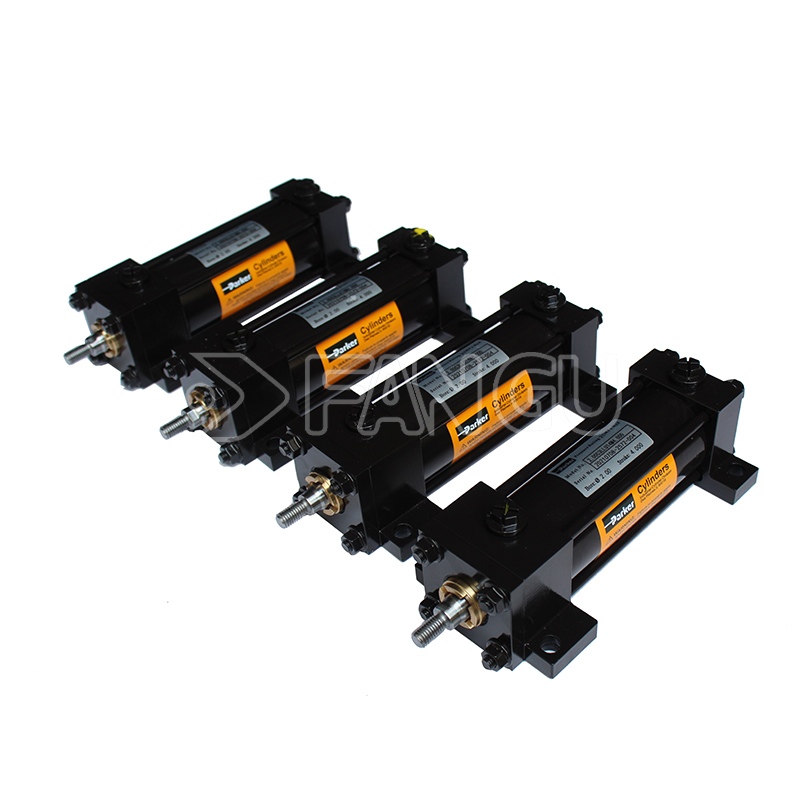

Parker HMD Series Hydraulic Cylinders
Overview
The Parker HMD Series are heavy-duty, metric tie-rod hydraulic cylinders designed to meet the DIN 24554 standard (Compact Series). They are the DIN counterpart to the HMI series (which conforms to ISO 6020/2), offering identical performance ratings but with different mounting dimension standards to suit European machine designs. Constructed with a robust four-tie-rod design, HMD cylinders are engineered for reliable, long-life operation in demanding industrial environments.
Example Models:
- 25TBHMDMB12M50C1000
- 32TBHMDMB14M100C1100
- 40TBHMDMB16M200C1100
- 50TBHMDMB18M150C1100
- 63TBHMDMB28M300C1100
- 80TBHMDMB36M400C1100
- 100TBHMDMB45M500C1100
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Standard: DIN 24554 (160 bar Compact Series, rated up to 210 bar peak)
- Max Operating Pressure: 210 bar (3000 psi)
- Bore Sizes (mm): 25, 32, 40, 50, 63, 80, 100, 125, 160, 200
- Rod Diameters (mm): 12 to 140 (2–3 standard rod sizes per bore)
- Stroke: Customizable up to 5000 mm
- Operating Temperature: -20°C to +150°C (dependent on seal package)
- Action: Double-acting (single-acting & spring-return options available)
- Port Types: Metric (ISO), BSPP

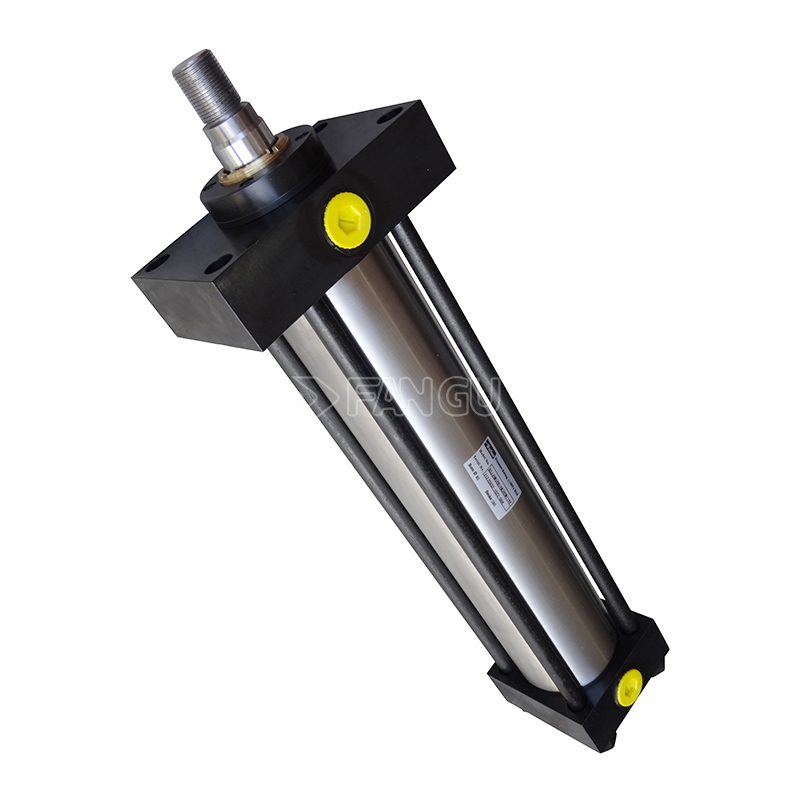

1. Robust Tie-Rod Construction
- High-strength steel tie-rods for exceptional rigidity and resistance to side loads.
- Precision-machined steel end caps for optimal alignment and leak-free performance.
2. Superior Sealing Systems
A full range of seal packages is available to match specific fluids and operating conditions:
- MB: Standard nitrile rubber (NBR) seals for general-purpose hydraulic oil.
- RN: High-performance, low-friction seals for improved efficiency and wear resistance.
- MA: Seals for low-speed, high-load conditions.
- RC/RD: Fluorocarbon (FKM) seals for high-temperature or aggressive fluids.
3. Piston & Rod Design
- Common Piston Design: A single piston design accommodates all seal configurations, allowing easy field conversion for different applications.
- Premium Rod: Hard-chrome plated steel piston rod for excellent corrosion resistance and seal life.
- Secure Connection: Piston-to-rod connection is pre-stressed and secured with anaerobic adhesive for maximum fatigue life.
