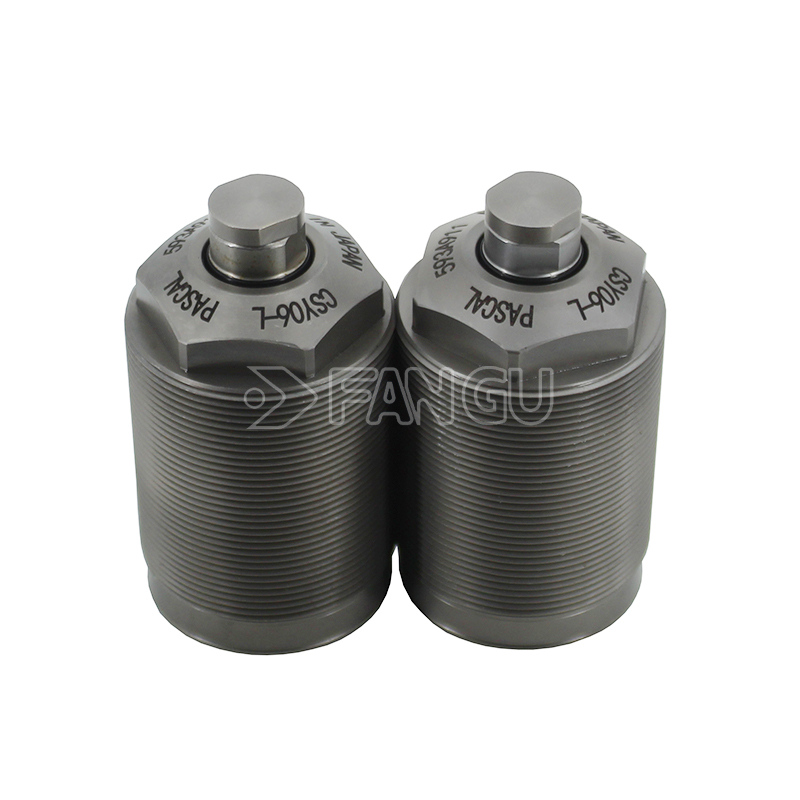

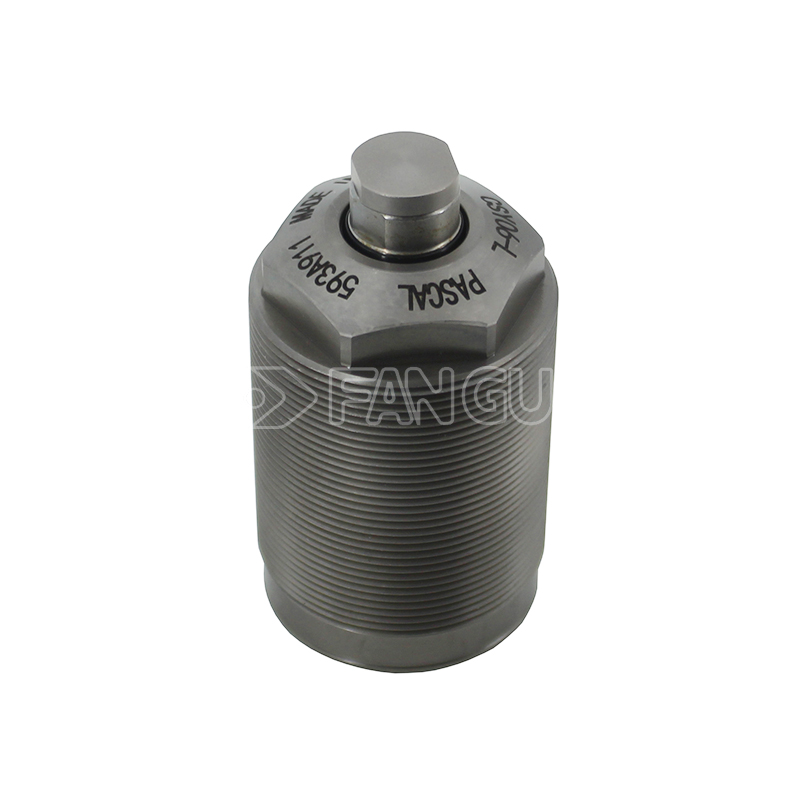

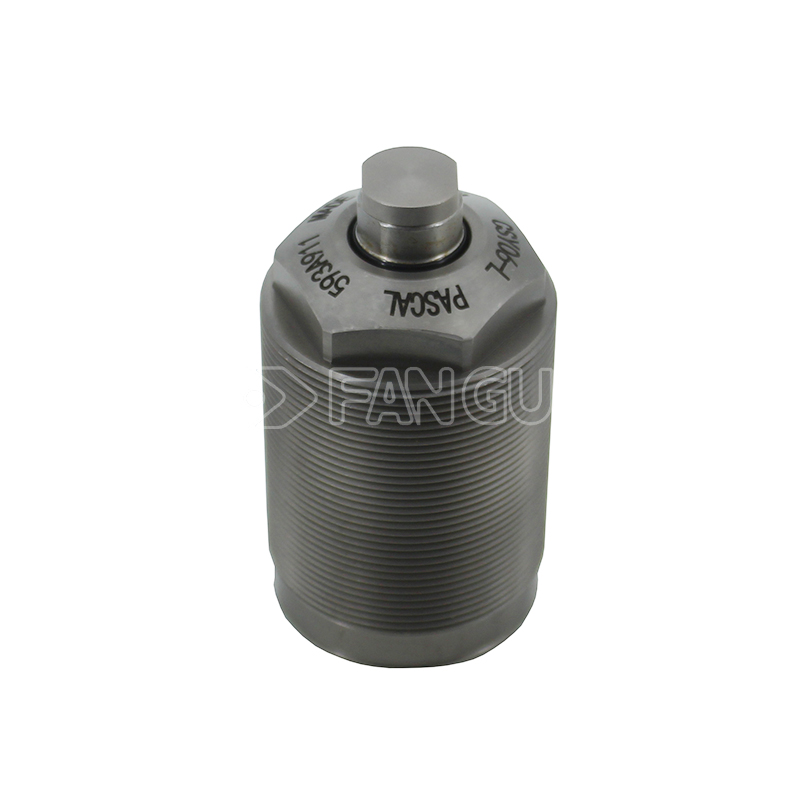

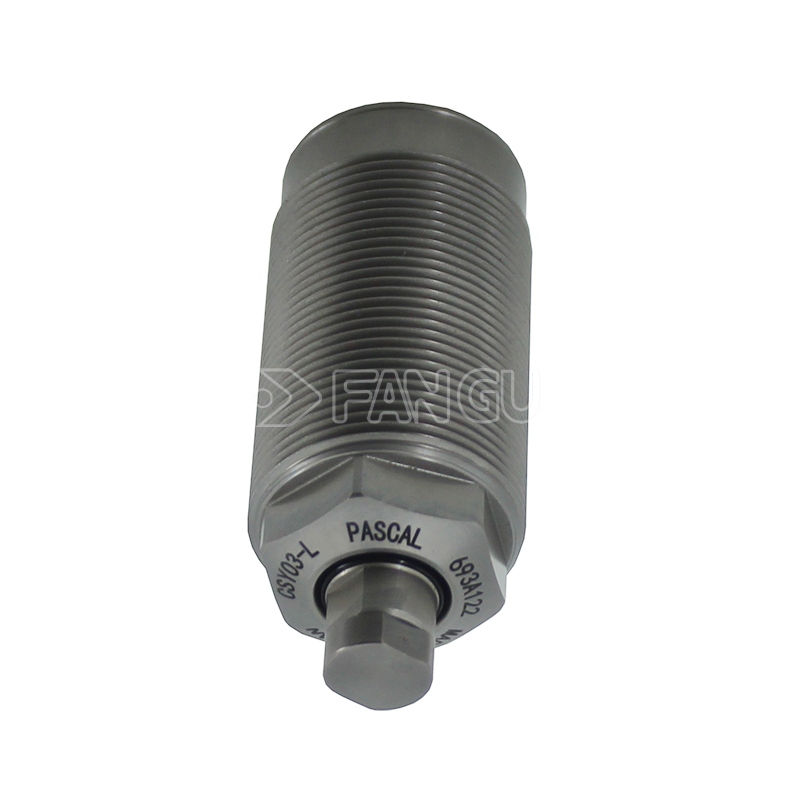

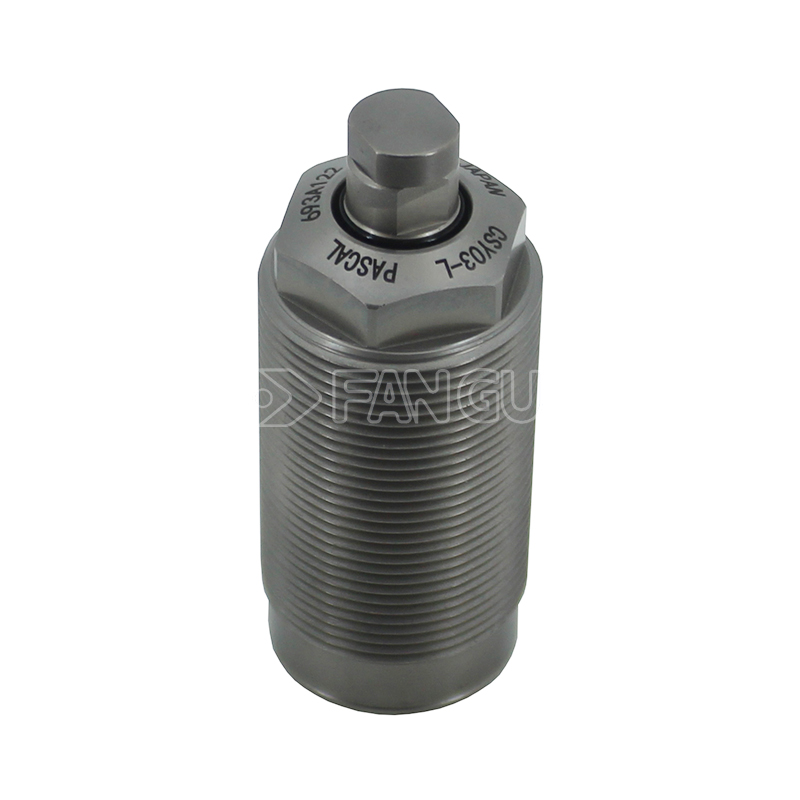

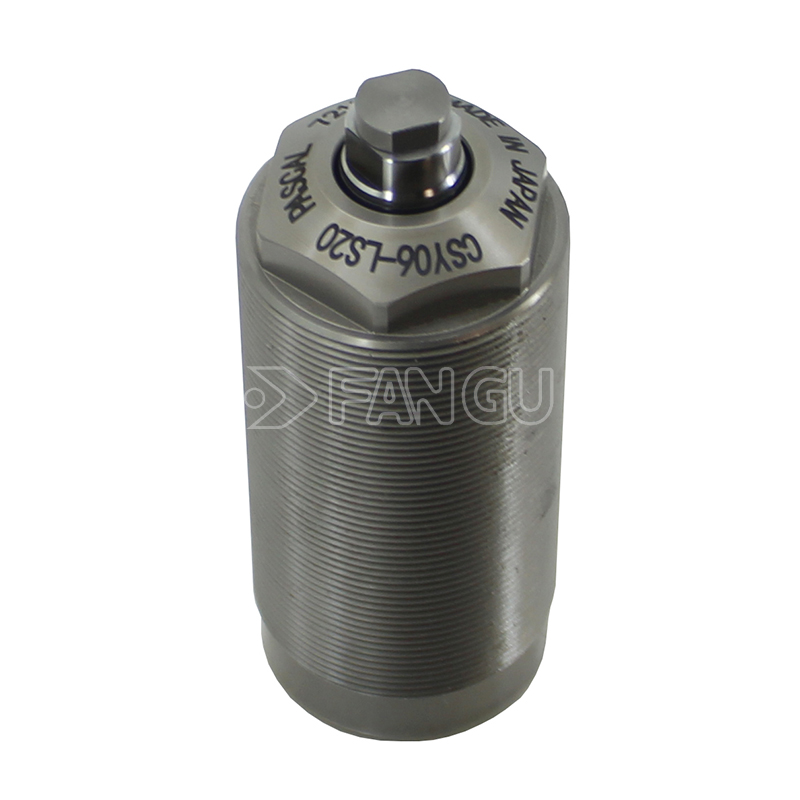

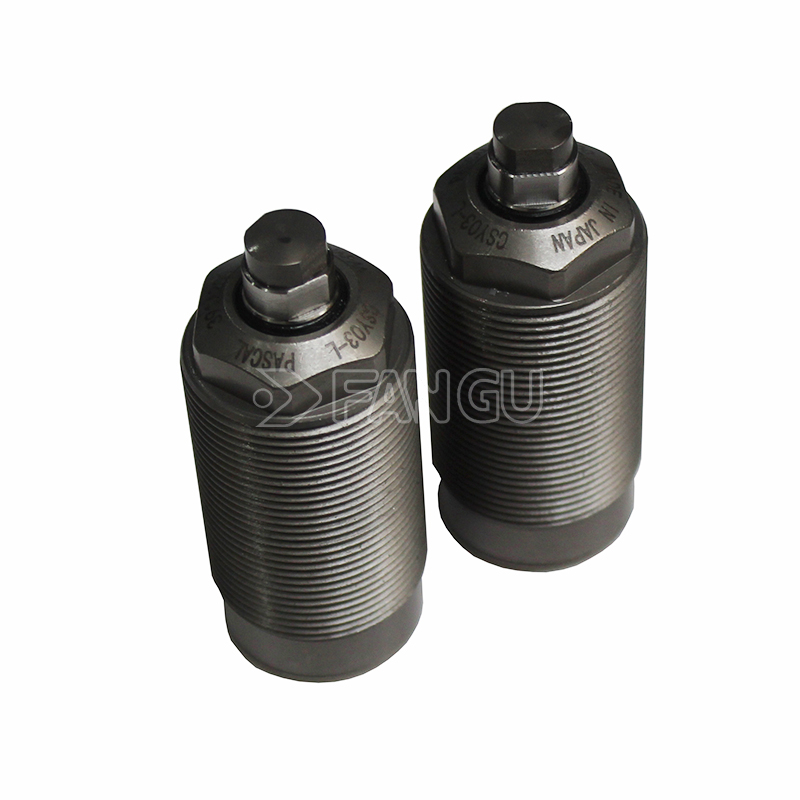

Japan Pascal Work support Threaded type 7MPa Hydraulic lift Enhanced retention CSY CSY-S005-L CSY-S005-H CSY00-L CSY00-H CSY01-L CSY01-H etc.
The Pascal CSY is a 7MPa thread‑mounted hydraulic lift work support with enhanced load capacity from PASCAL Japan. It features a reinforced cylinder, piston, and locking mechanism, delivering approximately 30%–50% higher support force than the standard CSN. Designed for space‑constrained, medium‑to‑heavy‑duty machining, it provides stable support to prevent workpiece sagging, vibration, and deformation.
Product Introduction: Pascal CSY (7MPa Thread‑Type Hydraulic Lift Enhanced Work Support)
Product Overview
The Pascal CSY is a 7MPa thread‑mounted hydraulic lift work support with enhanced load capacity from PASCAL Japan. It features a reinforced cylinder, piston, and locking mechanism, delivering approximately 30%–50% higher support force than the standard CSN. Designed for space‑constrained, medium‑to‑heavy‑duty machining, it provides stable support to prevent workpiece sagging, vibration, and deformation.
Main Models: CSY-S005-L CSY-S005-H CSY00-L CSY00-H CSY01-L CSY01-H etc.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Enhanced load capacity: Reinforced structure for 30%–50% higher support force than standard CSN.
- Mechanical self‑locking: Taper sleeve + spool lock ensures no drop‑out during power/hydraulic failure.
- Thread mounting: Space‑saving, easy installation in compact fixtures.
- Vibration resistance: High rigidity minimizes chatter in heavy cutting.
- Dust‑proof sealing: Multi‑layer seals for harsh machining environments.
- Automation ready: Optional air blow and detection switches for unmanned lines.
- Easy maintenance: Field‑replaceable plunger, seals, and regrindable wear parts.
- Compact design: Lightweight for high‑density fixturing.
- Space‑constrained fixtures: Compact worktables, high‑density clamping.
- Medium‑to‑heavy‑duty machining: Medium molds, castings, forgings, thick plates.
- Heavy cutting operations: Milling, drilling, boring with high cutting forces.
- Automotive/construction machinery: Engine blocks, transmission housings, chassis parts.
- Automated production lines: Unmanned support with automatic unlocking.
- Frequent mold changes: Quick mold change, small‑batch production.
