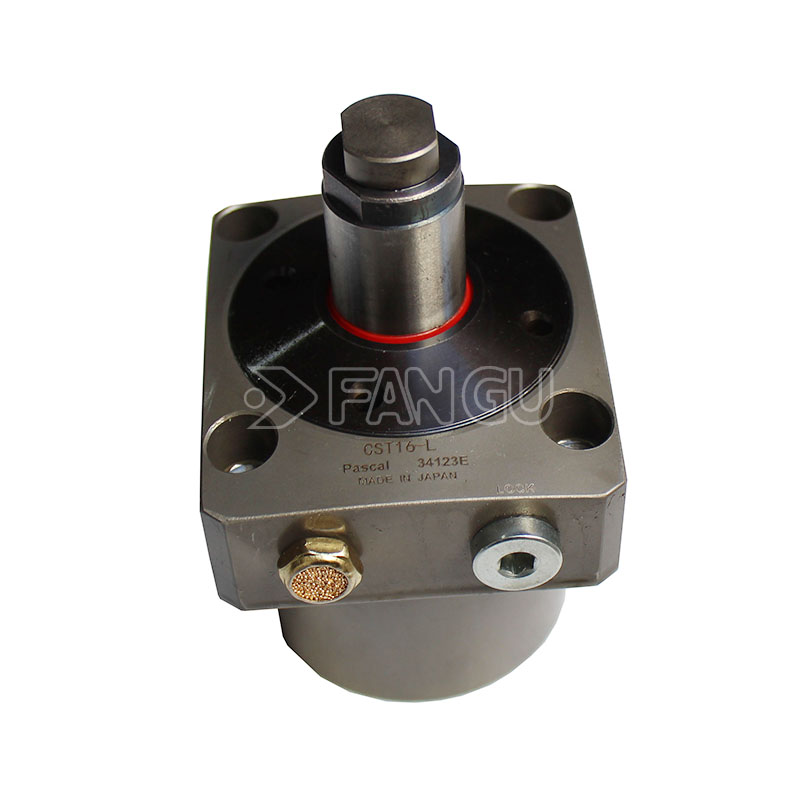

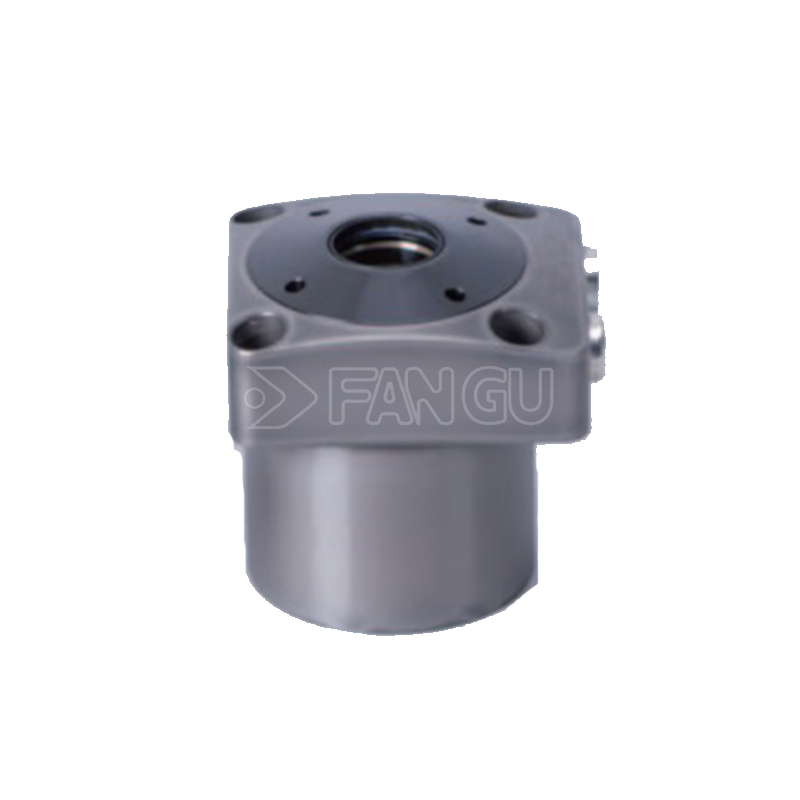

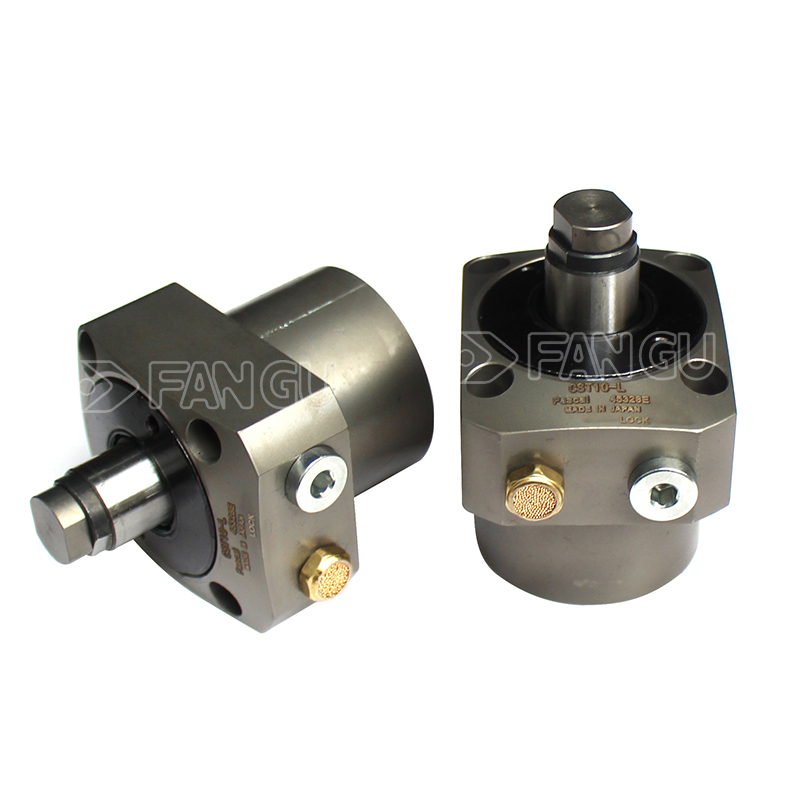

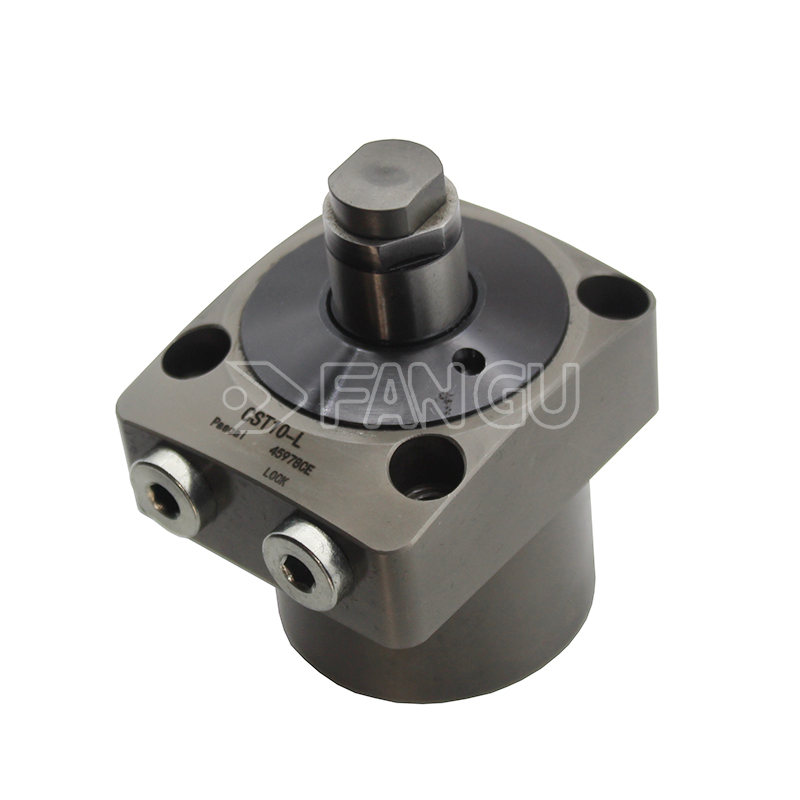

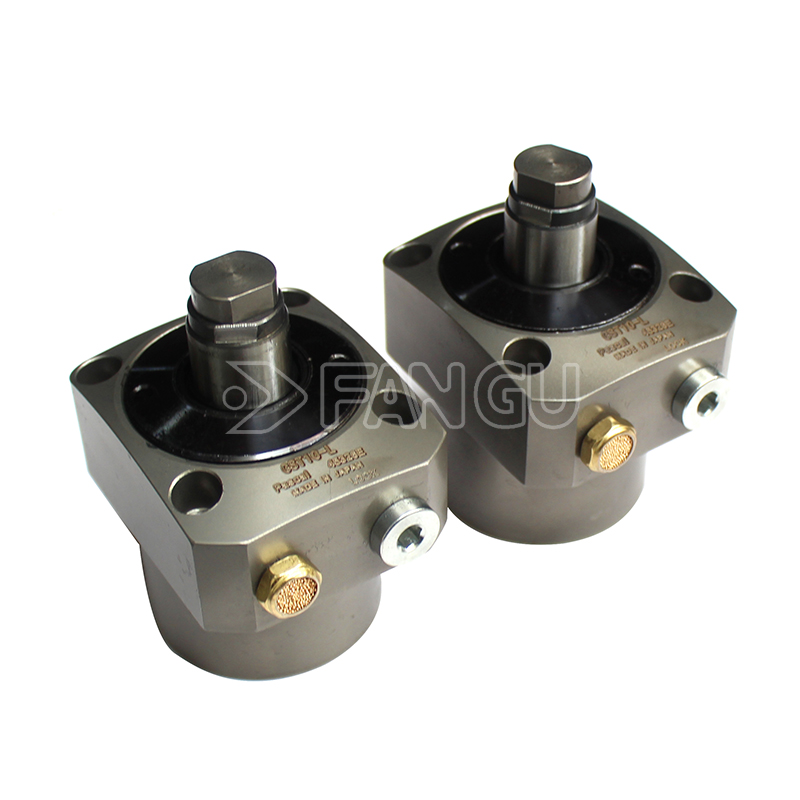

Japan Pascal Work support Flange type 7MPa Spring lift CST CST04L CST04H CST06L CST06H CST10L CST10H CST16L CST16H CST25L CST25H
The Pascal CST is a 7MPa flange‑mounted spring lift work support from PASCAL Japan. It features a built‑in powerful spring for automatic plunger lifting and a taper sleeve mechanical lock to maintain support force without continuous hydraulic pressure. Ideal for non‑hydraulic fixtures, frequent mold changes, and light‑to‑medium load machining to prevent workpiece sagging, vibration, and deformation.
Main Models: CST04L CST04H CST06L CST06H CST10L CST10H CST16L CST16H CST25L CST25H
Product Introduction: Pascal CST (7MPa Flange‑Type Spring Lift Mechanical Lock Work Support)
Product Overview
The Pascal CST is a 7MPa flange‑mounted spring lift work support from PASCAL Japan. It features a built‑in powerful spring for automatic plunger lifting and a taper sleeve mechanical lock to maintain support force without continuous hydraulic pressure. Ideal for non‑hydraulic fixtures, frequent mold changes, and light‑to‑medium load machining to prevent workpiece sagging, vibration, and deformation.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Spring‑powered lift: Automatic plunger extension via internal spring; no hydraulic power required for support.
- Mechanical self‑locking: Taper sleeve + spool lock ensures no drop‑out during power/hydraulic failure.
- Flange mounting: High stability against lateral forces and tipping.
- Simplified structure: Minimal hydraulic components for high reliability and long service life.
- Dust‑proof sealing: Multi‑layer seals for harsh machining environments.
- Automation ready: Optional air blow and detection switches for unmanned lines.
- Easy maintenance: Field‑replaceable plunger, seals, and regrindable wear parts.
- Compact design: Small footprint for high‑density fixturing.
- Non‑hydraulic fixtures: Manual clamping, old machines without hydraulic systems.
- Frequent mold changes: Quick mold change, small‑batch production.
- Light‑to‑medium load machining: Thin plates, aluminum alloys, small castings.
- Automated production lines: Unmanned support with automatic unlocking.
- Auxiliary positioning: Secondary support for workpiece stability.
- Space‑constrained layouts: High‑density fixturing with minimal hydraulic lines.
