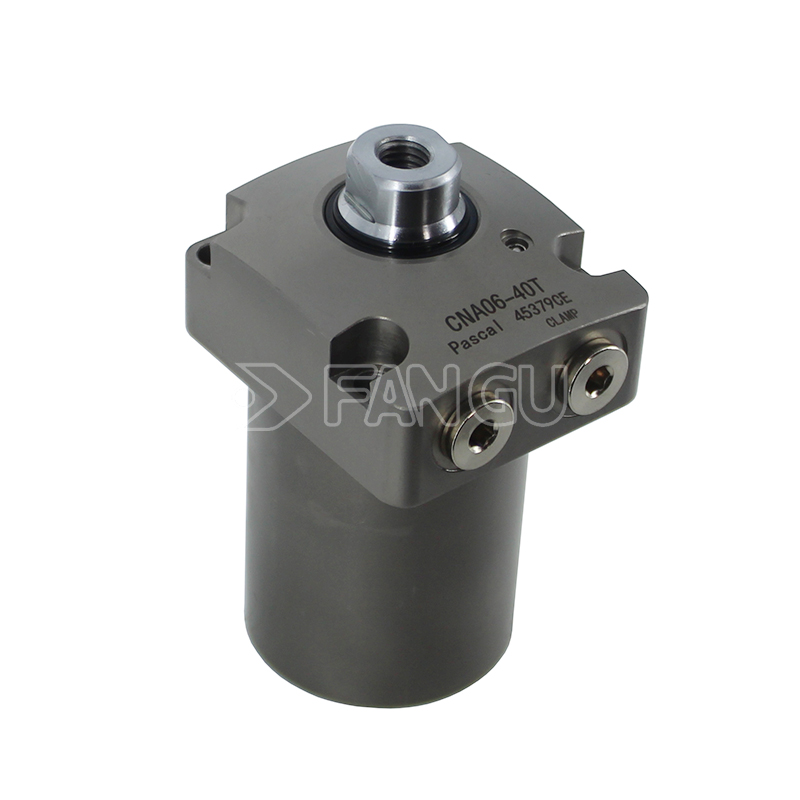

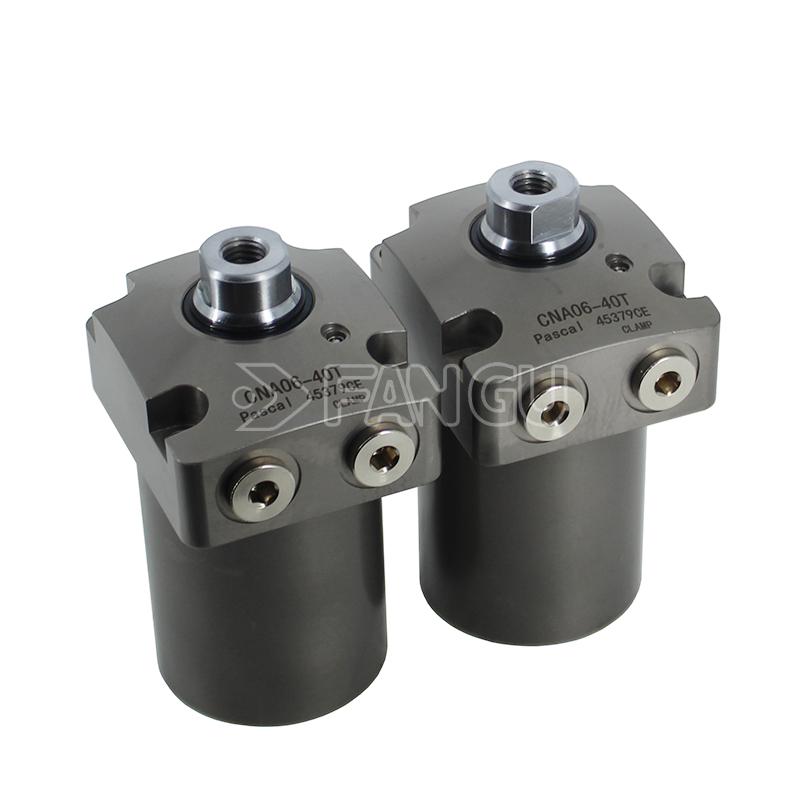

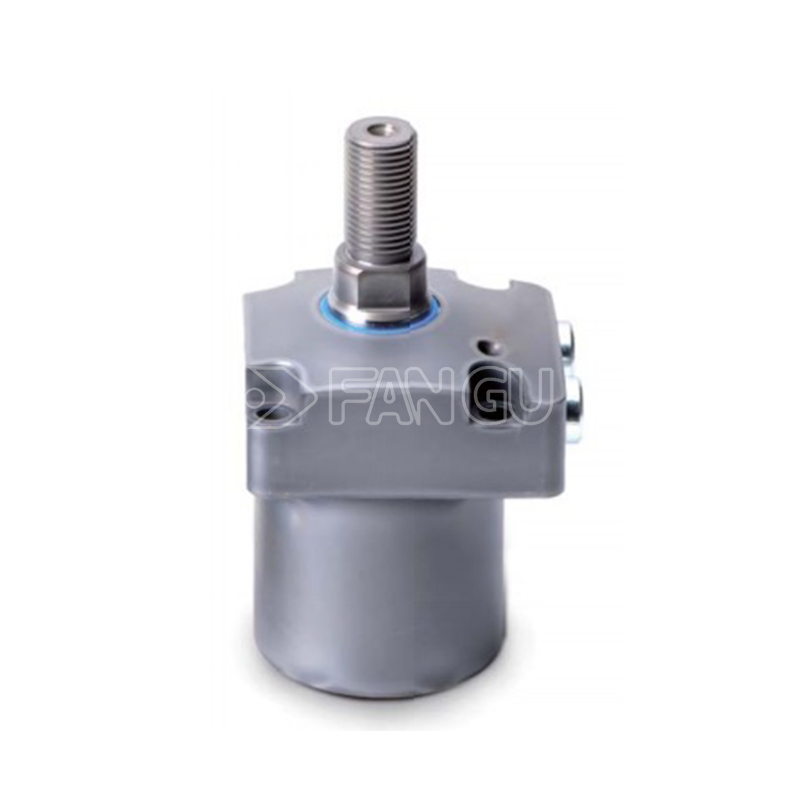

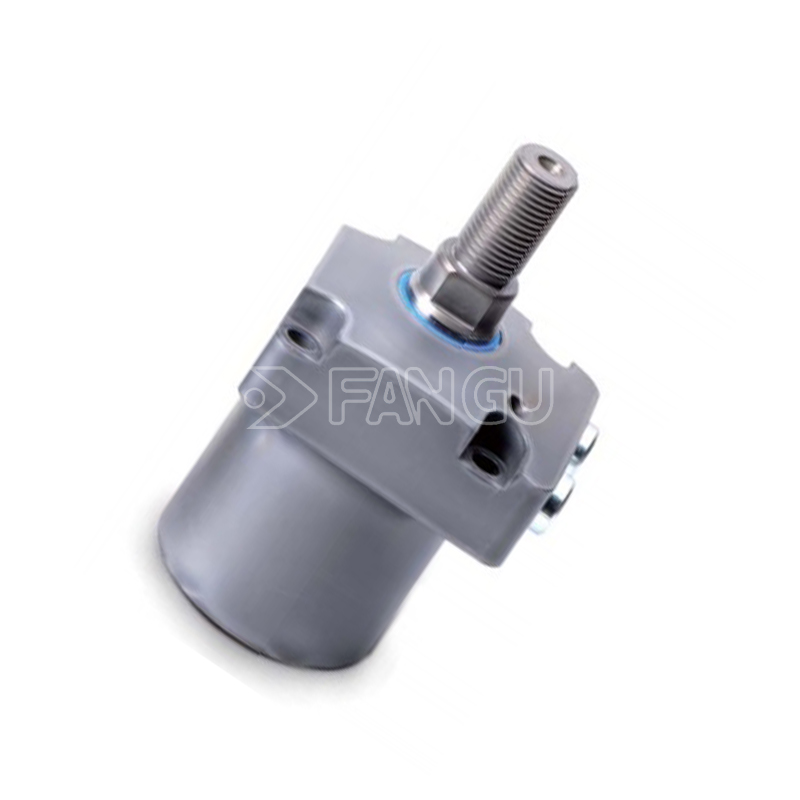

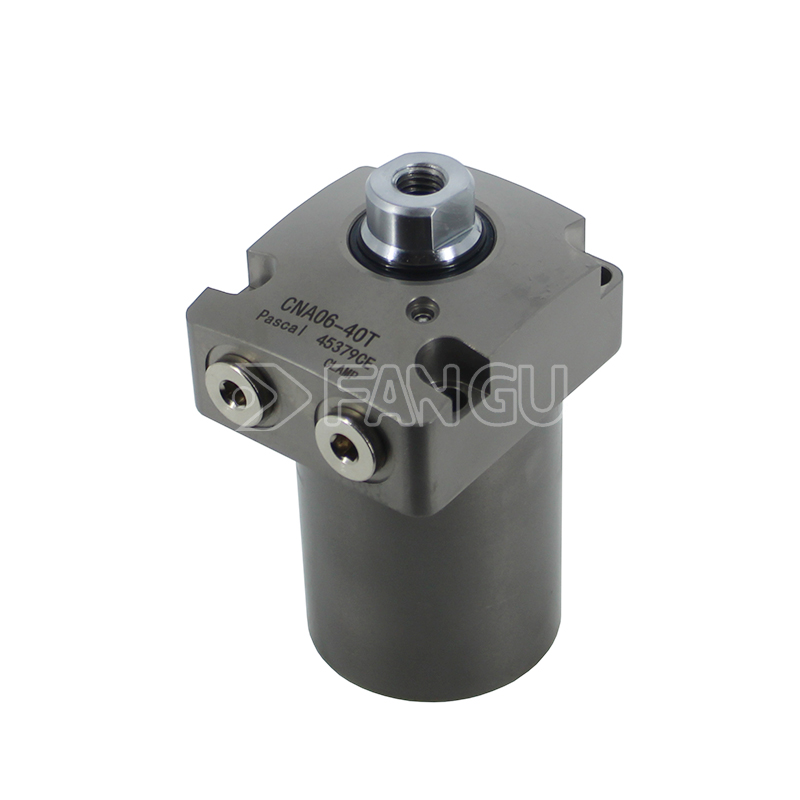

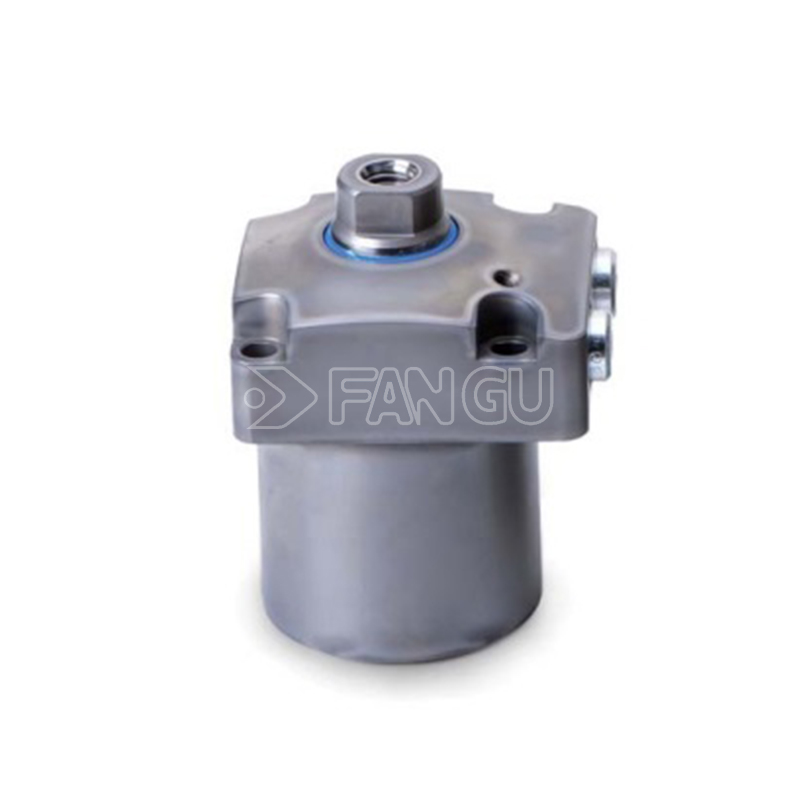

Japan Pascal Cylinder with an upper flange 7MPa Double acting Standard model CNA CNA02 CNA04 CNA06 CNA10 CNA16 CNA25 in Stock
The Pascal CNA series is a compact, double‑acting hydraulic push‑pull cylinder designed for workpiece clamping, positioning, and transfer in CNC machining centers, automated production lines, and special‑purpose machinery. It delivers reliable bidirectional force (push/pull) at a rated pressure of 7 MPa, with a robust, space‑saving design suitable for dense fixture layouts.
Main Models: CNA02 CNA04 CNA06 CNA10 CNA16 CNA25
Pascal CNA Product Introduction (7MPa Double‑Acting Push‑Pull Hydraulic Cylinder)
Overview
The Pascal CNA series is a compact, double‑acting hydraulic push‑pull cylinder designed for workpiece clamping, positioning, and transfer in CNC machining centers, automated production lines, and special‑purpose machinery. It delivers reliable bidirectional force (push/pull) at a rated pressure of 7 MPa, with a robust, space‑saving design suitable for dense fixture layouts.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Double‑acting hydraulic drive: Stable push/pull operation without spring assistance.
- 7MPa rated pressure: High clamping force in a compact body.
- Multiple rod‑end options: Internal thread (T), external thread (M), or pin type (P) for versatile connection.
- Chlorine‑resistant seals: Withstands chlorine‑based cutting fluids for industrial environments.
- Wide operating temperature: 0–70°C for reliable performance in harsh conditions.
- Two piping options: G‑thread or port‑type for flexible installation.
- Anti‑rotation mechanism: Prevents rod rotation during operation for precise positioning.
- Compatible with ISO‑VG32 mineral hydraulic oil.
- Workpiece clamping and positioning in CNC machining fixtures.
- Push/pull actuation in automated assembly lines.
- Transfer and positioning in unmanned production systems.
- Special machinery requiring compact, high‑force hydraulic actuation.
- Dense fixture layouts with limited installation space.
