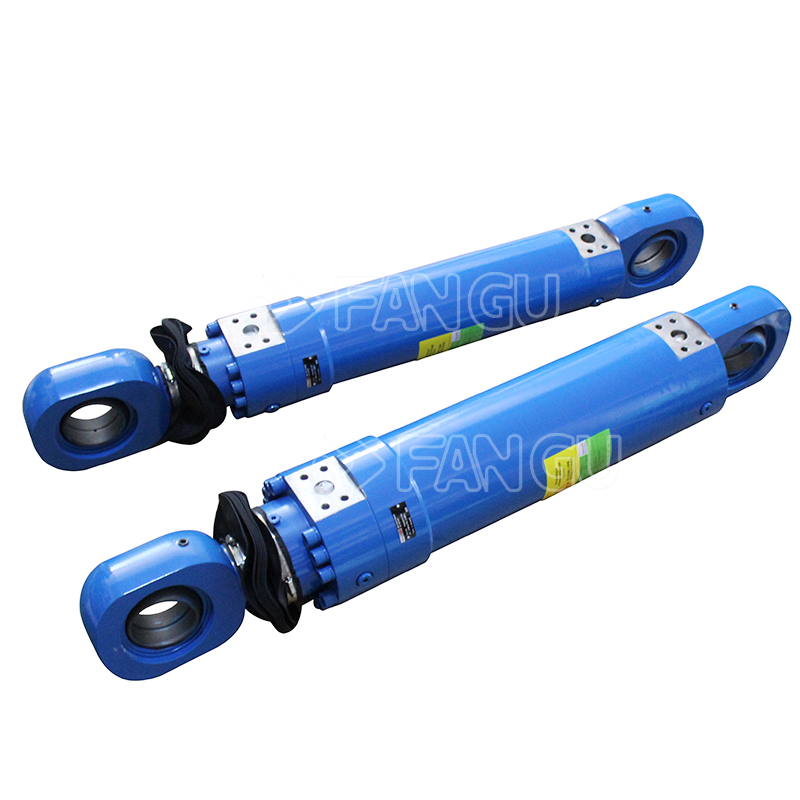

Bosch Rexroth CSH2 heavy-duty, single-rod, mill-type hydraulic cylinder with an integrated linear position sensor (magnetostrictive, LDT) CSH2MP5/125/90/800D3X/B22HHMWC
Product Introduction
Bosch Rexroth CSH2 is a heavy-duty, single-rod, mill-type hydraulic cylinder with an integrated linear position sensor (magnetostrictive, LDT). It shares the same robust mechanical design as the CDH2 series but is purpose-built for closed-loop, precision position control applications.
Example Model: CSH2MP5/125/90/800D3X/B22HHMWC
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Series: CSH2 (Cylinder, Single rod with Sensor, Heavy mill-type)
- Design: Mill-type (flanged barrel), single piston rod
- Nominal Pressure: 250 bar (25 MPa)
- Max. Static Pressure: 315 bar (31.5 MPa)
- Standards: ISO 6022 / DIN 24333
- Piston Diameter (ØAL): 40, 50, 63, 80, 100, 125, 160, 200, 250, 320 mm
- Rod Diameter (ØMM): 25, 28, 36, 45, 56, 70, 90, 110, 140, 180, 220 mm
- Stroke: 25 mm up to 6,000 mm
- Sensor: Integrated magnetostrictive linear displacement transducer (LDT)
- Temp. Range: -20 °C to +80 °C
- Max. Speed: 0.3 m/s (with standard cushion)
- Integrated Position Sensing: Non-contact, wear-free magnetostrictive sensor for high precision and long life.
- Flexible Electronics:
- Analog: 0-10V, 4-20mA
- Digital: SSI
- Bus: PROFIBUS DP, CANopen
- Heavy-Duty Construction: Identical to CDH2 (forged steel barrel, robust flanges).
- Patented Safety Bleed: Easy air purging.
- Rotatable Ports: Installation flexibility.
