Bosch Rexroth CDH2 Series – Product Introduction

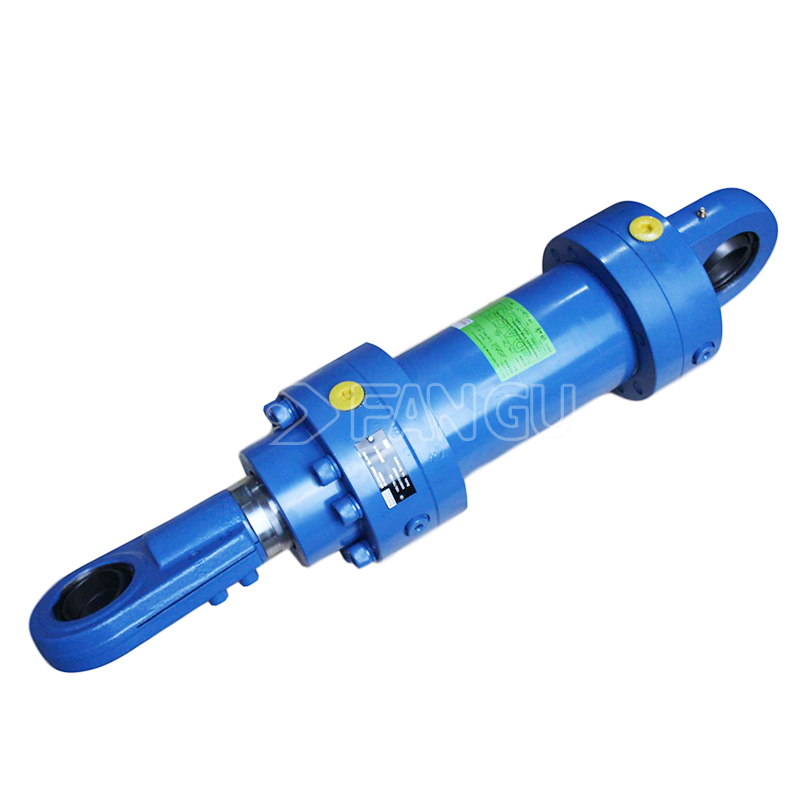

CDH2 is a standard-duty, mill-type, welded hydraulic cylinder (component series 3X) from Bosch Rexroth. It is a double‑acting, single‑rod differential cylinder designed for a wide range of general industrial applications, offering robust performance, versatile mounting, and cost‑effective reliability.
Exapmle Models:
- CDH2MF3/80/56/300D3X/B11HHMWW
- CDH2MF3/100/70/500D3X/B22HHMWW
- CDH2MF3/125/90/600D3X/B22HHMWW
- CDH2MF3/160/110/800D3X/B22HHMWW
- CDH2MF3/200/140/1000D3X/B33HHMWW
- CDH2MS2/100/70/400D3X/B22HHMWW
- CDH2MP5/125/90/500D3X/B22HHMWW
- CDH2MT4/160/110/600D3X/B22HHMWW
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Series: CDH2 (Component Series 3X)
- Type: Single rod, double‑acting, differential, mill‑type welded hydraulic cylinder
- Nominal Pressure: 250 bar (25 MPa)
- Static Test Pressure: 375 bar
- Standards: DIN 24333, ISO 6022, CETOP RP 73H
- Piston Diameter (ØAL): 40 mm – 320 mm
- Piston Rod Diameter (ØMM): 25 mm – 220 mm
- Standard Stroke: Up to 3000 mm
- Max. Stroke: Up to 6000 mm (on request)
- Operating Temperature: -20 °C … +80 °C
- Suitable Fluids: HLP mineral oils, HFC, HFDR fire‑resistant fluids
- Max. Speed: Up to 0.3 m/s
- General machinery: Machine tools, injection molding machines
- Industrial automation: Assembly lines, positioning, clamping
- Presses: Bending, stamping, forming presses
- Material handling: Lifting, tilting, conveying systems
- Civil engineering: Mobile and stationary hydraulics
- Test equipment: Standard force and motion test rigs
