Authentic Rexroth CDT3 Series Single-rod cylinders (standard) CDT3ME5/50/36/160Z3X/B11HHDMWW CDT3MP5/100/70/800Z3X/B22HDUMWW CDT3MS2/63/36/400Z3X/B11HHUMWW CDT3MT4/125/90/600Z3X/B11HHUMWW CDT3MX5/40/28/250Z3X/B11HHDMAW

Category: Rexroth Hydraulic Cylinder Tag: Rexroth CDT3 Single-rod cylinders

Rexroth CDT3 Series: Introduction

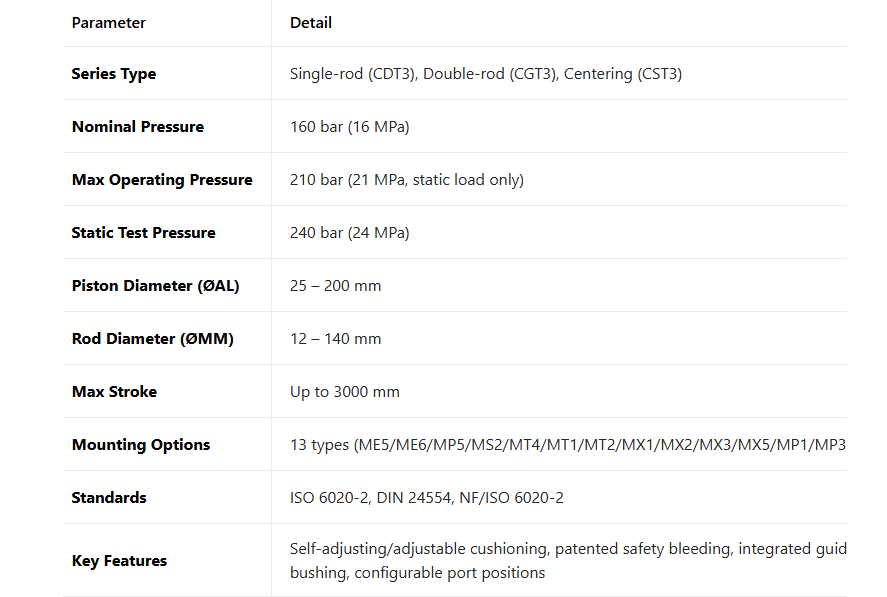

The CDT3 is a family of tie-rod hydraulic cylinders designed for general industrial applications, featuring a robust configuration, 160 bar nominal pressure, and broad mounting flexibility. Below is a structured overview of its core specifications, variants, and complete model examples.

Main Models:

CDT3ME5/50/36/160Z3X/B11HHDMWW
CDT3MP5/100/70/800Z3X/B22HDUMWW
CDT3MS2/63/36/400Z3X/B11HHUMWW
CDT3MT4/125/90/600Z3X/B11HHUMWW
CDT3MX5/40/28/250Z3X/B11HHDMAW

Q: What’s the MOQ of customized tie-rod cylinder?

A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.

Q:What’s the lead time of customized tie-rod cylinder?

A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.

Q: Are you the manufacturer of hydrualic cylinder?

A: Sure, we are the manufacutuer and trading of hydraulic cylinder.

Q: What is the difference between double acting and single acting cylinders?own controlled by the pump or the valve or is it only one speed?

A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through

a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.

Q: I have a drawing, could you customized cylinder as my drawing?

A: Sure. Show us the drawing, we will quote for you soonest.

Q: Could you make the cylinder which is not on the above data sheet?

A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

CDT3 (Single-Rod)
