Original Rexroth hydraulic cylinders Mill-Type CD Series Double-Acting CDH1 CDH2 CDH3 CDL2 CDM1 Good Quality Cheaper Price in Stock

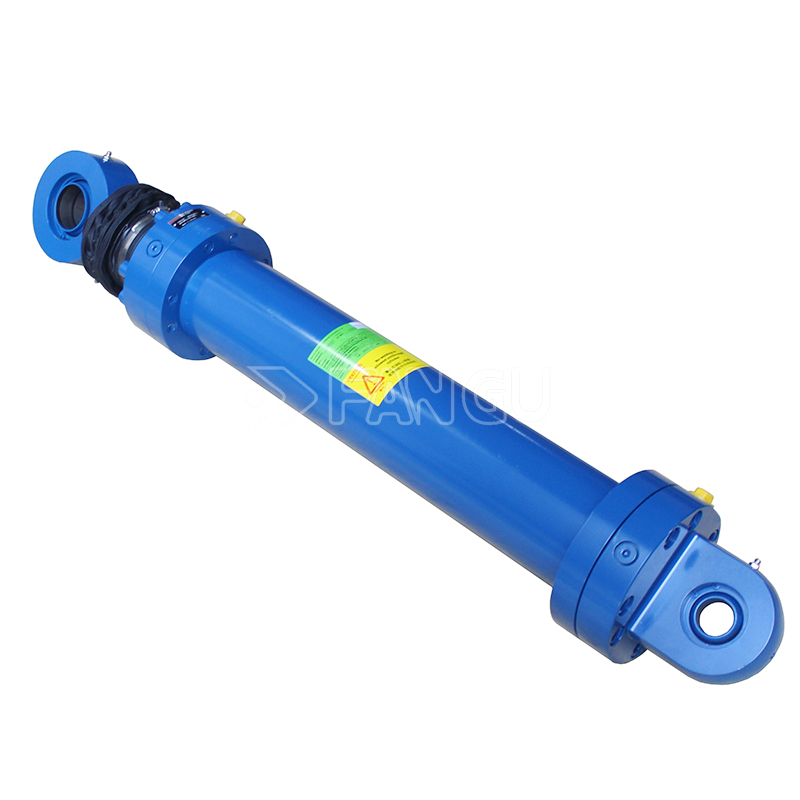

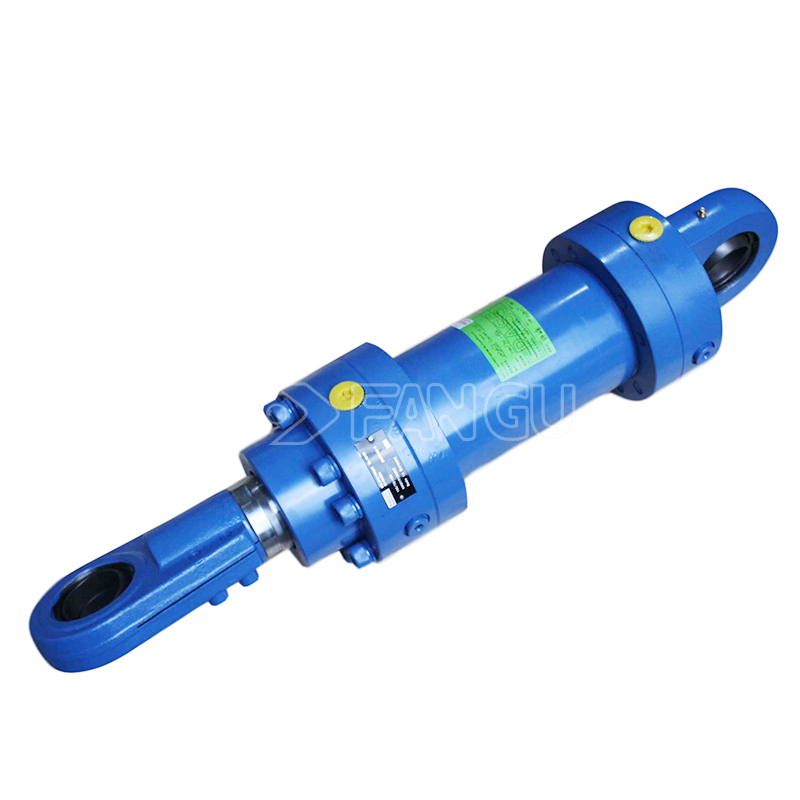

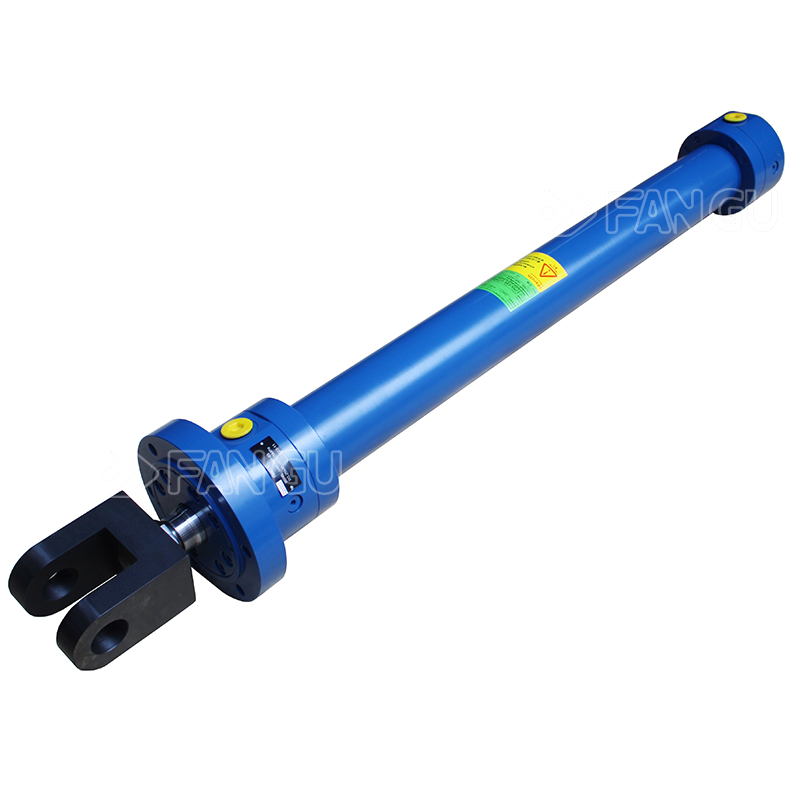

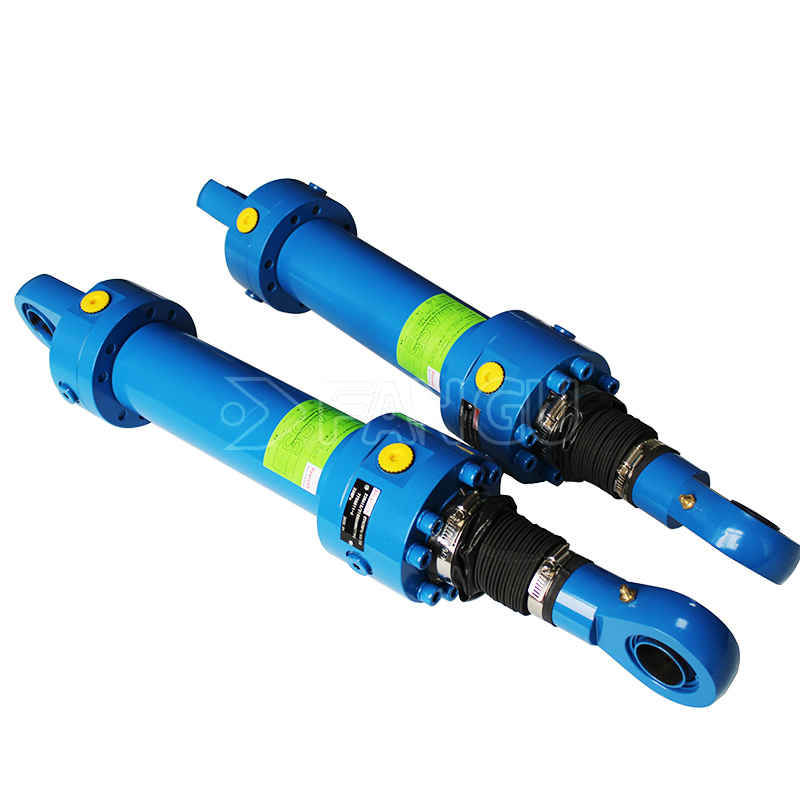

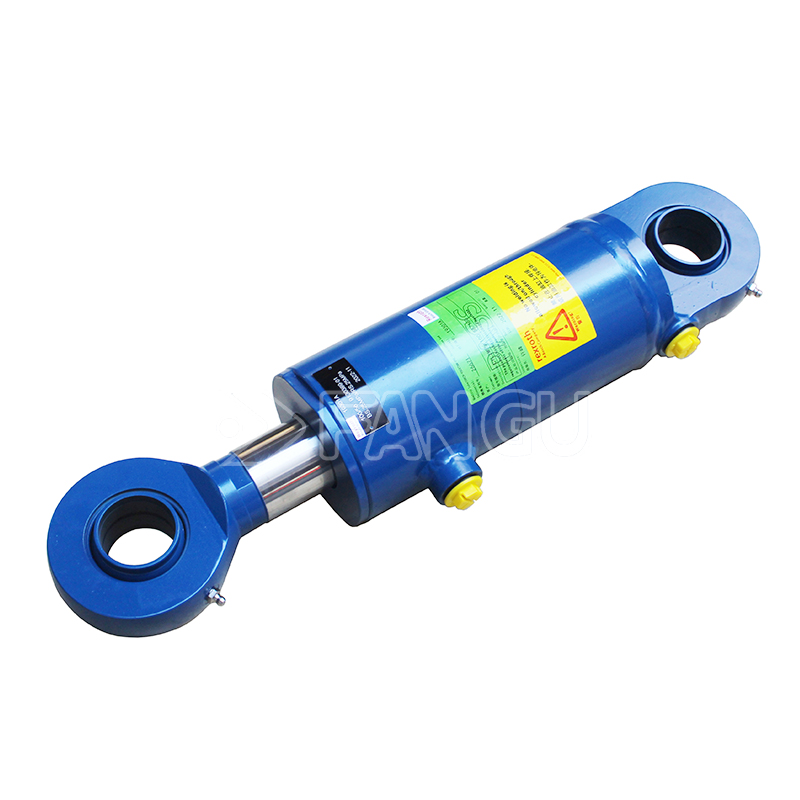

The Rexroth CDH1 is a robust, mill-type double-acting hydraulic cylinder designed for heavy-duty industrial applications requiring high force, long stroke, and reliable performance under continuous operation. It belongs to the 3X component series with a nominal pressure rating of 250 bar (25 MPa), offering exceptional durability and configurability for demanding environments.
Main Models: CDH1 CDH2 CDH3 CDL2 CDM1
Rexroth CDH1 Product Introduction (Mill-Type Double-Acting Hydraulic Cylinder – Series 3X)
Overview
The Rexroth CDH1 is a robust, mill-type double-acting hydraulic cylinder designed for heavy-duty industrial applications requiring high force, long stroke, and reliable performance under continuous operation. It belongs to the 3X component series with a nominal pressure rating of 250 bar (25 MPa), offering exceptional durability and configurability for demanding environments.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Heavy-duty mill-type construction for high-load, high-cycle industrial use.
- Wide dimensional range: Piston Ø 40–320 mm, rod Ø 22–220 mm, stroke up to 6,000 mm.
- 6 standard mounting styles for flexible installation.
- Self-adjusting/adjustable end-position cushioning for shock absorption.
- Patented safety bleeding for easy, safe maintenance.
- Modular, service-friendly design with configurable port positions.
- Double-acting operation: Hydraulic pressure acts on both sides of the piston to generate extend/retract forces.
- End-position cushioning: Integrated cushioning decelerates the piston near stroke ends, reducing impact and noise.
- Self-adjusting: Automatically adapts to varying loads and speeds.
- Adjustable: Manual tuning for precise shock control.
- Safety bleeding: Patented venting system ensures safe air evacuation during commissioning.
- Seal system: High-performance FKM seals for leak-free operation and resistance to mineral/synthetic oils.
