Original Rexroth High Quality CG – double-acting cylinder I mill type CGH1 CGH2 CGH3 with multiple Applications in Stock

The Rexroth CG series is a family of double‑rod, double‑acting hydraulic cylinders designed for applications requiring symmetric force and speed in both extend and retract directions. It includes two primary design platforms:

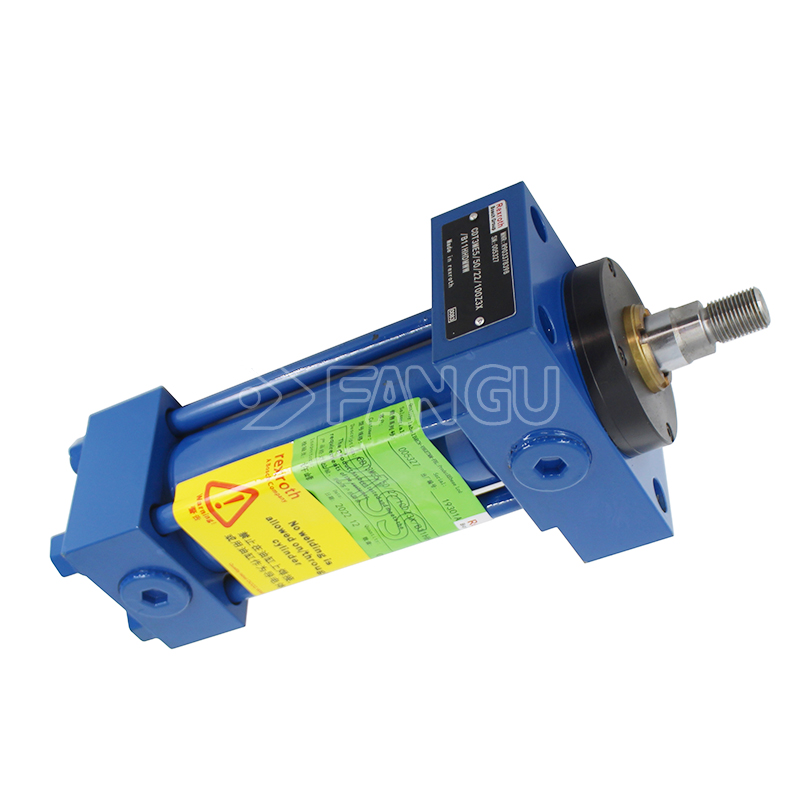

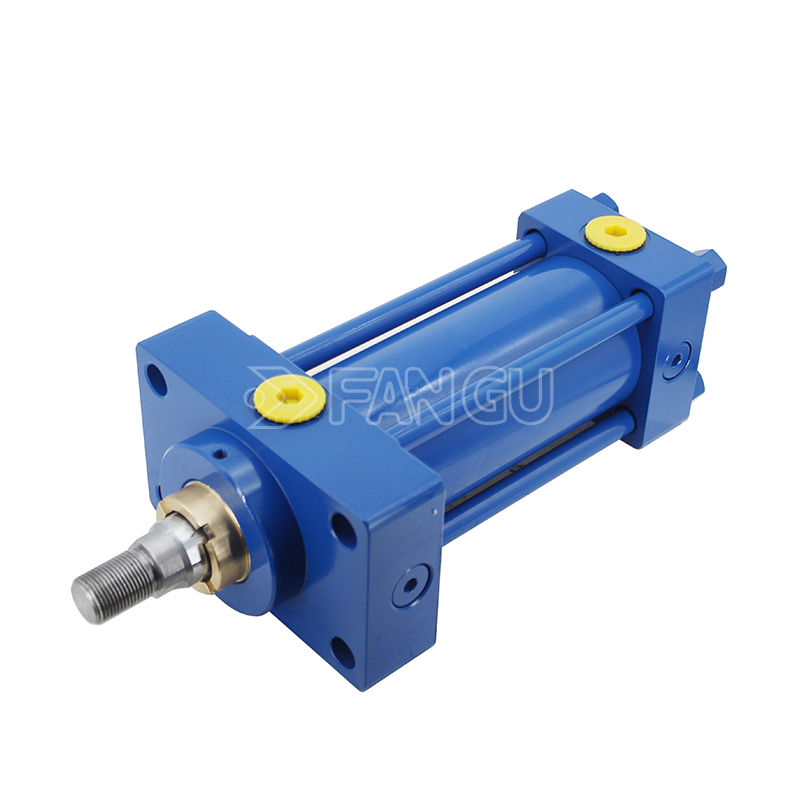

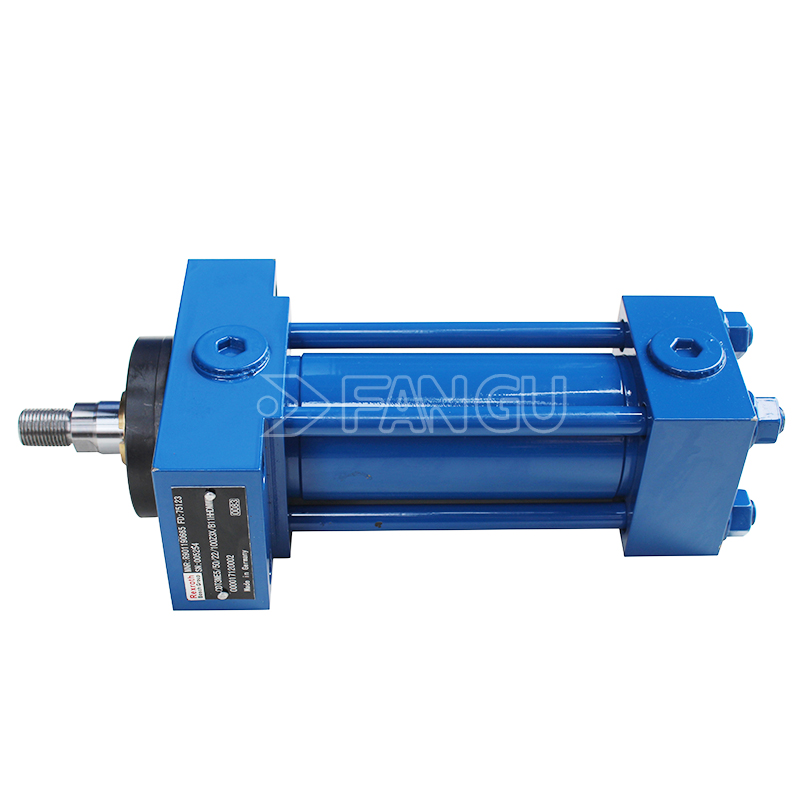

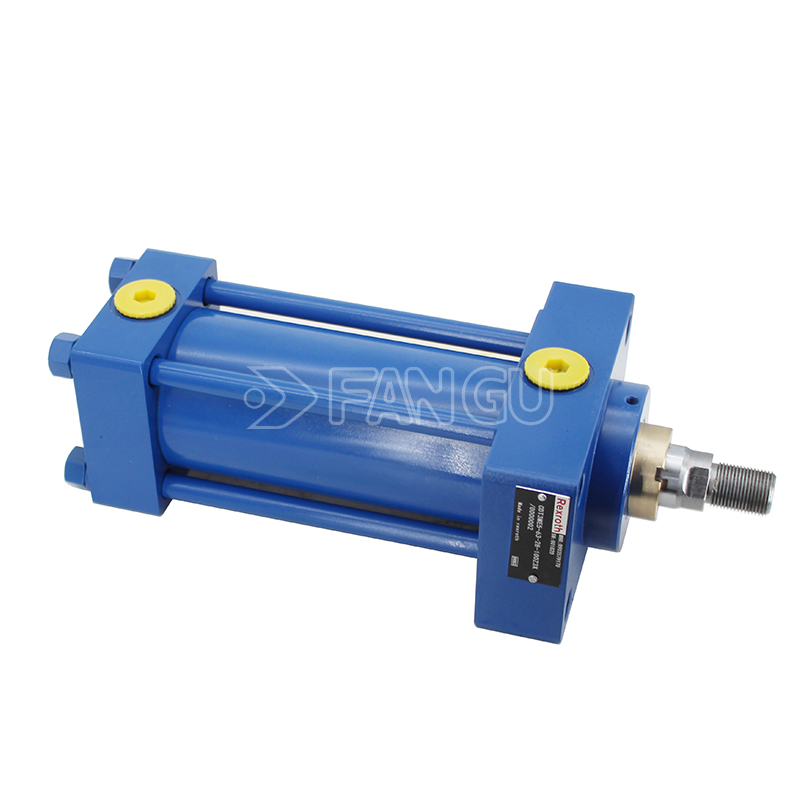

CG210 / CGT3: Tie‑rod construction (160–210 bar) for general industrial automation.
CGH1 / CGH2: Mill‑type heavy‑duty construction (250 bar) for high‑load machinery.

Category: Rexroth Hydraulic Cylinder Tag: Rexroth CG

Rexroth CG Series Product Introduction (Double‑Rod Hydraulic Cylinders – Tie‑Rod & Mill‑Type)

Overview

The Rexroth CG series is a family of double‑rod, double‑acting hydraulic cylinders designed for applications requiring symmetric force and speed in both extend and retract directions. It includes two primary design platforms:

CG210 / CGT3: Tie‑rod construction (160–210 bar) for general industrial automation.
CGH1 / CGH2: Mill‑type heavy‑duty construction (250 bar) for high‑load machinery.

Q: What’s the MOQ of customized tie-rod cylinder?

A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.

Q:What’s the lead time of customized tie-rod cylinder?

A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.

Q: Are you the manufacturer of hydrualic cylinder?

A: Sure, we are the manufacutuer and trading of hydraulic cylinder.

Q: What is the difference between double acting and single acting cylinders?own controlled by the pump or the valve or is it only one speed?

A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through

a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.

Q: I have a drawing, could you customized cylinder as my drawing?

A: Sure. Show us the drawing, we will quote for you soonest.

Q: Could you make the cylinder which is not on the above data sheet?

A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

Dual piston rods: Identical force/speed in both directions.
Modular, service‑friendly design: Easy seal replacement and maintenance.
Flexible mounting: Up to 16 standard mounting styles (ISO/DIN compliant).
End‑position cushioning: Self‑adjusting or adjustable for shock control.
Patented safety bleeding: Fast, safe air evacuation during commissioning.

Symmetric actuation: Presses, conveyors, linear slides, and balancing systems.
Machine tools: CNC tables, dual‑direction clamping, and precision positioning.
Material handling: Forklifts, lift tables, and dual‑action actuators.
Industrial automation: Packaging, printing, and textile machinery.
Heavy machinery: Steel mills, construction equipment, and large presses (CGH series).
