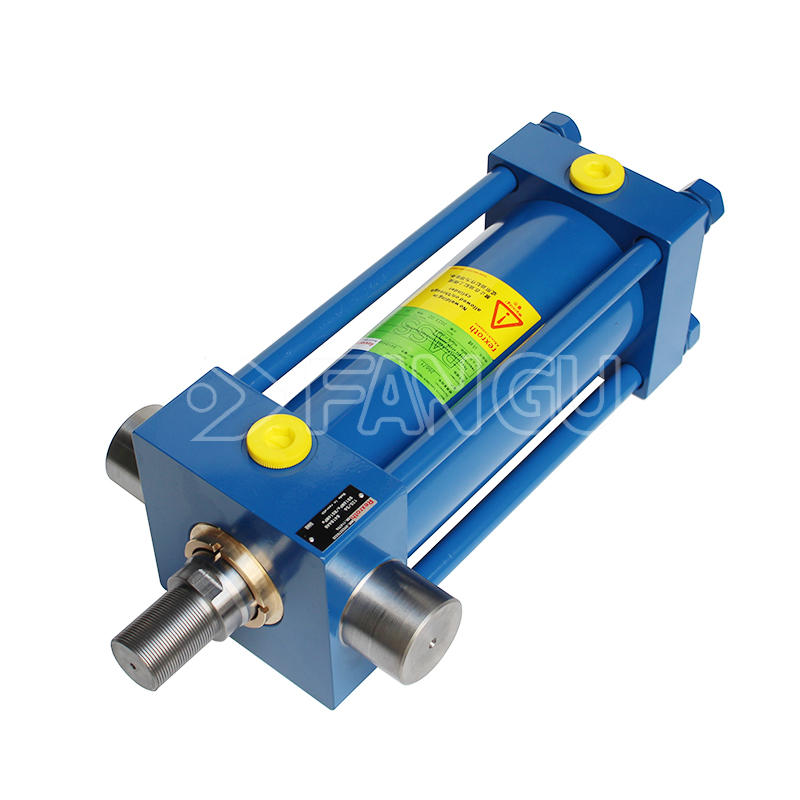

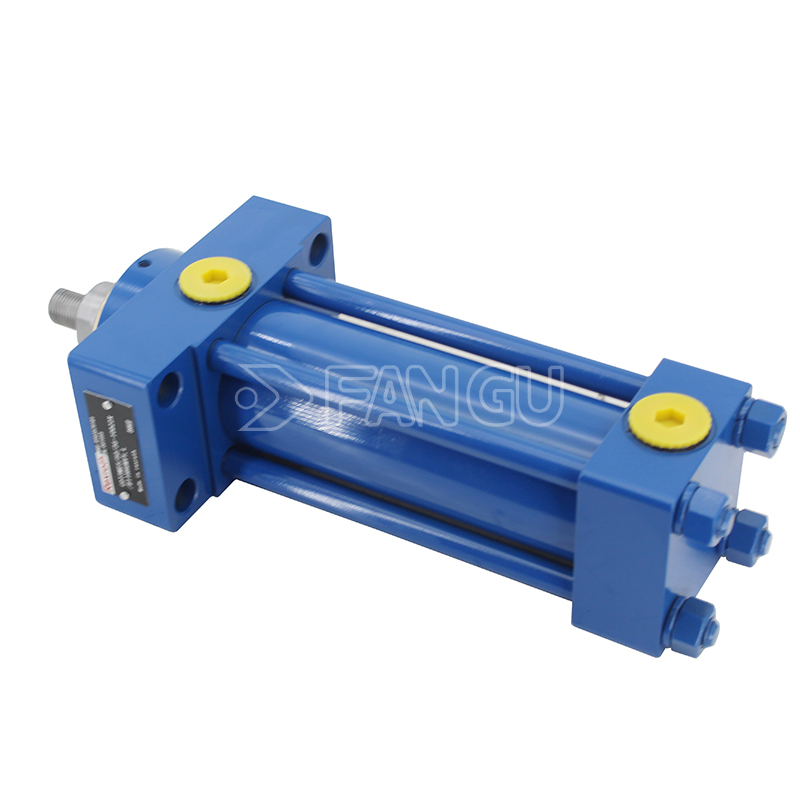

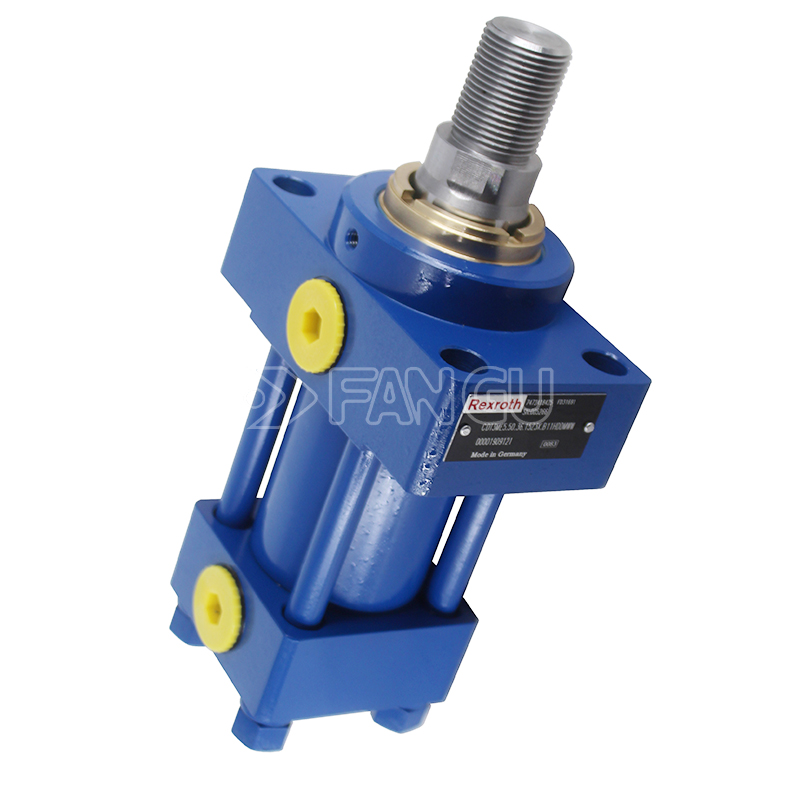

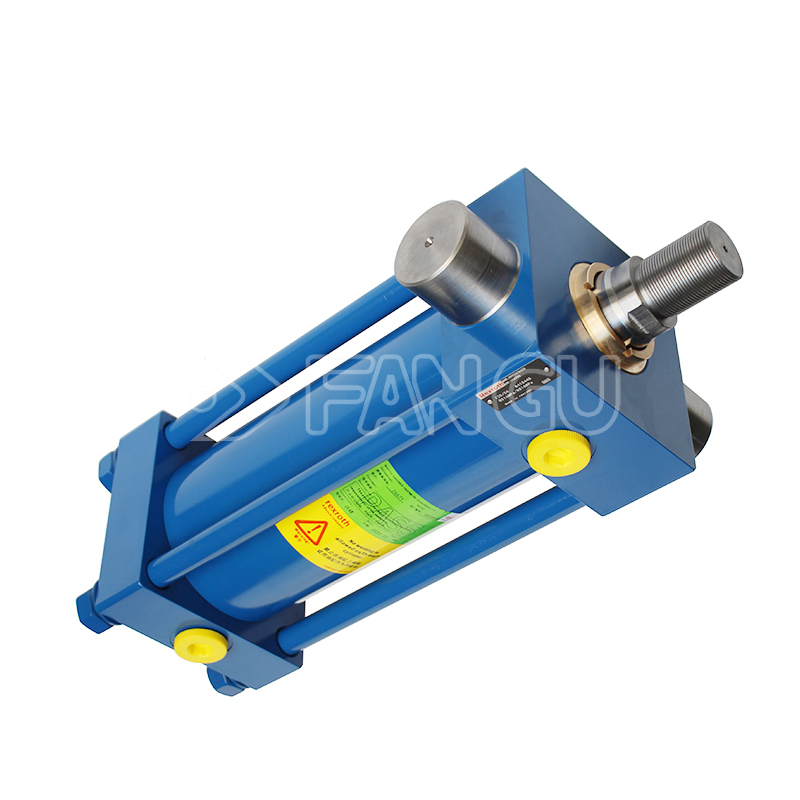

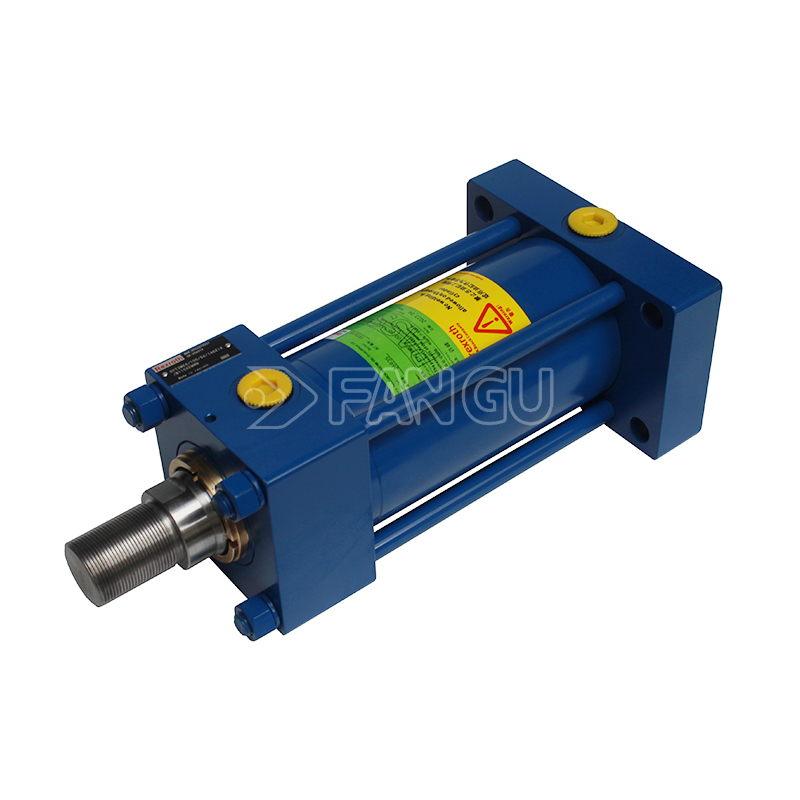

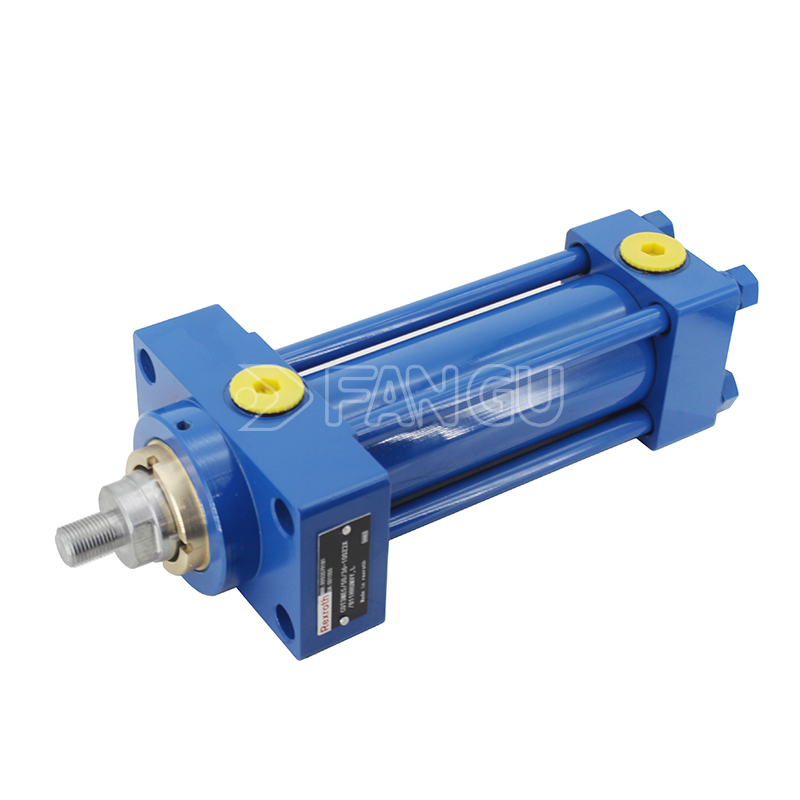

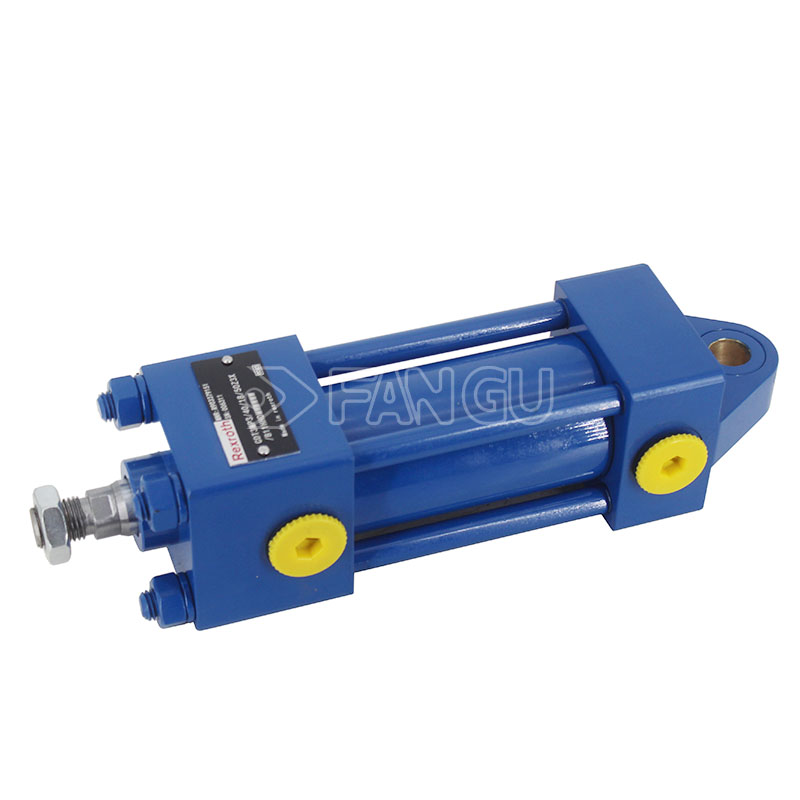

Original Rexroth CD Series 12/16/18/22/25/28/32/36/45/56/70/90/110/140mm Rod Hydraulic Cylinders
Example models:
- CD70B25/16–432
- CD70Q25/16–550
- CD70B40/25–500
- CD70G40/25–800
- CD70B50/28–200
- CD70H50/36–1000
- CD70C63/45–600
- CD70D63/45–1200
- CD70G100/56–800
- CD70C125/70–1000
Rexroth CD Series Hydraulic Cylinders – Product Introduction
Rexroth CD series comprises a comprehensive range of single‑rod, double‑acting hydraulic cylinders designed for universal industrial applications. It includes tie‑rod and mill‑type constructions to cover light‑duty to heavy‑load requirements, with standardized mounting and cushioning options.
Example models:
- CD70B25/16–432
- CD70Q25/16–550
- CD70B40/25–500
- CD70G40/25–800
- CD70B50/28–200
- CD70H50/36–1000
- CD70C63/45–600
- CD70D63/45–1200
- CD70G100/56–800
- CD70C125/70–1000
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Cushioning
- Self‑adjusting (S): Automatically adapts to load/speed
- Adjustable (A): Manual fine‑tuning for shock control
- Patented safety bleeding: Fast, safe air purgingRexroth
Construction
- Tie‑rod (CD210): Lightweight, easy disassembly for maintenance
- Mill‑type (CDH1): Heavy‑wall steel tube, high rigidityRexroth
- Hard‑chrome rod: Wear & corrosion resistance
- Modular ports: Freely selectable port positions
Mounting Flexibility
- CD210: Foot, flange, trunnion, clevis (16 styles)
- CDH1: MF3 (front flange), MS2 (foot), MT4 (trunnion), MP5 (clevis)
- CDL2: Compact mounts for space‑constrained installs
- Machine tools: Clamping, tool changers, axis actuation
- Industrial presses: Forming, stamping, bending (CDH series)
- Material handling: Lifts, conveyors, fork trucks
- Automation: Packaging, textile, printing machinery
- Heavy machinery: Steel mills, construction, marine
