High Quality Original Rexroth Brand CS – differential cylinder with position measurement system I tie rod design Multiple Applications in Stock
Rexroth CS Series Product Introduction (Differential Cylinders with Integrated Position Measurement)
Overview
The Rexroth CS series is a family of single-rod, double-acting differential hydraulic cylinders equipped with an integrated linear position measurement system. Designed for closed-loop control, it delivers precise stroke feedback, high cycle efficiency, and reliable performance across general and heavy-duty industrial applications.
Two primary configurations are available:
- Mill-Type (CSH/CSM): For heavy loads, high rigidity, and extreme durability.

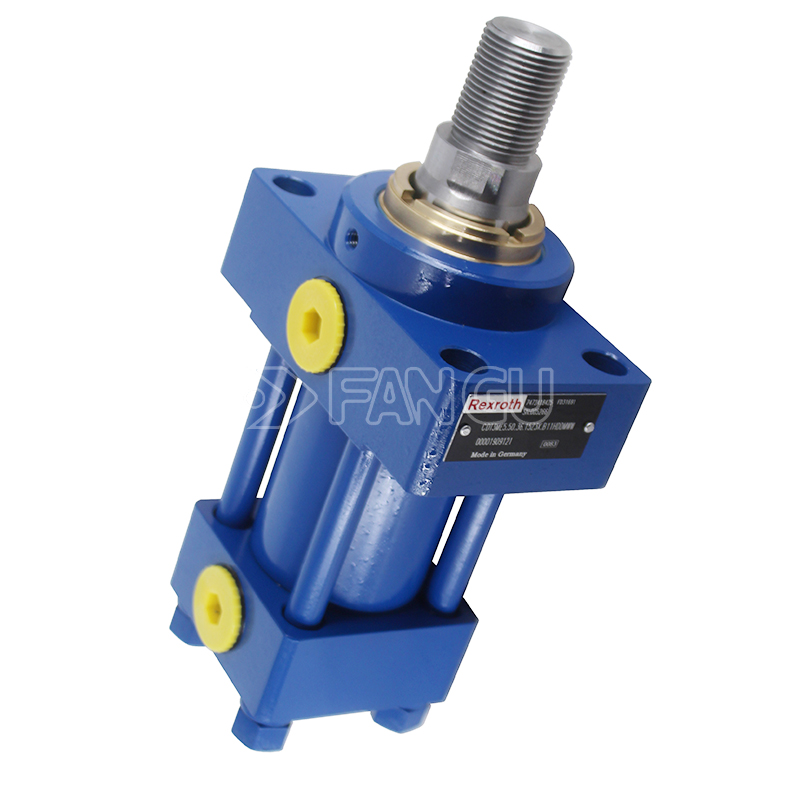

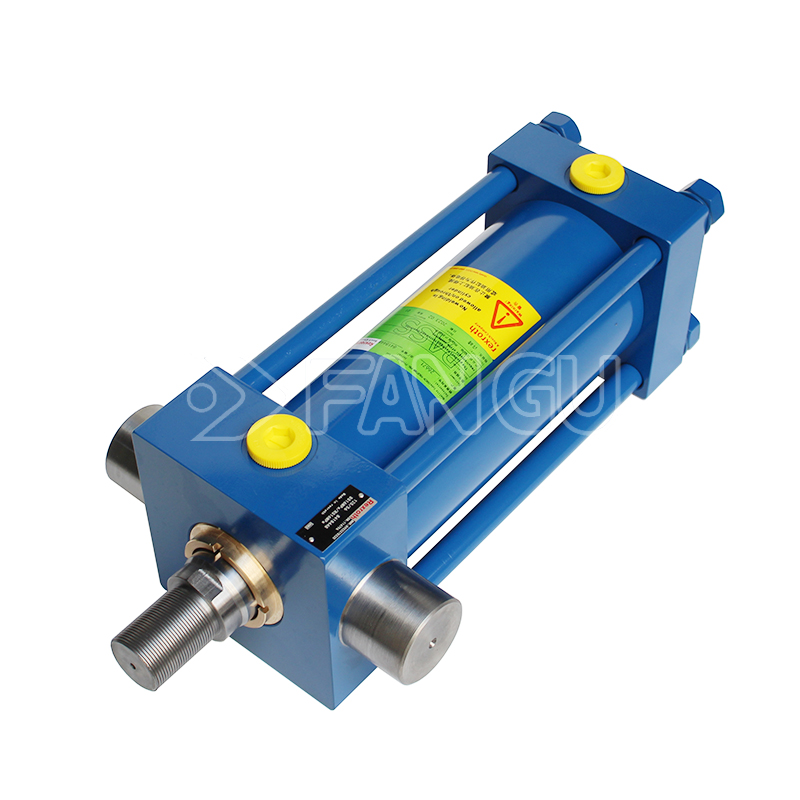

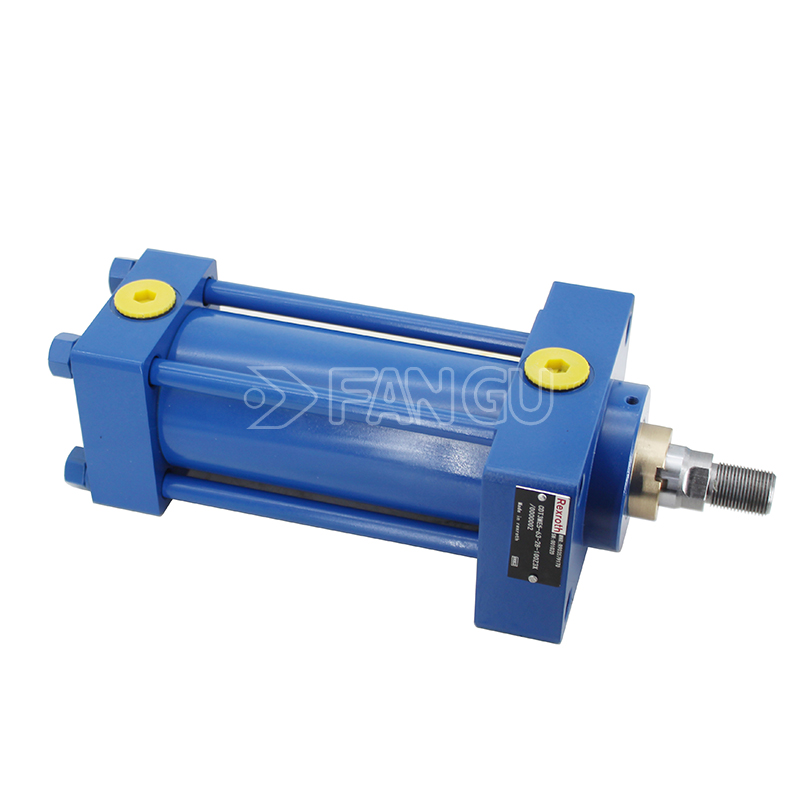

- Tie-Rod (CST): Modular, serviceable, and cost-effective for general automation.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Differential Operation
- Faster Retraction: Higher velocity on the return stroke for improved cycle efficiency.
- Balanced Force: Optimized thrust for both extend/retract directions.
Precision Position Measurement
- High-Resolution Feedback: Magnetostrictive transducer with up to 1 µm accuracyRexroth.
- Flexible Outputs: 0–10 V, 4–20 mA, SSI, Profibus, Profinet, EtherCAT, IO-LinkRexroth.
- Closed-Loop Compatibility: Seamless integration with Rexroth controls for precise positioning.
Robust Construction

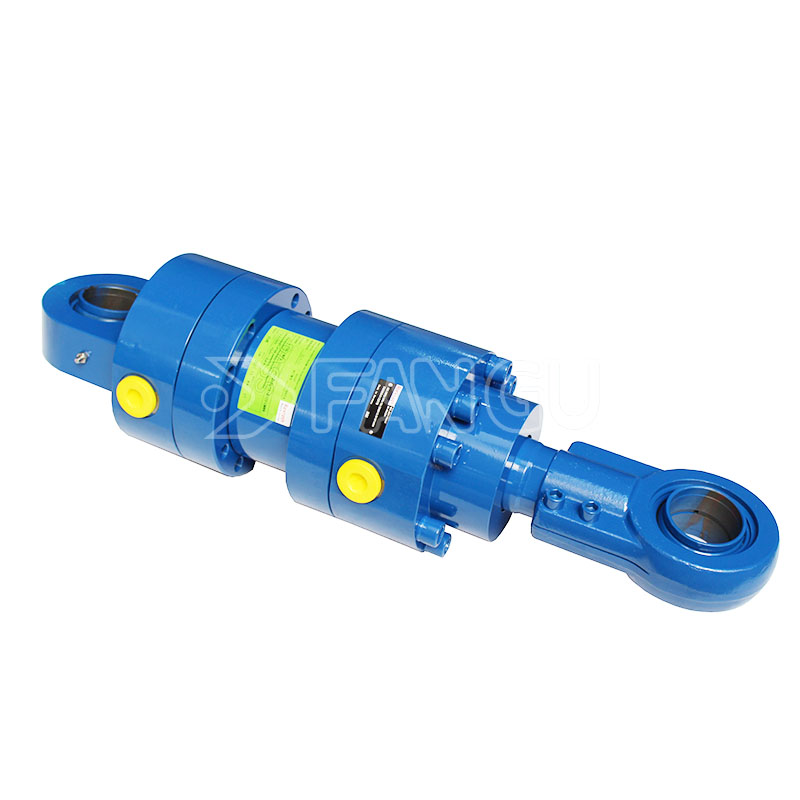

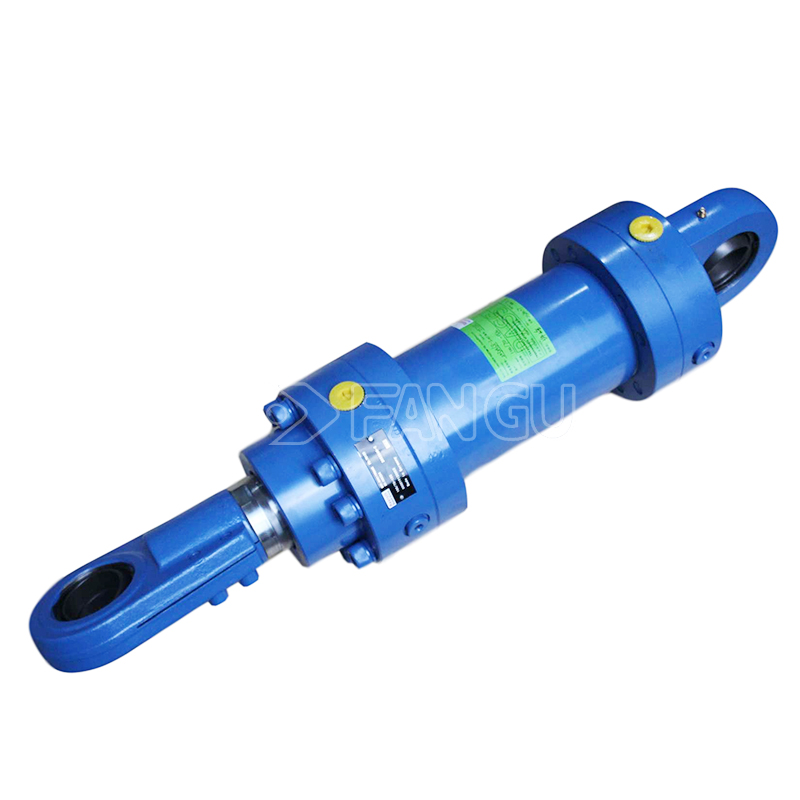

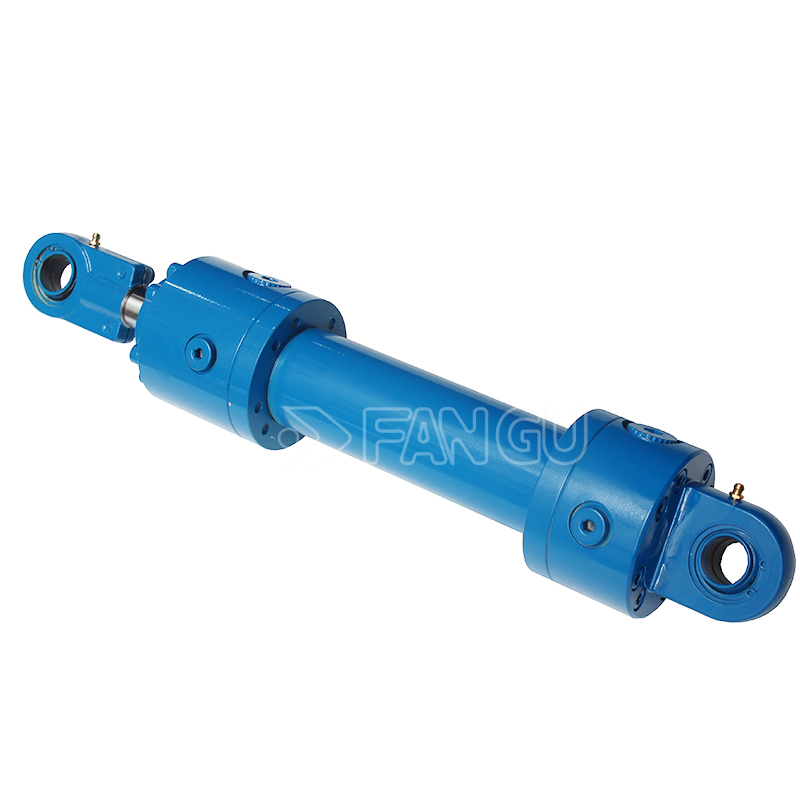

- Mill-Type: Heavy-wall steel tube for high-load, high-cycle applications (e.g., presses, rolling mills).
- Tie-Rod: Modular bolted design for easy assembly, maintenance, and cost savings.
- Hard-Chrome Plated Rod: Superior wear and corrosion resistance.
- Patented Safety Bleeding: Quick, safe air purging during commissioningRexroth.
- Automated Forming: Presses, stamping, and bending machines requiring precise stroke control.
- Heavy Machinery: Rolling mills, material handling, and large-scale lifting systems.
- Precision Automation: CNC machining centers, fixture clamping, and closed-loop actuation.
- Synchronized Systems: Multi-cylinder presses and balanced motion controls.
