Original Rexroth CD Series cylinders CD70H100/56-600Z1X CD70K125/70-800Z1X CD70M160/90-1000Z1X CD70Q200/140-1500Z1X High Performance in Stock

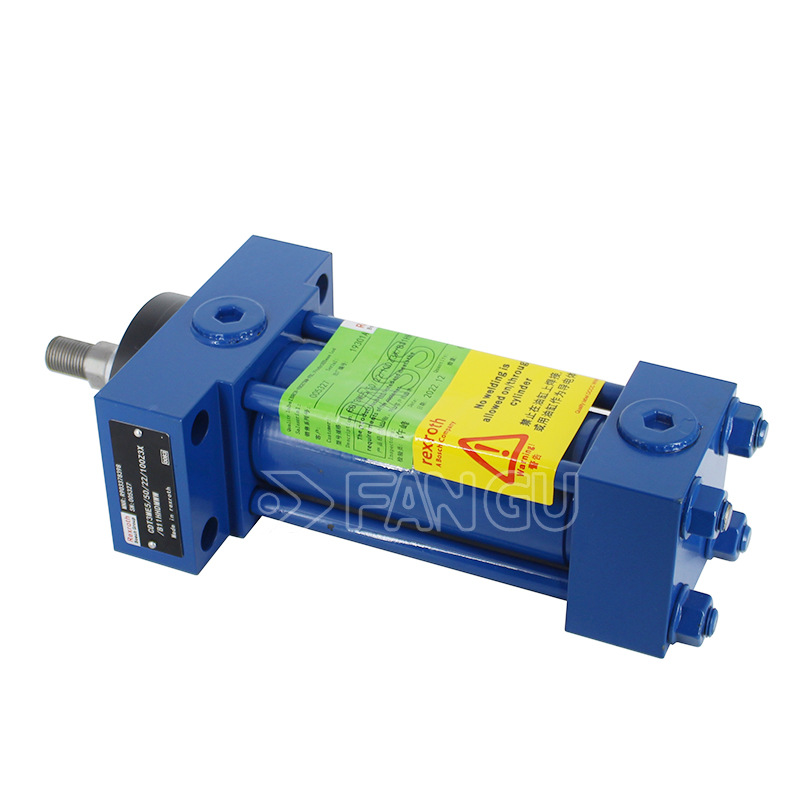

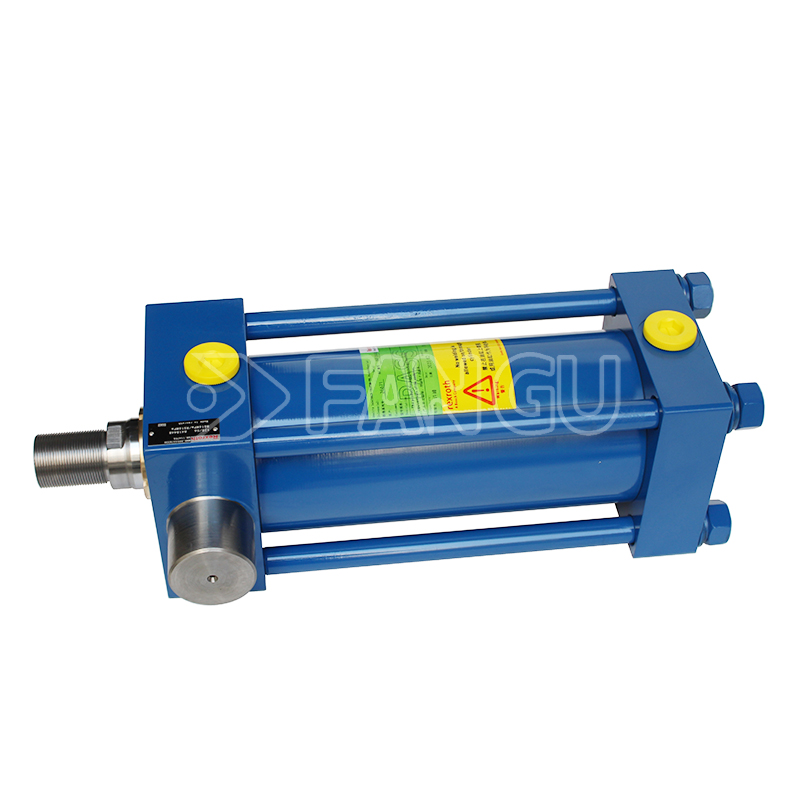

Rexroth CD70 is a low-pressure (70 bar), tie-rod design, standard industrial hydraulic cylinder (single rod, double-acting). Specific models are defined by mounting style, bore/rod size, stroke, and options.
- Series: CD70 (1X generation)
- Nominal pressure: 70 bar (7 MPa)
- Max test pressure: 91 bar
- Piston diameter (Ø): 25, 32, 40, 50, 63, 80, 100, 125, 160, 200 mm
- Rod diameter (Ø): 12, 16, 20, 25, 32, 40, 50, 63, 70, 90, 110, 140 mm
- Max stroke: Up to 3000 mm
- Standards: ISO 6020-2, DIN 24554
- Fluid: Mineral oil (HLP 32–68)
- Temp: −20 °C … +80 °C
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
CD70C100/56-300Z1X/13V
- CD70: Series (70 bar)
- C: Front flange mount
- 100: Piston Ø 100 mm
- 56: Rod Ø 56 mm
- 300: Stroke 300 mm
- Z: Cushion (both ends)
- 1X: Generation
- 13: Port type/size
- V: Seal material (standard)
- CD70B25/12-100Z1X
- CD70C40/20-200Z1X
- CD70D50/25-300Z1X
- CD70F63/32-400Z1X
- CD70G80/40-500Z1X
- CD70H100/56-600Z1X
- CD70K125/70-800Z1X
- CD70M160/90-1000Z1X
- CD70Q200/140-1500Z1X
