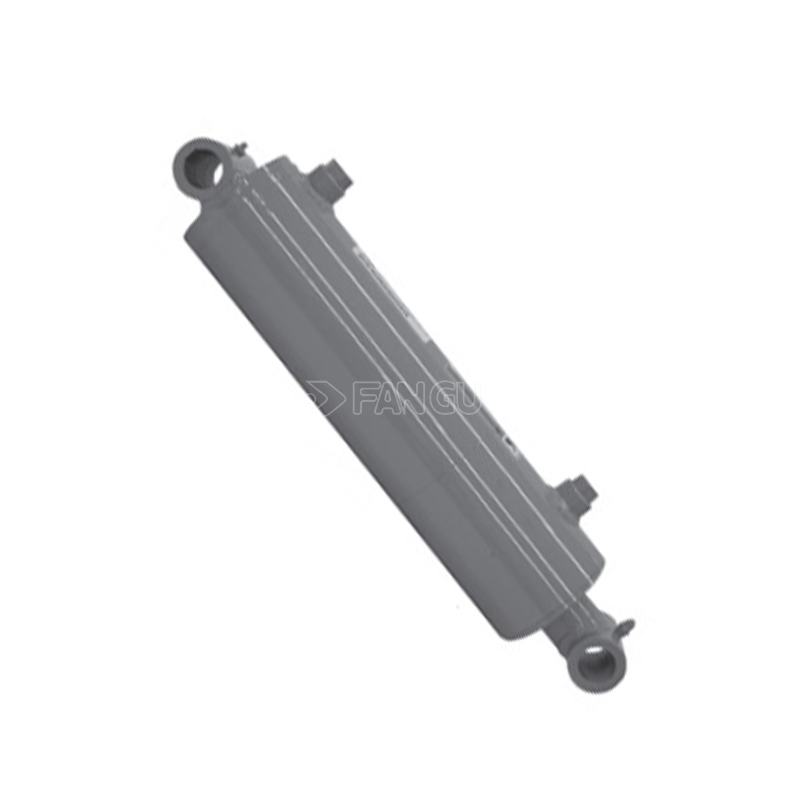

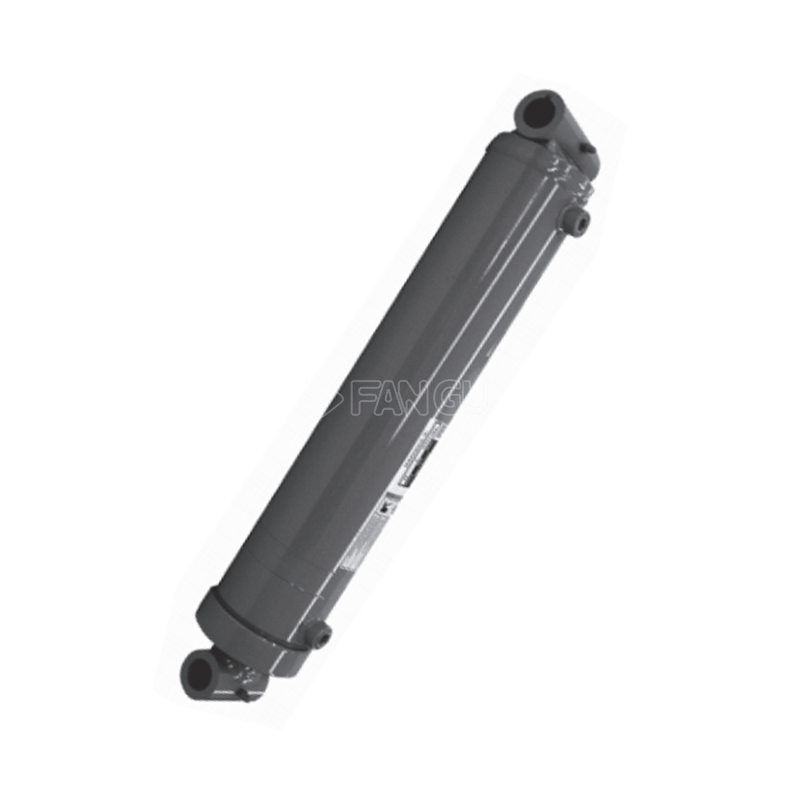

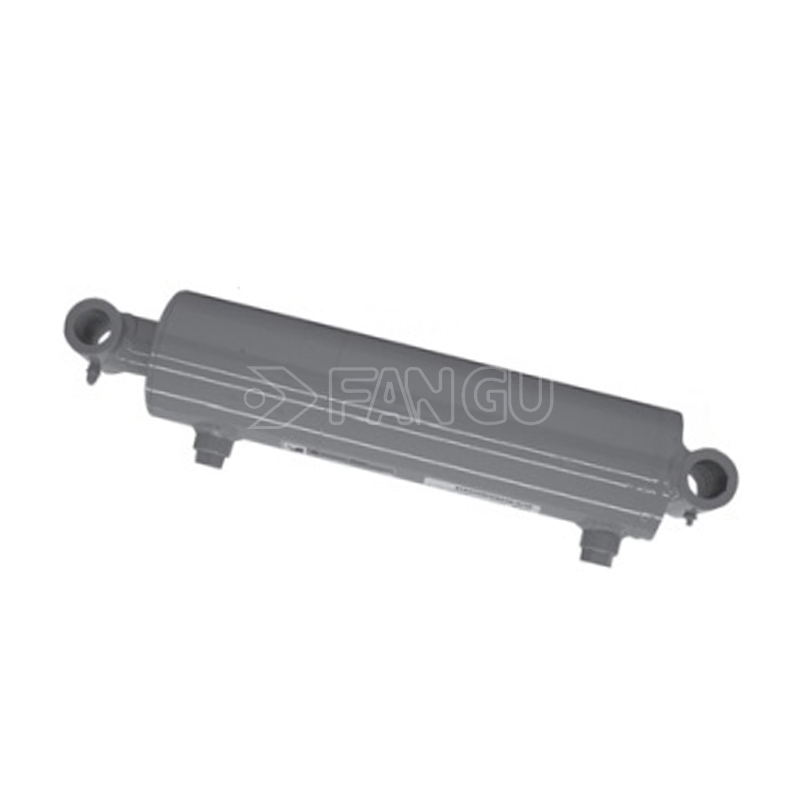

Prince 3000 PSI Welded Cross‑Tube Hydraulic Cylinders 1.5 Inch Bore Heavy‑duty Welded Cylinders
Example Models:
- WWXT1504-S
- WWXT1506-S
- WWXT1508-S
- WWXT1512-S
- WWXT1516-S
Prince 3000 PSI Welded Cross‑Tube Cylinders
Overview
Prince 3000 PSI Welded Cross‑Tube Hydraulic Cylinders belong to the heavy‑duty welded cylinder series under the Wolverine line by Prince Manufacturing. Designed for industrial, agricultural, construction and mobile machinery applications, these double‑acting hydraulic cylinders deliver reliable linear push‑pull performance under a maximum working pressure of 3000 PSI. Featuring cross‑tube mounting ends, they offer robust load‑bearing capacity, easy installation and long‑term durability for heavy‑duty operating environments.
Technical Specifications
- Rated Pressure: 3000 PSI continuous working pressure
- Bore Range: 1.5–4 inches (standard models)
- Stroke Range: 4–48 inches customizable
- Mounting Style: Cross‑tube (both base end & rod end)
- Port Standard: SAE O‑ring ports
- Color: High‑luster black standard finish
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Heavy‑Duty Welded Construction
Precision welded cylinder tube structure ensures high structural rigidity and pressure resistance, suitable for continuous heavy‑load operation.
- Hard Chrome‑Plated Piston Rod
Ground, polished and hard‑chrome‑plated rod provides superior wear resistance, corrosion resistance and smooth movement, extending service life significantly.
- Cast Steel Cross‑Tube End Fittings
High‑strength cast steel cross‑tube mounts with integrated grease zerks reduce pin friction and wear, greatly prolonging pivot service life.
- Thread‑In Gland Design
User‑friendly threaded gland structure enables quick disassembly, inspection and seal replacement for easy maintenancePrince Manufacturing Corporation.
- SAE O‑Ring Ports (Top‑Port Layout)
Standard SAE O‑ring ports adopt top‑port design, realizing leak‑free fluid connection and stable hydraulic transmissionPrince Manufacturing Corporation.
- High‑Performance Sealing System
Equipped with urethane U‑cup seals, metal‑encased wipers and wear rings, resisting high pressure, dust and hydraulic oil contamination.
- Strict Quality Control
Every cylinder is 100% pressure‑tested before delivery to guarantee quality consistency and safety performance.
- Surface Protection & Packaging
High‑gloss black anti‑corrosive paint; individually bagged and boxed for safe storage and transportation.
- Agricultural machinery (loaders, harvesters, tractors)
- Construction equipment (small excavators, dumpers, lifting devices)
- Industrial automation, waste & recycling equipment
- OEM mobile machinery and custom hydraulic systems
