Japan YUKEN CJT70 FANGU OEM Low-speed Operation Tie-rod Double-acting Hydraulic Cylinders
The CJT70 Series is YUKEN standard medium-pressure tie-rod double-acting hydraulic cylinders, compliant with JIS B8354 standards. Rated at 7 MPa (1020 PSI), it features stable low-speed operation, adjustable end cushioning, abundant mounting options and long service life. Widely used in machine tools, automation lines, injection molding and general industrial hydraulic systems.

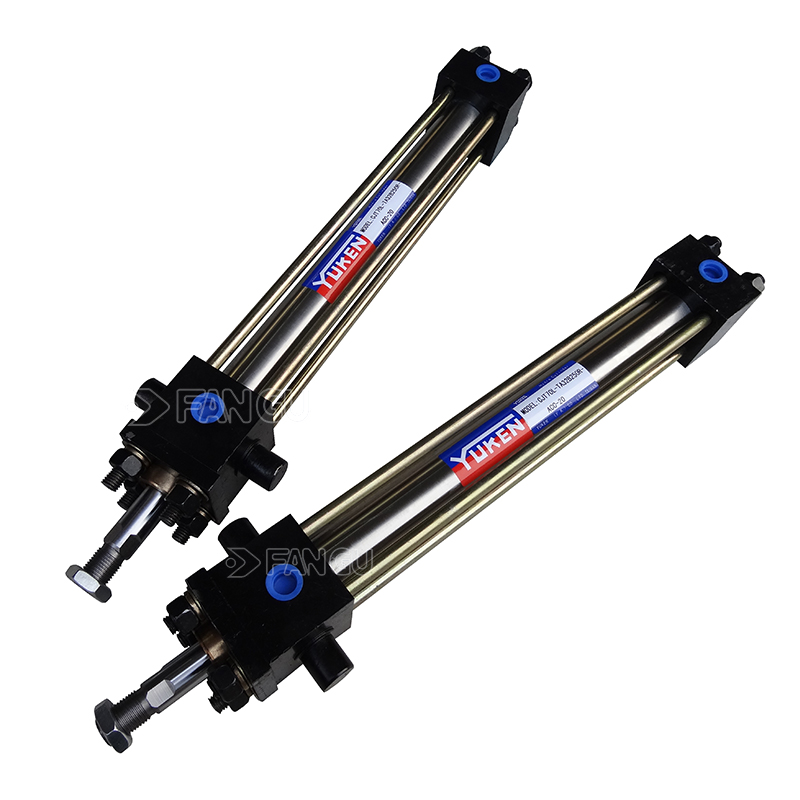

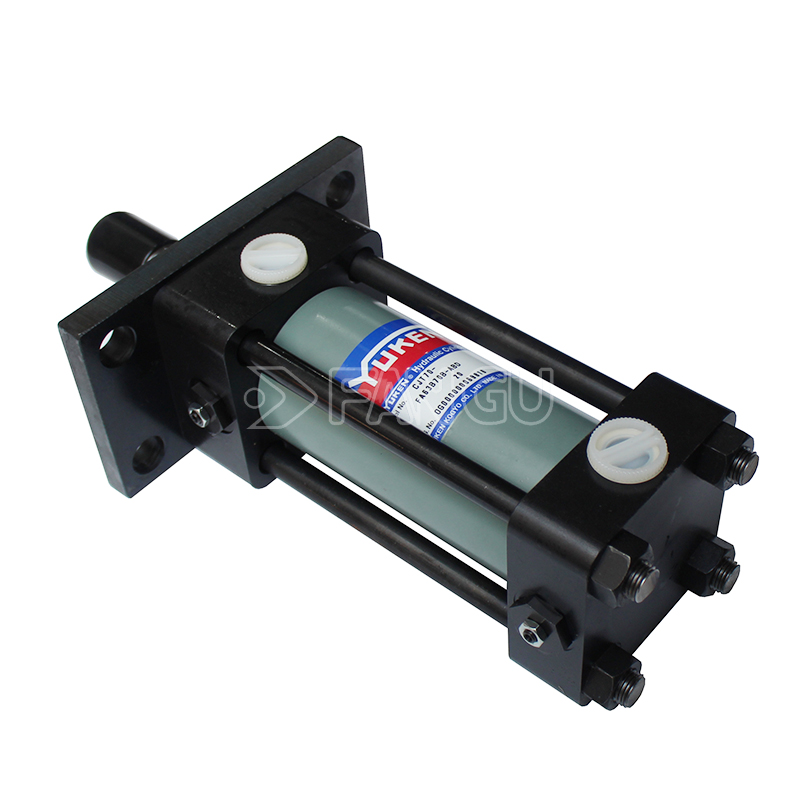

YUKEN CJT70 Series Standard Medium-pressure Tie-rod Hydraulic Cylinders
Product Introduction
The CJT70 Series is YUKEN standard medium-pressure tie-rod double-acting hydraulic cylinders, compliant with JIS B8354 standards. Rated at 7 MPa (1020 PSI), it features stable low-speed operation, adjustable end cushioning, abundant mounting options and long service life. Widely used in machine tools, automation lines, injection molding and general industrial hydraulic systems.
Example Models:
- CJT70-TA50C300B-ABD-20
- CJT70-TC80C450N-ABD-20
- CJT70-TA160C800B-ABD-20
- CJT70L-FA40C200B-ABD-20
- CJT70L-CB63C400B-ABD-20
- CJT70L-LA100C500N-ABD-20
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Key Features
- Excellent low-speed stability & high positioning repeatability for precision machining
- Optimized cushion structure, greatly reduces end-impact vibration
- Modular seal groups: NBR standard, FKM high-temperature optional
- Multi-port & air-vent layout configurable, easy system integration
- High-rigidity tie-rod structure, easy disassembly, maintenance and seal replacement
- Fully interchangeable with mainstream ISO hydraulic cylinders
Typical Applications
- CNC machine tools & precision fixtures
- Automatic conveying & assembly equipment
- Injection molding machinery
- Light & medium-pressure presses
- Material handling & positioning mechanisms
