Rexroth CDL2 Series single-rod, double-acting Hydraulic Cylinder CDL2 MF3/40/22/100D2X/B11CKUVWW CDL2 MT4/80/45/300D2X/B11CHUMWW CDL2 MP5/100/56/500D2X/B11CFUMWW
Rexroth CDL2 Series Hydraulic Cylinder

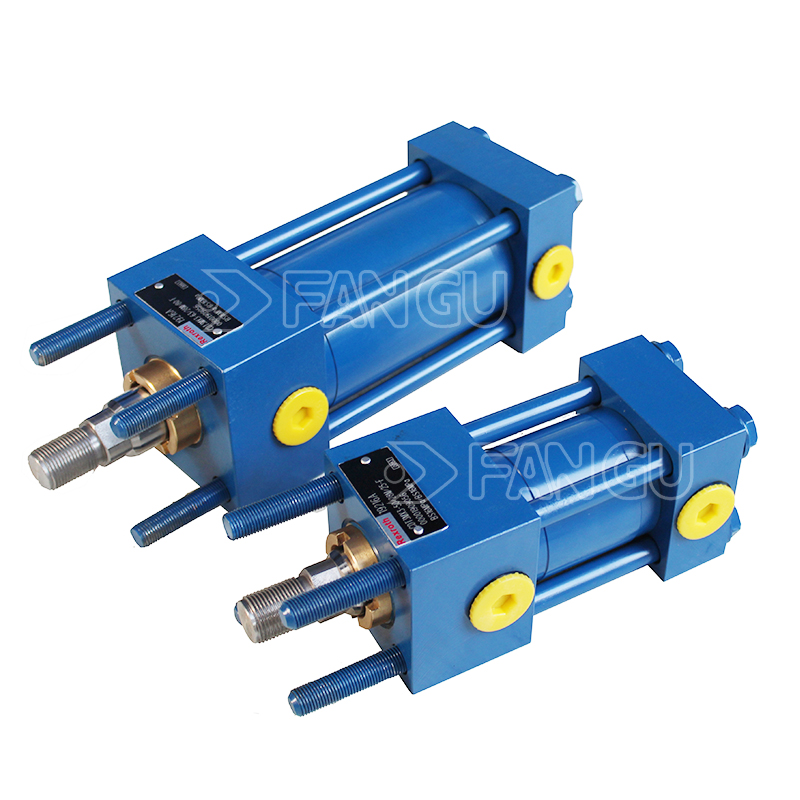

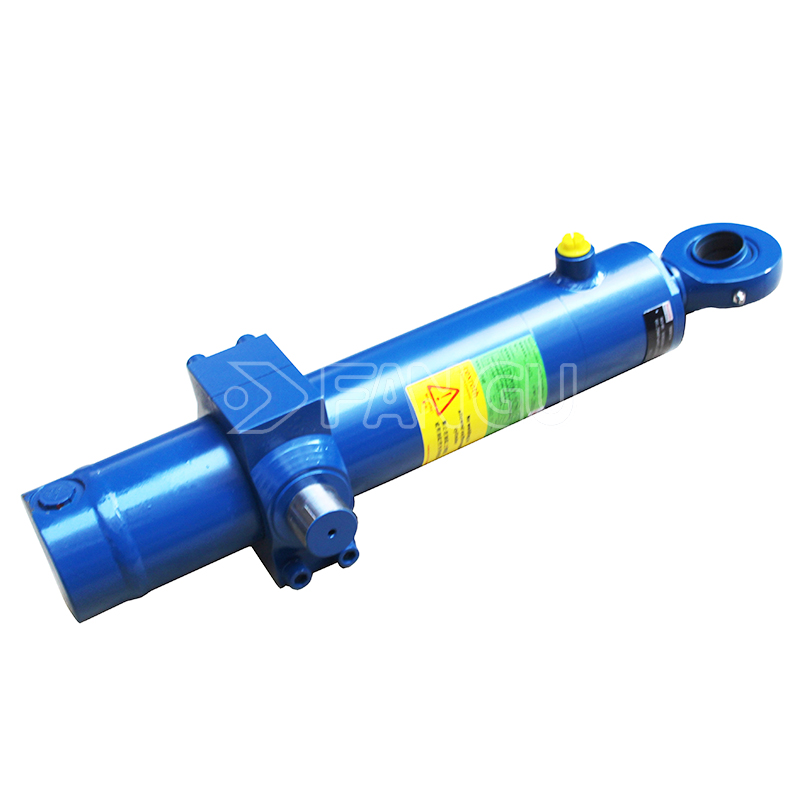

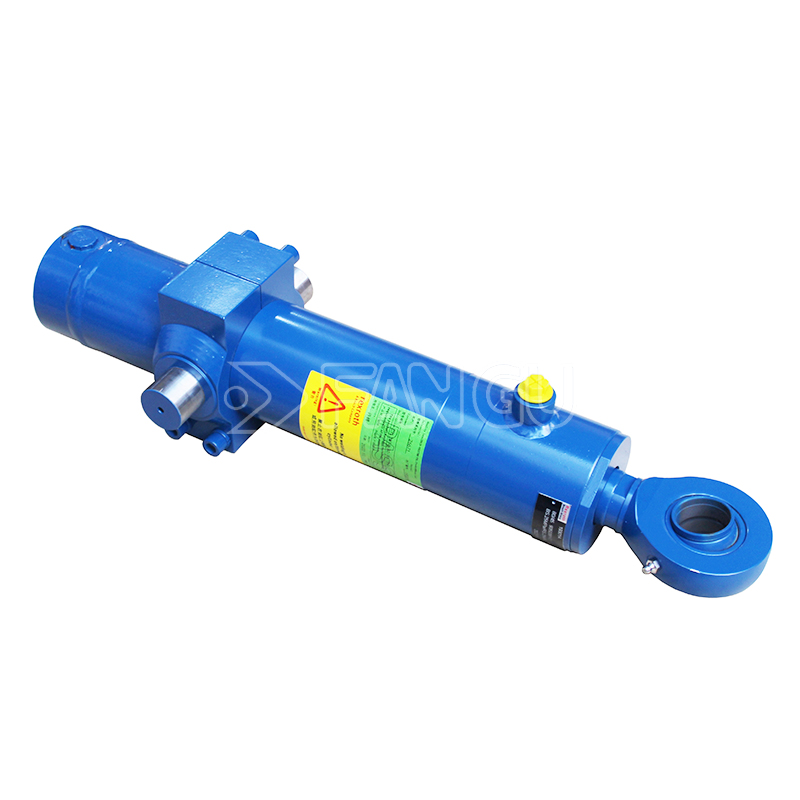

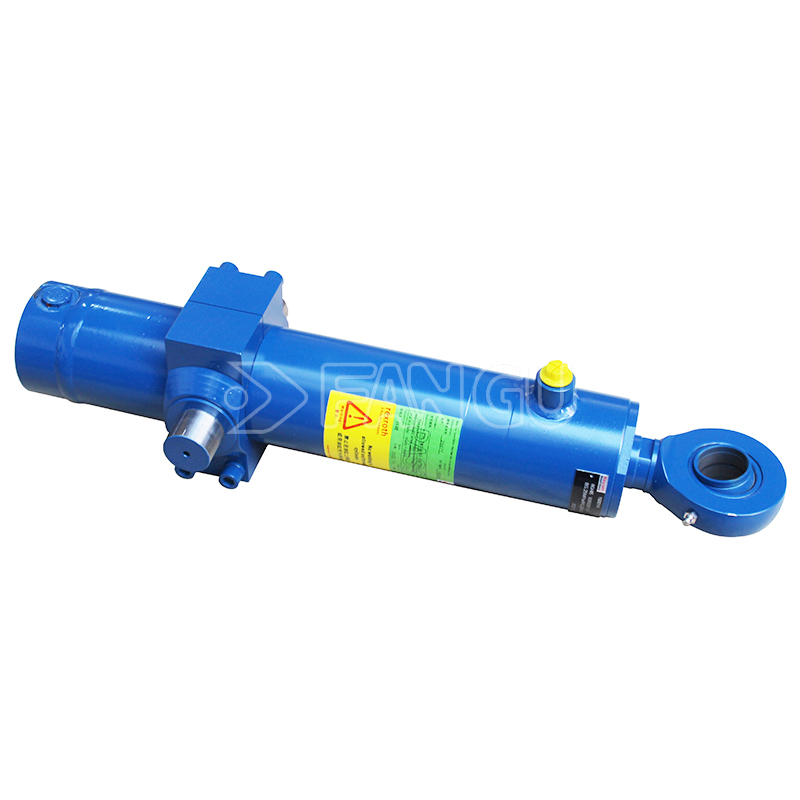

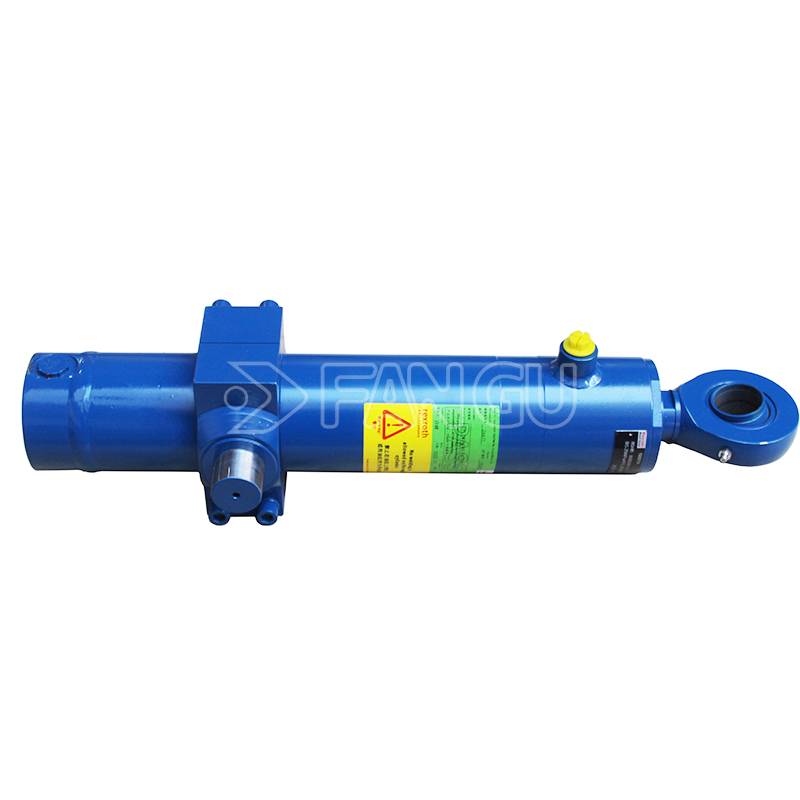

Rexroth CDL2 is a single-rod, double-acting, mill-type hydraulic cylinder designed for general industrial and medium-duty applications. It offers an optimal balance of cost-efficiency, reliability, and compactness, with a proven design life of 2 million load cycles.
Example Models:
CDL2 MF3/40/22/100D2X/B11CKUVWWCDL2 MT4/80/45/300D2X/B11CHUMWWCDL2 MP5/100/56/500D2X/B11CFUMWW
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Design: Single rod, double-acting, mill-type (bolted/welded construction)
- Nominal Pressure:
- 160 bar (16 MPa) (for rod diameters Ø14–70 mm)
- 250 bar (25 MPa) (for rod diameters Ø25–125 mm)
- Static Test Pressure:
- 240 bar (1.5 × 160 bar)
- 375 bar (1.5 × 250 bar)
- Piston Diameter (ØAL): 25, 32, 40, 50, 63, 80, 90, 100, 110, 125, 140, 160, 180, 200 mm
- Piston Rod Diameter (ØMM): 14, 18, 22, 25, 28, 32, 36, 40, 45, 50, 56, 63, 70, 80, 90, 100, 125 mm
- Max. Stroke: Up to 3,000 mm (3 meters)
- Component Series: 1X, 2X (latest standard: 2X)
- Standards: ISO 6020-1, DIN 24333
- Fluid Compatibility: Mineral oil (HL, HLP), HFD-R (fire-resistant)
- Temperature Range: -20 °C to +80 °C (mineral oil)
- Design Life: 2,000,000 load cycles (at nominal pressure)
- Proven Durability: Engineered and tested for 2 million load cycles, ensuring long service life and predictable maintenance.
- Compact Assembly: Short overall length design for space-constrained installations.
- Modular & Service-Friendly: Easy-to-maintain seal kits and modular components reduce downtime.
- Flexible Mounting: 4 standard mounting styles to fit diverse machine designs.
- High-Quality Rods: Hard chrome-plated piston rods as standard for excellent corrosion and wear resistance.
- Flexible Sealing: Choice of NBR (standard) or FKM (Viton) seals for compatibility with different fluids and temperatures.
- Cushioning: Optional end-position cushioning (C) for smooth deceleration at stroke ends.
- Easy Configuration: Full online configurability with instant access to 2D/3D CAD data and technical drawings.
