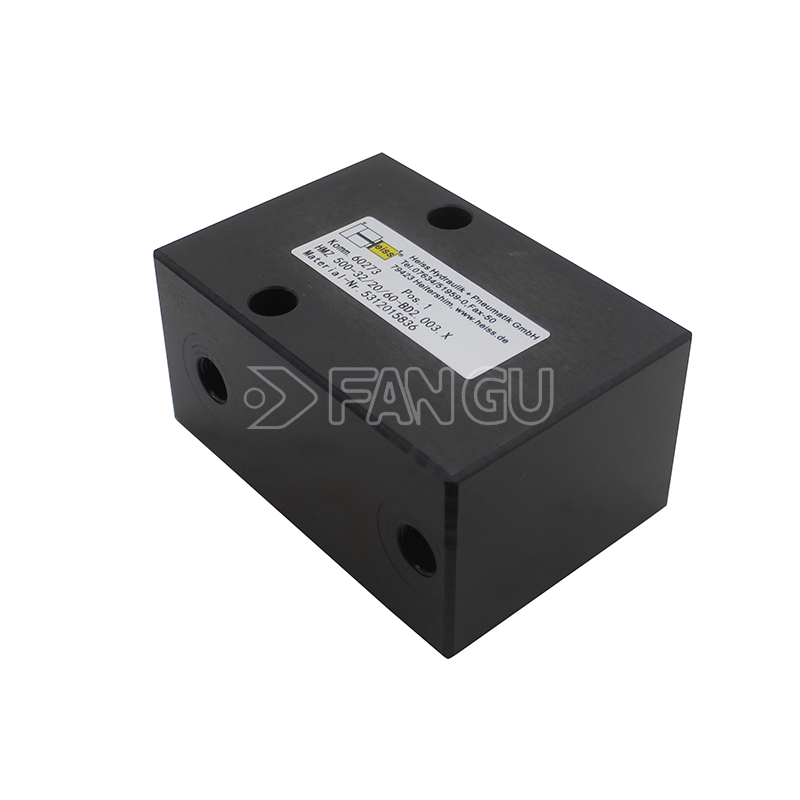

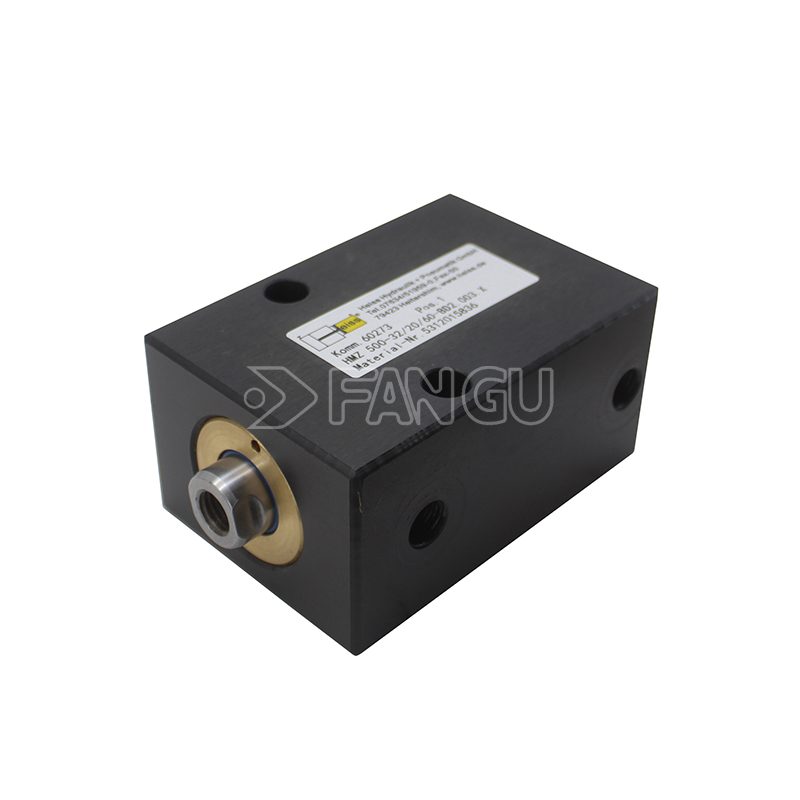

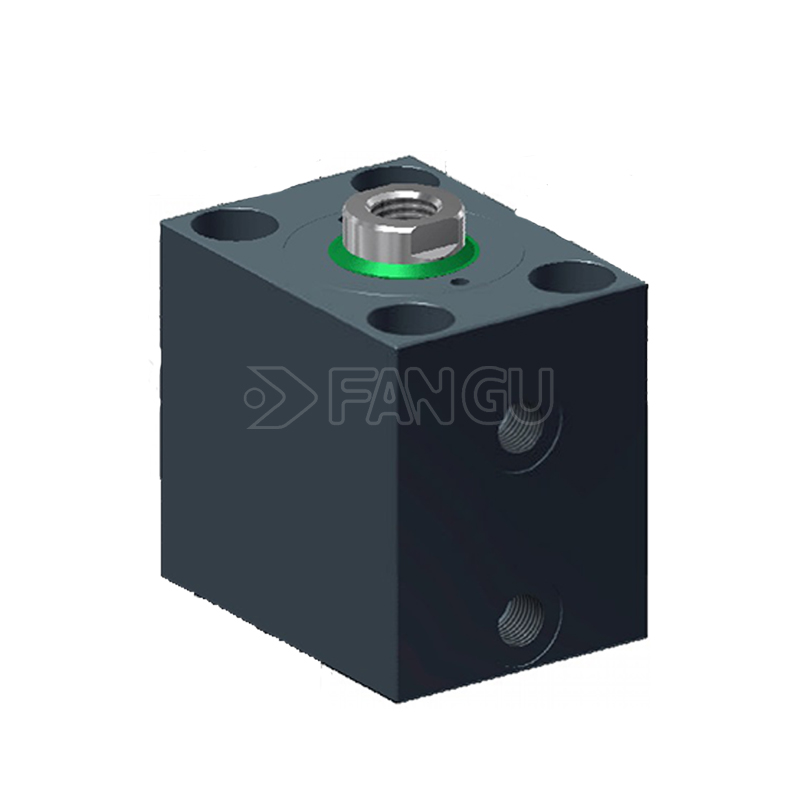

German HEISS Heavy-duty Compact Square Hydraulic Block Cylinder HBZ 500 Limited Mounting Space
Example Models:

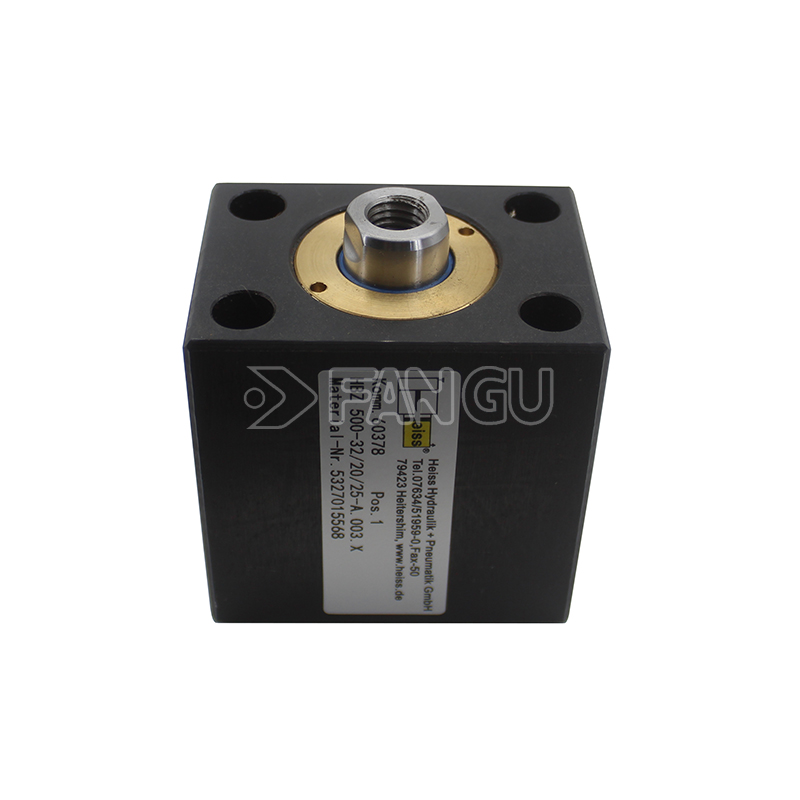

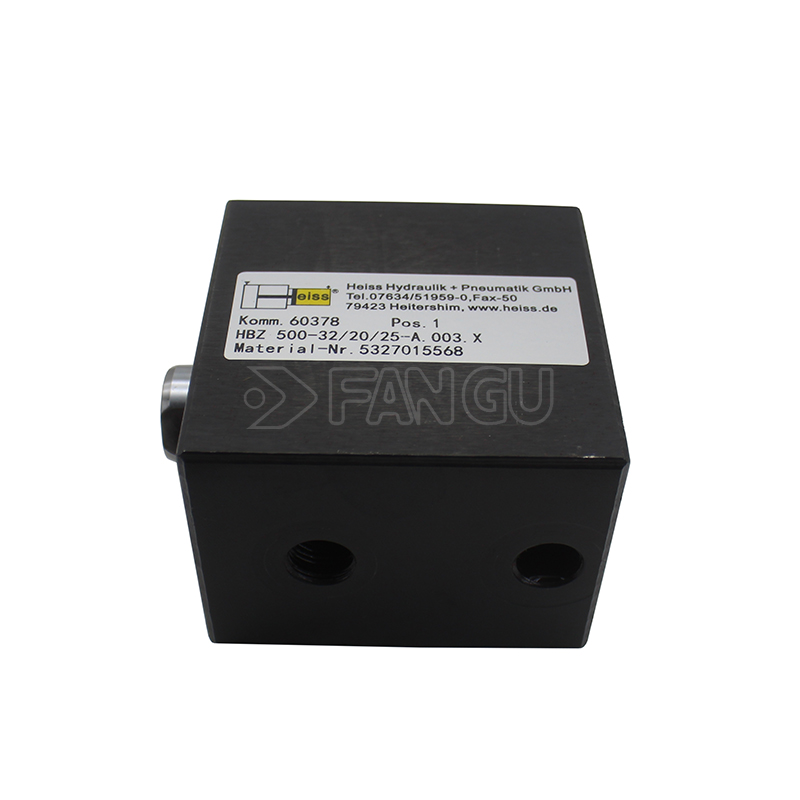

- HBZ 500-32/20/25-AD1.003

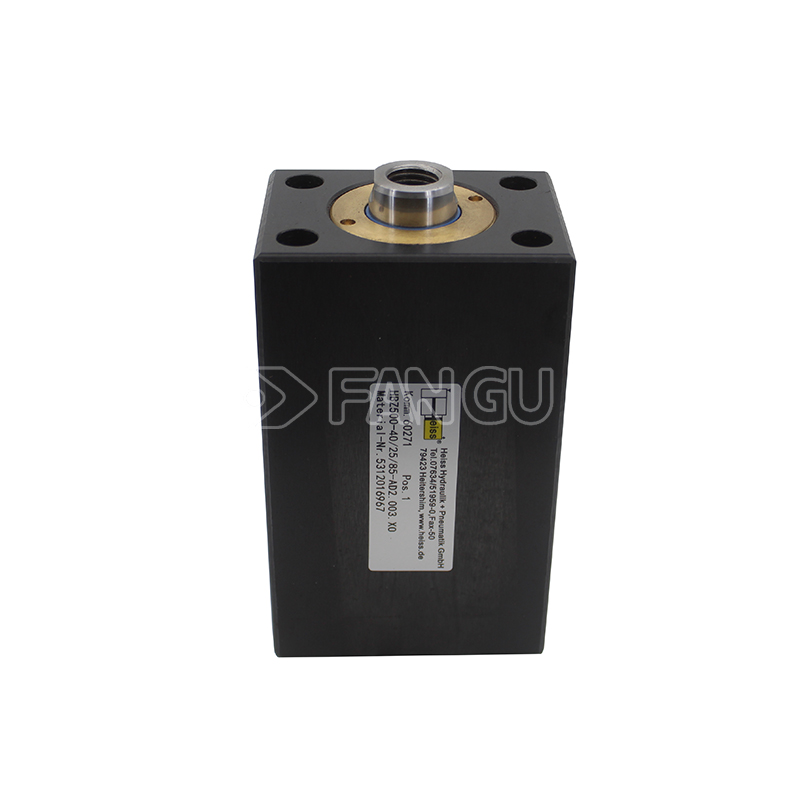

- HBZ 500-40/25/20-AD1.003.IN
- HBZ 500-50/32/25-AD1.003.IN.X
- HBZ 500-63/40/32-BD1.003
- HBZ 500-80/50/40-AD2.003
- HBZ 500-100/60/50-AG2.004.IN
Hydraulic Block Cylinder HBZ 500 Full Product Introduction (HEISS)
Overview
HBZ 500 series is a heavy-duty compact square hydraulic block cylinder manufactured by HEISS Hydraulik. Designed for high-force applications within limited mounting space, this block-style cylinder supports a maximum operating pressure of 500 bar, delivering powerful clamping, positioning and linear actuation. It is widely used on machine tool fixtures, automated production equipment and special-purpose machinery requiring high clamping force.
Model Code Explanation
Reference Model: HBZ 500 – 50/32/25 – AD1 . 003 . IN
- HBZ 500: Series, max working pressure 500 bar
- 50: Piston diameter (mm)
- 32: Piston rod diameter (mm)
- 25: Cylinder stroke (mm)
- AD1: Mounting configuration
- 003: Functional mode (standard double acting)
- IN: Equipped with inductive proximity switches
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Max. Operating Pressure: 500 bar
- Standard Actuation: Double acting; single acting versions available upon request
- Piston Sizes: 12 standard piston diameters for selection
- Mounting Options: 21 standard mounting configurations (AD1, AD2, AG1, BG series etc.)
- Standard Stroke: Multiple standard strokes; stroke length can be shortened by spacer sleeves
- Max Piston Speed: 0.5 m/s
- Sealing Standard: Seal grooves comply with ISO 5597/1 and DIN ISO 7425/1
- Working Medium: Mineral hydraulic oil (HL, HLP); special seals for water-based media or flame-resistant fluids are optional
- Piston Rod: Precision ground & hard chrome-plated for low friction and extended service life
- Operating Temperature Range: -20°C ~ +80°C (high-temperature sealing packages as option)
- Optional Certification: ATEX Group II, Category 2 for Zone 1 / 21 hazardous environments
- Ultra-compact Block Construction
Integrated square block housing saves installation space, enabling dense multi-cylinder layout on fixture plates. Ideal for short-stroke high-force scenarios.
- Modular, Service-friendly Sealing System
Easy disassembly for maintenance. Complete seal service kits are available for overhaul replacement.
- Flexible Position Detection Solutions
Support pressure-resistant inductive proximity switches for end-of-stroke feedback. Switching points can be predefined during manufacturing.
- High Customization Flexibility
Custom stroke lengths, different port thread standards, rod end fittings and special functional modes (non-differential cylinders, end stroke cushioning) can be configured on demand.
- Outstanding Rigidity under High Pressure
Robust monoblock structure resists deformation under 500 bar high pressure, ensuring stable output force and consistent repeat positioning accuracy.
