Bosch Rexroth CDM1 Series Hydraulic Cylinder (Mill Type)

Product Introduction

The Rexroth CDM1 Series (Component Series 1X/2X) is a heavy-duty, mill-type hydraulic cylinder designed for demanding industrial applications. It is a double-acting, single-rod (or optional double-rod) cylinder built to ISO 6020/1 standards, offering superior performance, durability, and versatility.

Example Models:

CDM1MP5/50/28/150D2X/B1CHUMWW
CDM1MF3/80/45/250D2X/B1CFUMWW
CDM1MF4/100/56/300D2X/B1CKUMWW
CDM1MT4/125/70/400E2X/B1CHUVWW
CDM1MS2/160/90/500D2X/B1CFUMWW

Q: What’s the MOQ of customized tie-rod cylinder?

A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.

Q:What’s the lead time of customized tie-rod cylinder?

A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.

Q: Are you the manufacturer of hydrualic cylinder?

A: Sure, we are the manufacutuer and trading of hydraulic cylinder.

Q: What is the difference between double acting and single acting cylinders?own controlled by the pump or the valve or is it only one speed?

A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through

a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.

Q: I have a drawing, could you customized cylinder as my drawing?

A: Sure. Show us the drawing, we will quote for you soonest.

Q: Could you make the cylinder which is not on the above data sheet?

A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

Piston Diameter (Ø): 25 mm – 200 mm
Piston Rod Diameter (Ø): 14 mm – 140 mm
Stroke Length: Up to 3,000 mm (3 meters)
Max. Piston Velocity: Up to 1 m/s
Operating Temperature:
- Mineral Oils (HL, HLP): -20 °C to +80 °C
- Water-glycol (HFC) & Phosphate ester (HFD-R): Available on request
Fluid Cleanliness: NAS 1638 Class 10
Service Life: Up to 2 million load cycles at max pressure
Standard Coating: Gentian blue RAL 5010

Versatile Mounting & Design

9 Standard Mounting Styles:
- M00 (No mounting), MF1 (Head rectangular flange), MF2 (Base rectangular flange)
- MF3 (Head round flange), MF4 (Base round flange), MP3 (Base swivel eye)

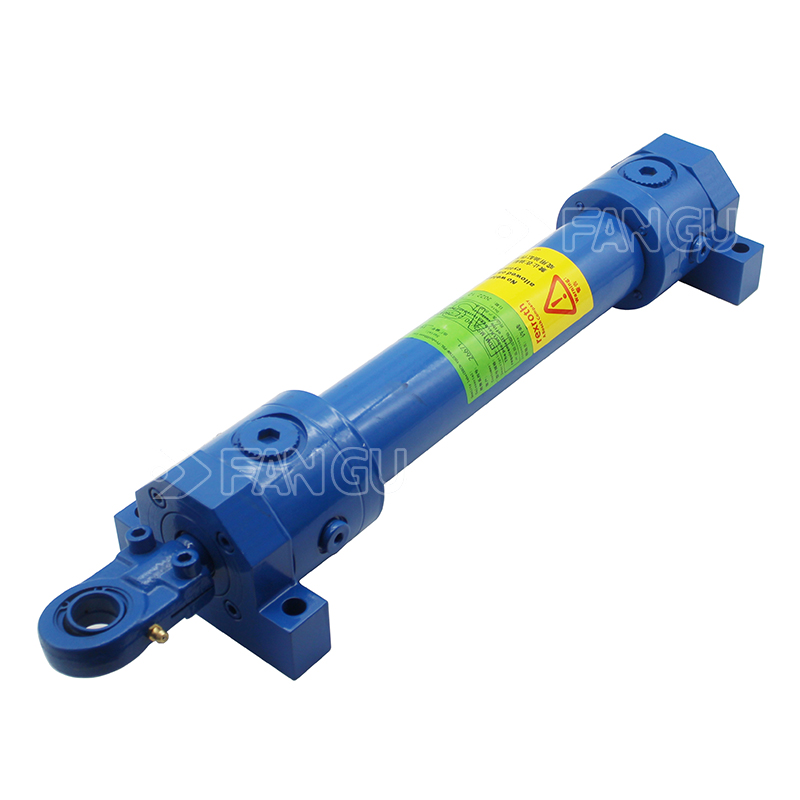

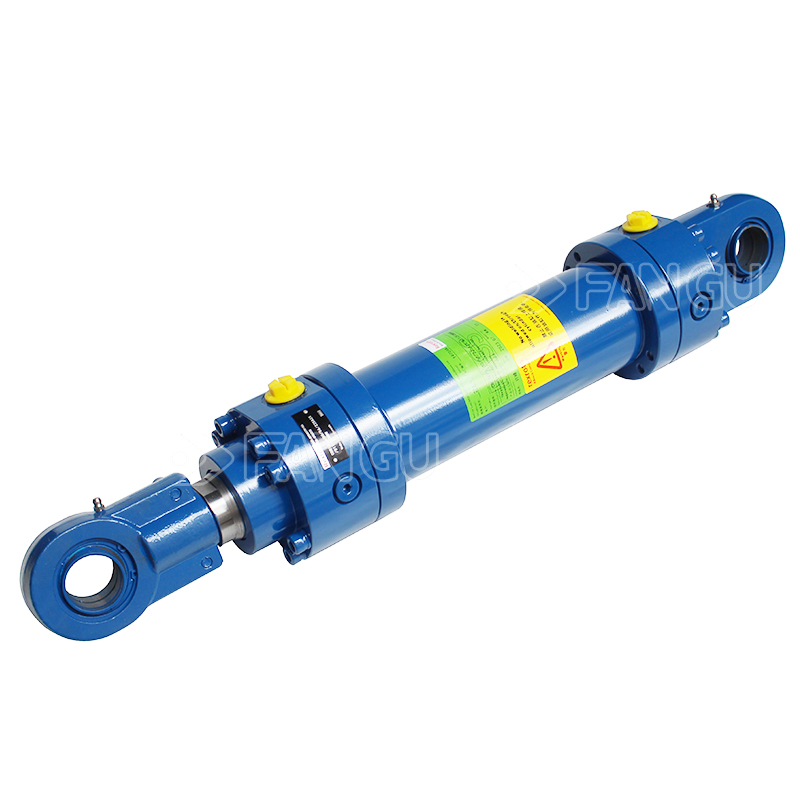

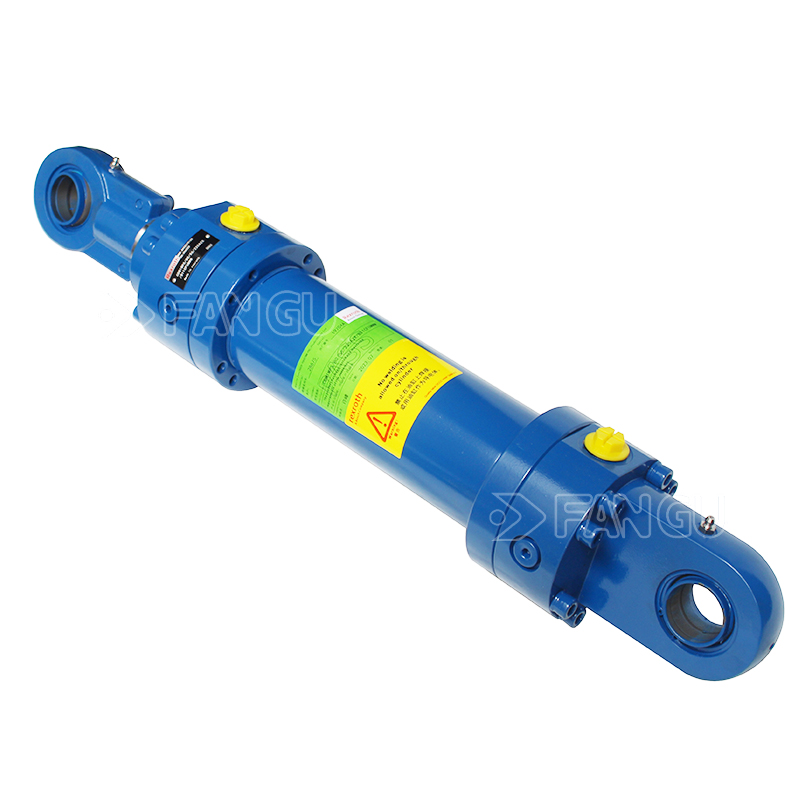

- MP5 (Self-aligning clevis), MT4 (Intermediate trunnion), MS2 (Foot mounting)
Flexible Porting: Freely rotatable port positions for easy installation
Design Versions:
- Standard single-rod
- Double-rod (available on request)
- With integrated position measurement system

Advanced Sealing & Cushioning

High-Performance Seal System: Long-life, wear-resistant seals for leak-free operation
End Position Cushioning:
- Type D: Self-adjusting cushioning (standard)
- Type E: Manual adjustable cushioning (optional)
Patented Safety Bleeding Device: For quick, safe, and easy air bleeding

Robust & Service-Friendly
