AHP MERKLE HZN / UZN Series Hydraulic Cylinders with Position Sensor Closed-loop Position Feedback
Example Models:
- UZN 100.16/08/…10.201.V
- UZN 100.20/10/…10.201.V
- UZN 100.25/12/…10.201.V
- UZN 100.32/16/…10.201.V
- HZN 160.16/08/…10.201.V
- HZN 160.20/10/…10.201.V
- HZN 160.25/12/…10.201.V
- HZN 160.32/16/…10.201.V
- HZN 160.32/16/…10.201.E
AHP MERKLE HZN / UZN Series Hydraulic Cylinders
Overview
- UZN 100: Low-pressure (100 bar) sensor-ready cylinder
- HZN 160: Medium-pressure (160 bar) sensor-ready cylinder
- HZN 250: High-pressure (250 bar) sensor-ready cylinder
- HZHN 250: Enhanced 250 bar sensor-ready cylinder with Dipp® sealing
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
UZN 100 Series
- Max Working Pressure: 100 bar (1,450 psi)
- Operation: Hydraulic / Pneumatic (dual media compatible)
- Bore Size: Ø16 mm ~ Ø100 mm
- Standard Stroke: Up to 2,000 mm (custom strokes available)
HZN 160 Series
- Max Working Pressure: 160 bar (2,320 psi)
- Bore Size: Ø16 mm ~ Ø100 mm
- Standard Stroke: Up to 2,000 mm

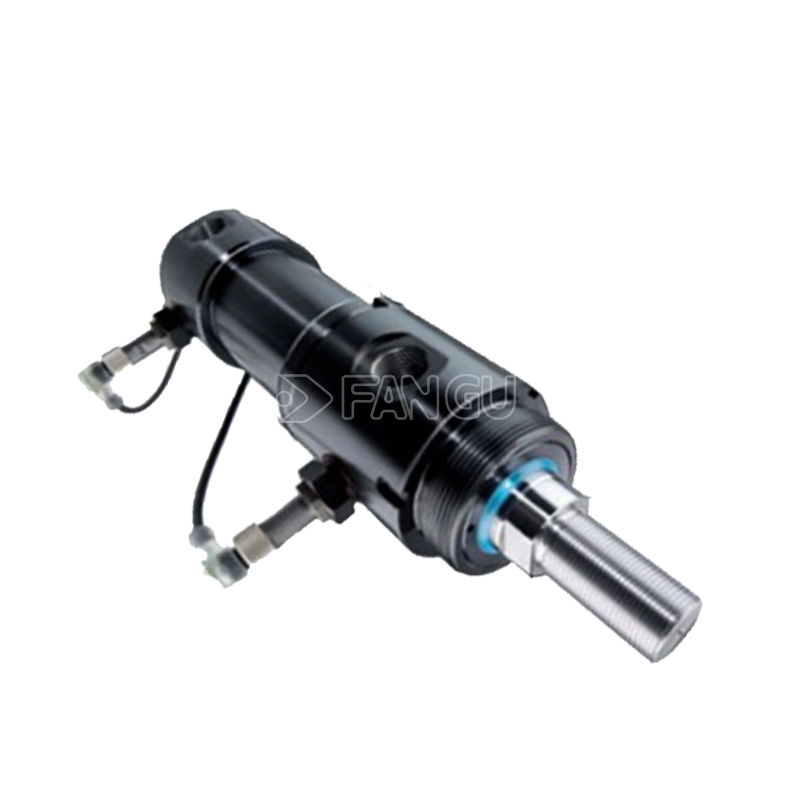

HZN 250 / HZHN 250 Series
- Max Working Pressure: 250 bar (3,625 psi)
- Bore Size: Ø16 mm ~ Ø100 mm
- Standard Stroke: Up to 2,000 mm
- HZHN 250: Premium Dipp® sealing system for extended service life
Key Advantages
- Integrated Sensor Groove: Eliminates external brackets; saves space, reduces installation time, and improves sensor reliability.
- Compact & Rigid: Short overall length and thick-walled body for high rigidity in tight spaces.
- Precision Feedback: Direct sensor mounting ensures accurate, repeatable position sensing for automated processes.
- Media Flexibility (UZN): Works with hydraulic oil or compressed air for dual-media applications.
- High Pressure (HZN): 160 bar / 250 bar ratings for heavy-duty clamping, pressing, and forming.
- Easy Maintenance: Modular design; seals and sensors replaceable on-site.
Typical Applications
- Automation Lines: Precision positioning, clamping, and material handling with closed-loop feedback.
- Machine Tools: Workpiece clamping, spindle positioning, and slide drives with sensor confirmation.
- Mould & Die: Core pulling, ejection, and locking with stroke end detection.
- Automotive: Welding fixtures, assembly stations, and pressing operations with position verification.
- Packaging & Handling: Pusher units, lifters, and indexers requiring accurate stroke control.
