Work support Special model 7MPa Double acting Hydraulic lift Double acting model CSN-D CSN-D01-L CSN-D01-H CSN-D03-L CSN-D03-H CSN-D04-L CSN-D04-H etc.

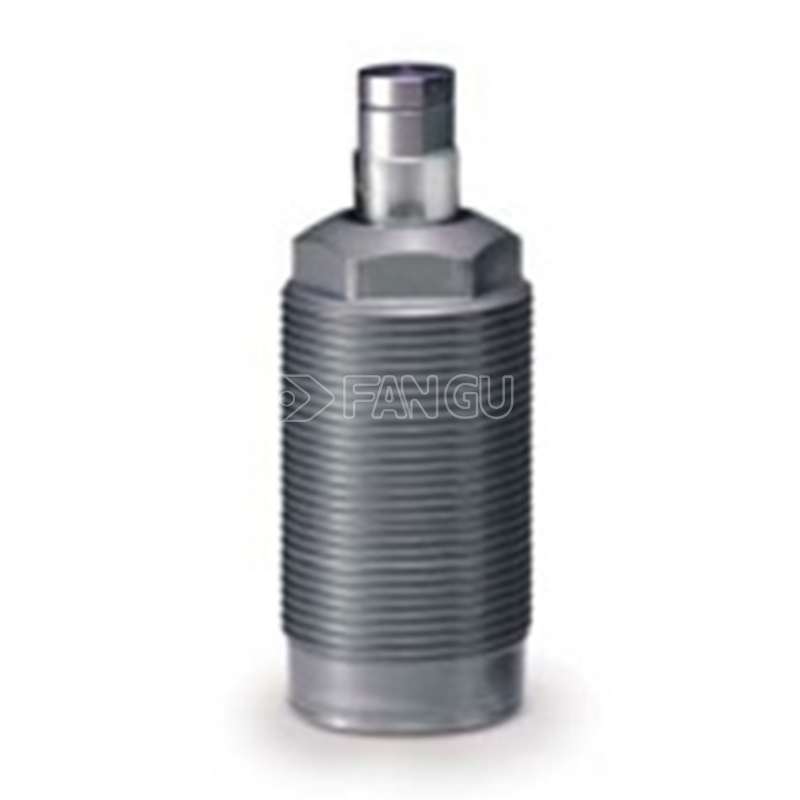

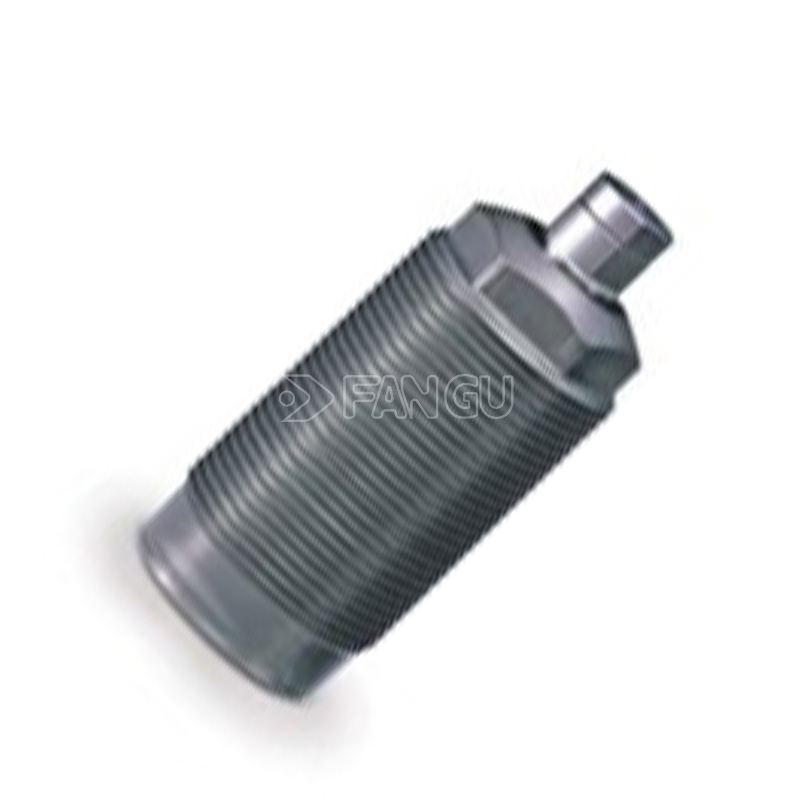

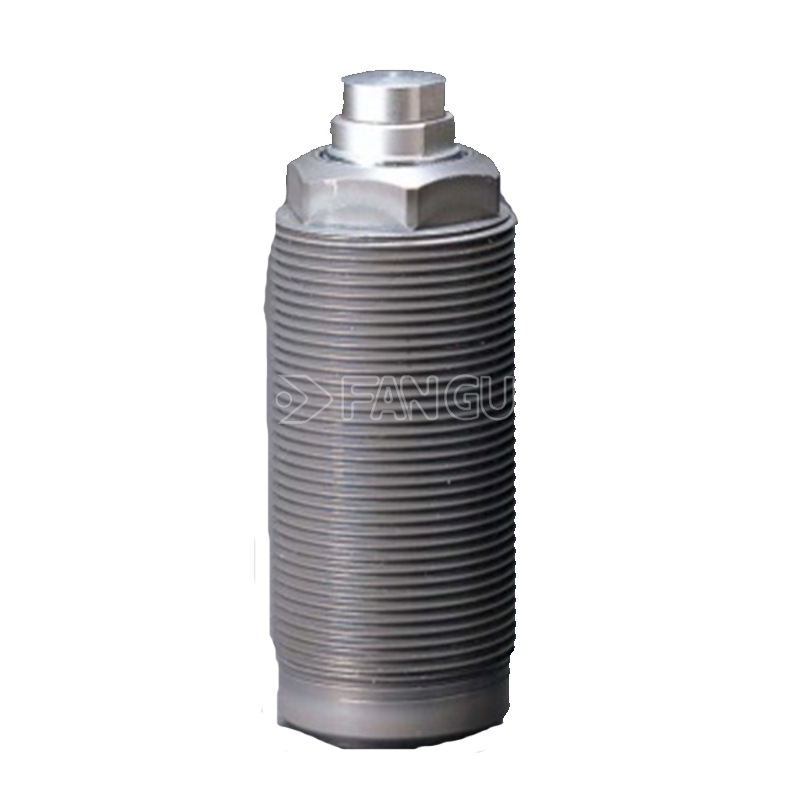

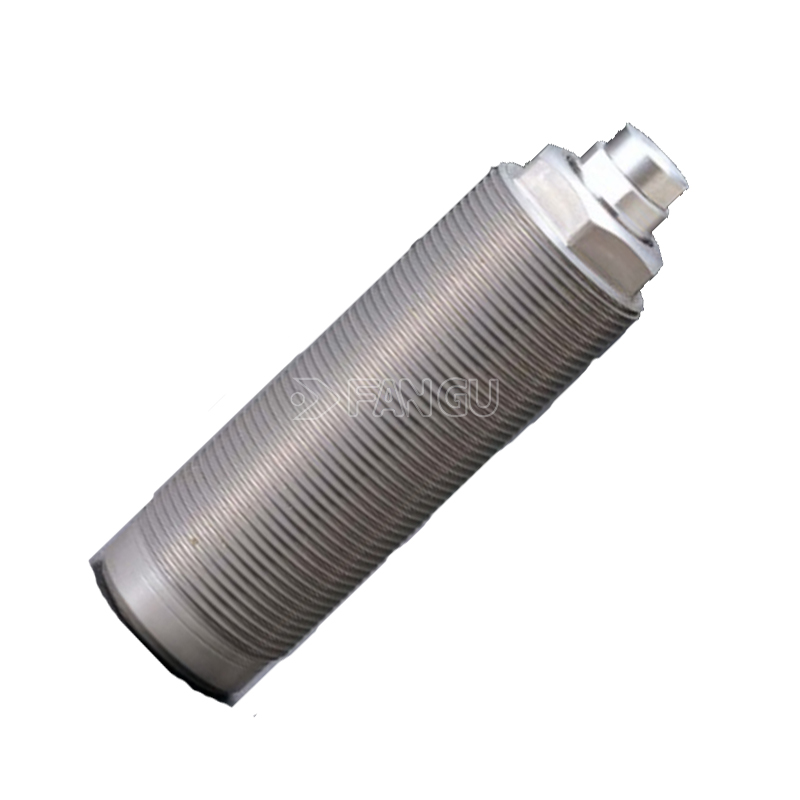

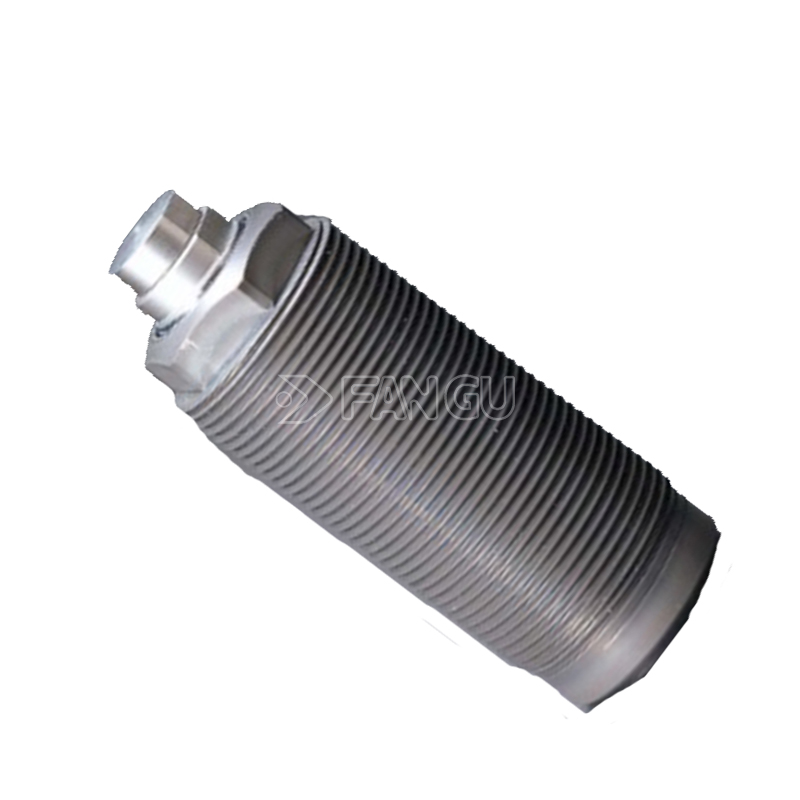

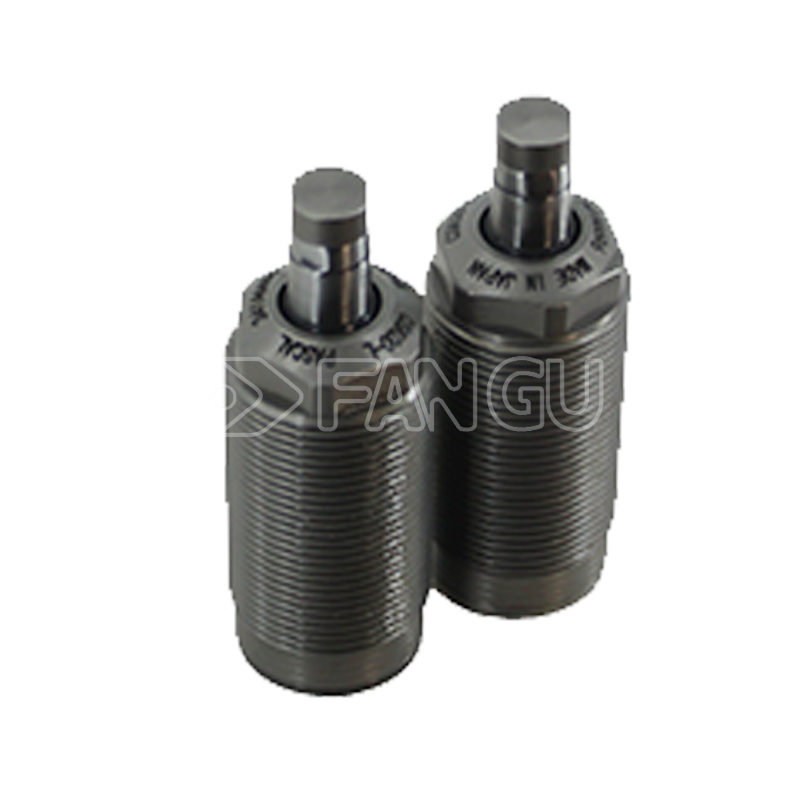

Pascal CSN‑D is a 7MPa double‑acting hydraulic work support with threaded mounting, designed for precision machining, automated production lines and high‑density fixtures. It features spring lift, hydraulic lock, hydraulic release and air blow, providing stable support to prevent workpiece sagging, vibration and deformation during machining.
Main Models: CSN-D01-L CSN-D01-H CSN-D03-L CSN-D03-H CSN-D04-L CSN-D04-H etc.
Pascal CSN‑D Product Introduction (7MPa Double‑Acting Thread‑Type Work Support)
Overview
Pascal CSN‑D is a 7MPa double‑acting hydraulic work support with threaded mounting, designed for precision machining, automated production lines and high‑density fixtures. It features spring lift, hydraulic lock, hydraulic release and air blow, providing stable support to prevent workpiece sagging, vibration and deformation during machining.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Double‑acting hydraulic design for accurate and stable locking & release control
- Spring lift for automatic floating support without constant hydraulic supply
- Mechanical taper lock ensures no backlash or drop under pressure loss
- Threaded mounting for space‑saving and easy installation
- Built‑in air blow function for chip removal in harsh machining environments
- High rigidity and strong resistance to lateral cutting forces
- Compact size, lightweight and suitable for dense fixture layout
- Long‑life sealing system resistant to coolant and chips
- CNC machining centers and automated production lines
- Thin‑wall, cantilever and large‑profile workpieces
- Precision fixtures requiring floating support and rigid locking
- High‑speed and heavy‑cutting conditions
- Automated unmanned machining systems
