Rexroth CD350 Series Heavy-Duty Hydraulic Cylinder

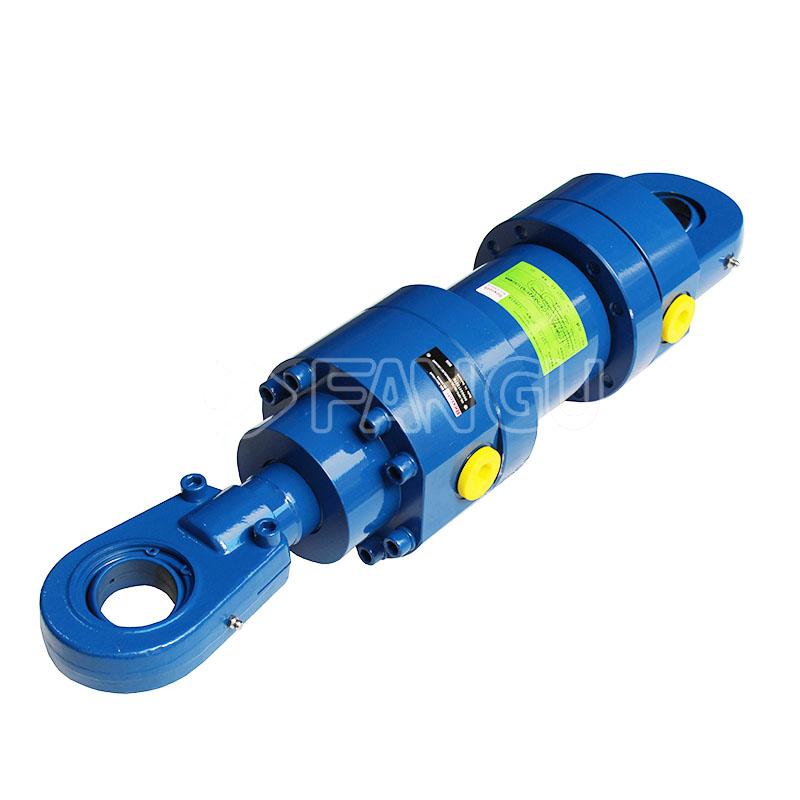

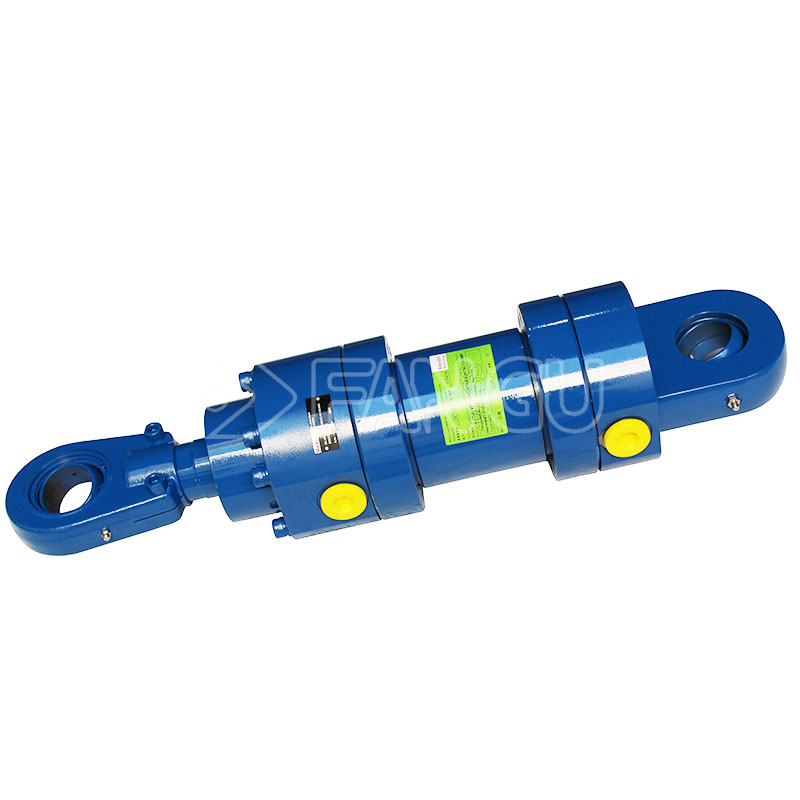

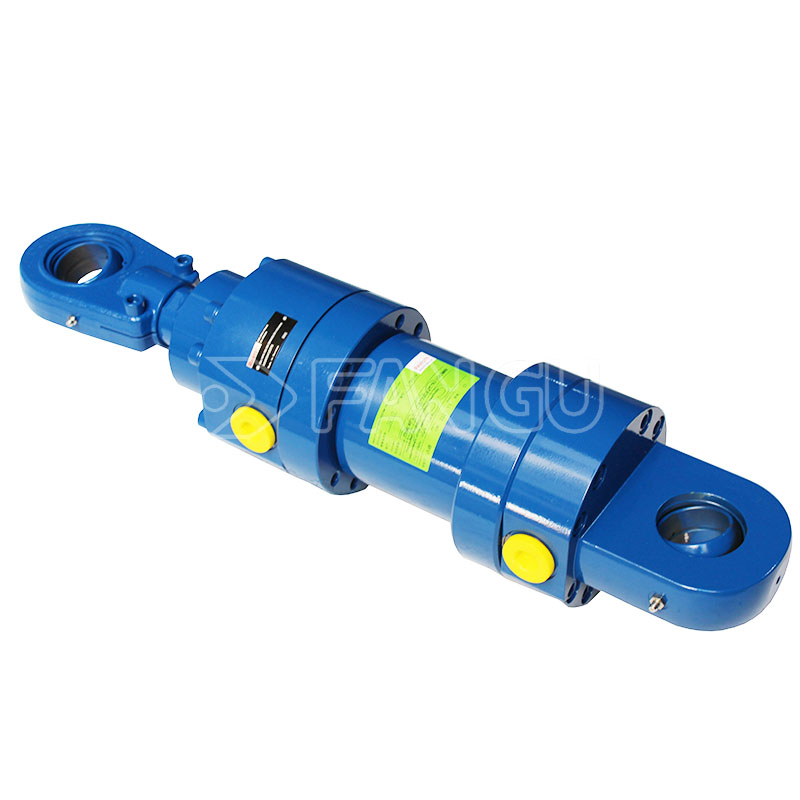

Rexroth CD350 (also designated CG350) is an ultra-heavy-duty, single-rod/double-rod, double-acting hydraulic cylinder designed for 350 bar (35 MPa) high-pressure operation. It is the high-pressure variant of the CD250 series, built for extreme loads, shock conditions, and harsh industrial environments, conforming to ISO 3320 and German steel mill standards.
Example Models:
- CD350 A C 80/45/200 A C
- CD350 A E 100/56/300 A C
- CD350 A E 160/100/500 A C
- CD350 A C 200/125/800 A C
- CD350 B D 320/220/1000 A C
- CG350 A C 125/70/400 A C
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Design Type:
- CD350: Single rod, double-acting, differential (fast return)
- CG350: Double rod, double-acting, equal thrust/speed
- Nominal Pressure: 350 bar (35 MPa)
- Static Test Pressure: 525 bar (52.5 MPa) (1.5 × nominal pressure)
- Piston Diameter (Bore): 40, 50, 63, 80, 90, 100, 110, 125, 140, 160, 180, 200, 220, 320 mm (14 standard sizes)
- Piston Rod Diameter: 20, 28, 35, 45, 50, 56, 63, 70, 80, 90, 100, 110, 125, 140, 160, 220 mm
- Max. Stroke: Up to 10,000 mm (10 meters)
- Standards: ISO 3320, German steel mill specifications
- Working Medium: Mineral oil (HL, HLP), phosphate ester (HFD-R), water-glycol (HFC)
- Temperature Range: -30 °C to +100 °C
- Max. Operating Speed: 0.5 m/s (up to 1.5 m/s with special seals)
- Construction Types:
- Type A: Threaded/flange connection (head/barrel)
- Type B: Welded base, threaded head
- Extreme High-Pressure Durability: Forged steel components for continuous operation under peak loads and shock in metallurgy, forging, and heavy machinery.
- Modular High-Pressure Seals:
- Type A: Multi-lip V-packing for extreme pressure/wear resistance.
- Type T: Low-friction slide rings for precise motion.
- Hard Chrome-Plated Rods: High-strength, corrosion-resistant rods with superior wear protection.
- Standard Safety Bleed Valves: Patented anti-loosening bleed screws at both ends for safe air purging.
- Adjustable End-Cushioning (C): Standard throttle-type cushioning to reduce end-position shock; optional non-cushioned (U).
- Flexible Mounting Styles:
- MF3 (C): Front flange
- MF4 (D): Rear flange
- MT4 (E): Center trunnion
- MP5 (A): Rear clevis
- MP8 (B): Rear clevis with spherical bearing
- Foot mounting (F)
