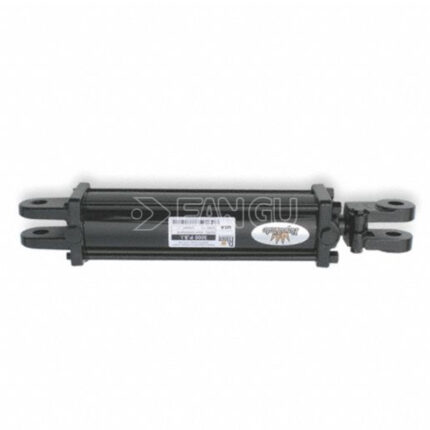

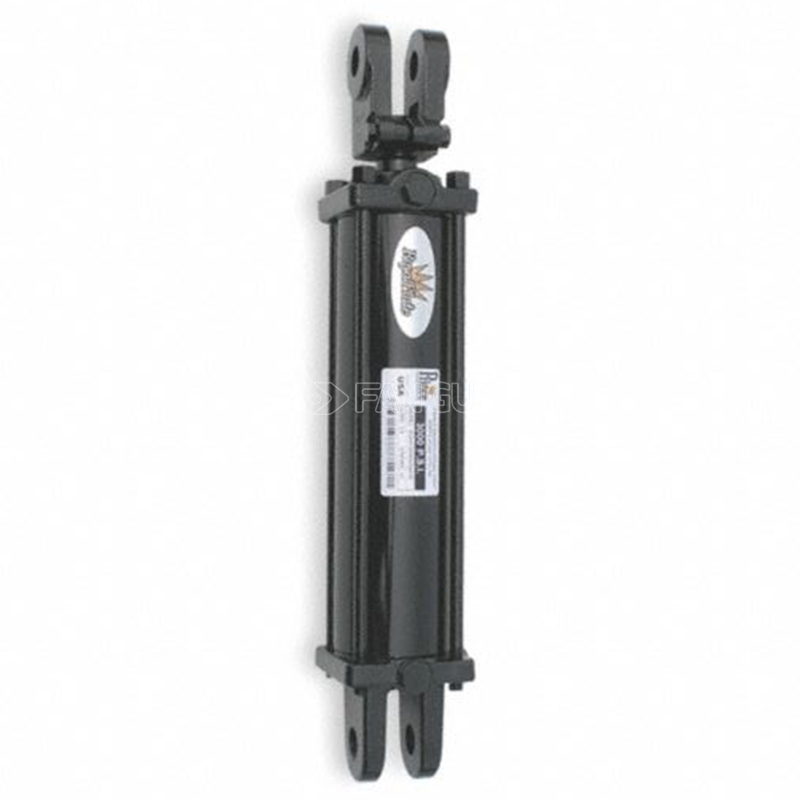

Prince Magnum PC25 Series FANGU OEM/ODM 2.5 Inch Bore Heavy Duty Hydraulic Cylinders
Example Models:
2.5″ Bore (PC25 Series | Rod: 1.375″)
- PC2506CL
- PC2508CL
- PC2510CL
- PC2512CL
- PC2516CL
- PC2520CL
- PC2524CL
- PC2530CL
- PC2536CL
Prince Magnum Series Hydraulic Cylinders
Overview
The Magnum Series is Prince Manufacturing’s flagship line of heavy‑duty welded hydraulic cylinders, engineered for 3,000 PSI continuous operation and high durability in mobile and industrial applications. It is described as “the most innovative line in Prince’s history,” combining standard models with fully configurable options.
Construction & Materials
- Welded Body: Robust one‑piece welded construction eliminates tie‑rod failure points.
- Piston Rod: Induction‑hardened, chrome‑plated, ground, and polished for wear resistance.
- Piston: Unitized ductile iron piston for high strength and stability.
- Gland: External threaded ductile iron gland for easy serviceability.
Example Models:
2.5″ Bore (PC25 Series | Rod: 1.375″)
- PC2506CL
- PC2508CL
- PC2510CL
- PC2512CL
- PC2516CL
- PC2520CL
- PC2524CL
- PC2530CL
- PC2536CL
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Key Specifications
- Pressure Rating: 3,000 PSI (max operating & peak spike)
- Bore Sizes: 2" to 6" (50 mm to 150 mm)
- Stroke Lengths: 6" to 60" (150 mm to 1,500 mm)
- Action: Double‑acting (DA)
- Port Size: #8 SAE (3/4‑16 ORB)
- Standard Color: Gloss black
- Mounting Styles: Crosstube (with grease zerks), clevis, tang, spherical ball bushing, or blank.
- Included Hardware: Pins, clips, and cotter pins.
Core Advantages
- High Strength: Designed for 3,000 PSI continuous duty with a 2:1 safety factor on push loads.
- Compact Design: Welded construction reduces overall length vs. tie‑rod cylinders.
- Versatile Mounting: Multiple end fittings fit diverse equipment configurations.
- Easy Maintenance: Field‑replaceable seals and accessible gland design.
- Quality Assurance: 100% factory tested; ISO 4406 cleanliness compliant.
- Agriculture: Tractors, loaders, harvesters, and sprayers.
- Construction: Backhoes, excavators, cranes, and material handlers.
- Industrial: Waste compactors, presses, and heavy‑duty material processing.
